AR-K0006

(AR-B9439A/9447) Manual

Version 1.0

1. AR-B9439A SYSTEM SETTING

1.1 Packing List

- The quick setup manual

- 1 AR-B9416 Inverter board

- 1 AR-B9439A LVDS for TFT LCD transmitter

- 1 AR-B9447 LVDS transfer (for AR-B9439A)

- 1 44 pin cable (2.0 pitch) from on-board VGA LCD

- 1 5 pin cable (2.0 pitch) from AR-B9416

- 1 Adjust backlight VR

- 1 PS2 keyboard cable from AR-b9447

- 1 5 pin cable (2.5 pitch) from CPU card keyboard header

- 1 UNIPAC LVDS LCD cable

- 1 Inverter FL high voltage cable

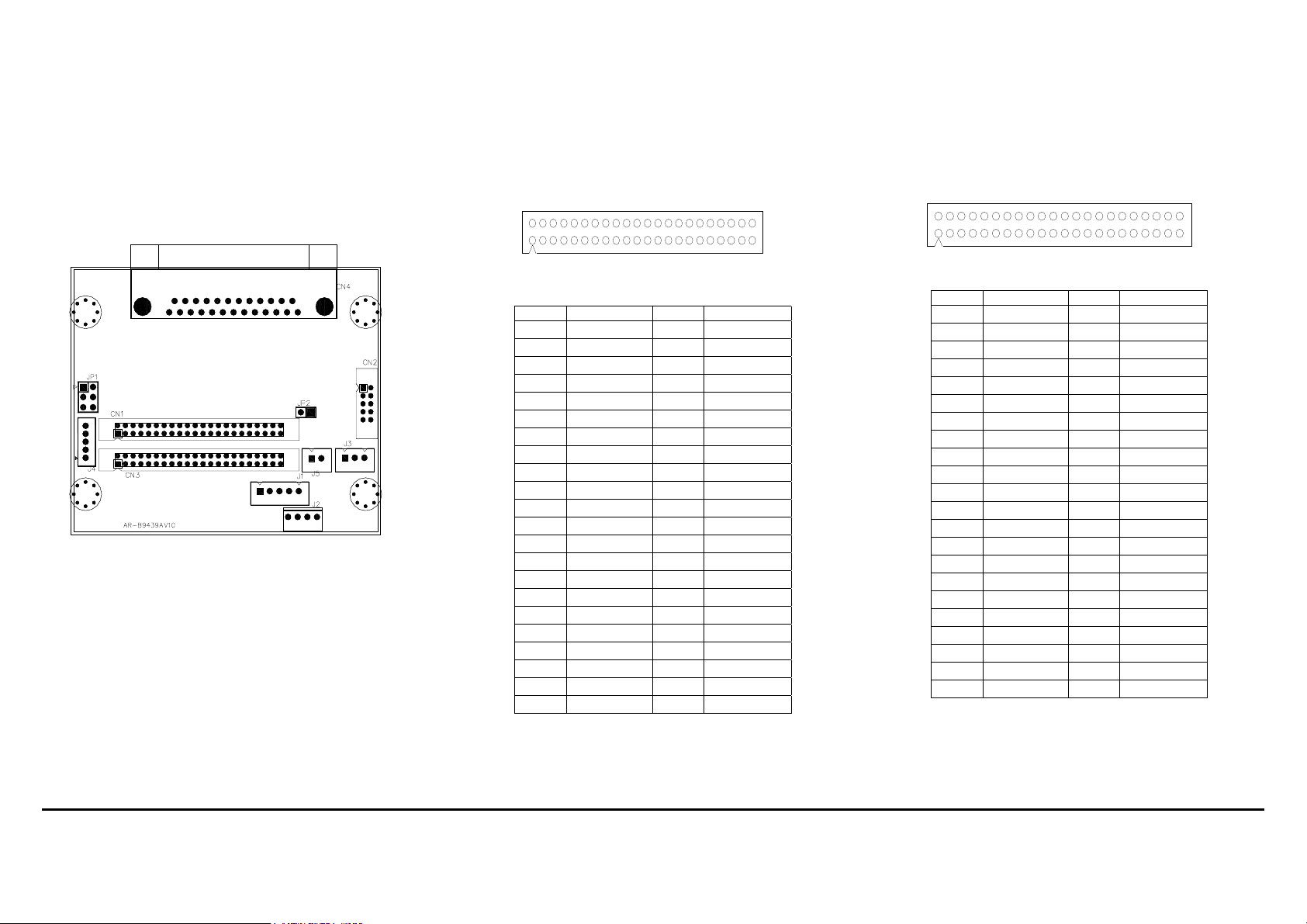

1.2 On-Board VGA Connector (CN1)

Attach a display panel connector to this 44-pin connector with

pin assignments as shown below:

For ACROSSER IPC 18bits LCD interface

1.3 On-Board VGA Connector (CN3)

Attach a display panel connector to this 44-pin connector with

pin assignments as shown below:

For ACROSSER IPC 24bits LCD interface

Pin Signal Pin Signal

1 GND 2 SHFCLK

3 GND 4 LP

5 FLM 6 GND

7 P0 (B0) 8 P1 (B1)

9 P2 (B2) 10 P3 (B3)

11 P4 (B4) 12 P5 (B5)

13 GND 14 P6 (B6)

15 P7 (B7) 16 P8 (G0)

17 P9 (G1) 18 P10 (G2)

19 P11 (G3) 20 GND

21 P12 (G4) 22 P13 (G5)

23 P14 (G6) 24 P15 (G7)

25 P16 (R0) 26 P17 (R1)

27 GND 28 P18 (R2)

29 P19 (R3) 30 P20 (R4)

31 P21 (R5) 32 P22 (R6)

33 P23 (R7) 34 GND

35 VCC 36 VCC

37 +12V 38 +12V

39 GND 40 GND

41 DE 42 ENABLK

43 GND 44 -

Pin Signal Pin Signal

1 GND 2 SHFCLK

3 GND 4 LP

5 FLM 6 GND

7 - 8 -

9 P0 (B0) 10 P1 (B1)

11 P2 (B2) 12 P3 (B3)

13 GND 14 P4 (B4)

15 P5 (B5) 16 -

17 - 18 P8 (G0)

19 P9 (G1) 20 GND

21 P10 (G2) 22 P11 (G3)

23 P12 (G4) 24 P13 (G5)

25 - 26 -

27 GND 28 P16 (R0)

29 P17 (R1) 30 P18 (R2)

31 P19 (R3) 32 P20 (R4)

33 P21 (R5) 34 GND

35 VCC 36 VCC

37 +12V 38 +12V

39 GND 40 GND

41 DE 42 ENABLK

43 GND 44 -

Page 2of 4AR-K0006 (AR-B9439A/9447) Manual

1.4 Transmitting Connector for VGA,

keyboard & RS-232 (CN4)

This 25-pin D-type connector is used to transmit the signal of

VGA, keyboard & RS-232.

15 GROUND

21 +12V

20 GROUND

19 GROUND

18 ENABLK

14 GROUND

25 TXRXD

24 TXTXD

23 GROUND

22 +12V

17 +5V

16 +5V

1 TXOUT0-

6 TXOUT2+

5 TXOUT2-

4 TXOUT1+

3 TXOUT1-

2 TXOUT0+

11 VTKBP

10 TXOUT3+

9 TXOUT3-

7 TXCLK-

8 TXCLK+

13 TXKBC

12 TXKBD

1.5 Output Connector for,

Keyboard & RS-232 (CN2)

Pin Signal Pin Signal

1 Vcc 2 Vcc

3 TXKBC 4 TXKBO

5 GND 6 GND

7 TXRXD 8 TXTXD

9 +12V 10 +12V

1.6 Power Supply Connector (J2)

+12V

VCC

GROUND

1.7 Keyboard Header (J1)

J1 is the keyboard signal transfer to CPU card or back plane

keyboard 5-pin header

1 TXKBC

5 VCC

4 GROUND

2 TXKBD

3 Not Used

1.8 RS-232 Header (J3)

J3 is the header that connects to the 9-PIN serial port of the

CPU card for the touch screen.

1 TXRXD

2 TXTXD

3 GROUND

1.9 LCD Supply Voltage Select (JP1)

+5V

Factory Preset +3.3V

2. AR-B9447 SYSTEM SETTING

2.1 LVDS LCD Connector (CN2)

Attach a display panel connector to this 20-pin connector with

pin assignments as shown below:

For LVDS LCD interface

Pin Signal Pin Signal

1 VDD 2 VDD

3 GND 4 GND

5 RXIN0- 6 RXIN0+

7 GND 8 RXIN1-

9 RXIN1+ 10 GND

11 RXIN2- 12 RXIN2+

13 GND 14 RXCLK-

15 RXCLK+ 16 GND

17 －18 －

19 GND 20 GND

Page 3of 4AR-K0006 (AR-B9439A/9447) Manual

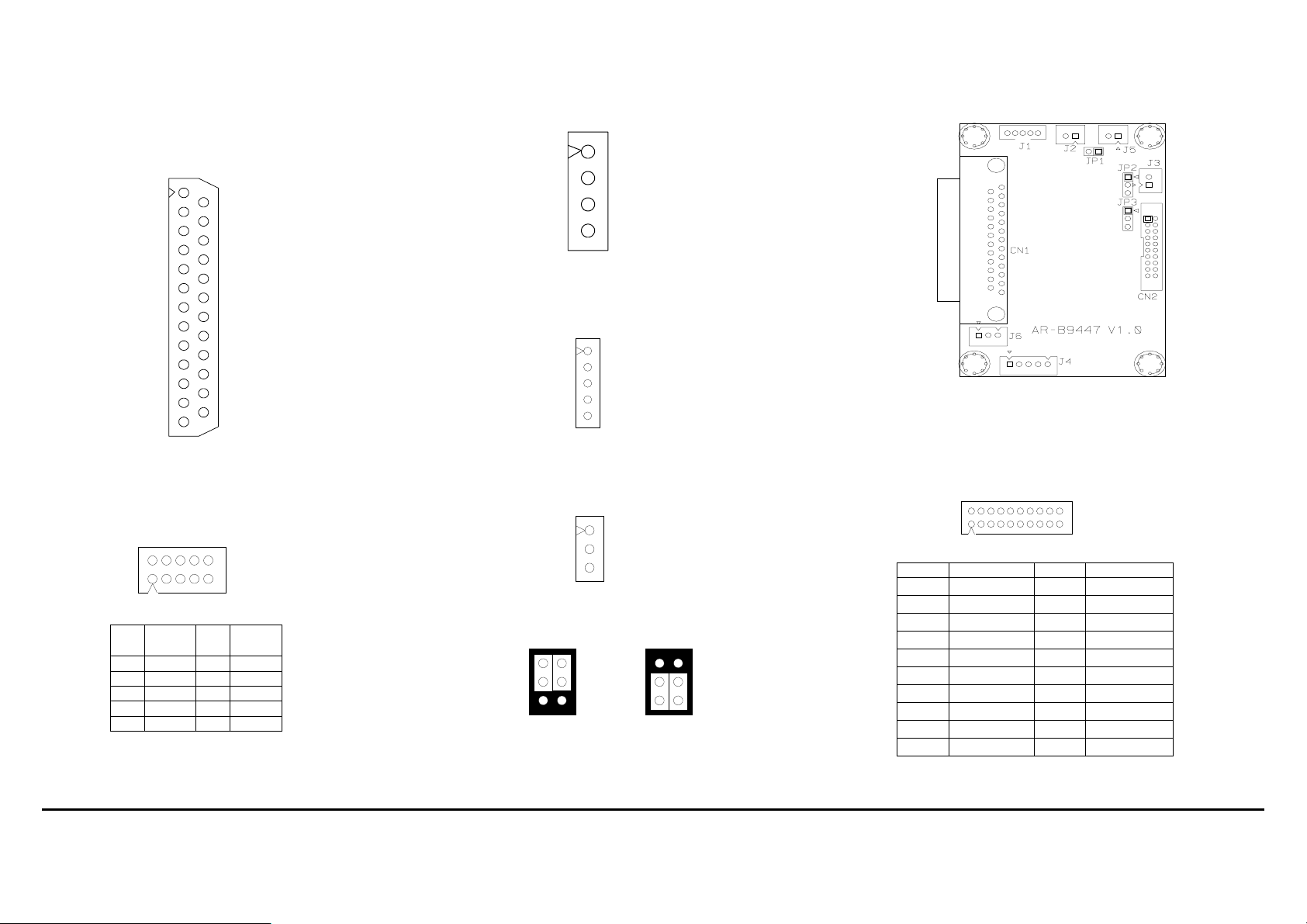

2.2 Receiving Connector for VGA,

keyboard & RS-232 (CN1)

This 25-pin D-type connector is used to receipt the signal of

VGA, keyboard & RS-232.

1 RXIN0-

2 RXIN0+

9 RXIN3-

6 RXIN2+

5 RXIN2-

7 RXCLK-

3 RXIN1-

8 RXCLK+

4 RXIN1+

10 RXIN3+

11 VRKBP

13 RXKBC

12 RXKBD

14 GROUND

24 RXTXD

18 RDENBLT

16 +5V

23 GROUND

20 GROUND

19 GROUND

15 GROUND

17 +5V

21 +12V

22 +12V

25 RXRXD

2.3 Backlight Board AR-B9416 Connector (J1)

J1 is the connector of inverter board.

51234

1 BRIGHT

2 GROUND

3 VBLTP

4 GROUND

5 RDENBLT

2.4 Brightness Adjust Header (J2)

2.5 Touch Screen Control Board Voltage

Header (J3)

1 JP2-2

2 GROUND

2.6 Touch Screen Connector (J6)

321 3 GROUND

2 RXTXD

1 RXRXD

2.7 Keyboard Header (J4)

J4 is the keyboard signal transfer to CPU card or back plane

keyboard 5-pin header

1 TXKBC

5 VCC

4 GROUND

2 TXKBD

3 Not Used

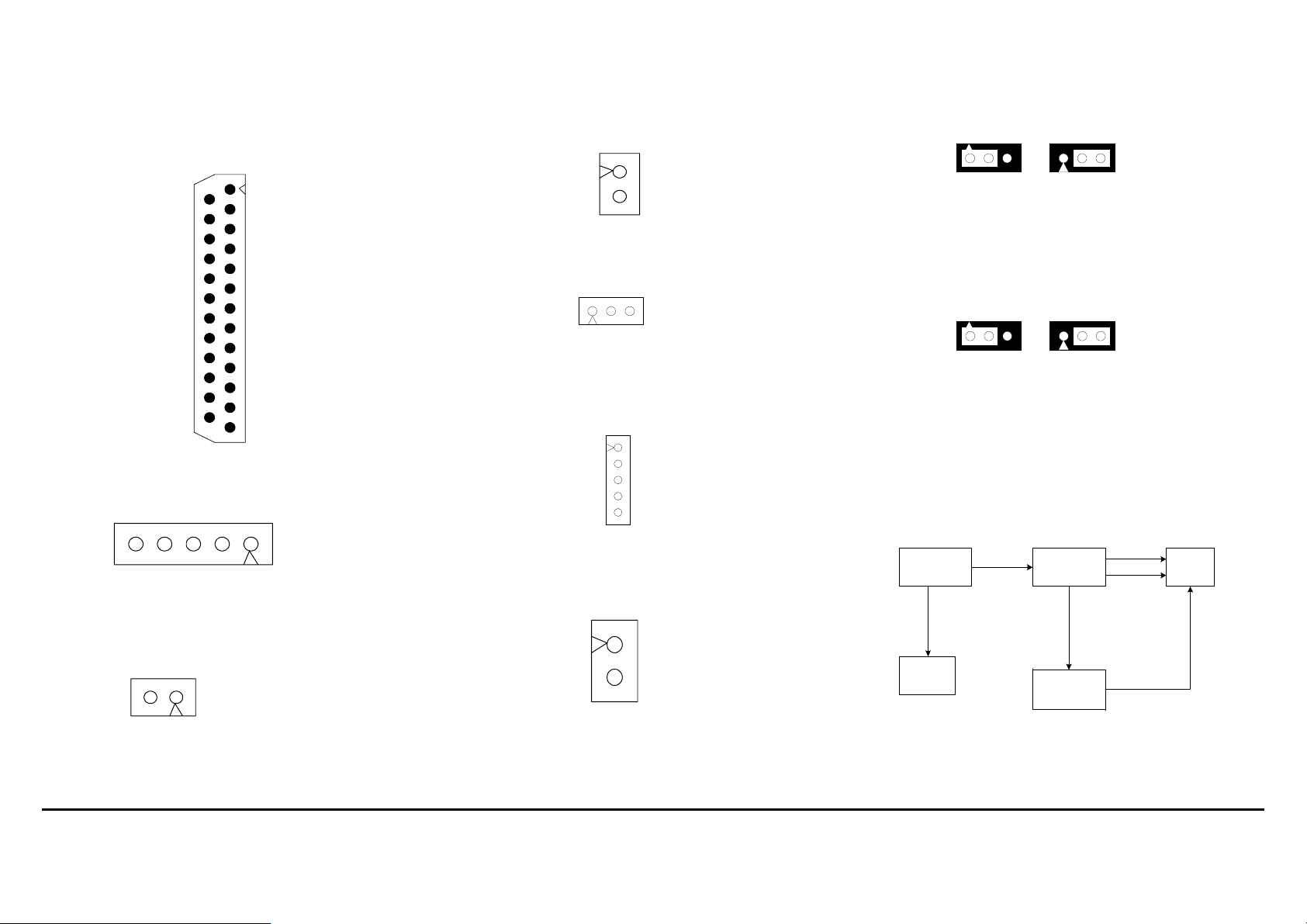

2.8 Output Control LCD Supply Voltage

Header (J5)

1 VDD

2 GROUND

2.9 Touch Screen Voltage Select (JP2)

123

Factory Preset

12V 5V

123

2.10 LCD Supply Voltage Select (JP3)

123

Factory Preset

+5V +3.3V

123

3. LCD PANEL DISPLAY

3.1 Introduction

The following shows the block diagram of using AR-B9439A &

AR-B9447 for LCD display.

AR-B9439A

Transfer Board

AR-B9447

Receiver Board

LCD

Panel

On-Board

VGA Card Inverter

Board

VBL Control

+12V

VEE

FL HIGH

Voltage

1 BRIGHT

2 GROUND

Page 4of 4AR-K0006 (AR-B9439A/9447) Manual

The block diagram shows that AR-B9439A & AR-B9447 still needs

components to be used for LCD panel. The inverter board provides

the control for the brightness of the LCD panel while the inverter is the

one that supplies the high voltage to drive the LCD panel. Each item

will be explained further in the section.

On-Board

VGA Card

Pin1

CN1 or CN3

AR-B9439A

CN4

Pin1

CN1

CN2

AR-B9447

LCD

Panel

Pin1

Touch Screen

Pin1

Inverter

Contrast

Pin1

NOTE: Be careful with the pin orientation when installing connectors

and the cables.

A wrong connection can easily destroy your LCD panel. The

pin 1 of the cable connectors is indicated with a sticker and

the pin1 of the ribbon cable is usually with different color.

The inverter board is the one that supplies the high voltage signals to

drive the LCD panel by converting the 12 volt signal from the

AR-B9447x into high voltage AC signal for LCD panel.

It can be installed freely on the space provides over the VR board, if

the VR board is installed on the bracket, you will have to provide a

place to install the inverter board into your system.

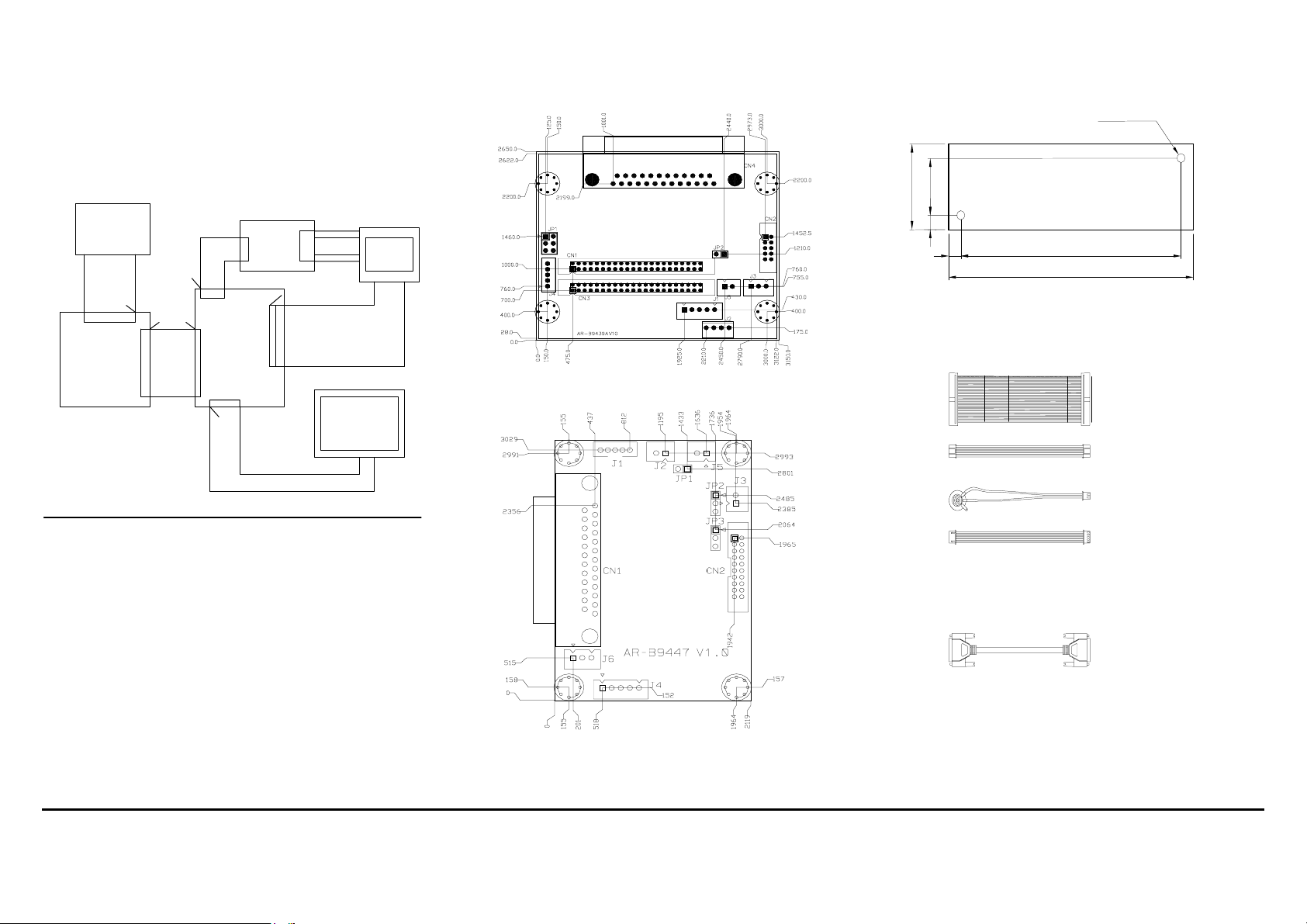

4. DIMENSION

AR-B9439A Dimension

AR-B9447 Dimension

Unit: mil (1 inch = 25.4 mm = 1000 mil)

Accessories:

For AR-B9439 44 pin cable

(2.0 pitch) from on-board

VGA LCD of CPU card or

VGA card

2. For AR-B9416 Inverter

cable (pitch 2.0)

4. For AR-B9447 adjust

backlight VR (2 wire)

6. For the AR-B9439A &

AR-B9447 that keyboard

header connects to the

keyboard 5-pin header of

the CPU card or back

plane

12.

3M or 6M length LVDS

transferring cable (the

cable is the option

accessory)

5.00

90.00

5.00

20.00

100.00

30.00

2−∅3.20

AR-B9416
