AR-B6005 Quick Manual

220010424-G

AR-B6005 Quick Manual

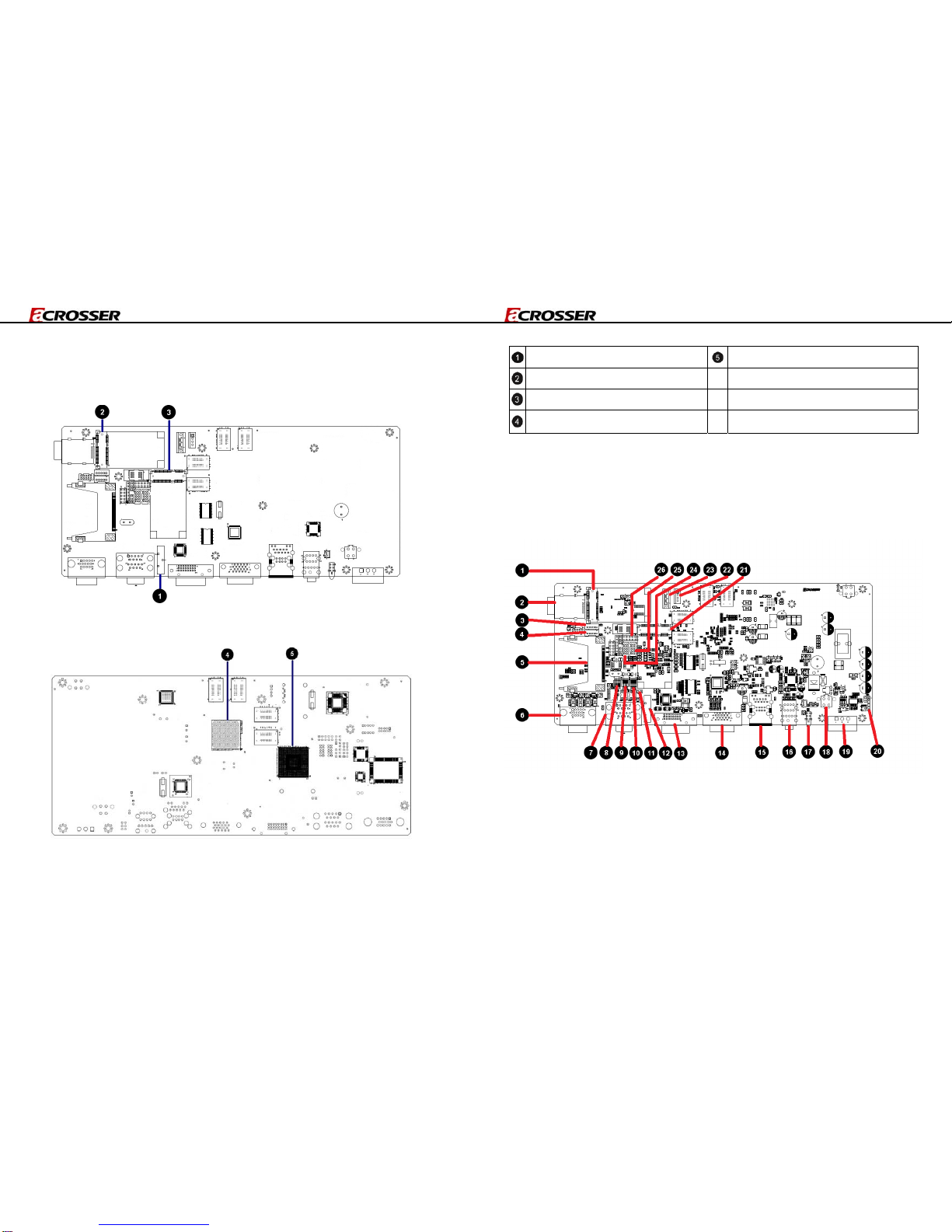

1.Mainboard illustration (Top Side)

Mainboard illustration (Bottom Side)

AR-B6005 Quick Manual

220010424-G

2. Locations of IO ports & Jumper settings definition

BH1

System RTC battery socket Intel Platform Control Hub(PCH) EG20T

MINIPCIE1

MINI PCI-E socket 1

MINIPCIE2

MINI PCI-E socket 2

Intel Atom E620/E640 CPU

AR-B6005 Quick Manual

220010424-G

MINIPCIE1

Mini-PCI Express Card connector COMBO1

Combo connecter

SIM1

SIM card Holder

CN4

RJ45 & USB ports (USB1)Connector .

BT1

Bluetooth module connector.

AUDIO1

Line Out & Mic in ,Remote switch

phone jack.

GPS1

GPS module connector.

LED2

3 in 1 LED for Power, HDD, Status

LED.

CF1

CF CARD SOCKET FUSE1

For Fuse connector

GPIO1

D-SUB 15 pin for External GPIO

connector.

PWR2

Power Input Terminal Block

Connector

COM1_COM3

D-SUB 9 pin for COM1,COM3 RS232

connector

PIC1

PIC Programming connector.

SW1

For RS-422,RS-485 function select. MINIPCIE2

Mini-PCI Express Card connector

SW2

For RS-422,RS-485 function select. SATA_PWR1

For SATA Power Connector #1

SW3

For RS-422,RS-485 function select.

SATA1

SATA device connector #1

CCMOS1

CMOS Memory Clearing Header

COM2_485

Pin Header for COM2 use

RS-422/485 function

BH1

CR2032 Battery Hold Connector.

COM2

Pin Header for COM2 use RS-232

function

DVI1

DVI connecter SPI1

BIOS Programmable HEADER.

AR-B6005 Quick Manual

220010424-G

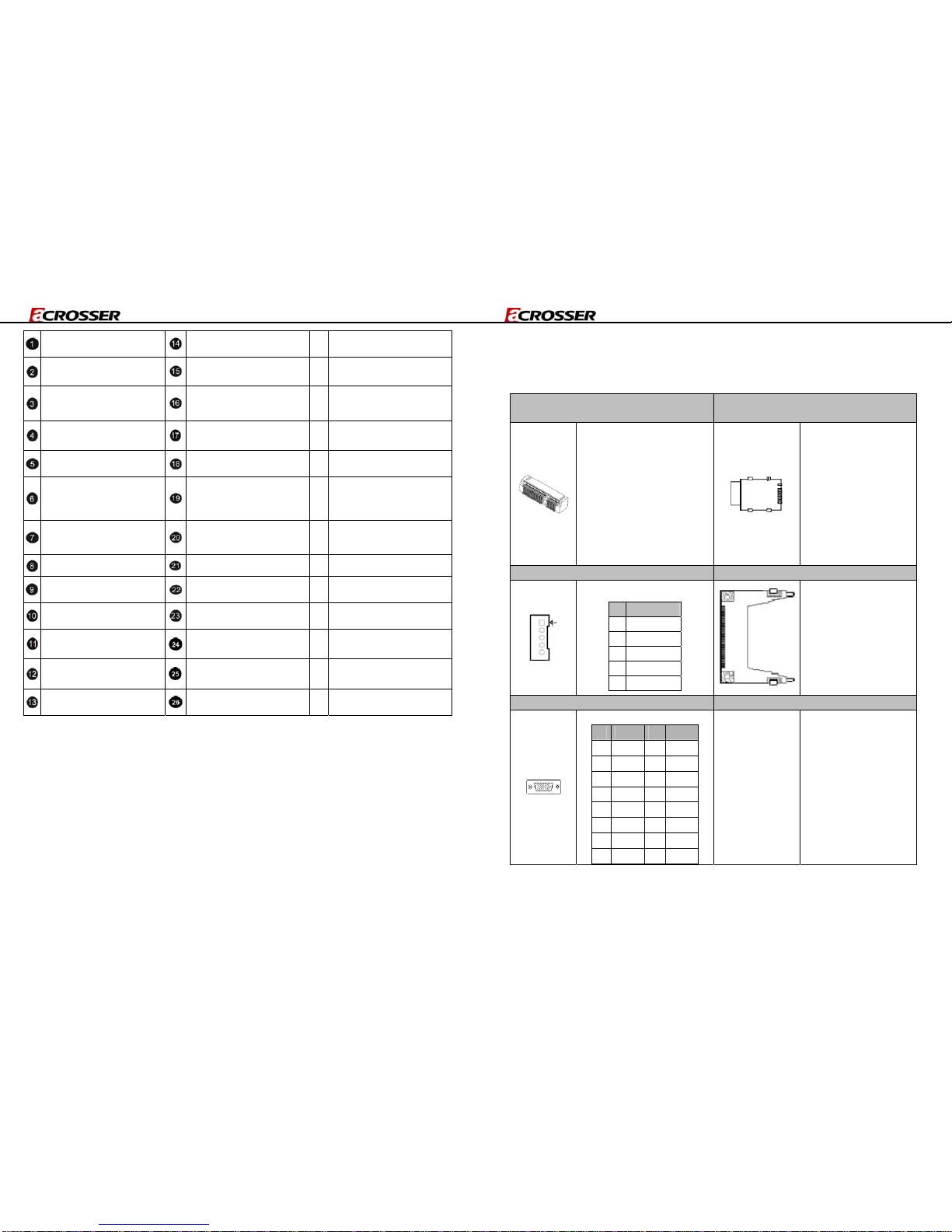

2.1 Connectors and Jumper Settings

1, 21. MINIPCIE1, MINIPCIE2 ( Mini-PCIe

Connector ) 2. SIM1 Connector

Mini-PCIe x1 Connector

SIM Card Holder

Connects to 3.5G Cell phone

SIM Card

3,4. BT1, GPS1 5. CF1 (CF CARD SOCKET)

For Bluetooth ,GPS module connector.

PIN SIGNAL

1+5V

2Data-

3Data+

4GND

5+3.3V

6. GPIO1 (For External GPIO control)

GPIO Pin Define:

PIN SIGNAL PIN SIGNAL

1GPO0 2 GPO1

3GPO2 4 GPO3

5GND 6 GND

7CAN_H 8 CAN_L

9 GND 10 i-Button

11 GPI4 12 GPI5

13 GPI6 14 GPI7

15 VCC12A

AR-B6005 Quick Manual

220010424-G

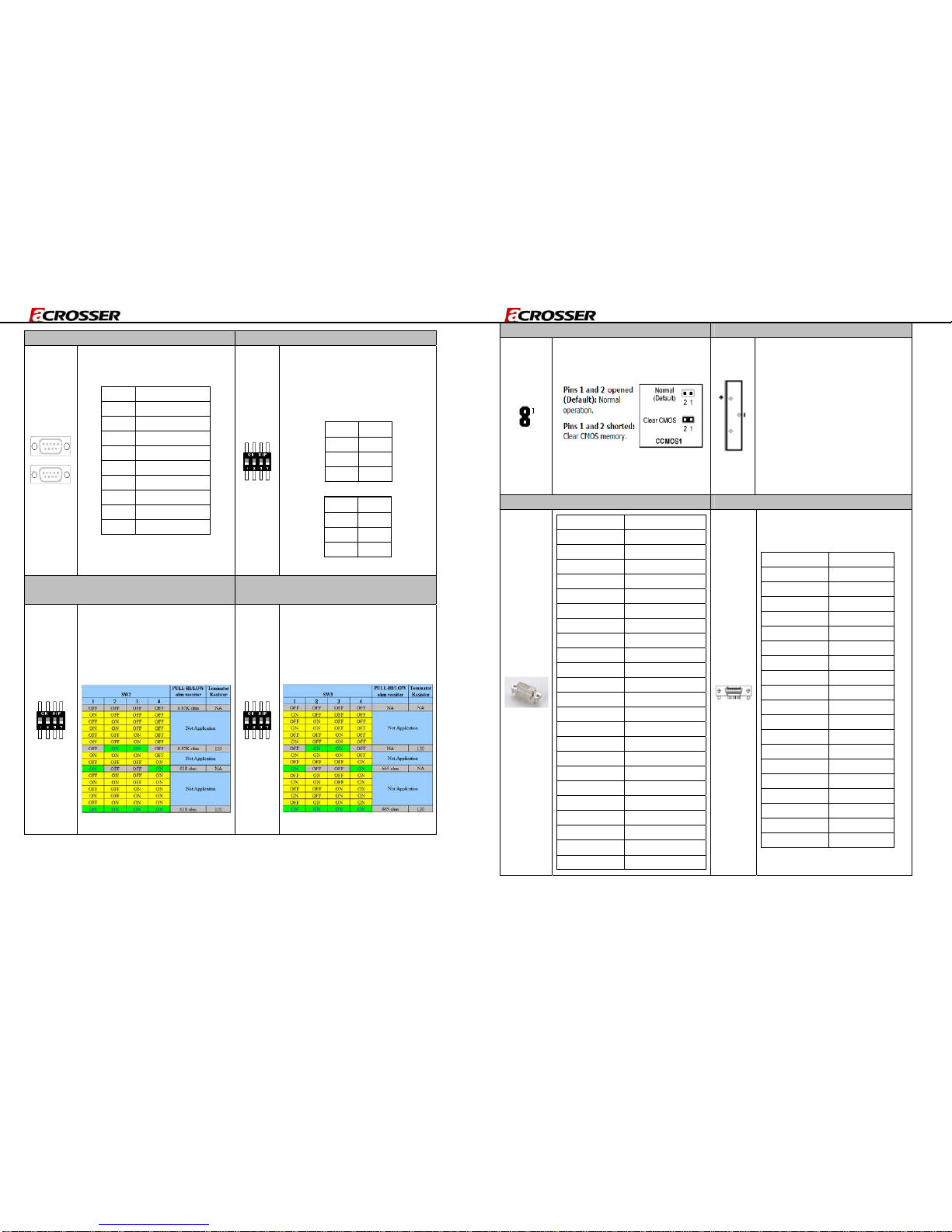

7. COM1_COM3 ( for COM1,COM3 use ) 8. SW1 ( RS-422,RS-485 function select )

Pin SIGNAL

1 DCD

2 SIN

3 SOUT

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 RI

SW1, DIP Switch

For RS-422,RS-485 Function

select(Default: All OFF For RS-232)

RS-422 setting:

1OFF

2ON

3OFF

4 ON

RS-485 setting:

1ON

2ON

3OFF

4 ON

9. SW2 ( RS-422/485 TX Terminator resistor

selection ) 10. SW3 (RS-422 RX Terminator resistor

selection)

SW2 DIP Switch

For RS-422/485 TX Terminator resistor

selection)

(Default: all OFF)

SW3 DIP Switch

For RS-422 RX Terminator resistor

selection)

(Default: all OFF)

AR-B6005 Quick Manual

220010424-G

11. CCMOS1 12. BH1 (Battery Holder)

CMOS Backup Battery:

An onboard battery saves the CMOSmemory to keep

the BIOS information stays on even after

disconnected your system with power source.

Nevertheless, this backup battery exhausts after

some five years

Once the error message like “CMOS BATTERY HAS

FAILED” or “CMOS checksum error” displays on

monitor, this backup battery is no longer functional

and has to be renewed

13. DVI1 14. COMBO1

Pin 1 TMDS Data2-

Pin 2 TMDS Data2+

Pin 3 GND

Pin 4 TMDS Data4-

Pin 5 TMDS Data4+

Pin 6 DDC Clock

Pin 7 DDC Data

Pin 8 Analog VSYNC

Pin 9 TMDS Data1-

Pin 10 TMDS Data1+

Pin 11 GND

Pin 12 TMDS Data3-

Pin 13 TMDS Data3+

Pin 14 +5V

Pin 15 GND

Pin 16 Hot Plug Detect

Pin 17 TMDS Data0-

Pin 18 TMDS Data0+

Pin 19 GND

Pin 20 TMDS Data5-

Pin 21 TMDS Data5+

Pin 22 GND

Pin 23 TMDS Clock+

Pin 24 TMDS Clock-

Pin 1 USB_Data-

Pin 2 USB_Data+

Pin 3 GND

Pin 4 +5V

Pin 5 GND

Pin 6 RED

Pin 7 GREEN

Pin 8 BLUE

Pin 9 HSYNC

Pin 10 VSYNC

Pin 11 DDCCLK

Pin 12 +12V

Pin 13 GND

Pin 14 AUDIO R

Pin 15 GND

Pin 16 NC

Pin 17 AUDIO L

Pin 18 NC

Pin 19 NC

Pin 20 DDCDATA

AR-B6005 Quick Manual

220010424-G

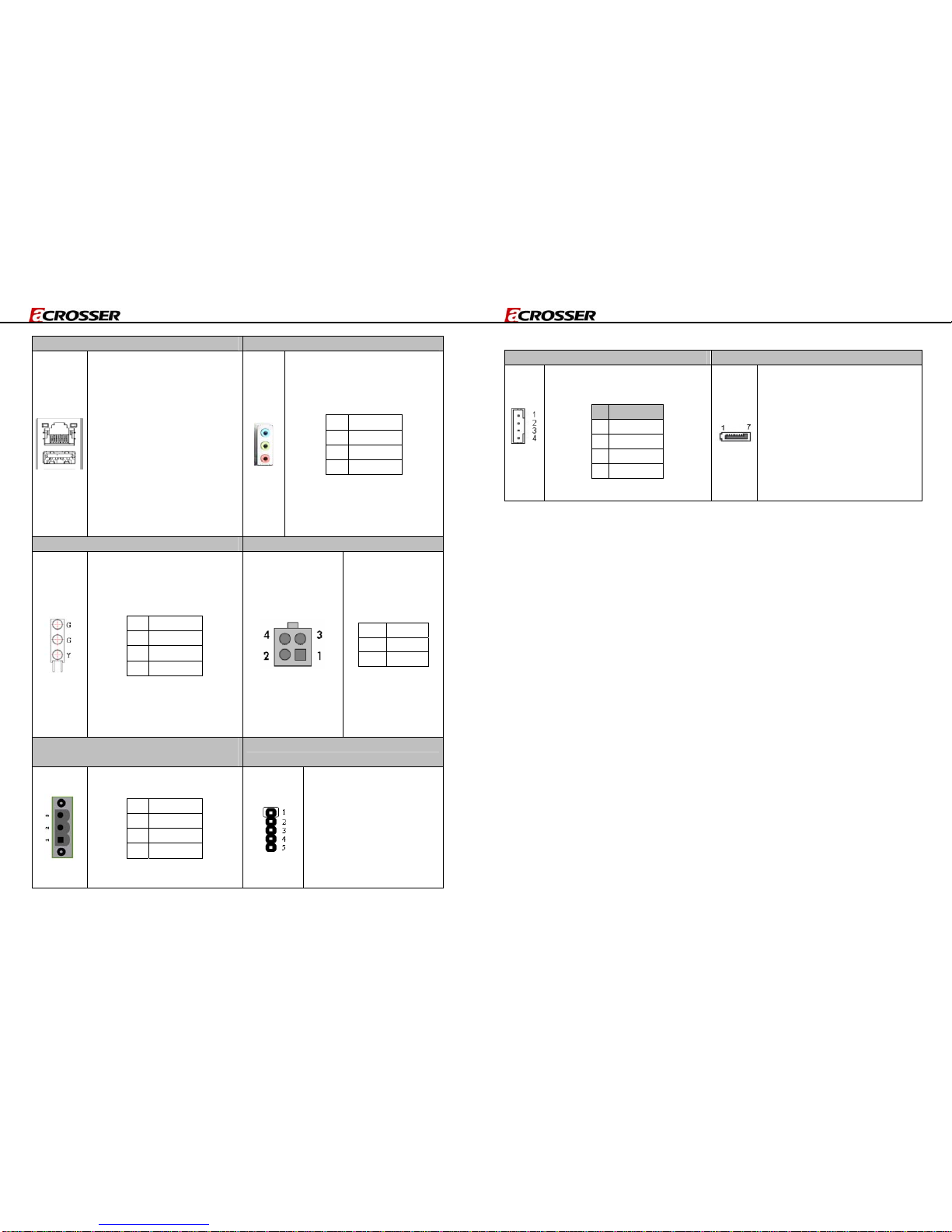

15. CN4 16. AUDIO1

RJ45 Ethernet Connector with 1 port

of External USB Connector

Color SIGNAL

Blue Remote Switch

Green Line Out

Pink MIC IN

17. LED2 (Power State) 18. FUSE1 (Fuse connector)

LED SIGNAL

G PIC LED

G HDD LED

Y Power LED

PIN DEFINE

1,2 Fuse Out

3,4 Fuse In

19. PWR2 (Power Input Terminal Block

Connector) 20. PIC1 (PIC Programming connector)

PIN DEFINE

1 12V / 24V

2 IGN

3 GND

PIC programming connector

AR-B6005 Quick Manual

220010424-G

22. SATA_PWR1 23. SATA1 (SATA device connector #1)

SATA_PWR1 SATA Device Power Connector

PIN SIGNAL

1+12V

2GND

3+3.3V

4+5V

To connect SATA device:

1.Attach either end of the signal cable to the

SATA connector on motherboard

Attach the other end to the SATA device.

2. Attach the SATA power cable to the SATA

device and connect the other end

from the power supply

AR-B6005 Quick Manual

220010424-G

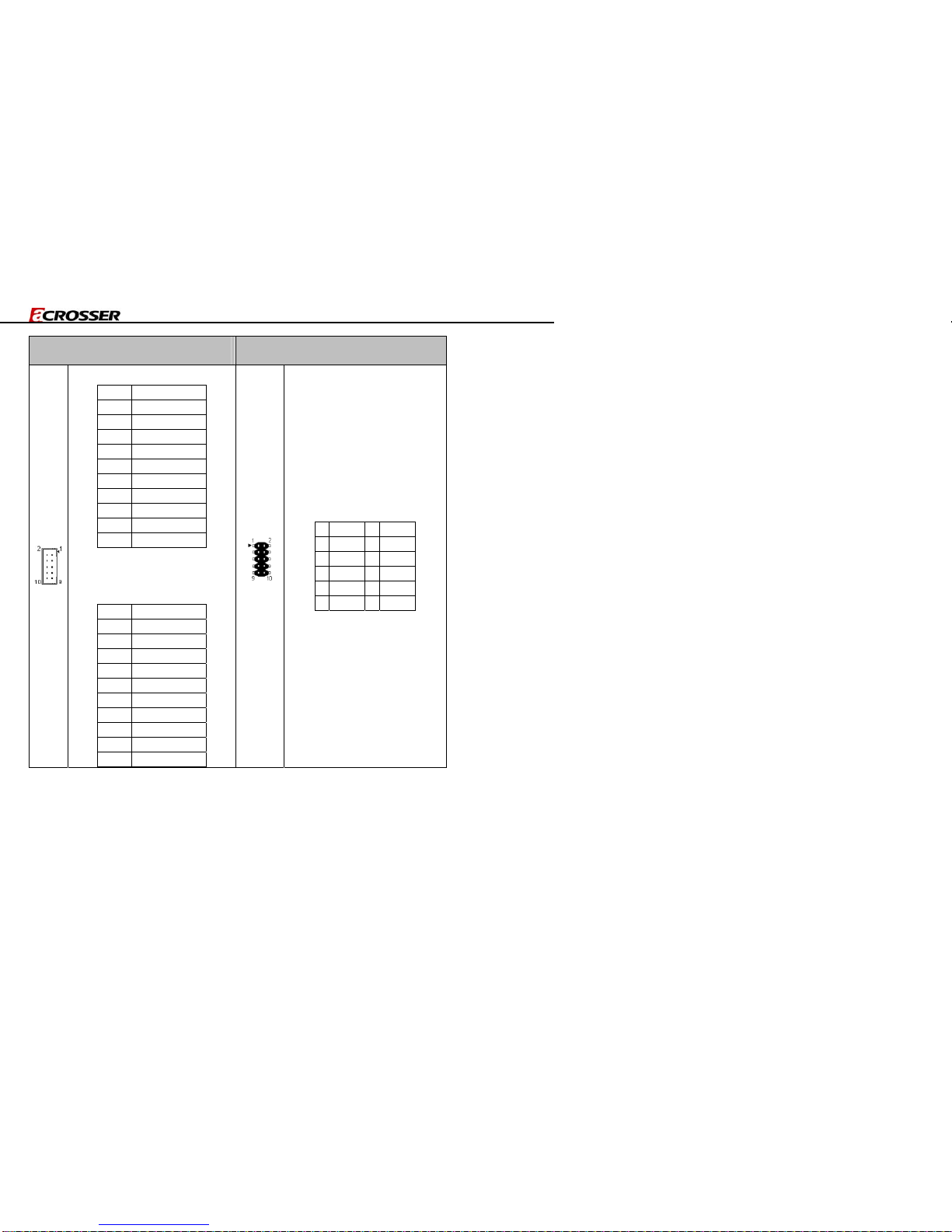

24, 25. COM2, COM2_485 (For COM2

Function select) 26. SPI1 (BIOS Programmable HEADER)

COM2: For RS-232 Function

COM2_485: For RS-422,RS-485

Function

Pin SIGNAL

1 DSR

2 DCD

3 RTS

4 SIN

5 CTS

6 SOUT

7 RI

8 DTR

9 NC

10 GND

Pin SIGNAL

1 NC

2 485_422_TX+

3 NC

4 485_422_TX-

5 422_RX2-

6 NC

7 422_RX2+

8 NC

9 NC

10 GND

PIN DEFINE PIN DEFINE

1CS02+3.3V

3MISO4HOLD

5WP6CLK

7 GND 8 MOSI

9 N.C 10 N.C
