Acrosser Technology AR-B104D Guide d'installation

AR-B104D Quick Manual

P/N：220010396-G

AR-B104D Quick Manual V1.01

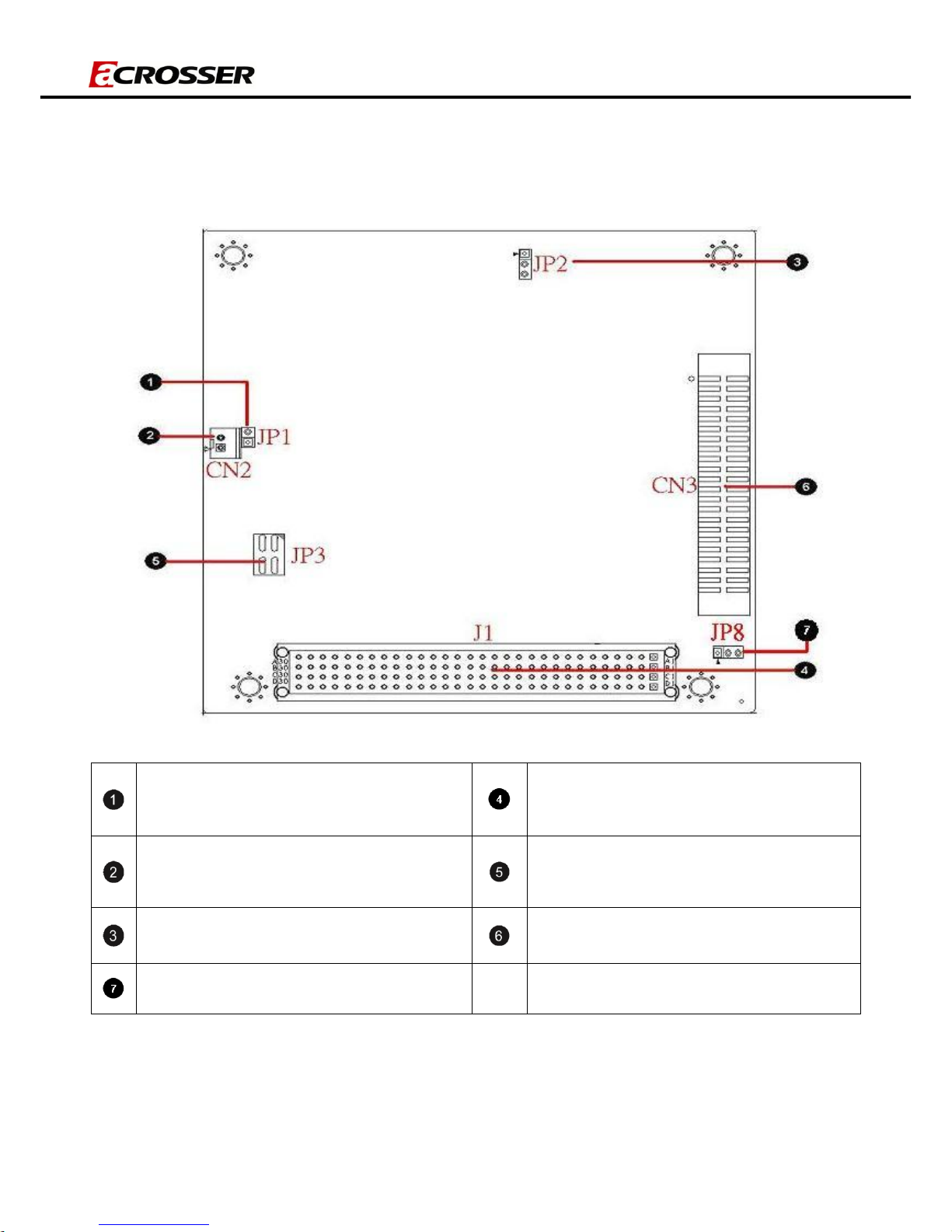

1.Mainboard illustration (Top Side)

JP1

CAN Bus terminal resister select pin

header.

PCI BUS connector (PC-104 Plus)

CN2

CAN Bus connector

JP3

Operation mode selection.

JP2

Clear SRAM pin header.

CN3

GPIO connector.

JP8

SRAM mode select.

AR-B104D Quick Manual

P/N：220010396-G

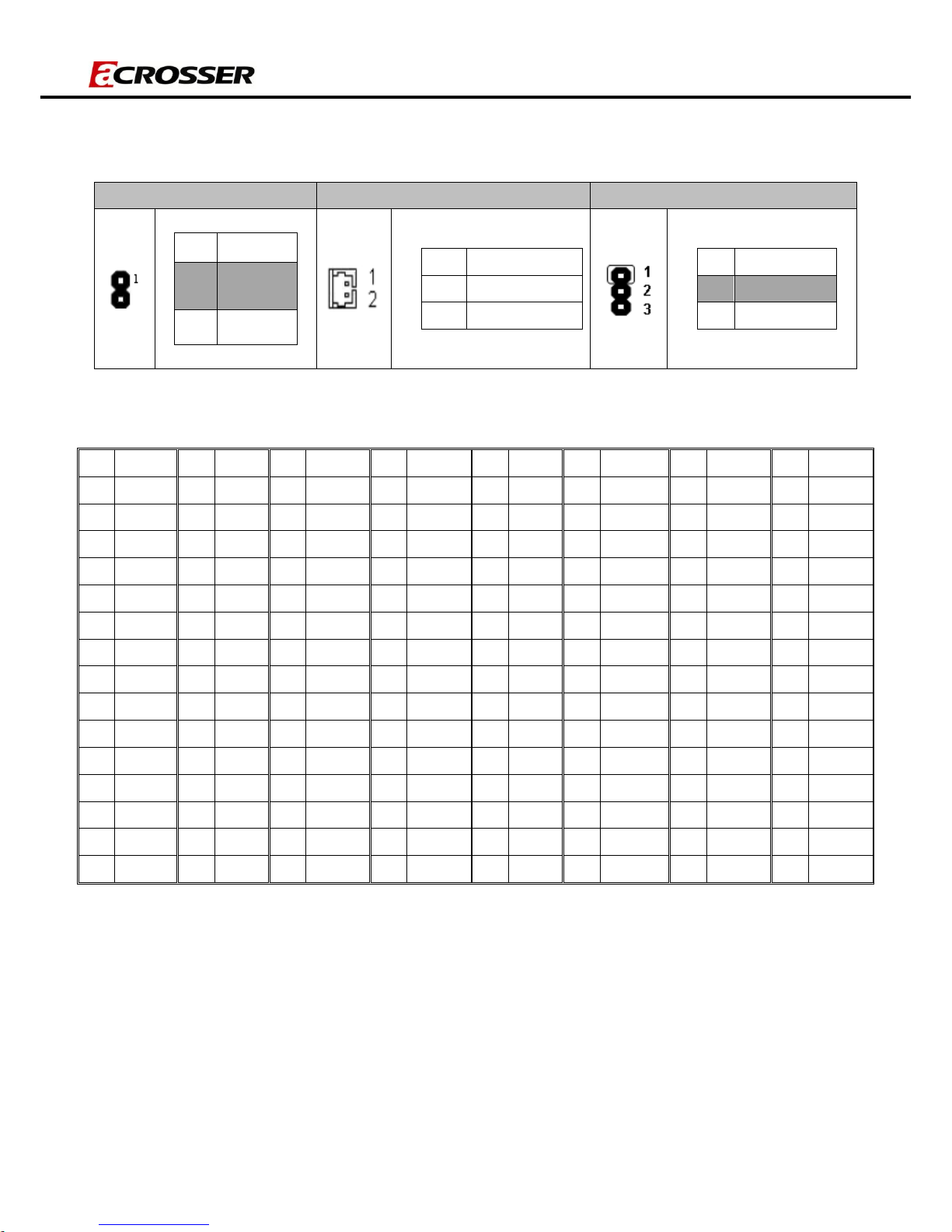

2.Connector and Jumper Setting Table

1. JP1

2. CN2

3. JP2

Description

120 ohm

resister.

open

None.

Description

CAN High

CAN Low

Description

1-2

Normal

2-3

Clear SRAM

4. CN4

define

GND

SIRQ

A16

AD21

B16

AD20

+5V

AD00

C16

GND

D16

AD19

VIO

AD02

A17

3.3V

B17

AD23

AD01

+5V

C17

AD22

D17

+3.3V

AD05

GND

A18

IDSEL0

B18

GND

AD04

AD03

C18

IDSEL1

D18

IDSEL2

CBE0#

AD07

A19

AD24

B19

CBE3#

GND

AD06

C19

VIO

D19

IDSEL3

GND

AD09

A20

GND

B20

AD26

AD08

GND

C20

AD25

D20

GND

AD11

VIO

A21

AD29

B21

+5V

AD10

M66EN

C21

AD28

D21

AD22

AD14

AD13

A22

+5V

B22

AD30

GND

AD12

C22

GND

D22

AD31

3.3V

CBE1#

A23

REQ0#

B23

GND

AD15

+3.3V

C23

REQ1#

D23

VIO

SERR#

GND

A24

GND

B24

REQ2#

SB0

PAR

C24

+5V

D24

GNT0#

A10

GND

B10

PERR#

A25

GNT1#

B25

VIO

C10

+3.3V

D10

SDONE

C25

GNT2#

D25

GND

A11

STOP#

B11

+3.3V

A26

+5V

B26

PCICLK0

C11

LOCK#

D11

GND

C26

GND

D26

PCICLK1

A12

3.3V

B12

TRDY#

A27

PCICLK2

B27

+5V

C12

GND

D12

DEVDEL#

C27

PCICLK3

D27

GND

A13

FRAME#

B13

GND

A28

GND

B28

INTD#

C13

IRDY#

D13

+3.3V

C28

+5V

D28

RST#

A14

GND

B14

AD16

A29

+12V

B29

INTA#

C14

+3.3V

D14

CBE2#

C29

INTB#

D29

INTC#

A15

AD18

B15

+3.3V

A30

-12V

B30

REQ3#

C15

AD17

D15

GND

C30

GNT3#

D30

GND

AR-B104D Quick Manual

P/N：220010396-G

5. JP3

Note: The JP3 default setting is Mode0.

Operation mode description

Description

1-2,3-4 open

Mode 3

1-2 open,3-4 short

Mode 2

1-2 short,3-4 open

Mode 1

1-2,3-4 short

Mode 0

PCICLK

IDSEL

INT 0

Mode 0

PCICLK0

IDSEL0

Mode 1

PCICLK1

IDSEL1

Mode 2

PCICLK2

IDSEL2

Mode 3

PCICLK3

IDSEL3

AR-B104D Quick Manual

P/N：220010396-G

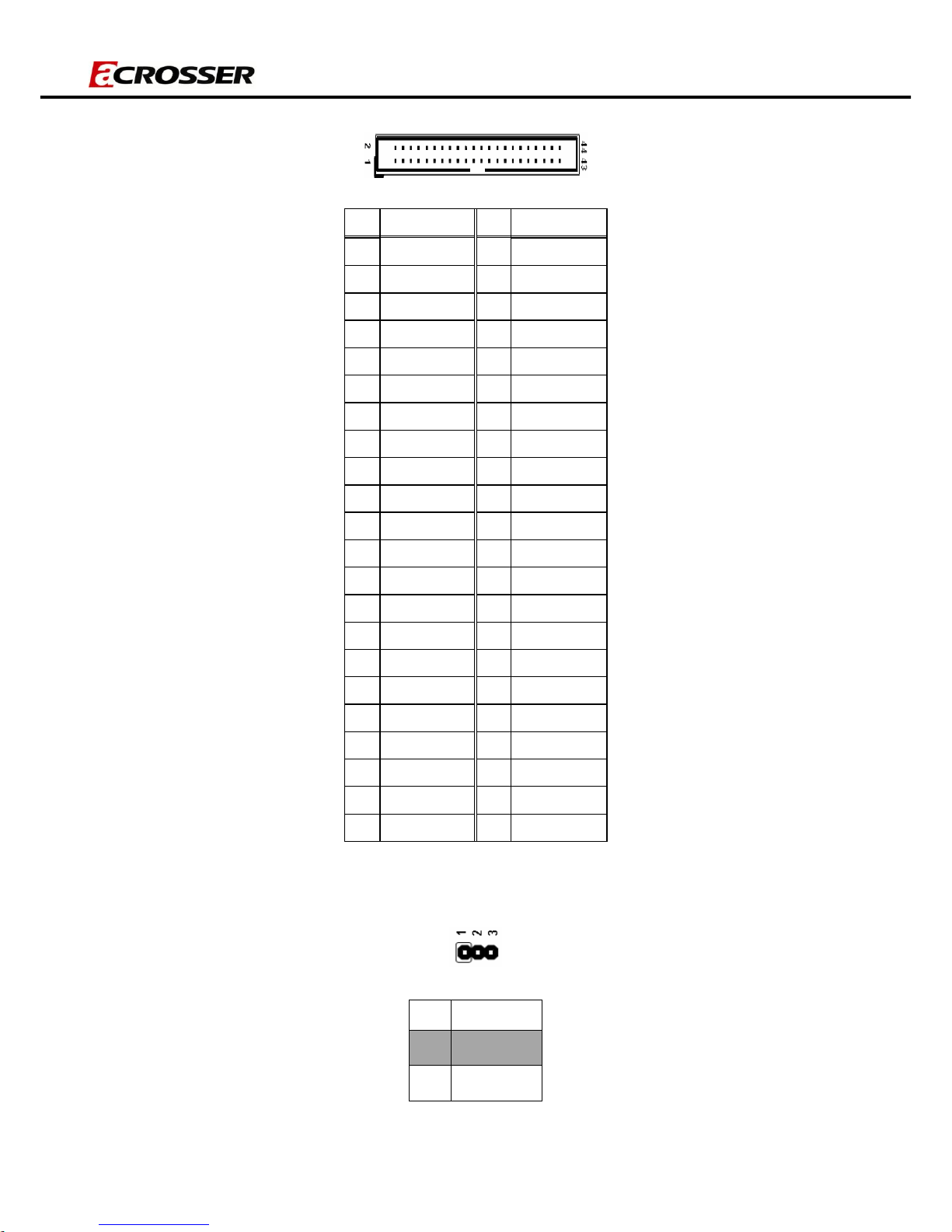

6. CN3

DESCRIPTION

GPI0

GPI1

GPI2

GPI3

GPI4

GPI5

GPI6

GPI7

GPI8

GPI9

GPI10

GPI11

GND

GPO0

GPO1

GND

GPO2

GPO3

GND

GPO4

GPO5

GND

GPO6

GPO7

GND

GPO8

GPO9

GND

GPO10

GPO11

7. JP8

Description

1-2

Memory mode

open

Disk mode

AR-B104D Quick Manual

P/N：220010396-G

3.AR-B104D digital I/O, SRAM disk & CAN bus Module

AR-B104D is a PCI-104 super I/O module which equipped with CAN bus, SRAM disk and digital

I/Os on a single module.

Features

1x 2KV isolated CAN bus. Support 2.0A and 2.0B protocol.

Time stamp of CAN message

1MB battery backup SRAM disk. Supports disk and memory modes.

12x optical isolated digital inputs. Support counter mode.

12x 500 mA current sink digital outputs. Support pulse generator mode.

Linux and Windows 2000, XP Software Development Kit (SDK).

Specifications

General

Bus interface

1. PCI 104

2. PCI 2.0 Compliant

SRAM disk

1. Capacity: 1M Bytes

2. Battery backup

3. Operation mode:

A. Memory Mode

B. Disk Mode

C. Mode selection through Jumper (factory

default disk mode)

Digital Input

1. 12 optical isolated channels

2. Operating mode:

A. General digital input

B. Counter mode

3. Programmable de-bounce time (0 ms to

255ms, 1 ms resolution).

4. Support Change of State interrupt

5. Response time: 20 uS + de-bounce time

6. Response time: OPTO (delay time + OPTO

rising time = 20uS) + debounce time. Default =

16.02ms.

7. Trigger: rising trigger or falling trigger

8. Signal Type:

A. Open/Ground switch input

AR-B104D Quick Manual

P/N：220010396-G

B. Digital Logic

i. Logic High: 3V to 28V

ii. Logic Low: 0V to 1.5V

9. Maximum input frequency 10KHz( duty =

50% ).

Counter

1. All digital input support counter mode

2. 12 x independent 16-bit counters

3. Connect to all digital inputs

4. Operation Mode:

a. Count to number interrupt.

b. Read and clear

c. Read on the fly

d. Auto stop counting after programmable

constant state interval(Interrupt active

after programmable constant state

interval Resolution: 1ms, and 100ms)

Digital Output

1. 12 channels

2. Output Type: Open drain MOSFET driver

3. Output voltage range: 5V to 30V

4. Sink Current: maximum 500mAeach channel

5. Power on initial state: MOSFET off

6. Support pulse generator

A. Programmable cycle time, duty cycle and

number of cycles. User defines on and off

periods (maximum 8-bit for on and off

period value).

B. Maximum 65535 cycles

C. RUN & STOP command

D. Programmable time unit: 1 ms, 100ms

and 1 second

Timer

1. 12 x independent 16-bit timers

2. Support Time Out Interrupt

3. Programmable time unit: 1 ms and 100ms

CAN bus

1. 1 x CAN bus

2. 2KV isolation

3. Support both CAN 2.0Aand 2.0B protocol

4. Programmable baud rate: from 5K bps

Maximum 1M bps or user-defined baud rate

5. Time stamp of CAN message

AR-B104D Quick Manual

P/N：220010396-G

6. API library for user development

7. CAN bus device status query

8. Device driver for Windows 2000/XP/XPe and

Linux

Maximum card

Maximum 2 cards can be stacked up in one system

Software

1. Windows XP, XPe and Linux device driver and

API

2. Windows XP, XPe and Linux demo program

3. User interface for DIO, SRAM and CAN bus in

Linux and Windows XP embedded

Mechanical

Dimension

90.17 x 95.89mm (3.55”x3.775”)

Operating Temp.

-20oC to 70oC (-1~158oF) without air flow

Storage Temp.

-20~85oC (-4~185oF)

Relative Humidity

0 to 90% @ 40°C, non-condensing (95% @ 40°C, Non-Condensing by

request)

EMC & Safety

EMC

CE, FCC
