Acrosser Technology AR-B1893A Manuel utilisateur

Page 1 of 5 AR-B1893AQuick Manual

Part NO. 220010141

AR-B1893A MANUAL

Version 1.1

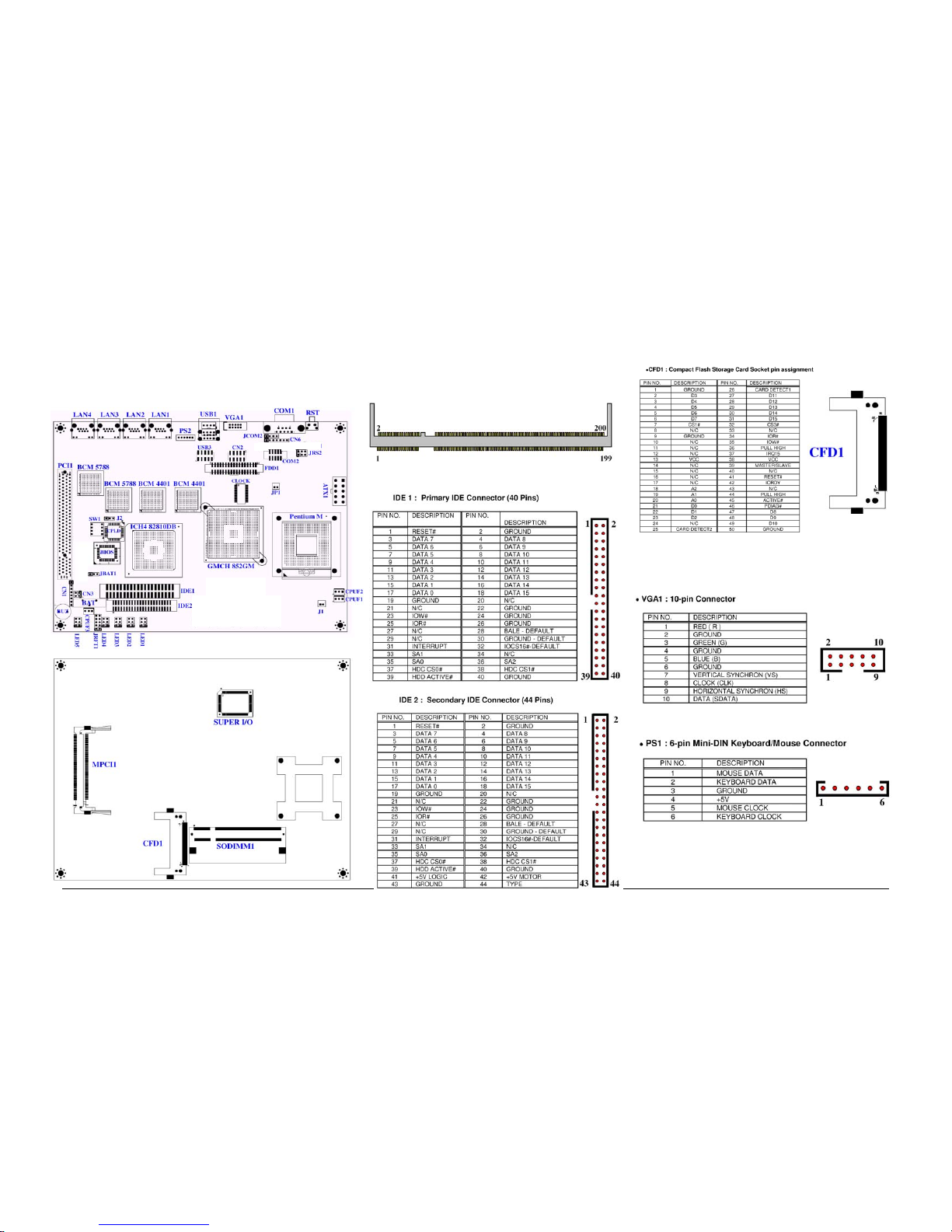

1. SETTING UP THE SYSTEM

TOP PLACEMENT

BOTTOM PLACEMENT

1.1 SO-DIMM DDR-SDRAM SOCKET 200

PIN (SODIMM1)

1.2 HARD DISK (IDE1 & IDE2) & CF

CONNECTOR (CFD1)

Note:If IDE2 & CFD1 both in used, CFD1 must be as “Master” & IDE2

is as “Slave”.

1.3 VGA CONNECTOR

1.4 KEYBOARD / MOUSE CONNECTOR

Page 2 of 5 AR-B1893AQuick Manual

Part NO. 220010141

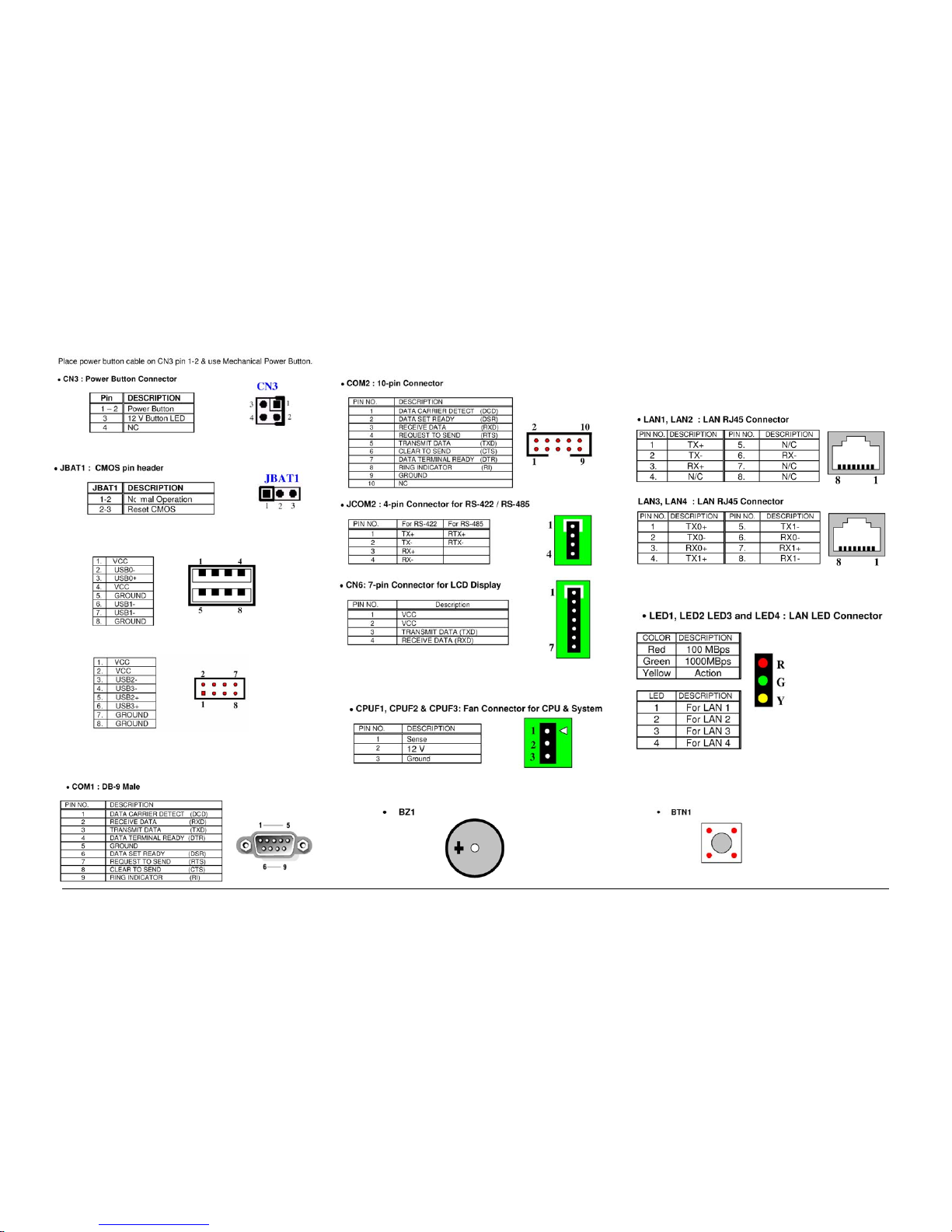

1.5 POWER CONNECTOR

1.6 CMOS JUMPER

1.7 USB PORT

• USB1 (Port0 & Port1)

• USB3 Pin Header (Port2 & Port3)

1.8 SERIAL PORT

COM1: RS-232

COM2: RS232 / RS-422 / RS-485

Note: If CN6 in used, COM2 can’t be used

1.9 FAN CONNECTOR (CPUF1, CPUF2, CPUF3)

1.10 INTERNAL BUZZER (BZ1)

1.11 ETHERNET RJ-45 (LAN1, LAN2, LAN3,

LAN4)

1.12 ETHERNET LED

1.13 RESET BUTTON

Page 3 of 5 AR-B1893AQuick Manual

Part NO. 220010141

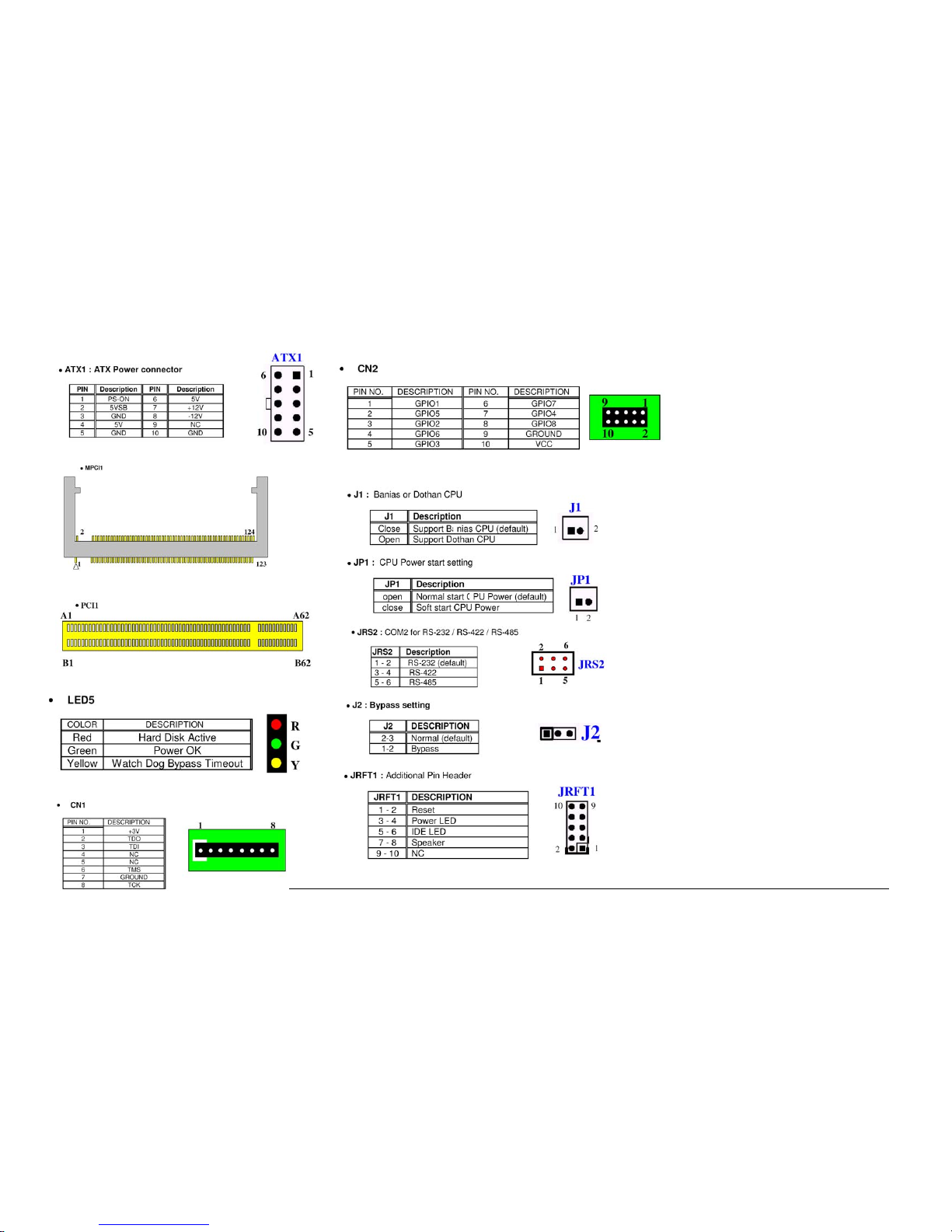

1.14 ATX POWER (ATX1)

1.15 MINI PCI SLOT (MPCI1)

1.16 PCI SLOT (PCI1)

1.17 POWER/HD/BYPASS LED (LED5)

1.18 ISP CPLD CONNECTOR (CN1)

1.19 GPIO PORT (CN2)

1.20 JUMPER & PIN HEADER

Page 4 of 5 AR-B1893AQuick Manual

Part NO. 220010141

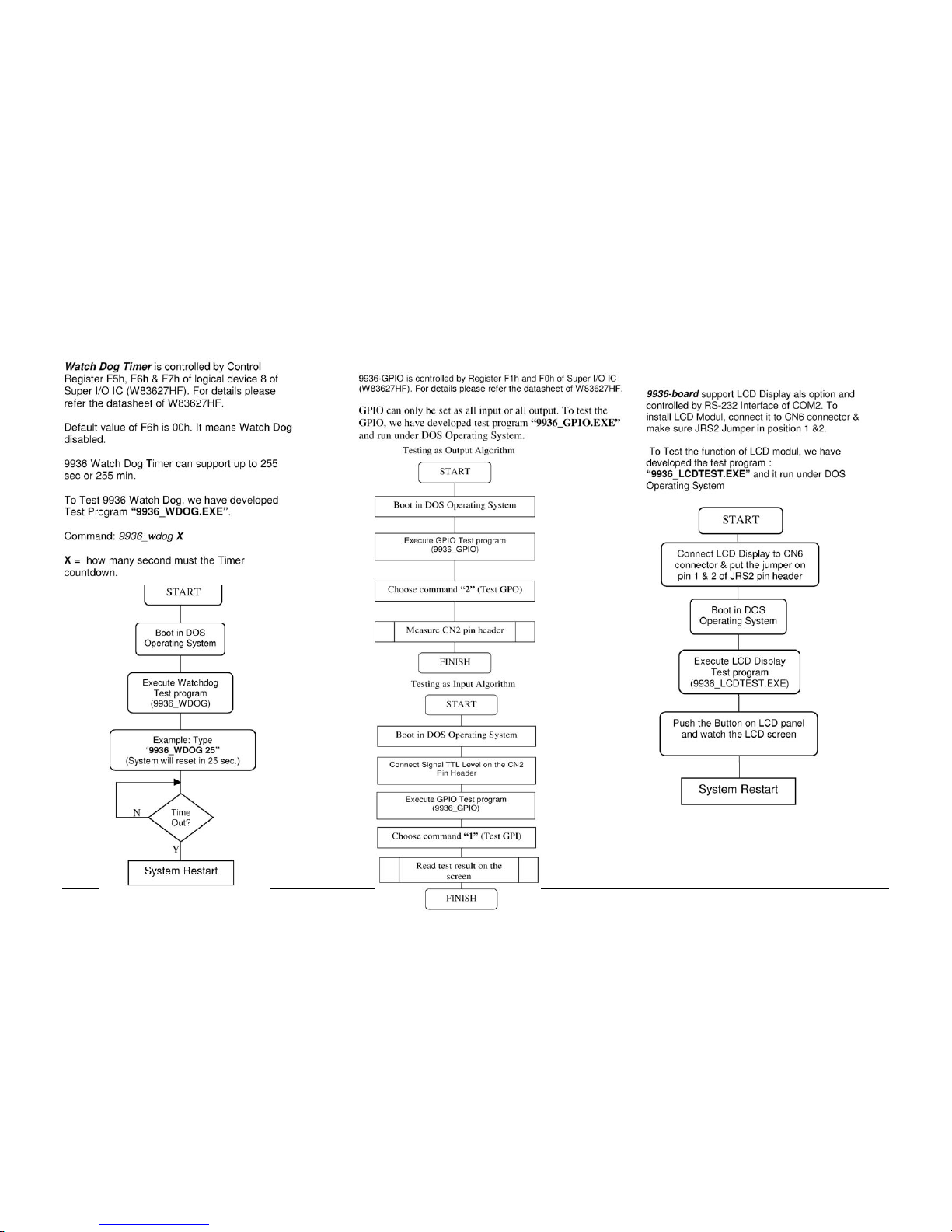

2.0 WATCH DOG TESTING

2.1 GPIO TESTING

2.2 LCD DISPLAY TESTING

Page 5 of 5 AR-B1893AQuick Manual

Part NO. 220010141

2.3 ETHERNET MAC ADDRESS

PROGRAMMING

2.3.1 BCM4401 Ethernet:

Program the eeprom in engineering

mode

(1) Boot from DOS (Win 98 preferred) and

type b44diag –b44eng

(2) 0:>sromutil –m 001018000001 14e4

8401. MAC address 001018000001,

SVID:14e4 and SID:8401 will be

programmed into eeprom. You can change

to other values if nevessary.

(3) 0:>sromutil –b 0. Disable PXE function

on NIC if PXE binary image is being

integrated into BIOS.

(4) 0:>sromutil –d –feeprom.bin, you will get

your golden eeprom.bin file

(5) Exit to DOS

(6) Re-boot the system

(7) Under engineering mode, customers can

see a list of all commands by typing “help”

after 0:>. In addition, for all parameters,

please type 0:>command ? (for example

0:>secfg ?, and you should get a list of all

parameters associated with that specific

command),

Program the eeprom in manufacture

(1) b44diag -c 0 -e b44kia -f eeprom.bin -m

-T c34 (external loop back cable required).

You

will be prompt to enter MAC address

(2) b44diag -c 0 -e b44kia -fmac macaddr.txt

-T c34 (The program will get the MAC

address from

macaddr.txt)

The contents of macaddr.txt as below will

provide you the MAC address range from

00:10:18:00:00:01 to 00:10:18:00:00:03.

You can modify the macaddr.txt by yourself.

mac_addr_pref = 001018

mac_addr_start = 000001

mac_addr_end = 000003
