Chapter 1 Introduction / 1
Introduction
How This Manual is Organized
This manual is divided into the following sections:
Chapter 1 Introduction : Manual information and checklist.
Chapter 2 Features : Information and Specifications con-
cerning this mainboard.
Chapter 3 Installation : Instructions on setting up the board.
The mainboard is a high-performance mainboard based on the ad-
vanced Socket 370 microprocessor, the VGA, Audio , PCI Bus and
the Intel 810-DC100 chipset (6M810D) / Intel 810 chipset
(6M810CN) .
1
Chapter 1
2 / Chapter 1 Introduction
Package Checklist
Please check that your package is complete . If you discover any item
damaged or missing , please contact with your retailer immediately.
The 6M810D/810CN mainboard.
Serial COM2 conector with bracket
1 x IDE UDMA 66 ribbon cable.
1 x floppy ribbon cable.
6M810D/810CN drivers and utilities
This user's Manual
Chapter 2 Features / 3
2
Chapter 2
Features
Features of the 6M810D/810CN Mainboard
Intel 810-DC100 (GMCH+ICH) chipset supports 66/100MHz
FSB, UltraDMA 66. (6M810D)
Intel 810 (GMCH+ICH) chipset supports 66/100MHz FSB,
UltraDMA 66. (6M810CN)
Supports Intel's Celeron and Coppermine processor designed
for socket 370 package in PPGA,FC-PGA.
Socket 370 Celeron / Coppermine up to 700MHz/1GMHz
processor.
4 / Chapter 2 Features
Integrated Graphics controller supports 3D hyper pipelined
architecture, parallel data processing and compression, precise
pixel interpolation, full 2D hardware acceleration , and motion
video acceleration. Optional on board 4MB SDRAM display
cache allows upto 1024x768x16 bit color for 3D graphics and
1600x1200x8 bit color for 2D graphics
support "Touch Button Wake up" for soft power on/off and
suspend mode multifunction.
support Windows 95/98 system Software shutdown (power
off) automatically.
support CPU FAN ON/OFF and LED indicator under SUS-
PEND mode.
support Resume by Ring through Modem.
Uses 168-Pin DIMM modules(supports Intel PC100-compliant
SDRAMs) x2 auto banking in multiple configuration up to
512MB. (6M810D/810CN)
3 x PCI Bus slots, and 1 x AMR (Audio Modem Riser) slots.
All 3 PCI slots support Master mode.
System BIOS support 4 IDE hard disk drivers that don't need
device driver for S/W application.
PCI Bus master IDE interface on board with two connectors
support 4 IDE devices in 2 channel, the PCI IDE Controller
supports PIO Mode 0 to Mode 4, Bus master IDE DMA Mode 2
and Ultra DMA 66MB.
Support PS/2™ mouse Connector.
Chapter 2 Features / 5
Support the Universal Serial Bus (U.S.B) .
Support Floppy A .
System BIOS supports LS-120, ZIP driver firmware and
Green feature function, Plug and Play Flash ROM.
AC'97 DAC built into the audio CODEC reduces noise to im-
prove audio quality and performance for a SNR (signal to noise
ratio) of +90dB. These features greatly improve voice synthesis
and recognition. If more quality is required, an optional onboard
Crysial PCI audio improves audio quality beyond software audio.
Support Software Virus Warning in BIOS
Support ACPI functionStatic Electricity Precautions
Thermal detect (GL520SM) : option
The system's BIOS will sense CPU's temperature through
GL520SM on board. The User can watch what current tempera-
ture of CPU is & current CPU FAN status is from BIOS. To Using
LDCM software (optional ) . The user will watch the indication on
Win 95/98 environment.
6 / Chapter 2 Features
Installation
3
Chapter 3
Jumper
Jumper Refer to page
JP15 - CMOS Clear 11
JP13 - CPU bus frequency selection 16
JP1 - Wake On Keyboard 17
JP14 - BIOS Flash protection 17
JP16 - Automatic Timeout Reboot Setting 18
JP17 - Safe Mode 18
JP2/3 - TV-OUT 19
JP5 - Onboard AMR Setting 19
FAN1 - FAN Connector 23
FAN2 - FAN Connector 23
JP11 - IrDA Connector 1 25
JP12 - IrDA Connector 2 25
JP18 - Lan Card Wake Up 29
JP20 - Modem Card Wake Up 29
JP10 - SB-LINK Connector 30
Chapter 3 Installation / 7
Expansion Slot
Which pages
PCI SLOT 1,2,3 -32bits PCI SLOT 21
AMR SLOT1 - Audio Modem Riser Slot 21
Connectors Refer to page
MS - PS/2 Mouse port (UP) 22
KB - PS/2 AT Keyboard port (DOWN) 22
COM1 - COM 1 serial port 22
COM2 - COM 2 serial port 22
USB - Universal Serial BUS Ports 1 & 2 22
PRINT - Parallel port 22
FDD - FLOPPY connector 22
IDE1 - Primary IDE connector 24
IDE2 - Secondary IDE connector 24
JP19 - HDD LED 26
JP19 - Reset Switch 26
JP19 - Power LED 26
JP19 - SMI Switch 26
JP19 - Suspend LED 26
JP19 - Speaker Connector 27
JP19 - ATX Power switch 27
PW1 - ATX Power Connector 25
CD1 - Audio Connector 28
CD2 - Audio Connector 28
8 / Chapter 3 Installation

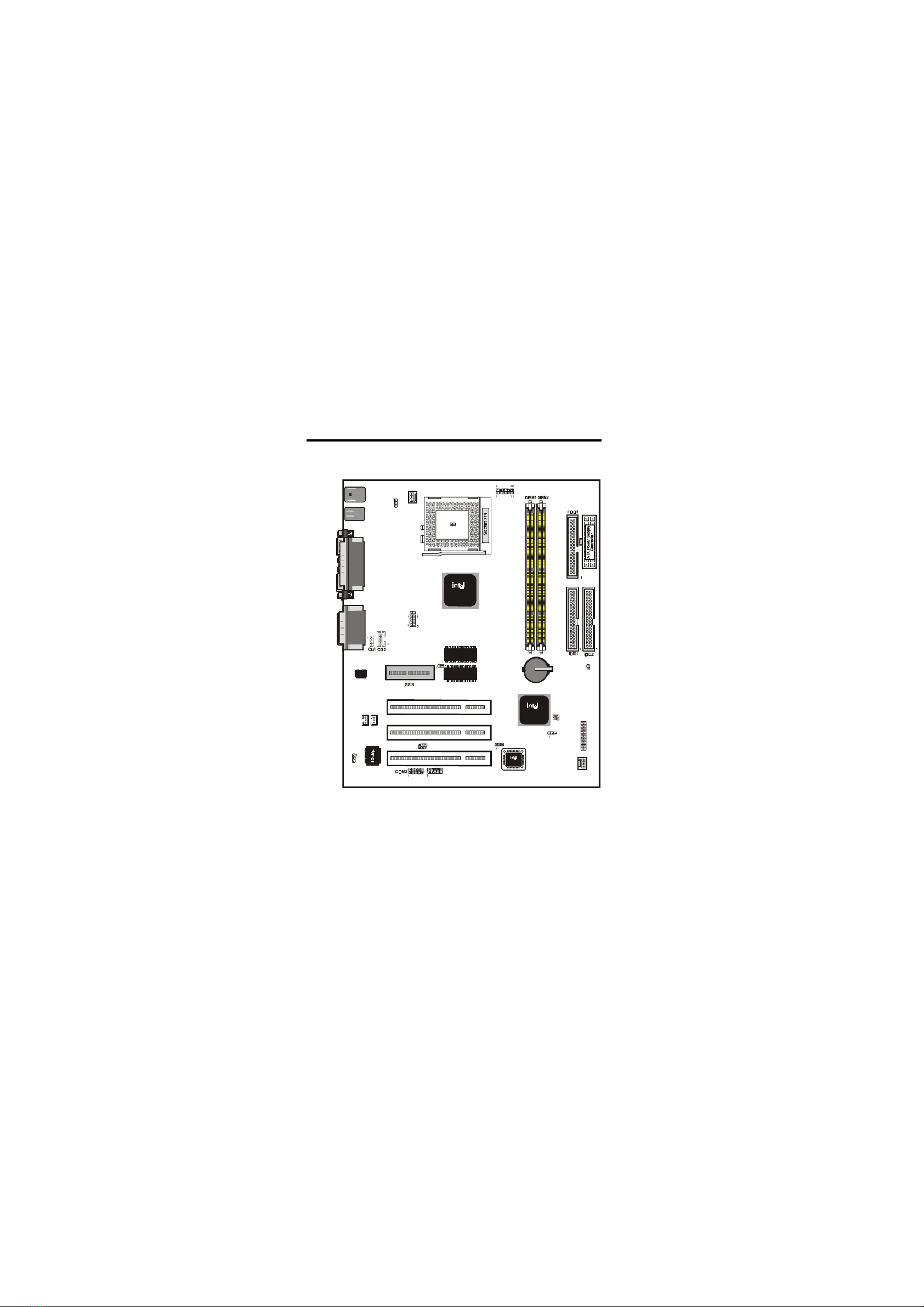

The 6M810D&810CN Mainboard Layout
2MB SDRAM
2MB SDRAM
AUDIO
CO DE C
USB
COM1
VGA
AMR SLOT
PCI SLOT3
PCI SLOT2
PCI SLOT1
MIDI
GAME
AUDIO
JP20 JP18
2MB SDRAM
2MB SDRAM
T: K/B
B: Mouse
Printer
JP19
PA NEL
JP11
JP12
SB-LINK
JP16
JP17
RT1
FAN1
Jp5
JP1
JP6
JP14
JP15
JP4
FAN2
4Mbit
Fir mw are
HU B(F WH )
I/O
Controller
HUB (ICH)
AUDIO
CO DE C
RT2
JP13
JP2
JP3
Chapter 3 Installation / 9
System Installation Setup
Before using your computer, you must finish the following steps:
1. Set jumpers on mainboard
2. Install SDRAM module.
3. Install the Processor.
4. Connect Ribbon Cables, Cabinet Wires, and Power supply.
5. Install Add on Cards.
6. Setup the BIOS software.
Static Electricity Precaution
Keep the mainboard and other system components in their anti-
static packaging until you are ready to install them.
Do all preparative work on a static-free surface with the main
board components facing up.
Unplug your computer when working on the inside.
Wear an Anti-static wrist strap.
Hold the system components, boards or cards by its edges only.
Be careful not to touch any of IC chips, circuitry, contacts or
connections, especially gold contacts on the mainboard.
10 / Chapter 3 Installation
Jumper Settings
Jumpers
Several hardware setting are made through the use of jumper caps to
connect jumper pins (Jxx) on the mainboard. See " Map of the
mainboard" for the locationed the jumpers.
The jumper settings will be described numerically such as [----], [1-
2], [2-3] for no connection, connect pins 1 & 2, and connect pins 2 &
3 respectively. Pin 1 for our mainboard is always on top one or on
the left when holding the mainboard with the keyboard away from
yourself. "P1" is written besides pin 1 on jumper with three pins. The
jumpers will also be shown graphically such as to connect pin
1&2 and to connect 2&3. Jumpers with two pins will be shown
as for Short (on )and for Open (off).For manufacturing
simplicity it may be sharing pins from other groups. Use the diagrams
in this manual instead of following the pin layout on the board. Set-
tings with two jumper numbers require that both jumpers be moved
together. To connect the pin, simply place a plastic jumper cap over
the two pins as diagrammed.
