Contents Motherboard 4S648FX/4S648FXN

Motherboard

4S648FX/4S648FXN

1.4S648FX/FXN Specifications ............4

1.1 Introduction ......................................................... 4

1.2 Package Contents ............................................... 5

1.3 Specifications and Features ................................ 6

CPU Processor ......................................................................... 6

Chipset ...................................................................................... 6

PCI ............................................................................................ 6

DDR SDRAM Memory ............................................................. 6

Integrated LAN Controller (for 4S648FXN only).................... 6

Universal Serial Bus ................................................................. 6

AwardBIOS .............................................................................. 7

ATA 100/133 On Board ............................................................ 7

PCI-Based AC 97 Digital Audio Processor .............................. 7

WOL (Wake On LAN) .............................................................. 7

AGP 4X/8X On Board .............................................................. 7

1.4 4S648FX/4S648FXN Layout Diagram .............. 8

1.5 CPU and CPU Fan Installation ......................... 10

1.5.1 CPU Installation with Socket 478 ................................. 10

1.5.2 CPU Fan Installation with P4 Fan Base ......................... 11

1.6 DDR SDRAM Installation ............................... 12

1.7 Connectors & Jumpers Setting ........................ 13

1.7.1 Back Panel I/O Connectors ........................................... 13

0-2

Contents Motherboard 4S648FX/4S648FXN

1.7.1.1 PS/2 Mouse / Keyboard CONN. .............................................. 1 3

1.7.1.2 USB Ports: USB1/2 ..................................................................... 1 3

1.7.1.3 Serial Interface Port: COM1/COM2 .................................... 1 4

1.7.1.4 Parallel Interface Port .............................................................. 1 4

1.7.1.5 Audio Port Connectors .............................................................. 1 4

1.7.1.6 LAN Connector (for 4S648FXN): RJ45 ................................. 1 4

1.7.2 ATX Main Power Connectors: PW1/PW2 .................... 15

1.7.3 Floppy Disk Connector: FDD ........................................ 16

1.7.4 Hard Disk Connectors: IDE1/IDE2 .............................. 16

1.7.5 Fan Connectors: FAN1~3 .............................................. 16

1.7.6Audio-In Connectors: CD1/AUX In ............................... 17

1.7.7 Wake On LAN Connector: WOL .................................. 17

1.7.8 USB Pin Header: USB3 ................................................. 18

1.7.9 Front Panel Connectors: PANEL1 ................................. 19

1.7.10 SPDIF Connector: SPDIF1 ......................................... 20

1.7.11 Infrared module &Game Port: IR1 &GAME1 ........... 21

1.7.12 CMOS Function Selector: JP4 ................................... 22

1.7.13 Keyboard/Mouse Wake-up selector: Jp5 .................... 22

1.7.14 USB2 Wake-up Selector: Jp11 ................................... 23

1.7.15 USB3 Wake-up Selector : Jp10 .................................. 23

2. BIOS Setup ..................................... 24

2.1 BIOS Support .................................................... 24

2.2 Main Menu ....................................................... 27

2.3 Standard CMOS Features ................................ 30

2.4 Advanced BIOS Features ................................. 34

2.5 Advanced Chipset Features .............................. 38

2.6 Integrated Peripherals ...................................... 41

0-3

Contents Motherboard 4S648FX/4S648FXN

2.7 Power Management Setup................................ 46

2.8 PnP/PCI Configurations .................................... 49

2.9 PC Health Status............................................... 52

2.10 Frequency/Voltage Control............................. 53

2.11 Load Fail-Safe Defaults .................................. 55

2.12 Load Optimized Defaults ................................ 56

2.13 Set Supervisor / User Password ..................... 57

2.14 Save & Exit Setup........................................... 58

2.15 Exit Without Saving ........................................ 59

3. Drivers & Utilities ............................ 60

3.1 Auto-run Menu .................................................. 60

3.2 Install Acceleration Graphics Driver ................ 62

3.3 Installing SiS IDE PCI Driver .......................... 63

3.4 PCI LAN Driver (for 4S648FXN ) ................... 64

3.4 Installing Audio Driver ...................................... 66

3.4.1 Installing 6-channel Driver ........................................... 66

3.4.2 Verifying 6-channel Driver ............................................ 66

3.5 Installing USB 2.0 Driver ................................. 68

Appendices .......................................... 70

Motherboard Compatibility Test .......................... 70

(1) CPU Compatibility Test ..................................................... 70

(2) Memory Compatibility Test ............................................... 71

(3)AGPDisplay Card Compatibility Test ............................... 74

1-4

Chapter 1 Motherboard 4S648FX/4S648FXN

The 4S648FX/4S648FXN motherboard is an integration

of Intel P4 CPUs in Socket-478 packaging and the North Bridge

SiS648FX supporting 800/533/400 MHz Front Side Bus.

North Bridge SiS648FX on board also supports DDR 400/

333/266/200 DRAMs and the integrated AGP 8X/4X Interface,

while the South Bridge SiS963L provides stable supports of

ULTRA ATA 133/100, 6-channel Audio playback, integrated

Digital Audio Controller, LPC Super I/O, USB 2.0/1.1 interfac.

PCI interface as well as integrated 10/100Mbit Fast Ethernet

LAN Controller.

The resulting architecture will provide an ideal multi-task

environment to support operating systems such as MS-DOS,

Windows, WindowsNT , Windows ME, Windows 2000,Novell,

OS/2, Windows 95/98, Windows 98SE, Windows XP, UNIX,

Liunx, SCO UNIX etc. This user-friendly manual is to de-

scribe in detail how to install, configure and use this

motherboard with drivers and BIOS setup illustrations.

Chapter 1

4S648FX/4S648FXN

1.1 Introduction

1.4S648FX/FXN Specifications

This manual is a general reference of the first release of this

motherboard which is subject to update without notice. If any differ-

ence is found between this manual and the motherboard you are

using, please refer to the Web Site.

1-5

Chapter 1 Motherboard 4S648FX/4S648FXN

wHDD UDMA66/100 Cable.

wFDD Cable.

wFlash Memory with BIOS

wFully Setup Driver CD with built in utilities.

wUser Manual.

wI/O Shielding.

1.2 Package Contents

1-6

Chapter 1 Motherboard 4S648FX/4S648FXN

CPU Processor

| Support 533/400MHz System Interface speed.

| Single Socket 478 for Intel P4TM (Northwood Processor) 1.6A

to 3.06GHz or higher* .

| Support Intel NetburstTM Micro-architecture.

Chipset

| SiS648FX orth Bridge, supporting 800/533/400MHz FSB and

AGP 2.0/3.0 interface

| SiS963L South Bridge.

PCI

| Supports 33MHz PCI Bus speed.

| 5 x PCI slots on board

DDR SDRAM Memory

| Supporting 64/128/256/512....MBDDR module

| Supporting Synchronous 400/333/266/200MHz DDR SDRAM

| Supporting a maximum memory size of 3GB DDR SDRAM or

2GB DDR 400 in 2 DIMMs..

Note: Only DDR 400/333 supports FSB 800MHz.

Integrated LAN Controller (for 4S648FXN only)

| Supporting 10/100Mbit Fast Ethernet LAN

| Supporting 1xRJ45 Connector (for 4S648FXN motherboard

only)

Universal Serial Bus

| Supporting 4 on-board Universal Serial Bus(USB) Ports

and 2 external Universal serial Bus(USB) Ports.

| Supporting USB 2.0/1.1

1.3 Specifications and Features

* The higher frequency CPU should be compatible with Intel CPU

specificiation and the motherboard latest BIOS version which will

be released on the web site.

1-7

Chapter 1 Motherboard 4S648FX/4S648FXN

Award BIOS

| Supporting Plug & Play specification which detects the

peripheral devices and expansion cards automatically

| Supporting CD-ROM, SCSI, LAN BOOT, Temperature sen-

sor, LAN, Alarm Bus CLK setup

| Supporting Desktop Management Interface (DMI) func-

tion for recording mainboard specification

ATA 100/133 On Board

| Supporting four IDE devices with 2 x IDE connectors

| Supporting PIO Mode 5, Master Mode, high performance

hard disk drives

| Dual -channel Ultra DMA 33/66/100/133 Bus Master Mode

| Supporting IDE interface with CD-ROM

| Supporting high capacity hard disk drives

| Supporting LBA mode

PCI-Based AC 97 Digital Audio Processor

| AC 97 2.2 compatible Codec, 6-channel Audio interface.

| 18-bit Stereo Full-Duplex Codec with up to 48 KHz samp-

ling rate

| 4 Analog Line-level Stereo inputs for connection from Line,

CD, Viedo and AUX

| 2 Analog Line-level Stereo inputs for speakerphone and PC

beep

WOL (Wake On LAN)

| Supporting system power-on by LAN Ring-up signal.

AGP 4X/8X On Board

| AGP 66MHz, 1.5V for AGP4X/8X graphic card

| 1 x AGP slot supported

1-8

Chapter 1 Motherboard 4S648FX/4S648FXN

SiS

963L

W83697

8100BL

RTL

SiS

648FX

mPGA478B

Socket 478

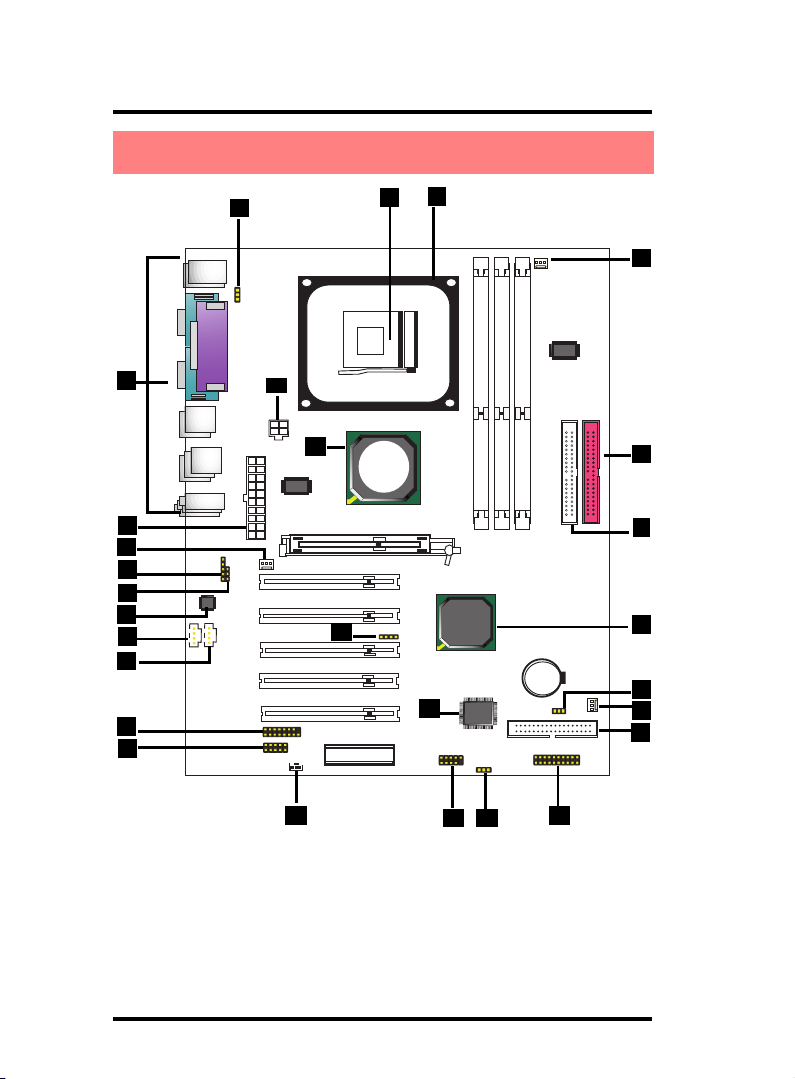

1.4 4S648FX/4S648FXN Layout

Diagram 9

PCI 1

PCI 2

PCI 3

DIMM 1

DIMM 2

PCI 4

PCI 5

AGP4X

Battery

23 24

DIMM3

BIOS

1-9

Chapter 1 Motherboard 4S648FX/4S648FXN

8. CPU Fan Base

9. Socket 478 for P4 CPU

10. JP5: Jumper for Keyboard/Mouse Wake-up function

11. Back Panel: Back Panel I/O Connectors ( Mouse, Keyboard,

COM1, COM2, Printer, USB2, USB1, Mic in, Line in, Speaker-out,

RJ45 (for 4S648FXN motherboard only)

12. ATX2: ATX Main Power Connector

13. FAN2: Cooling Fan Connector

14. SPDIF1: SPDIF S/P Digital Interface Format) Connector

15. JP11: Jumper for USB2 Keyboard Mouse Wake-up function

16. Chip ALC650: Chip for AC’97 6-channel Audio Codec

17. AUXIN1: Audio-in Connector

18. CD1: Pin Header for CD Audio-in

19. GAME1: Game Port

20. IR1: Connector for Infrared signal transmission

21. WOL1: Connector for Wake-on-LAN function

22. USB3: Pin Header supporting 2 external USB Ports

23. JP10: Jumper for USB3 Keyboard/Mouse Wake-up function

24. Panel 1: Front Panel Connector

25. IT8705F: LPC Super I/O Chip

26. DEBUG1: Connector for Printer ERROR debug

27. North Bridge SiS 648FX

28. ATX2: +12V ATX Power Connector

1. FDC1: Floppy Drive Connector

2. FAN3: Cooling Fan Connector

3. JP4: Jumper for clearing CMOS select

4. South Bridge SiS963L

5. IDE1: IDE Connector

6. IDE2: IDE Connector

7. FAN1: CPU Cooling Fan Connector

4S648FX/4S648FXN Component Layout Description:

1-10

Chapter 1 Motherboard 4S648FX/4S648FXN

mPGA478B

Socket 478

This motherboard is designed with Socket 478 for

Intel P4TM processor.

Pin 1

1.5 CPU and CPU Fan Installation

1. Pull the lever sideways away from the socket then raise the

lever to a 90-degree angle.

2. Locate Pin 1 in the socket Pin 1 of CPU is marked by the

yellow corner or cut edge on the CPU. Match Pin 1 of

Socket 478 and Pin 1 of CPU.

3. Pull up the lever of Socket 478 to let the CPU in and press

the lever down to lock the CPU.

4. Make sure that Pin 1 of Socket 478 is matching with Pin 1 of

CPU.

5. Make sure that all CPU pins are completely in socket before

pressing down the socket lever.

Intel

pentium 4

Level of Socket 478

Cooling Fan Base

1.5.1 CPU Installation with Socket 478

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Acorp Carte mère

Acorp

Acorp 6A815EP Manuel utilisateur

Acorp

Acorp 4845GE Manuel utilisateur

Acorp

Acorp 4S845AL Manuel utilisateur

Acorp

Acorp 7KTA Manuel utilisateur

Acorp

Acorp 5VIA73 Manuel utilisateur

Acorp

Acorp 7KTA1 Manuel utilisateur

Acorp

Acorp 7KM400QP Manuel utilisateur

Acorp

Acorp 4PM266M Manuel utilisateur

Acorp

Acorp VIA KT400A Manuel utilisateur

Acorp

Acorp 6M810E Manuel utilisateur

Acorp

Acorp 4S845A Manuel utilisateur

Acorp

Acorp 6A815EP1 Manuel utilisateur

Acorp

Acorp 7VIA71A Manuel utilisateur

Acorp

Acorp 4PE800 Manuel utilisateur

Acorp

Acorp 6ZX85 Manuel utilisateur

Acorp

Acorp 694TA Manuel utilisateur

Acorp

Acorp 4D533 Manuel utilisateur

Acorp

Acorp 6V8633A Manuel utilisateur

Acorp

Acorp 6PLEF Manuel utilisateur

Acorp

Acorp 6M810D Manuel utilisateur

Acorp

Acorp 7KT266A Manuel utilisateur

Acorp

Acorp 4PMMNL Manuel utilisateur

Acorp

Acorp 7KT400 Manuel utilisateur

Acorp

Acorp 7KMA Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
