ACME IM-250 SP Manuel utilisateur

User Guide

Please read these instructions carefully before use

IM - 250 SP

TABLE OF CONTENTS

1. Safety Instruction

2. Technical Specification

2.1 Description of the fixture

2.2 Inserting/Exchanging rotating gobos

3. Lamp

4. How To Set The Unit

4.1 Control Panel

4.2 Main Function

4.3 Home Position Adjustment

4.4 Easy controller

5. How To Control The Unit

5.1 DMX Controller

5.2 DMX 512 Configuration

5.3 DMX 512 Connection

6. Troubleshooting

7. Maintenance and Cleaning

1. Safety Instruction

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user,

be sure that they also receive this instruction booklet.

Unpack and check carefully there is no transportation damage before using the unit.

Before operating, ensure that the voltage and frequency of power supply match the

power requirements of the unit.

The unit is designed for use with the HMQ 250/2G lamps. Do not use any other type of

lamp.

It’s important to ground the yellow/green conductor to earth in order to avoid electric

shock.

The unit is for indoor use only. Use only in a dry location.

The unit must be installed in a location with adequate ventilation, at least 50cm from

adjacent surfaces. Be sure that no ventilation slots are blocked.

Disconnect main power before fuse/lamp replacement or servicing.

Replace fuse/lamp only with the same type.

Make sure there are no flammable materials close to the unit while operating, as it is fire

hazard.

Please use safety chain while you fixing this unit. Don’t handle the unit by taking its

head only, but always by taking its base.

Maximum ambient temperature is ta : 40℃. Don’t operate it where the temperature is

higher than this.

Unit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand

during its operation, and allow about 15 minutes to cool down before replacing bulb or

serving, as the unit could be very hot.

In the event of serious operating problem, stop using the unit immediately. Never try to

repair the unit by yourself. Repairs carried out by unskilled people can lead to damage

or malfunction. Please contact the nearest authorized technical assistance center.

Always use the same type spare parts.

Don’t connect the device to any dimmer pack.

Do not touch any wire during operating as there might be a hazard of electric shock.

Please read carefully the instruction, which includes important

information about the installation, usage and maintenance.

Warning

To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or

moisture.

Never touch bulb with bare fingers, as it is very hot after using.

Hot lamp explosion hazard. Do not open the unit within five minutes after switching off.

Do not start on the unit without bulb enclosure or when housing is damaged.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly

damaged.

Do not look directly at the light while the bulb is on.

Caution

There are no user serviceable parts inside the unit. Do not open the housing or attempt any

repairs by yourself. In the unlikely event your unit may require service, please contact your

nearest dealer.

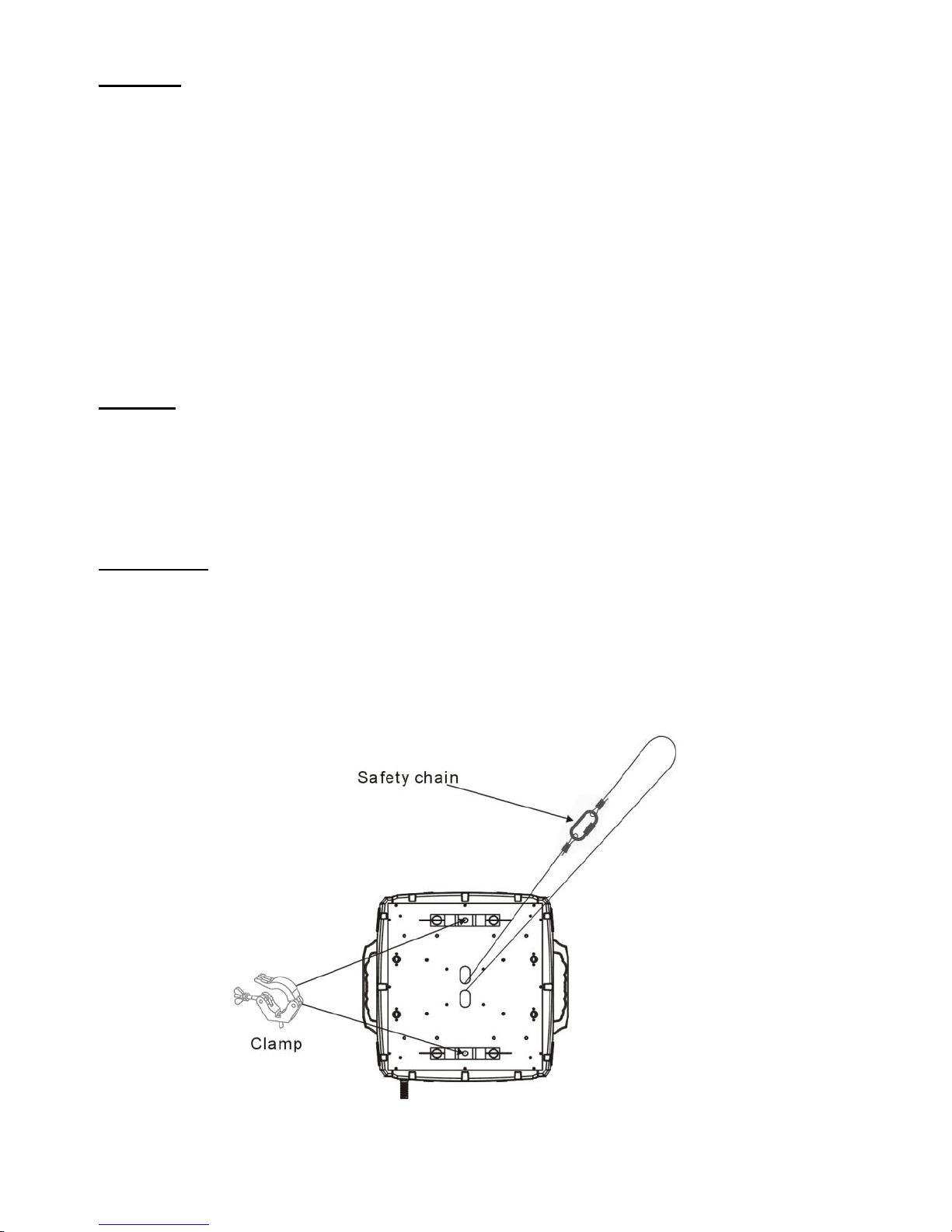

Installation

The unit should be mounted via its mounting system ( as shown below ) on the bottom of the

base. Use clamps to fix the unit to truss. Always ensure that the unit is firmly fixed to avoid

vibration and slipping while operating. Always ensure that the structure to which you are

attaching the unit is secure and is able to support a weight of 50 kg for each unit.

2. Technical Specification

Power supply

- 120V/230V~50/60Hz

Lamp

- HMQ 250/2G

Optical system

- High efficiency optical system

- High quality optical lens and dichroic colors

- Beam angle: 15°

Shutter/Dimmer

- Blackout, 0~100% smooth dimming and strobe speed variable(1~12 flashes per

second).

Color wheel

- Color wheel 1: 6 color + white

- Color wheel 2: 7 trapezoid dichroic colors plus white

- Both rotate in both directions at different speeds, creating rainbow effect.

- Magnetic Color wheels home positioning for easy calibration and easy maintenance.

Gobo wheel

-Fixed gobo wheel 1: 5 rotating, interchangeable, indexing gobos plus open

- Rotating gobo wheel 2: 7 metal gobos plus open

- Magnetic Gobo wheels home positioning for easy calibration and easy maintenance.

- Both rotate in both directions at different speeds, creating shaking effect..

Effect Wheel

-Prism/Rotating Prism

Movement

- Pan: 540°in 2.8 second.

- Tilt: 270°in 1.6 second.

- Pan/Tilt resolution: 8/16-bit.

- Automatic Pan/Tilt correction.

- Electronic sensor Pan/Tilt home positioning for easy calibration and easy maintenance.

- Pan/Tilt position lock for transporting protection.

Focus

- Automatic focus by DMX controls.

Iris

- Motorized iris for different beam diameters.

- Iris Speed control.

DMX Channels

- Standard DMX512 signal addressing and can be controlled by any universal DMX

controller or DMX Tester.

22 Channels:

Channel 1 = Pan

Channel 12 = Prism

Channel 2 = Tilt

Channel 13 = Prism Rotation

Channel 3 = Pan/Tilt speed

Channel 14 = Focus

Channel 4 = Dimmer

Channel 15 = Iris

Channel 5 = Shutter/shaking

Channel 16 = Lamp ON/OFF/Reset

Channel 6 = Color 1

Channel 17 = Pan movement fine

Channel 7 = Color 2

Channel 18 = Tilt movement fine

Channel 8 = Gobo 1

Channel 19 = Pan/Tilt movement macro

Channel 9 = Gobo 1 Rotation

Channel 20 = Pan/Tilt movement size

Channel 10 = Gobo 2

Channel 21 = Iris effect

Channel 11 = No function

Channel 22 = Dimmer effect

16 Channels:

Channel 1 = Pan

Channel 9 = Gobo 1 Rotation

Channel 2 = Tilt

Channel 10 = Gobo 2

Channel 3 = Pan/Tilt Speed

Channel 11 = No function

Channel 4 = Dimmer

Channel 12 = Prism

Channel 5 = Shutter/shaking

Channel 13 = Prism Rotation

Channel 6 = Color 1

Channel 14 = Focus

Channel 7 = Color 2

Channel 15 = Iris

Channel 8 = Gobo 1

Channel 16 = Lamp ON/OFF/Reset

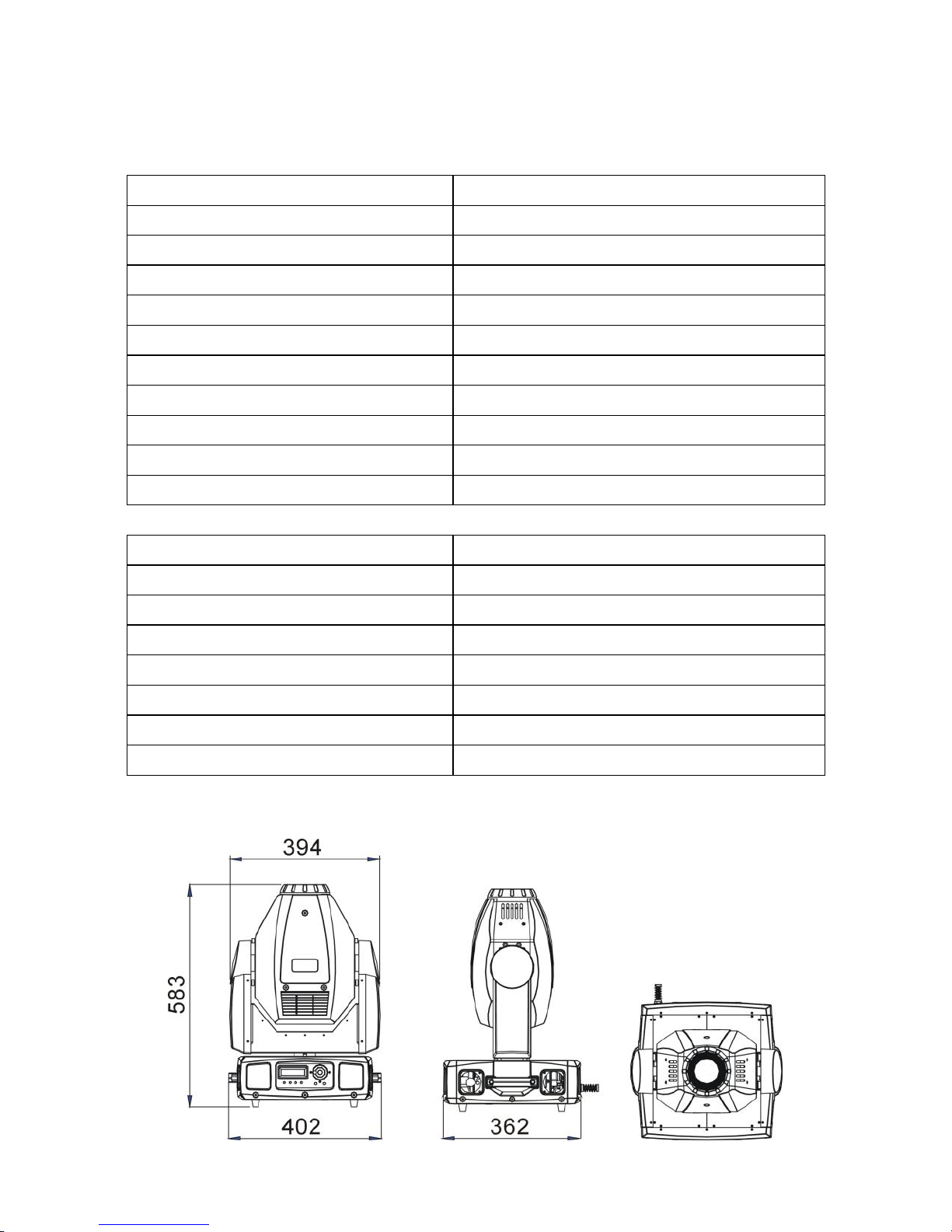

Dimension: 402 x 362 x 583 mm

Weight: 25 kg

Luminous intensity:

2.1. Description of the fixture

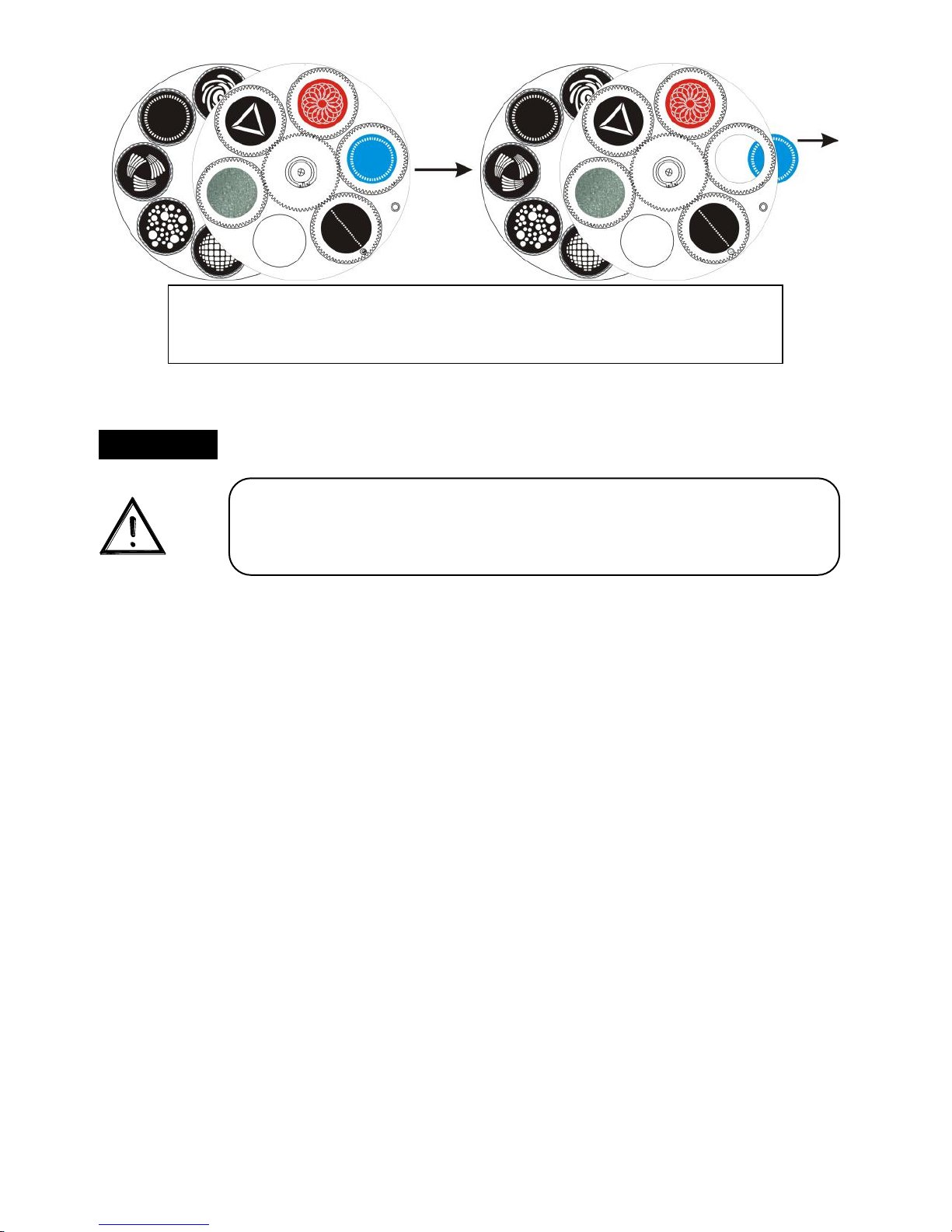

2.2. Inserting/Exchanging rotating gobos

DANGER!

Install the gobos with the device switched off only.

Unplug from mains before changing gobos!

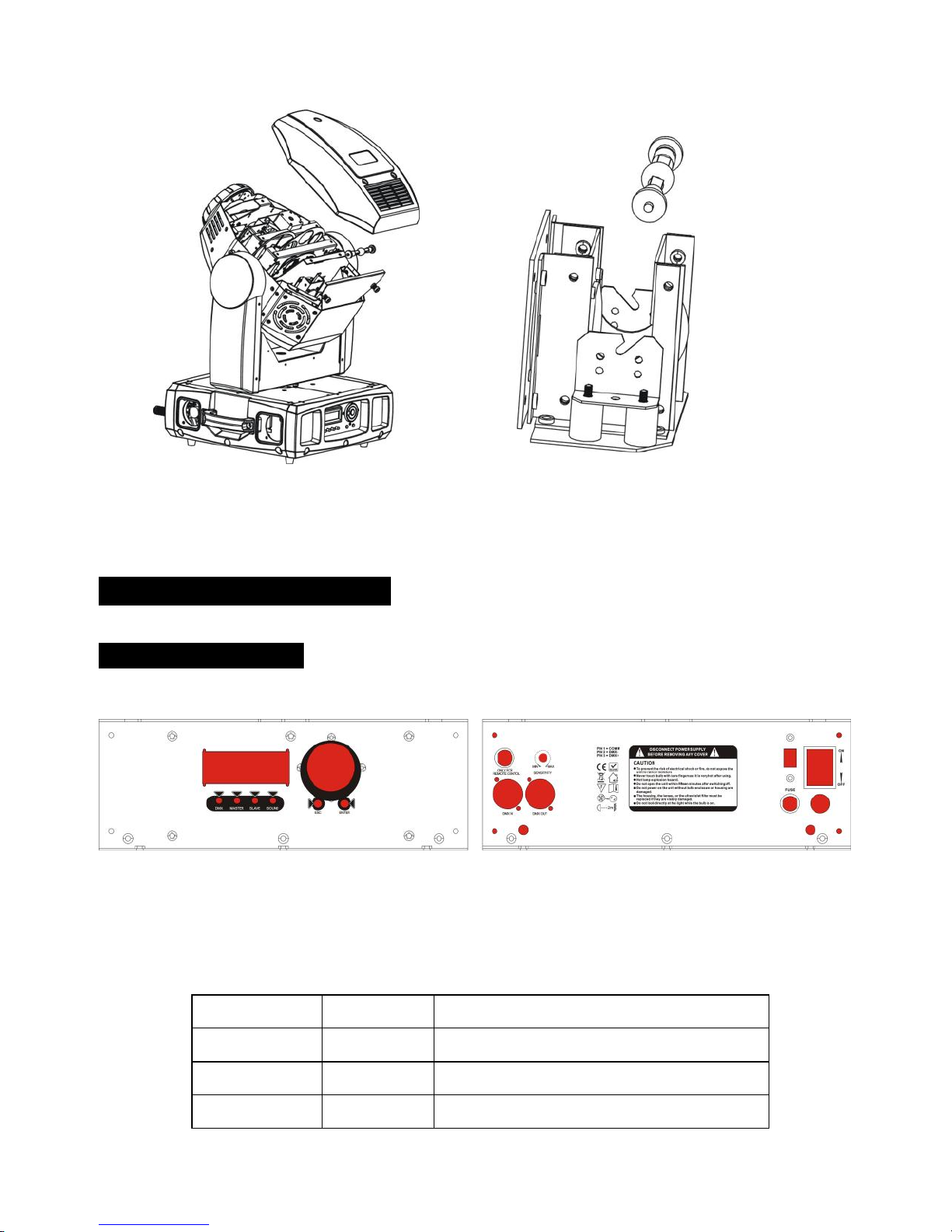

Open the cover by loosening the fastening screw at the sides of the cover.

If you wish to use other forms and patterns as the standard-gobos, or if the gobos are to be

exchanged, remove the fixation ring with an appropriate tool. Remove the gobo and insert

the new gobo. Press the fixation-ring together and insert it in the front of the gobo.

1.Yoke

2.Front panel

3.Moving head

4.Handle

5.Base

CAUTION!

Never unscrew the screws of the rotating gobo as the ball bearing

will otherwise be opened!

3. Lamp

WARNING

Because of its high internal pressure, there might be a risk that the Discharge lamp

would explode during operation. The lamp emits intense UV radiation which is harmful

to the eyes and skin. The high luminance of the arc can cause severe damage to the

retina if looks directly at the lamp.

HMQ 250/2G

1. Always switch off the main supply and never handle the lamp or luminaire when it is

hot.

2. Do not touch the bulb with bare hands. If this happens, clean the lamp with

denatured alcohol and wipe it with a lint free cloth before installation.

3. The lamp generates UV radiation. Never operate the lamp without appropriate shielding.

4. When burning, the lamp operates at high pressure and there is a slight risk of arc tube

rupture. The risk increases with age, temperature and improper handling of the lamp. Do

not use the lamp any longer than its lifespan.

5. Make sure the lamp is located in the center of the reflector for the best spot.

6. If changing the lamp, remove old lamp from lamp socket. Hold the new lamp only by its

ceramic base. Never touch the glass bulb. Insert the new lamp in the lamp socket.

In case of replacement of the lamp or maintenance, do not open the

fixture within 15 minutes until the unit cools down after switching off.

4. How To Set The Unit

4.1. Control Panel

MONITOR

To show the various menus

LED

DMX

DMX input present

MASTER

Master Mode

SLAVE

Slave Mode

SOUND

Blinking

Sound Mode

Button

ESC

To go back to the previous functions

ENTER

To confirm the selected functions

JOG WHEEL

To select the given functions

On/Off

Turns On/Off the power

Fuse

To replace the fuse

DMX input/output

For DMX 512 operation, use 3/5-pin XLR plug cable to link the unit together

Sensitivity

To receives audio signal for sound activation.

Only for remote control

By connect to the 1/4” microphone jack to control the unit for Stand by, Function and Mode

function.

4.2. Main Function

To select any of the pre-set functions, press the ENTER button and turn jog wheel up to

when the required one is shown on the monitor. Select the function by ENTER button. Use

the jog wheel to change the mode. Once the required mode has been selected, press the

ENTER button to setup or it will automatically return to the main functions without any

change after idling 10 seconds. To go back to the previous functions without any change

press the ESC button. The main functions are shown below:
