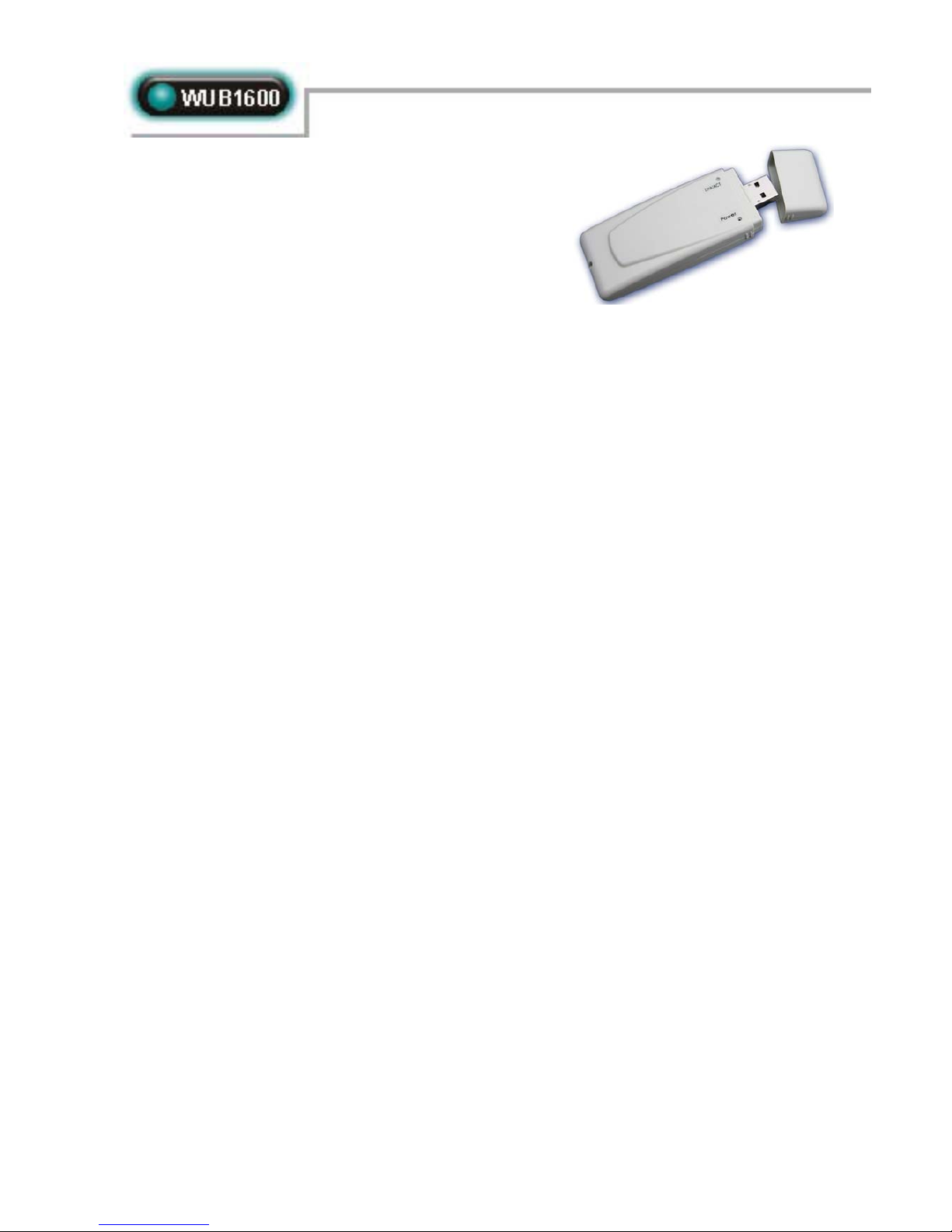

Abocom 802.11b Wireless USB Adapter S WUB1600 Manuel utilisateur

802.11b Wireless USB Adapter

A wireless LAN links network users to LAN services without

the hassle of cabling or wiring, which significantly brings

mobile workers the freedom of staying connected to the

network while roaming around a building or multiple

buildings maintaining access to the Internet, e-mail,

networked applications, and print services.

This device is the perfect solution for your wireless network applications based on the IEEE

802.11b standard that offers a data rate up to 11Mbps in a wireless LAN environment. It is

a high-speed wireless network card that plugs into your notebook or desktop PC and

accesses to the LAN or peer-to-peer networking easily without wires or cables. Whether

you’re at your desk or in the boardroom, it allows you to share printers, files, and other

network resources.

The WUB1600 is designed for a USB port of a laptop or desktop computer for creating a

wireless workstation.

FEATURES

 Compliant with IEEE802.11b

standard for 2.4GHz Wireless LAN

 USB 1.1 compliant

 USB Plug & Play

 Interoperable with existing network

infrastructure

 Secure information transmission

 Freedom to roam while staying

connected

 Compatible with specialty wireless

products and services

 Up to 11Mbps data rate

 External Antenna is built in the

card with LEDs indication

 Low power consumption

 Easy to install and configure

SPECIFICATION

Standards IEEE 802.11b

Host Interface USB1.1

Chipset ZyDAS ZD1201

Antenna Type PCB Printed

LED Indicators Link/ACT

Power

Frequency Range 2.412GHz-2.4835GHz

Number of Selectable Channels

USA, Canada: 11 channels

Europe: 13 channels

Japan: 14 channels

Modulation Technique Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK)

Security 0/64/128 bit WEP

Spreading 11 chip Barker sequence

Media Access Protocol CSMA/CA (Collision Avoidance) with ACK

Output Power(Typical) 15 dBm

Sensitivity

-83 dBm@1Mbps

-83 dBm@2Mbps

-83 [email protected]

-80 dBm@11Mbps

Power Requirement

Operating Voltage: 5V DC



TX consumption: 330 mA (Max)

RX consumption: 230 mA (Max)

Physical Specifications Weight: 30 g

Dimension: 92 (L) x 32.6 (W) x 18 (H) mm

Environment Specifications

Operating Temperature: 0 ~ 50 oambient temperature

Storage Temperature: -20 ~70 oambient temperature

Operating humidity: 90 % maximum (non-condensing)

Storage humidity: 90 % maximum (non-condensing)

Supported OS Windows 98/ME/2000/XP

EMC Certification

FCC Part 15 in US

EN300328 and EN300826 (EN301489-17) in Europe


