Abocom 802.11b/g Wireless LAN USB 2.0 Module... Manuel utilisateur

802.11b+g Wireless LAN

USB Adapter

User’s Manual

REGULATORY STATEMENTS

FCC Certification

The United States Federal Communication Commission (FCC) and the

Canadian Department of Communications have established certain rules

governing the use of electronic equipment.

Part15, Class B

This device complies with Part 15 of FCC rules. Operation is subject to the

following two conditions:

1) This device may not cause harmful interface, and

2) This device must accept any interface received, including interface that may

cause undesired operation. This equipment has been tested and found to

comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy, and if not installed

and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be

determined by turning off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

◗Reorient or relocate the receiving antenna.

◗Increase the distance between the equipment and receiver.

◗ Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

CAUTION:

1) To comply with FCC RF exposure compliance requirements, a separation

distance of at least 20 cm must be maintained between the antenna of this

device and all persons.

2) This transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

Table of Contents

INTRODUCTION ...................................................................................................1

FEATURES ..............................................................................................................1

SOFTWARE INSTALLATION.............................................................................2

STEP 1: INSTALL THE DRIVER & UTILITY................................................................2

HARDWARE INSTALLATION............................................................................5

WINDOWS 2000/XP ...............................................................................................5

WINDOWS 98/ME...................................................................................................6

NETWORK CONNECTION .................................................................................8

IN WINDOWS 98SE/ME..........................................................................................8

IN WINDOWS 2000/XP .........................................................................................11

IP ADDRESS .........................................................................................................13

Configuration Utility .............................................................................................14

STATION...............................................................................................................16

ACCESS POINT......................................................................................................24

Appendix ................................................................................................................30

SOFT AP CONFIGURATION....................................................................................30

- 1 -

INTRODUCTION

The 802.11b+g Wireless LAN USB Adapter is designed for a USB type A port

of a laptop or desktop computer for creating a wireless workstation. It is USB 2.0

compliant which connects to any available USB port on a notebook or desktop

computer.

The 802.11b+g Wireless LAN USB Adapter complies with IEEE 802.11g

standard that offers a data rate up to 54Mbps in a wireless LAN environment. It is

backward compliant with IEEE 802.11b specification. The high-speed wireless

network card can plug into your notebook or desktop PC and accesses to

the LAN or peer-to-peer networking easily without wires or cables.

Whether you’re at your desk or in the boardroom, it allows you to share

printers, files, and other network resources.

Features



Complies with IEEE 802.11g standard for 2.4GHz Wireless LAN

USB 2.0 compliant

USB Plug & Play

Interoperable with existing network infrastructure

Secure information transmission

Freedom to roam while staying connected

Compatible with specialty wireless products and services

Up to 54 Mbps data rate

Antenna is built in the card with LED indication

Low power consumption

Easy to install and configure

- 2 -

SOFTWARE INSTALLATION

Step 1: Install the Driver & Utility

For Windows 98, 2000, ME and XP users

Caution!

Do not insert the wireless LAN adapter into your

computer until the procedures in “ Install the

Driver& Utility” have been performed.

1. Exit all Windows programs. Insert the included CD-ROM into your

computer. The CD-ROM will run automatically.

2. When the Main Menu screen appears, click “ Driver & Utility

Installation” to continue.

3. When the Welcome screen appears, click Next to continue.

4. The installation program will start running automatically. Follow the

on-screen instruction to proceed.

5. Click Finish to complete the software installation.

- 3 -

- 4 -

- 5 -

HARDWARE INSTALLATION

Windows 2000/XP

Note: Before you install the device to your computer, make sure you

have installed the driver and utility as described in the previous

section.

Windows XP

1. Locate your USB host and insert the USB

Adapter.

2. Once the device has been inserted to your

computer, Windows will detect the new

hardware.

3. When the following screen appears, select

Install the software automatically

(Recommended).

- 6 -

4. Click Continue Anyway →Finish to complete the hardware

installation.

Windows 2000

Insert the USB adapter into the USB port of your computer and then click Yes to

complete the hardware installation.

Windows 98/ME

In Window 98/ME, you only have to insert the USB adapter into the USB port of

your computer to complete the hardware installation.

- 7 -

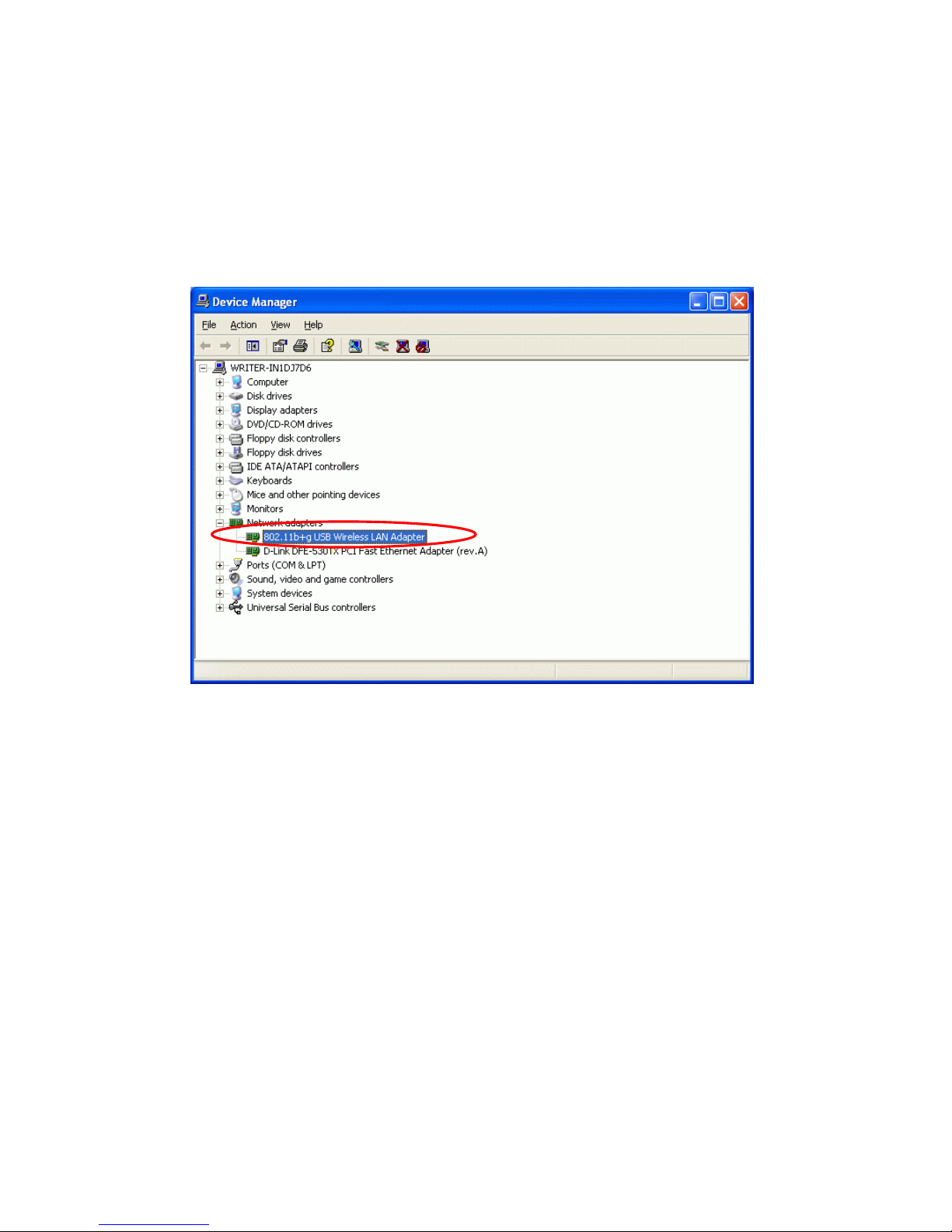

Verify

To verify if the device exists in your computer and is enabled, go to Start 

Settings Control Panel System (Hardware) Device Manager.

Expand the Network Adapters category. If the 802.11b+g USB Wireless LAN

Adapter is listed here, it means that your device is properly installed and enabled.
