Abocom RE450 Manuel utilisateur

10M Ethernet

PC Card Adapter

Quick Installation Guide

FCC REGULATORY STATEMENTS

Part15, Class B

This device complies with Part 15 of FCC rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interface,

and

2. This device must accept any interface received,

including interface that may cause undesired

operation. This equipment has been tested and

found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy, and if not installed and used in

accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference

will not occur in a particular installation. If this

equipment does cause harmful interference to

radio or television reception, which can be

determined by turning off and on, the user is

encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

*Changes or modifications not expressly approved

by party responsible for compliance could void the

user the user authority to operate the equipment

- 1 -

INTRODUCTION

The PCMCIA Ethernet card is a credit-card-size Type

II PCMCIA Ethernet adapter that complies with the

PCMCIA 2.1 and IEEE 802.3 standards.

It works with computers that incorporate a compatible

interface. The drivers associated with this card allow

you to use the most popular Network Operating System

(NOS) in the PC environment very easily.

System Requirement

• An IBM compatible PC with 386SX or higher

• At least one type II PCMCIA socket

• Drivers and utilities provided with this product

• PCMCIA release 2.1 compliant Card Services and

Socket Services

• 10BaseT or 10Base2 Ethernet connectivity to your

LAN.

SPECIFICATIONS

• IEEE 802.3 10BaseT, 10Base2

• 10Mbps speed

• Internal buffer memory, No system memory used

• NE2000 compatible ODI client, Packet driver and

NDIS version 2.x, 3.x driver supported

Operating Environment

• Novell Netware 3.x, 4.x

• Microsoft LAN Manager

• Packet Driver Applications

• Microsoft Windows for Workgroups 3.11,

Windows 3.1

• Microsoft Windows NT 3.51, NT 4.0

- 2 -

• Windows 95

• Windows 98

• Windows ME

• Windows 2000

• Windows XP

• Lantastic 6.0

• IBM OS/2 Warp Version 3

Physical Specification

• PCMCIA Type II

• 3.37 in. x 2.128 in. x 0.197 in.

• 85.6mm x 54mm x 5mm

• Weight: 35 g

• Power: +5V ±5%, @150mA

- 3 -

INSTALLATION

Hardware Connections

1. Insert the PCMCIA Ethernet card into the

PCMCIA slot with the 68 pin connector toward

your notebook’s PCMCIA slot and the label

facing up.

2. Connect the media coupler to the PC card’s 15-pin

connector.

3. Connect one end of an Ethernet cable to the

coupler media. Plug the other end of the cable into

a switch hub.

Software Installation

Insert the driver diskette into the floppy drive and set

the current drive to the floppy drive. Then run

INSTALL to install the real mode drivers such as ODI

or NDIS 2.x or Packet Drivers into the target disk.

Windows 95 Installation

Make sure that the drivers of PCMCIA slot are well

installed. The System Icon in the Control Panel can

report on its functionality. Apart from above mentioned,

any questions on this layer need to be taken up with the

computer's manufacturer.

1. Insert PCMCIA Ethernet Card into PCMCIA slot.

In New Hardware Found dialog box, select Driver

from disk provided by hardware manufacturer”.

2. Please input the path, A:\ and insert driver diskette.

The driver will be installed and you may be asked

for the original Windows 95 CD/disks.

3. For the first time installation, please click Network

icon in Control Panel to add Protocols, Client and

Service if you needed

4. Reboot the machine and the card will be fully

functional.

Windows 98 Installation

Make sure that the drivers of PC Card slot are well

installed. The System Icon in the Status Area can

report on its functionality. Apart from which is

mentioned above, any questions on this layer need to

be taken up with the computer's manufacturer.

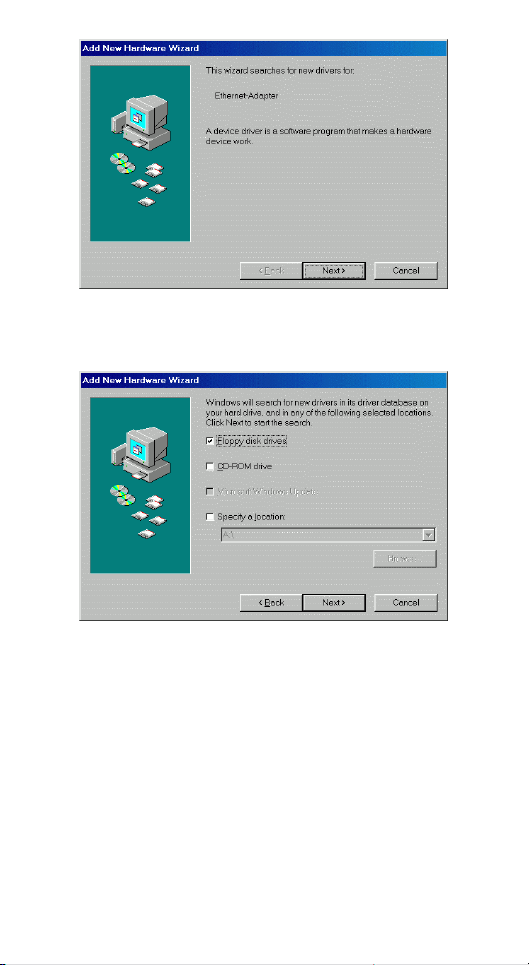

1. Once the PC Card is connected to your computer,

Windows will automatically detect the new device.

Windows will prompt an ADD NEW

HARDWARE WIZARD dialog box, then press

Next.

- 4 -

2. Select Search for the best… and press Next.

3. Select Floppy disk drives and insert driver

diskette. Then press Next, the driver will be

installed.

4. Click Next to continue. Windows will start to

copy the appropriate driver to your system. If

Windows asks you to supply your original

Windows 98 installation CD-ROM, load it in the

CD-ROM drive.

5. For the first time installation, please click

Network icon in Control Panel to add Protocols,

Client and Service if you needed.

6. Reboot the machine and the card will take effect.

- 5 -

Windows ME Installation

1. Once the PC Card is connected to your computer,

Windows will automatically detect the new

device. Insert the device Driver Disk into the

floppy disk drive of your system. Select

Automatic search for a better driver

(Recommended) and click Next.

2 Windows will copy the appropriate driver to your

system. If Windows ME asks you to supply your

original Windows ME installation CD-ROM, load

it in the CD-ROM drive.

3 Click Finish to complete the software installation.

- 6 -

- 7 -

Windows NT 4.0

1. Make sure that the Network Services already

installed in the NT 4.0 system.

2. Insert the Ethernet Adapter into one of the

system's PCMCIA Slots

3. Power up Windows NT 4.0

4. Open My Computer

5. Open Control Panel

6. Run the Network

7. Select Adapters page

8. Press Add to add network adapter

9. Press Have Disk button

10. Insert the driver disk into drive A:

11. Specify the path to ” A:\ and press OK

12. A dialog box will appear to adjust the

driver's settings. The resources assignment to the

adapter must be unique in the system.

13. Press OK when all settings are completed. Press

Close to complete network setting.

Windows 2000 Installation

1. Connect one end of the cable for the PCMCIA

Ethernet card to your computer and the other end

to the port of the new hardware device. Windows

will appear the following picture. Click Next.

2. Select Search for a suitable driver for my

device (recommended). Click Next.

3. Select Floppy disk drives and insert the disk

associated with the PCMCIA Ethernet card in the

disk drive. Click Next.

- 8 -
