Abit AB-BH6 Manuel utilisateur

The information in this document is subject to change without notice and does

not represent a commitment on part of the vendor, who assumes no liability or

responsibility for any errors that may appear in this manual.

No warranty or representation, either expressed or implied, is made with

respect to the quality, accuracy or fitness for any particular part of this

document. In no event shall the manufacturer be liable for direct, indirect,

special, incidental or consequential damages arising from any defect or error

in this manual or product.

Product names appearing in this manual are for identification purpose only

and trademarks and product names or brand names appearing in this

document are property of their respective owners.

This document contains materials protected under International Copyright

transmitted or transcribed without the expressed written permission of the

manufacturer and authors of this manual.

If you do not properly set the motherboard settings causing the motherboard

to malfunction or fail, we cannot guarantee any responsibility.

Part No: MN-130-2A6-61 Rev:1.06

BH6 Motherboard

USER’S MANUAL

Table of Contents

Chapter 1 Introduction of BH6 Features

(1) Specifications 1-1

 Layout diagram 1-3

 The system block diagram 1-4

Chapter 2 Installing the Motherboard

 Installing the Motherboard to the Casing 2-2

 Standard External Connectors 2-4

 Jumper and Switches 2-9

(4) Installation of the PentiumII/III, Celeron™CPU 2-10

(5) Installing System Memory 2-11

Chapter 3 Introduction of BIOS

(1) CPU Setup 3-3

(2) Standard CMOS Setup Menu 3-8

(3) BIOS Features Setup Menu 3-11

(4) Chipset Features Setup Menu 3-17

(5) Power Management Setup Menu 3-21

(6) PNP/PCI Configuration 3-28

(7) Load Setup Defaults 3-30

(8) Integrated Peripherals 3-31

(9) Password Setting 3-35

(10) IDE Hard Disk Detection 3-35

(11) Save & Exit Setup 3-36

(12) Exit Without Saving 3-36

Appendix A Quick Installation

Appendix B General Discussion About HDD Installation

Appendix C Flash BIOS User Instructions

Appendix D How to install the IDE Bus Master driver

Appendix E How to install the PCI bridge driver for 440BX chipset

Appendix F Install HighPoint XStore Pro Utility

Appendix G Technical Support

IntroductionOfBH6Features 1-1

Chapter 1

Introduction Of BH6 Features

The motherboard is designed for a new generation CPUs. It supports the Intel SLOT1

structure (PentiumII/III and Celeron™ processors), up to 768MB of memory, super I/O,

and Green PC functions. The motherboard provides high performance for server

systems and meets the requirements for desktop system for multimedia in the future.

(1) Specifications

1. CPU

!CPU SOFT MENU™ II eliminates the need for jumpers or DIP switches

needed to set CPU parameters

!Employs switching type regulators to stabilize CPU operation

!Supports 66 and 100MHz MHz CPU external clock speeds

!Supports Intel®Pentium®III 450 ~ 500MHz processor cartridge (Based on

100MHz)

!Supports Intel®Pentium®II 350 ~ 450MHz processor cartridge (Based on

100MHz) and Pentium®II 233 ~ 333MHz processor cartridge (Based on

66MHz)

!Supports Intel®Celeron™ 266MHz~466MHz processor (Based on 66MHz)

2. Chipset

!Intel®440BX chipset (82443BX and 82371EB)

!Supports Ultra DMA/33 IDE protocol

!Supports Advanced Configuration and Power Management Interface(ACPI)

!Accelerated Graphics Port connector supports AGP 1x and 2x mode (Sideband)

3.3V device

3. Cache Memory

!Level 1 and Level 2 cache built into Intel®Pentium®II/III processor cartridge

!Level 1 cache (without L2 cache) built into Intel®Celeron™processor"

4. Memory (DRAM)

!Three 168-pin DIMM sockets support SDRAM modules

!Supports up to 768MB#

!ECC support

5. System BIOS

!AWARD BIOS

!Supports Plug-and-Play (PnP)

!Supports Advanced Configuration Power Interface (ACPI)

!Supports Desktop Management Interface (DMI)

!Year 2000 compliant

1-2 Chapter 1





Multi I/O Functions

!!Floppy port supports up to 2.88MB, and 3 mode floppies

!!Ultra DMA/33 bus master IDE supports up to 4 IDE devices

(Including LS-120 MB floppy drive)

!!Built-in Standard/EPP/ECP parallel port connector

!!Two built-in 16550 fast UART compatible serial port connectors

!!Built-in PS/2 keyboard and PS/2 mouse port connectors

!Built-in standard IrDA TX/RX header

!!Two built-in USB connectors





Miscellaneous

!!ATX form factor

!!One AGP slot, Five PCI slots and Two ISA slots

!!Wake Up On LAN header

!!SB-LINK header

!Hardware monitoringIncluded fan speed, voltages, and system

environment temperature

!!Board size: 305 * 190mm

Note: All brand names and trademarks are the property of their respective owners.

"Only Celeron™300A and 333 or higher speed processors have built in Level 2 cache.

#This is the maximum memory size the Intel®440BX chipset supports it, also depends on the size of

memory module you can buy on the market.

$Above 66MHz/100MHz bus speed supported but not guaranteed due to the PCI and chipset specs.

$Sound Blaster™is a registered trademark of Creative Technology Ltd in the United States and certain

other countries. Sound Blaster-LINK™and SB-LINK™ are trademarks of Creative Technology Ltd.

$Specifications and information contained in this manual are subject to change without notice.

IntroductionOfBH6Features 1-3

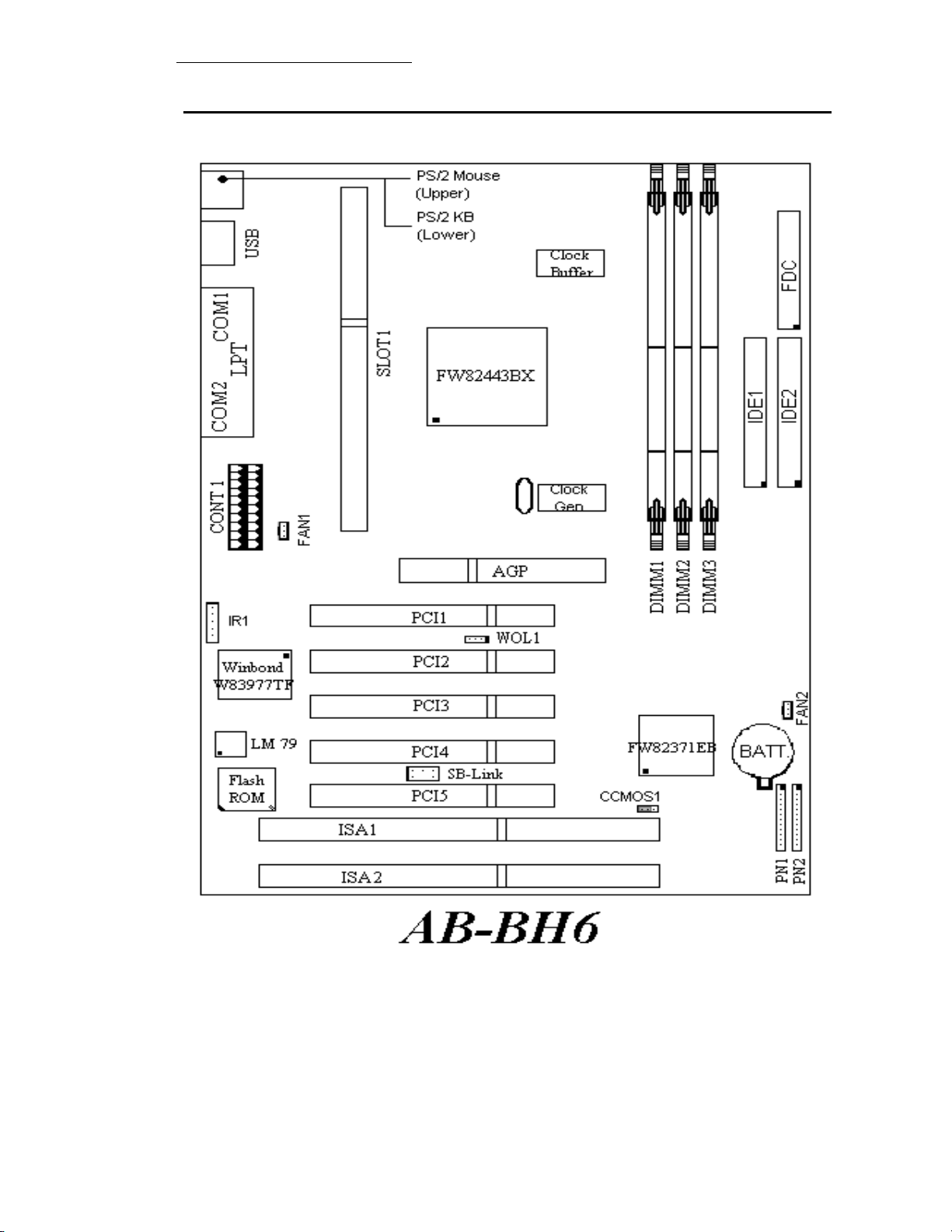

(2) Layout Diagram

Figure 1-1 Motherboard Component Locations

1-4 Chapter 1

(3) The System Block Diagram

Installing the Motherboar 2-1

Chapter 2 Installing the Motherboard

This BH6 motherboard not only provides all standard equipment for classic

personal computers, but also provides great flexibility for meeting future

upgrade demands. This chapter will introduce step by step all the standard

equipment and will also present, as completely as possible, future upgrade

capabilities. This motherboard is able to support all IntelPentiumII/III

processors and IntelCeleron™processor now on the market. (For details, see

specifications in Chapter 1.)

This chapter is organized according the following features:

 Installing the Motherboard to the Casing

 Standard external connectors

 Jumpers and switches

(4) Installation of the PentiumII/III, Celeron™CPU

(5) Installing the system memory

%%%%

%%%%%%%%

%%%%

Before proceeding with the installation

Before installing the motherboard please be sure to turn off or disconnect the

power supply unit. Before making any modifications to the hardware

configuration of the motherboard, the power supply to any areas of the

motherboard you plan to modify should be turned off to avoid unnecessary

damage to the hardware.

User friendly instructions

Our objective is to enable the novice computer user to perform the installation

by themselves. We have attempted to write this document in a very clear,

concise and descriptive manner to help overcome any obstacles you may face

during installation. Please read our instructions carefully and follow them

step-by-step.

2-2 Chapter 2





 Installing the Motherboard to the Casing

Most computer chassis will have a base on which there will be many mounting

holes that allows the motherboard to be securely attached and at the same time,

prevents short circuits.

There are two ways to attach the motherboard to the base of chassis:

!with stud

!or with spacer

Please refer the figure below show the studs and spacers, they may have several

types, but all look like the figure below:

In principle, the best way to attach the motherboard is with studs, and only if

you are unable to do this should you attach the board with spacers. Take a

careful look at the motherboard and you will see many mounting holes on it.

Line these holes up with the mounting holes on the base. If the holes line up,

and there are screw holes this means you can attach the motherboard with studs.

If the holes line up and there are only slots, this means you can only attach the

motherboard with spacers. Take the tip of the spacers and insert it into the slots.

After doing this to all the slots, you can slide the motherboard into position

aligned with the slots. After the motherboard has been positioned, check to

make sure everything is OK before putting the casing back on.

The figure below will show you the way to fix the motherboard using with the

stub and spacer:
