WI-2Pa

Dual Socket 604 Workstation Board

User’s Manual

4200-0349-22

Rev. 1.00

The information in this document is subject to change without notice and does not

represent a commitment on part of the vendor, who assumes no liability or

responsibility for any errors that may appear in this manual.

No warranty or representation, either expressed or implied, is made with respect to the

quality, accuracy or fitness for any particular part of this document. In no event shall

the manufacturer be liable for direct, indirect, special, incidental or consequential

damages arising from any defect or error in this manual or product.

Product names appearing in this manual are for identification purpose only and

trademarks and product names or brand names appearing in this document are

property of their respective owners.

This document contains materials protected under International Copyright Laws. All

rights reserved. No part of this manual may be reproduced, transmitted or transcribed

without the expressed written permission of the manufacturer and authors of this

manual.

WI-2Pa

Contents

Chapter 1. Introduction .................................................... 1-1

1.1. Features & Specifications....................................................... 1-1

1.2. Package Checklist................................................................... 1-3

1.3. Layout Diagram...................................................................... 1-4

Chapter 2. Hardware Setup.............................................. 2-1

2.1. Precautions ............................................................................. 2-1

2.2. Installing the Workstation Board ...........................................2-2

2.3. Install Xeon CPU and Heatsink ............................................. 2-3

2.4. System Memory ..................................................................... 2-4

2.4.1. Memory Configuration Table................................... 2-4

2.4.2. Installing and Removing Memory Modules............. 2-4

2.5. Connectors, Headers, and Switches .......................................2-6

2.5.1. ATXPWR1, ATX12V1: EPS12V Power Connectors

.................................................................................. 2-6

2.5.2. FAN1~6: FAN Connectors....................................... 2-7

2.5.3. CCMOS1: CMOS Memory Clearing Header........... 2-8

2.5.4. FPIO1: Front Panel Switches and Indicators Header

.................................................................................. 2-9

2.5.5. FDC1, IDE0/IDE1 Connectors:.............................. 2-10

2.5.6. PCI Slots: ................................................................ 2-11

2.5.7. 6CHAUD1: 5.1-Channel Audio Interface Header . 2-12

2.5.8. USB1/USB3: Additional USB Ports Headers ........ 2-13

2.5.9. CD1, AUX1: Internal Audio Connector................. 2-14

2.5.10. IR1: Infrared Device Header .................................. 2-15

2.5.11. Back Panel Connectors:.......................................... 2-16

Chapter 3. BIOS Setup...................................................... 3-1

3.1. Main Menu ............................................................................. 3-2

3.2. Advanced Menu ..................................................................... 3-6

User’s Manual

3.2.1. Advanced BIOS Features ......................................... 3-6

3.2.2. Advanced Chipset Features ...................................... 3-9

3.2.3. Integrated Peripherals ............................................. 3-11

3.2.4. Power Management Setup ...................................... 3-16

3.2.5. PnP/PCI Configurations.......................................... 3-20

3.3. Security Menu ...................................................................... 3-22

3.4. PC Health Menu ................................................................... 3-23

3.5. Clk/Misc. Menu.................................................................... 3-25

3.6. Exit Menu ............................................................................. 3-26

Chapter 4. Driver Installation .......................................... 4-1

Appendix A. Trouble Shooting ........................................... A-1

Appendix B. How to Get Technical Support ..................... B-1

WI-2Pa

Introduction 1-1

Chapter 1. Introduction

1.1. Features & Specifications

CPU

• Supports Dual IntelXeon processor (603-pin or 604-pin)

Chipset

• IntelE7505 chipset supports 400MHz/533MHz Front Side Bus

• Intel82801DB (ICH4) supports PCI 2.2, Ultra DMA100 IDE

protocol

• Intel82870P2 (P64H2) supports PCI-X 66/100MHz

Memory

• Six 184-pin DIMM sockets support DDR200/DDR266 RAM module

• Supports up to 12GB (Registered ECC)

• Supports up to 8GB (Unbuffered, Non ECC)

LAN

• Onboard Intel 82545EM (Kenai-64) Gigabit Ethernet Controller

• 10/100/1000 Mb Ethernet

Graphics

• AGP8x/4x AGP Pro

System BIOS

• AWARD Plug and Play BIOS supports APM, DMI, and ACPI

• Write-Protect Anti-Virus function by AWARD BIOS

• 4M-bit Flash ROM

I/O Slot

• 2 33MHz/32bit PCI slots

• 1 PCI-X 100MHz/64bit slot

• 2 PCI 66MHz/64bit slots

• 1 AGP Pro slot

Multi I/O Functions

• 1 floppy port

• 2 channels of bus master IDE ports supporting up to four Ultra

DMA100 devices

User’s Manual

1-2 Chapter 1

• 1 parallel port, 2 serial ports and 1 game port

• PS/2 keyboard and PS/2 mouse connectors

• Support 6 USB ports

• Support AC97, 5.1Channel (Option)

• Support S/PDIF (Option)

Miscellaneous

• 24-pin and 8-pin EPS 12V power connectors

• Extend ATX form factor (12” x 13”)

 Specifications and information contained herein are subject to change

without notice.

WI-2Pa

Introduction 1-3

1.2. Package Checklist

 (1) WI-2Pa Workstation board

 (1) Brief Installation Guide

 (1) Driver & Utilities CD

 (1) Ribbon cable for (1) 3.5” floppy disk drive

 (2) Ribbon cables for master and slave IDE drives

 (1) CPU Retention Mechanism

 (2) Retention Clips for 603-pin CPU

 (2) Retention Clips for 604-pin CPU

 (1) I/O Shield

 (1) 2-port USB 2.0 cable

User’s Manual

1-4 Chapter 1

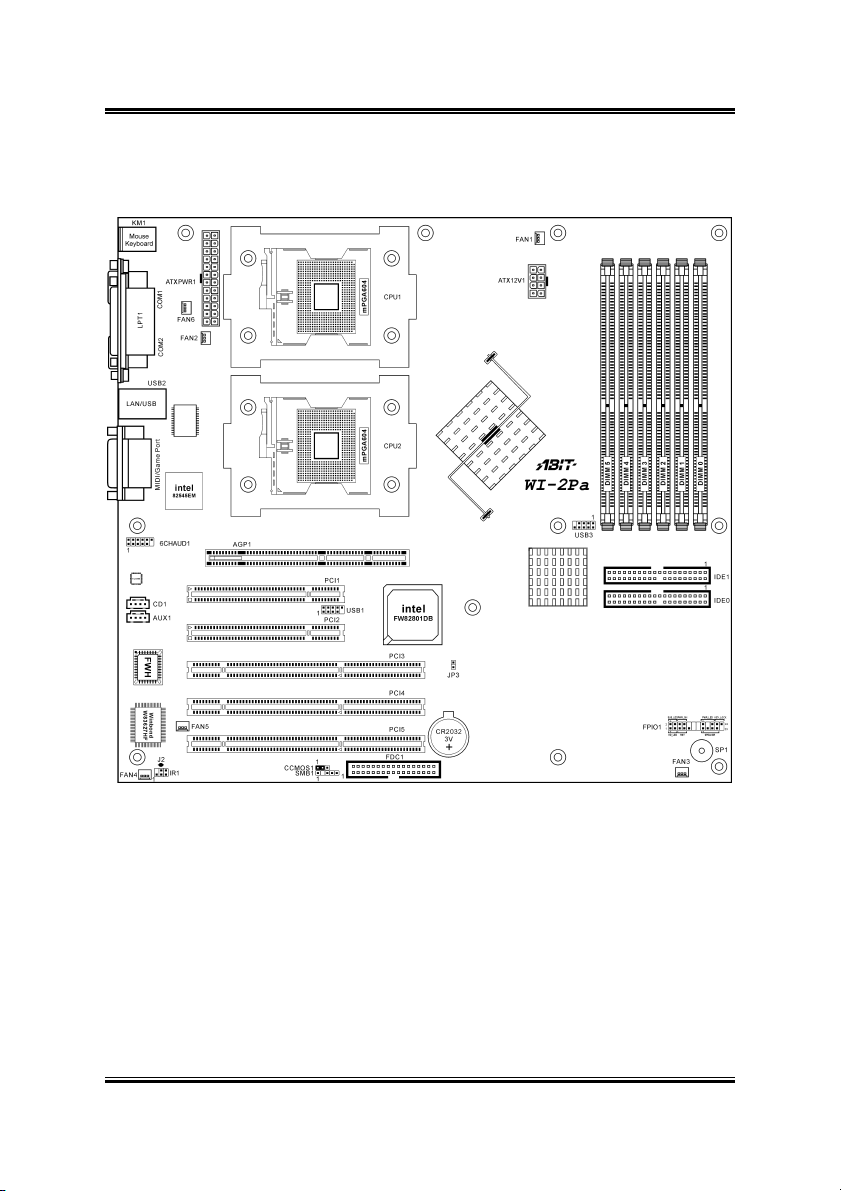

1.3. Layout Diagram

WI-2Pa

Introduction 1-5

Jumpers Description Default Setting

CCMOS1 CMOS Clear Pins 1-2 (Normal) Closed

Connectors Description

6CHAUD1 Optional ABIT CA-20 Interface Connector

AGP1 Slot for AGP8x/4x AGP Pro Display Card

ATX12V1 8-pin EPS12V Power Connector

ATXPWR1 24-pin EPS12V Power Connector

CD1/AUX1 Internal Audio Sources Connectors

DIMM 0~5 DDR DIMM Slots

FAN1 CPU1 Fan Connector (Speed monitoring support)

FAN2 CPU2 Fan Connector (Speed monitoring support)

FAN3 System Fan Connector (Speed monitoring support)

FAN4/5/6 System Fan Connector (No speed monitoring support in BIOS

menu)

FDC1 Floppy Disk Drive Connector

FPIO1 Front Panel Switches & Indicators Headers

IDE0/IDE1 Hard Disk Drive Connectors

IR1 Optional Infrared Devices Connector

JP3 Chassis Intrusion Header

PCI1/2 PCI 33MHz/32bit

PCI3 PCI-X 100MHz/64bit

PCI4/PCI5 PCI 66MHz/64bit

SMB1 System Management Bus (SMBus) Header

USB1/USB3 Additional USB Ports Connectors

User’s Manual

1-6 Chapter 1
