BE6 Motherboard User’s Manual

Table of Contents

CHAPTER 1. INTRODUCTION OF BE6 FEATURES 1-1

1-1.Features of This Motherboard 1-1

1-2. Specifications 1-2

1-3. Layout Diagram 1-3

1-4. The System Block Diagram 1-5

CHAPTER 2. INSTALLING THE MOTHERBOARD 2-1

2-1. Installing the Motherboard to the Chassis 2-2

2-2. Installation of the PentiumII/III, CeleronCPU 2-3

2-3. Installing System Memory 2-3

2-4. Connectors, Headers and Switches 2-6

CHAPTER 3. INTRODUCTION OF THE BIOS 3-1

3-1. CPU Setup [SOFT MENU™II] 3-3

3-2. Standard CMOS Setup Menu 3-8

3-3. BIOS Features Setup Menu 3-11

3-4. Chipset Features Setup Menu 3-17

3-5. Power Management Setup Menu 3-21

3-6. PNP/PCI Configuration 3-28

3-7. Load Setup Defaults 3-30

3-8. Integrated Peripherals 3-31

3-9. Password Setting 3-36

3-10. IDE Hard Disk Detection 3-37

3-11. Save & Exit Setup 3-38

3-12. Quit Without Saving 3-38

APPENDIX A BIOS FLASHING USER INSTRUCTIONS

APPENDIX B INSTALLING THE HIGHPOINT XSTORE PRO

UTILITY

APPENDIX C HARDWARE MONITORING FUNCTION

(INSTALLING THE WINBOND HARDWARE

DOCTOR UTILITY)

APPENDIX D INSTALLING THE DRIVER FOR ULTRA ATA/66

APPENDIX E THE THERMAL CABLE

APPENDIX F TROUBLESHOOTING (NEED ASSISTANCE?)

Introduction of BE6 Features 1-1

User’s Manual

Chapter 1. Introduction of BE6 Features

1-1.Features of This Motherboard

The motherboard is designed for a new generation CPUs. It supports the Intel SLOT1

structure (PentiumII/III and Celeronprocessors), up to 768MB of memory, super I/O, and

Green PC functions. The motherboard provides high performance for server systems and

meets the requirements for desktop system for multimedia in the future.

The BE6 has the HPT366 Ultra ATA/66 Chipset built-in. This means, the BE6 will support

Ultra ATA/66 IDE devices. Ultra ATA/66 is the new standard for IDE devices. It enhances

existing Ultra ATA/33 technology by increasing both performance and data integrity. This

new high-speed interface doubles the Ultra ATA/33 burst data transfer rate to 66.6

Mbytes/sec. The result is maximum disc performance using the current PCI local bus

environment. Another benefit is, you can connect another four IDE devices in your system

either Ultra ATA/33 IDE devices or Ultra ATA/66 IDE devices. You will have more

flexibility to expand your computer system.

The BE6 has built-in hardware monitoring functions (you can refer to Appendix C for

detailed information), they can monitor and protect your computer insuring a safe

computing environment. The BE6 also supports both the PS/2 keyboard and PS/2 mouse

wake up features (you can refer to section 3-8 for detailed information), letting you easily

wake up your system by these devices. The motherboard can provide high performance for

workstations and meets the requirements for desktop systems for multimedia in the future.

Sets You Free From the Y2K Threat

The potential threat of Year 2000 (Y2K) problems are making everyone very nervous. The

Y2K issue applies to almost any device, firmware, or software that operates on or with year

based dates. This problem is caused by a design flaw in the Real Time Clock (RTC) unit.

The RTC only changes the last two digits of the year code, but not the century information.

As a result, when it comes to 12:00 AM January 1, 2000 the RTC will switch from

December 31 11:59 PM 1999 to 12:00 AM January 1 1900.

Y2K compliance deals with the date change over from 31 December 1999 to 1 January 2000,

and with recording and reporting of all dates from the RTC including leap year dates. This

motherboard is free from the Y2K problem because its BIOS are Y2K compliant.

1-2 Chapter1

BE6

Please Note

If the operating system or application software cannot handle Year 2000 dates, you will

still be facing the Y2K threat because it is not a hardware problem that relates to the

motherboard itself. According to Award BIOS, it is BIOS source code released after 31

May 1995 complies with all known Y2K issues; however, it may still fail the 2000.exe

test. Award has modified its BIOS source code to accommodate the requirements of

2000.exe. Award BIOS source code issued later than 18 November 1996 passes the

NTSL 2000.exe test program.

1-2. Specifications

1. CPU

!Supports IntelPentiumIII 450 ~ 550 MHz Processor cartridge.

!Supports IntelPentiumII 233 ~ 450 MHz Processor cartridge.

!Supports Intel®Celeron™ 266 ~ 466MHz processors (Based on 66MHz PPGA package)

!Supports 66 and 100MHz CPU external clock speeds

2. Chipset

!Intel®440BX chipset (82443BX and 82371EB)

!HPT366 Ultra DMA66 IDE controller supports four Ultra DMA66 devices

!Supports Ultra DMA/33 IDE protocol

!Supports Advanced Configuration and Power Management Interface (ACPI)

!Accelerated Graphics Port connector supports AGP 1x and 2x mode (Sideband) 3.3V

device

3. Memory (System Memory)

!Three 168-pin DIMM sockets support SDRAM modules

!Supports up to 768MB MAX. (8, 16, 32, 64, 128, 256 MB SDRAM)

!Supports ECC

4. System BIOS

!CPU SOFT MENU™ II, can easily set the processor parameters

!AWARD BIOS

!Supports Plug-and-Play (PnP)

!Supports Advanced Configuration Power Interface (ACPI)

!Supports Desktop Management Interface (DMI)

!Year 2000 compliant

Introduction of BE6 Features 1-3

User’s Manual

5. Multi I/O Functions

!2x Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33/66 devices

!2x Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33 devices

!PS/2 Keyboard and PS/2 Mouse Connectors

!1x Floppy Port ( up to 2.88MB)

!1x Parallel Port (EPP/ECP)

!2x Serial Ports

!2x USB Connectors

6. Miscellaneous

!ATX form factor

!One AGP slot, five PCI slots and two ISA slots

!Supports PS/2 keyboard and PS/2 mouse wake-up functions

!Built-in Wake on LAN header

!Built-in IrDA TX/RX header

!Built-in SB-Link™header

!Built-in Wake On Ring header

!Built-in SMBus header

!Hardware monitoring：Included fan speed, voltages, CPU and system environment

temperature

!One Thermal Sensor Cable included

!Board size: 305 * 210mm

1-4 Chapter1

BE6

"Supports Wake On LAN, Keyboard or Mouse, but your ATX power supply 5V

standby power must be able to provide at least a 720mA current capacity.

Otherwise, the functions may not work normally.

"PCI slots 4 and 5 use the same bus master control signal.

"PCI slot 3 shares IRQ signals with the HPT366 IDE controller (Ultra ATA/66). The

driver for HPT 366 IDE controller supports IRQ sharing with other PCI devices.

But if you install a PCI card that doesn’t allow IRQ sharing with other devices into

PCI slot 3, you may encounter some problems. Furthermore, if your Operating

System doesn’t allow peripheral devices to share IRQ signals with each other--

Windows NT for example, you can’t install a PCI card into PCI slot 3.

"HPT 366 IDE controller is designed to support high-speed mass storage. Thus we

don’t suggest you connect non-disk devices that use ATA/ATAPI interfaces, such as

CD-ROM to HPT 366 IDE connector (IDE3&IDE4).

#Above 66MHz/100MHz bus speeds are supported but not guaranteed due to the PCI and

chipset specifications.

#Sound Blaster™is a registered trademark of Creative Technology Ltd. in the United

States and certain other countries. Sound Blaster - LINK™and SB-LINK™ are

trademarks of Creative Technology Ltd.

#Specifications and information contained in this manual are subject to change without

notice.

Note

All brand names and trademarks are the property of their respective owners.

Introduction of BE6 Features 1-5

User’s Manual

1-3. Layout Diagram

Figure 1-2. Motherboard component location

1-6 Chapter1

BE6

1-4. The System Block Diagram

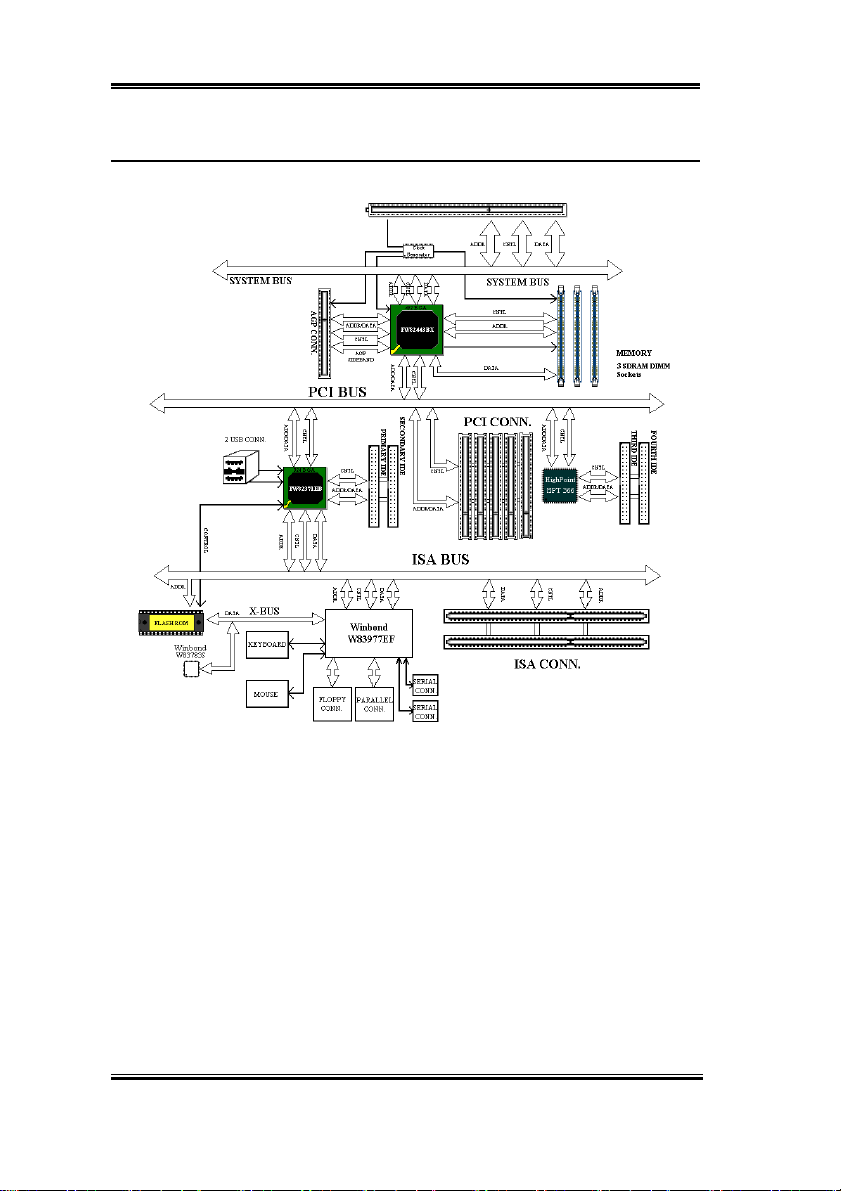

Figure 1-3. System diagram of the 440BX chipset
