ABB Ability Smart Sensor Manuel utilisateur

DOCUMENT ID REV. DATE LANG. PAGE

9AKK107046A4620 G April 2020 EN 1/17

—

TECHN IC AL D OCUM E NT

ABB Ability™ Smart Sensor gateway

Installation manual

AB B A BILIT Y™ S M ART S ENSO R GAT EWAY

DOCUMENT ID REV. DATE LANG. PAGE

9AKK107046A4620 G April 2020 EN 2/17

Table of contents

1 GENERAL ....................................................................................................... 3

2 INSTALLATION .............................................................................................. 4

2.1 Prerequisites for installation ........................................................................................ 4

2.2 Recommended location ................................................................................................. 5

2.3 Gateway configuration .................................................................................................. 6

2.4 PoE connection ............................................................................................................... 9

2.5 LAN/Ethernet cable connection ................................................................................. 10

2.6 WIFI connection ............................................................................................................ 11

2.7 USB mobile dongle connection ................................................................................... 12

2.8 Firewall configuration .................................................................................................. 13

2.9 Verifying the configuration ......................................................................................... 14

3 TROUBLESHOOTING ................................................................................. 15

AB B A BILIT Y™ S M ART S ENSO R GAT EWAY

DOCUMENT ID REV. DATE LANG. PAGE

9AKK107046A4620 G April 2020 EN 3/17

1 General

The ABB Ability™ Smart Sensor gateway is used to upload the Smart Sensor data

automatically to the Smart Sensor portal. The gateway needs to be configured for Internet

access before it can start reading the Smart Sensors. Following Internet connections are

supported:

- LAN/Ethernet network together with PoE injector.

- 2.4GHz WIFI network.

- 3G/4G Mobile network with specific USB dongle.

The sales package includes:

- X1000 Bluetooth router, wall and pole mounting kits and a quick guide.

Figure 1 Content of the sales package

For general information about the Cassia gateway, please refer to the Cassia User Manual on

https://www.cassianetworks.com/download/docs/Cassia-User_Manual.pdf

AB B A BILIT Y™ S M ART S ENSO R GAT EWAY

DOCUMENT ID REV. DATE LANG. PAGE

9AKK107046A4620 G April 2020 EN 4/17

2 Installation

2.1 Prerequisites for installation

Internet connection:

- Gateway does not operate in networks with VPN (Virtual Private Network).

- In case there is a firewall used, following ports need to be opened:

Type Port M/O

Communication

Partner for

Gateway

Direction Description

UDP 5246,

5247 Mandatory Access Controller

(AC) OUT Default CAPWAP communication

between AC and router

UDP 6246,

6247 Optional Access Controller

(AC) OUT Backup CAPWAP communication

between AC and router

TCP 8883 Optional Access Controller

(AC) OUT MQTT communication between

AC and router

TCP 1883 Optional Local MQTT broker OUT MQTT bypass function

TCP/HTTP 80 Mandatory Access Controller

(AC) OUT Container/APP download from

TCP/HTTPS 443 Mandatory Smart Sensor

Platform OUT

Communication with Smart

Sensor Platform

Container/APP download from

TCP 9999 Mandatory Access Controller

(AC) OUT Remote SSH to container

UDP 53 Mandatory DNS server OUT DNS lookup for AC address

The above table is considered from gateway perspective, thus all communication with

Direction Out is from the gateway to the communication partner. All communication with

Direction In is from the communication partner towards the gateway. All communication

with In-out is bidirectional.

AC – Access Controller

Global: abb.cassia.pro

China: gw.smartsensor.abb.com.cn

Smart Sensor Platform

Global: smartsensor.abb.com

China: smartsensor.abb.com.cn

- Mobile network needs to have adequate signal strength. In most demanding

locations, an extension USB cable or external antenna might be needed for USB

modem/dongle.

AB B A BILIT Y™ S M ART S ENSO R GAT EWAY

DOCUMENT ID REV. DATE LANG. PAGE

9AKK107046A4620 G April 2020 EN 5/17

Power supply:

- In case PoE network is not available, a PoE injector (power supply) is needed.

- PoE is 802.3af/at compliant.

Ethernet cable:

- 1 Ethernet cable is needed when PoE, WIFI or mobile network is used.

- 2 Ethernet cables when LAN/Ethernet network is used.

Computer:

- Computer with WIFI adapter is needed for gateway configuration. Tablet

computer or mobile phone can also be used.

- Google Chrome web browser is recommended to be used.

USB Cellular Modem / Dongle

- Gateway has built in drivers for several USB dongles. For the list of supported

dongles please check the section 2.7 USB mobile dongle connection.

- SIM card with Internet data plan.

- Gateway also supports the use of any USB powered WIFI modems.

Mounting:

- Flat head screwdriver for pole mounting.

- Phillips head screwdriver and a drill (if needed) for wall mounting.

- Mounting is not mandatory, but it is recommended to secure the gateway

somehow to its intended place.

2.2 Recommended location

Height:

- Recommended height for the gateway is 3-30 meters from ground level. Lower

levels are also acceptable, but gateway Bluetooth range might be shorter due to

obstacles.

Orientation:

- The Gateway has the best reception in the direction where the Cassia logo is

shown on its side. If the gateway has trouble connecting to a specific Smart

Sensor, it is recommended to rotate the gateway to point in that direction.

AB B A BILIT Y™ S M ART S ENSO R GAT EWAY

DOCUMENT ID REV. DATE LANG. PAGE

9AKK107046A4620 G April 2020 EN 6/17

2.3 Gateway configuration

When the gateway is powered on, the blue LED at the bottom of the gateway turns ON.

After bootup, the gateway will turn on the configuration WIFI hotspot. The bootup takes

about 30-60 seconds.

Configuration WIFI hotspot has SSID “cassia-XXXXXX”, where XXXXXX is the last 6 digits

of the gateway’s MAC address. MAC address can be found from the bottom of the

gateway. Password for this WIFI hotspot is the same as the SSID.

Connect to this WIFI hotspot with the device used for configuration (computer, phone or

tablet) and open the web browser. Type 192.168.40.1 to the web browser’s address field

and press enter. Cassia configuration page will open. During the first login the default

password needs to be changed. Default credentials are:

- Login: admin

- Password: admin

Figure 2 Cassia login page

It is recommended to replace the default credentials.

Once logged in, the Status Page is shown. This page shows current operation mode and

connection status of the gateway. AC Online Time shows how long the gateway has been

connected to the AC (Access Controller) server. If no time is shown, it means that the

gateway does not have a connection to the AC server. AC server connection is needed for

the Smart Sensor data transfer.

AB B A BILIT Y™ SMART S ENSO R GAT EWAY

DOCUMENT ID REV. DATE LANG. PAGE

9AKK107046A4620 G April 2020 EN 7/17

Figure 3 Status page

The Basic Page is where the configuration is done.

Following values are common for all network configurations (PoE, LAN, WIFI, Mobile):

AC Server Address: abb.cassia.pro

AC Server Address for China: gw.smartsensor.abb.com.cn

Remote Assistance: ON

Router Mode: AC Managed Router

AC Router Comm. Ports: 5246, 5247

Connection Priority is where a priority connection method is selected in case there are

several in use. Select the priority according to connection in use:

Wired for PoE and LAN connections.

Wireless for WIFI connection.

AB B A BILIT Y™ S M ART S ENSO R GAT EWAY

DOCUMENT ID REV. DATE LANG. PAGE

9AKK107046A4620 G April 2020 EN 8/17

- 3G/4G for mobile USB dongle connection.

Figure 4 Basic page

AB B A BILIT Y™ SMART S ENSO R GAT EWAY

DOCUMENT ID REV. DATE LANG. PAGE

9AKK107046A4620 G April 2020 EN 9/17

2.4

PoE connection

If a PoE (Power Over Ethernet) network is available, the gateway can be configured to use

it without any additional power supply.

Figure 5 PoE network configuration

From the Gateway Basic Page select:

Connection Priority: Wired

IP Allocation: DHCP or Static (in case the IP allocation is given)

Press Apply at the bottom of the screen.

AB B A BILIT Y™ SMART S ENSO R GAT EWAY

DOCUMENT ID REV. DATE LANG. PAGE

9AKK107046A4620 G April 2020 EN 10/17

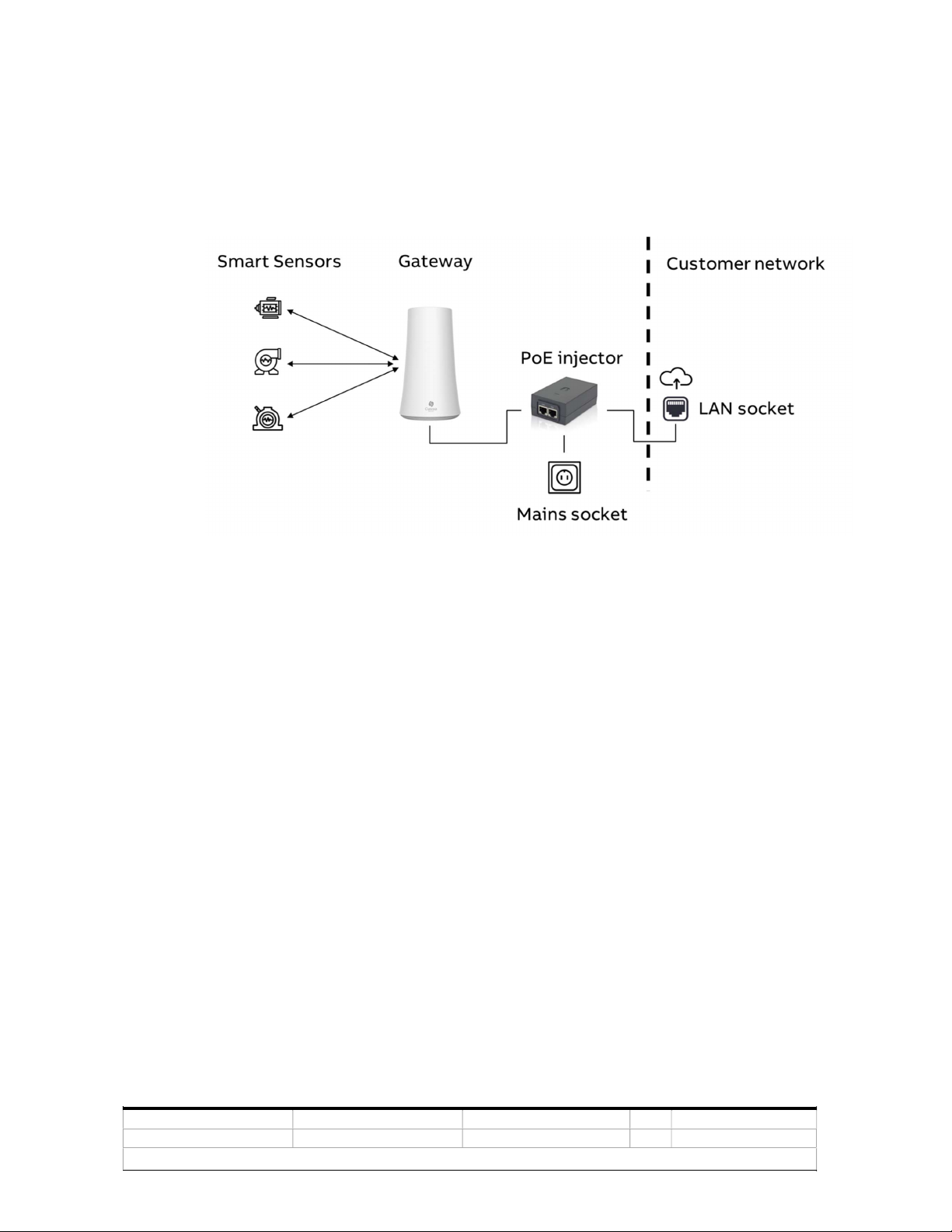

2.5

LAN/Ethernet cable connection

If a LAN/Ethernet network is available, the gateway can be configured to use it. Additional

PoE injector is needed for power supply.

Figure 6 LAN network configuration

From the Gateway Basic Page select:

Connection Priority: Wired

IP Allocation: DHCP or Static (in case the IP allocation is given)

Press Apply at the bottom of the screen.
