ABB Ability Cassia X2000 Manuel utilisateur

DOCUMENT ID

REV.

DATE

LANG.

PAGE

4MWA000032

February 2023

1/29

—

ABB MOTION SERVICES

ABB Ability™ Smart Sensor Bluetooth®

Gateway

Cassia X2000 installation manual

ABB ABILIT Y™ SMART SENSOR BLUETOOTH ® GATEWAY

DOCUMENT ID

REV.

DATE

LANG.

PAGE

4MWA000032

February 2023

2/29

Table of contents

1GENERAL....................................................................................................... 3

2INSTALLATION.............................................................................................. 4

2.1 Prerequisites for installation ........................................................................................4

2.2 Recommended location .................................................................................................6

2.3 Gateway configuration ..................................................................................................7

2.4 PoE connection ............................................................................................................. 12

2.5 LAN/Ethernet cable connection ................................................................................. 13

2.6 WIFI connection ............................................................................................................14

2.7 USB mobile dongle connection ...................................................................................16

2.8 Firewall configuration..................................................................................................19

2.9 Verifying the configuration.........................................................................................20

2.10 Commissioning the gateway ...................................................................................23

3TROUBLESHOOTING ................................................................................. 25

ABB ABILIT Y™ SMART SENSOR BLUETOOTH ® GATEWAY

DOCUMENT ID

REV.

DATE

LANG.

PAGE

4MWA000032

February 2023

3/29

1General

The ABB Ability™ Smart Sensor gateway is used to upload the Smart Sensor data

automatically to the Smart Sensor portal. The gateway needs to be configured for

Internet access before it can start reading the Smart Sensors. The following Internet

connections are supported:

-LAN/Ethernet network

-2.4GHz/5GHz WIFI network

-4G Mobile network with specific USB dongle

The sales package includes:

-X2000 Bluetooth router, wall and pole mounting kits and a quick guide.

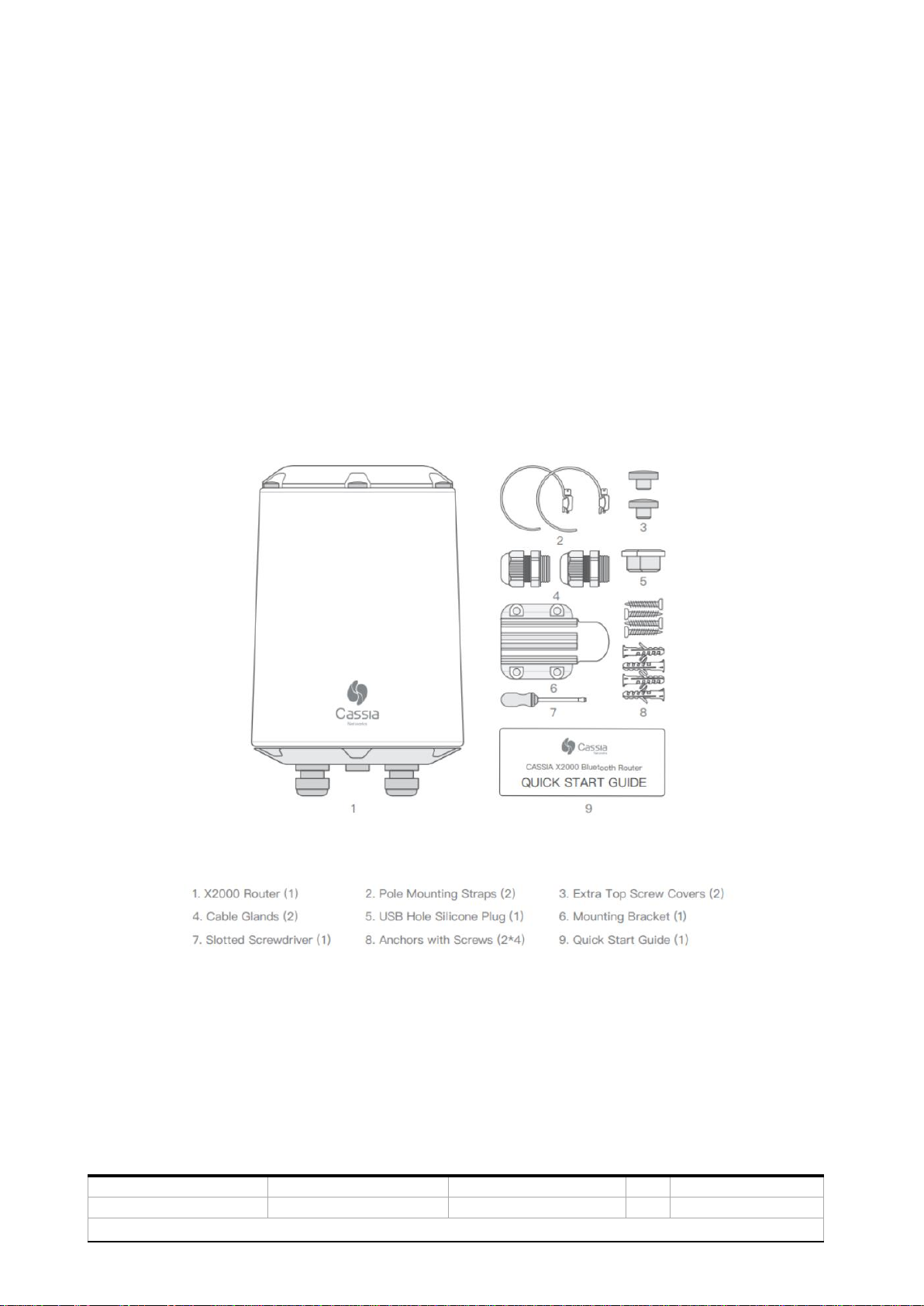

Figure 1 Content of the sales package

For general information about the Cassia gateway, please refer to the Cassia User Manual on

https://www.cassianetworks.com/download/docs/Cassia_User_Manual.pdf

ABB ABILIT Y™ SMART SENSOR BLUETOOTH ® GATEWAY

DOCUMENT ID

REV.

DATE

LANG.

PAGE

4MWA000032

February 2023

4/29

2Installation

2.1 Prerequisites for installation

Internet connection:

-The gateway does not operate in networks with a VPN (Virtual Private Network)

or Proxy server.

-The default DNS server address is the Google DNS server for global customers

(8.8.8.8) and the Baidu DNS server for customers located in China

(114.114.114.114).

-In case a firewall is used, the following ports need to be open for outbound

communication:

Type

Port

M/O

Communication

Partner for Gateway

Description

UDP

5246,

5247

Optional

Access Controller (AC)

CAPWAP communication between AC

and router.

UDP

6246,

6247

Optional

Access Controller (AC)

Backup CAPWAP communication

between AC and router.

TCP

8883

Mandatory

Access Controller (AC)

MQTT communication between AC and

router.

TCP

1883

Optional

Local MQTT broker

MQTT bypass function.

TCP/HTTP

Optional

Access Controller (AC)

Container/APP download from AC.

TCP/HTTPS

443

Mandatory

Access Controller (AC)

Smart Sensor Platform

Container/APP download from AC

Communication with Smart Sensor

Platform

TCP

9999

Mandatory

Access Controller (AC)

Remote SSH to container

UDP

Mandatory

DNS server

DNS lookup for AC address

AC – Access Controller:

Global: gw.smartsensor.abb.com

China: gw.smartsensor.abb.com.cn

Smart Sensor Platform:

Global: smartsensor.abb.com

China: smartsensor.abb.com.cn

-Only one AC address must be whitelisted in the network. For gateways working

outside China, the Global AC address must be whitelisted. For gateways working

inside China, only the China AC address must be whitelisted.

ABB ABILIT Y™ SMART SENSOR BLUETOOTH ® GATEWAY

DOCUMENT ID

REV.

DATE

LANG.

PAGE

4MWA000032

February 2023

5/29

-Smart Sensor Platform and all the existing subdomains must be whitelisted in

the network for a successful communication and measurement report to the

Portal.

-Mobile network needs to have adequate signal strength. In the most demanding

locations, an extension USB cable or external antenna might be needed for the

USB modem/dongle.

Power supply:

-For PoE powering, in case PoE network is not available, a PoE injector (power

supply) is needed.

-PoE Injector must be 802.3af/at compliant.

-Recommended PoEs:

oProcet PT-PSE104GO-30-5, Indoor PoE Injector

oProcet PT-PSE108GBR-OT, Outdoor PoE Injector

-Additionally, the gateway can be also powered by a 12V - 2A adapter.

-See below a model for reference:

oARTESYN AD2412N3L-V, 24 Watt Power Adapter

Ethernet cable:

-1 CAT6 Ethernet cable, with a length of 50 meters maximum, is needed when

PoE, WIFI or mobile network is used.

-2 CAT6 Ethernet cables, with a length of 50 meters maximum, are needed when

LAN/Ethernet network is used in addition to a PoE Injector.

-1 CAT6 Ethernet cable is needed when a 12V adapter is used in a LAN/Ethernet

network.

Computer:

-A computer with WIFI adapter is needed for gateway configuration. A tablet

computer or mobile phone can also be used.

-Google Chrome web browser is recommended to be used.

USB Cellular Modem / Dongle

-The gateway has built in drivers for several USB dongles. For the list of

supported dongles please check the section 2.7 USB mobile dongle connection.

-A SIM card with Internet data plan.

-The gateway also supports the use of any USB powered WIFI modems.

Mounting:

-Flat head screwdriver for pole mounting.

-Phillips head screwdriver and a drill (if needed) for wall mounting.

-Mounting is not mandatory, but it is recommended to secure the gateway to its

intended place.

ABB ABILIT Y™ SMART SENSOR BLUETOOTH ® GATEWAY

DOCUMENT ID

REV.

DATE

LANG.

PAGE

4MWA000032

February 2023

6/29

2.2 Recommended location

Height:

-The recommended height for the gateway is 3-30 meters from ground level.

Lower levels are also acceptable, but the gateway Bluetooth range might be

shorter due to obstacles.

Orientation:

-The gateway has the best reception in the direction where the Cassia logo is

shown on its side. If the gateway has trouble connecting to a specific Smart

Sensor, it is recommended to rotate the gateway to point in that direction.

ABB ABILIT Y™ SMART SENSOR BLUETOOTH ® GATEWAY

DOCUMENT ID

REV.

DATE

LANG.

PAGE

4MWA000032

February 2023

7/29

2.3 Gateway configuration

When the gateway is powered on, the multiple Green LEDs on the bottom of the gateway

turn ON. After bootup, the gateway will turn on the configuration WIFI hotspot. The

bootup takes about 30-60 seconds.

Configuration WIFI hotspot has SSID “cassia-XXXXXX”, where XXXXXX are the last 6

characters of the gateway’s MAC address. The MAC address can be found on the bottom

of the gateway. Password for this WIFI hotspot is the exact same as the SSID.

Connect to the WIFI hotspot with the device which will be used for configuration

(computer, phone or tablet) and open the web browser. Type 192.168.40.1 in the web

browser’s address field and press enter. The Cassia configuration page will open. During

the first login the default password needs to be changed. Default credentials are:

-Username: admin

-Old password: admin

Once logged in, the Status Page is shown. This page shows current operation mode and

connection status of the gateway. AC Online Time shows how long the gateway has been

connected to the AC (Access Controller) server. If no time is shown, it means that the

gateway does not have a connection to the AC server.

Access Controller server connection is needed for a successful Smart Sensor data

transfer.

Figure 2 Cassia Login page

ABB ABILIT Y™ SMART SENSOR BLUETOOTH ® GATEWAY

DOCUMENT ID

REV.

DATE

LANG.

PAGE

4MWA000032

February 2023

8/29

Network configuration

The following values must be configured, in the first section of the Basic page:

-Gateway Name: *Organization Name is recommended but not mandatory

-Gateway Mode: AC Managed Router

-Tx Power: 19

-External Antenna: None by default

-Statistics Report Interval: 5 minutes by default

-AC Server Address:

-Global AC Address: gw.smartsensor.abb.com

-China AC Address: gw.smartsensor.abb.com.cn

-AC-Router Protocol Priority: MQTT

-Connection Priority:

see description below

-Enable OAuth2 Token For Local API: OFF

-Remote Assistance: ON

Figure 3 Cassia Status page

ABB ABILIT Y™ SMART SENSOR BLUETOOTH ® GATEWAY

DOCUMENT ID

REV.

DATE

LANG.

PAGE

4MWA000032

February 2023

9/29

Connection Priority:

-Wired for PoE and LAN connections

-Wi-Fi for WIFI connection

-Cellular for mobile USB dongle connection

If Cellular connection is used, the option Auto Recovery must be set to ON.

This option enables the gateway to do a power cycle of the 4G dongle when it is not

being able to provide a network connection anymore.

If all the information has been filled as shown above and the Wired, Wi-Fi or Cellular sec-

tions are configured according to your network specifications, please refer to 2.9 Verify-

ing the configuration to check if the connection has been successfully set-up.

ABB ABILIT Y™ SMART SENSOR BLUETOOTH ® GATEWAY

DOCUMENT ID

REV.

DATE

LANG.

PAGE

4MWA000032

February 2023

10/29

Figure 4 Basic page configuration for Cellular/4G connection
