ABB Welcome®

Lift control module

M2306

M2307

=== E nde der Liste für Textma rke Cover == =

ABB Welcome®

— 2 —

Pos: 4 /Busch-Jaege r (Neustrukt ur)/Modul-Struktu r/Online-Doku mentation/Inhaltsve rzeichnis ( --> Für alle Dokumente <--)/In haltsverzeichnis @ 19\mod_13 20649044386_1 5.docx @ 109653 @ @ 1

1 Safety ....................................................................................................... 3

2 Environment ............................................................................................. 3

2.1 ABB devices ............................................................................. 3

3 Technical data .......................................................................................... 4

4 Function ................................................................................................... 5

5 Connection ............................................................................................... 6

5.1 M2306 ...................................................................................... 6

5.2 M2307 ...................................................................................... 7

5.3 Lift control relay module address by binary setting ..................... 8

6 Mounting and installation........................................................................... 9

6.1 Requirements for the electrician .............................................. 10

6.2 Mounting ................................................................................ 11

7 User case ............................................................................................... 12

7.1 High building (no more than 16 floors) with one elevator .......... 12

7.2 High building (more than 16 floors) with one elevator ............... 14

7.3 High building (more than 16 floors) with two elevators .............. 16

7.4 High building (more than 16 floors) with four elevators ............. 17

8 Operation ............................................................................................... 18

8.1 User scenario illustration of visitor target floor .......................... 18

8.2 User Scenario Illustration of resident target floor ...................... 19

9 Configuration through PC software .......................................................... 20

9.1 Connected to PC .................................................................... 20

9.2 Configuration .......................................................................... 21

=== E nde der Liste für Textma rke TOC == =

ABB Welcome®

— 3 —

Pos: 6 /Busch-Jaege r (Neustrukt ur)/Modul-Struktu r/Online-Doku mentation/Übe rschriften (--> Für alle D okumente < --)/ 1. E b ene/ S - T/Si cherheit @ 18\mod _13026127 91790_15.docx @ 103357 @ 1 @ 1

1 Safety

Warning

Electric voltage!

Direct or indirect contact with live components can cause dangerous

currents to flow through the body, which may result in electric shock,

burns or even death.

- Always disconnect the main power supply prior to installation and/or

disassembly.

- Work on the 110 V - 240 V supply system must be performed only

by qualified personnel.

2 Environment

Consider the protection of the environment!

Used electric and electronic devices must not be disposed of with

household waste.

– The device contains valuable raw materials that can be recycled

and should be disposed of at an appropriate recycling facility.

2.1 ABB devices

All packaging materials and devices from ABB bear the markings and test seals for proper disposal. Always dispose of the packaging

material, electronic devices and their components via an authorized collection facility or disposal company.

ABB Welcome®

— 4 —

3 Technical data

General

Single-wire

clamps

2 x 22 AWG - 2 x 18 AWG

Fine-wire clamps

2 x 22 AWG - 2 x 18 AWG

Bus voltage

20 V - 30 V DC

Size

4 U

Protection

IP 20

Operating

temperature

-13 °F to +131 °F

Size

M2306: 8.50“ x 4.33“ x 1.77“

M2307: 8.50“ x 4.33“ x 1.77“

ABB Welcome®

— 5 —

4 Function

The lift control modules include the M adaptor (M2306) and lift control relay module (M2307). These two devices together ensure that elevator (lift) only goes to

authorized floor(s).

If a resident presses the “unlock” button when receiving a guest's call from the outdoor station,

or the authorized user swipes the registered card or enters the correct password, the elevator will automatically go down to the floor where the outdoor station

is installed. The elevator will then go

to the dedicated floor where that resident lives. It cannot go to unauthorized floors, even when other buttons are pressed.

Configuration should be performed using the dedicated configuration software by connecting the

M adaptor to a computer.

ABB Welcome®

— 6 —

5 Connection

5.1 M2306

Fig.

No.

Function

Status

- ON = Connected with the system controller and internal bus

- OFF = Not connected with the system controller and internal bus

- Blinking = Working with the system controller and internal bus

- ON = Power on

- OFF = Power off

- Blinking = Working

Connect with M2307

Power supply

Connect with the system controller and internal bus

ABB Welcome®

— 7 —

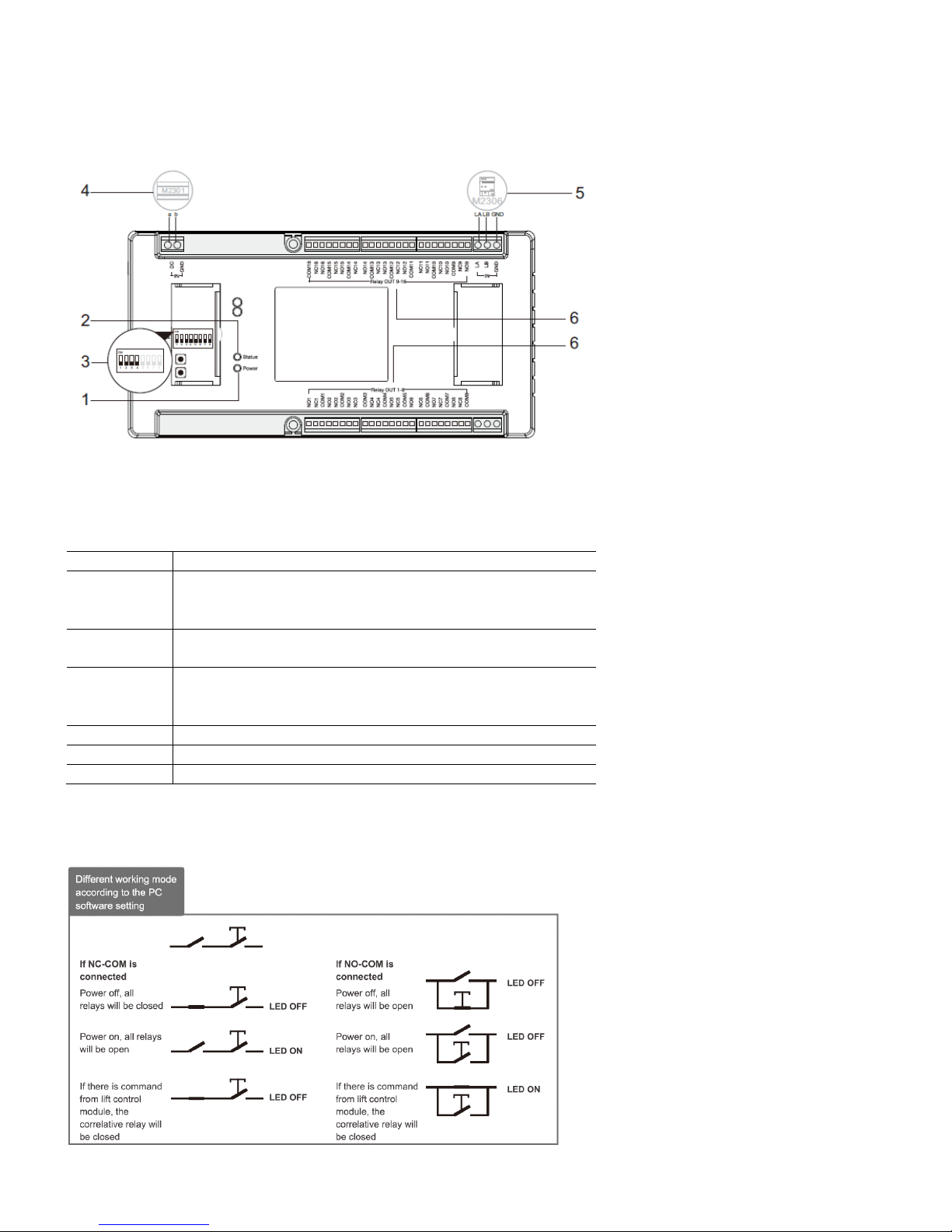

5.2 M2307

Fig.

No.

Function

Power LED

- ON = Power on

- OFF = Power off

Setting LED

- Blinks when working normally.

Address

Set the module address.

The address range is 1-16. Only the left 4 bits are used.

Power supply

Connect with M2306

Connect with the lift controller

Pos: 24 /Busch-Jaeger (Neustruktur)/Modul-S truktur/Online -Dokumentation/Steu ermodule - Onlin e-Dokumentation (--> F ür a ll e D ok ume nt e <--)/+++++++ +++++ Seitenumb ruch ++++++ ++++++ @ 9\m od_1268898668 093_0.docx @ 52149 @ @ 1

ABB Welcome®

— 8 —

5.3 Lift control relay module address by binary setting

Fig.

- Installer need only read the labeling on the lift control module

and adjust according to the given position.

- Only digits 1-2-3-4 are used.

ABB Welcome®

— 9 —

6 Mounting and installation

Warning

Electric voltage!

Direct or indirect contact with live components can cause dangerous currents to flow through the body, which

may result in electric shock, burns or even death.

- Always disconnect the main power supply prior to installation and/or disassembly.

- Work on the 110 V - 240 V supply system must be performed only

by qualified personnel.

Warning

Electric voltage!

Always disconnect the upstream fuse when working on the lighting

system.

ABB Welcome®

— 10 —

6.1 Requirements for the electrician

Warning

Electric voltage!

Install the device only if you have the necessary qualifications.

- Incorrect installation endangers your life and that of the user of the electrical system.

- Incorrect installation can cause serious damage to property, such as a fire.

The minimum necessary expert knowledge and requirements for the

installation are as follows:

- Apply the "five safety rules" (DIN VDE 0105, EN 50110):

1. Disconnect the power;

2. Secure against being reconnected;

3. Ensure there is no voltage;

4. Connect to earth;

5. Cover or barricade adjacent live parts.

- Wear suitable personal protective clothing.

- Use only suitable tools and measuring devices.

- Check the type of supply network (TN system, IT system, TT system) to secure the following power supply

conditions (classic connection to ground, protective earthing, necessary additional measures, etc.).
