ABB Welcome M2306 Manuel utilisateur

VER:1.0 │ │ 20.10.2015

ABB-Welcome

Pos: 2/Di nA4 - Anleitung enO nline/Inhalt/KNX/D oorEntry/832 20-AP-xxx/Tit elblatt - 83220-AP-xxx - ABB @ 19\mod_1 323249806476_15. docx@ 11 1084@ @ 1

Lift control module

M2306

M2307

=== Ende der List ef ür Textmar keCo ver ===

ABB-Welcome

—2 —

Pos: 4 /Busch-Ja eger( Neustruktur)/M odul-Stru ktur/Online-Dokum entation/Inhalts verzeichnis (--> Für alleD okument e<--) /Inhaltsverzeichnis @ 19\ mod_132064904438 6_15.docx @ 109653 @ @ 1

1Safety............................................................................................................3

2Environment ..................................................................................................3

2.1 ABB devices.................................................................................3

3Technical data...............................................................................................4

4Function.........................................................................................................5

5Connection ....................................................................................................6

5.1 M2306...........................................................................................6

5.2 M2307...........................................................................................7

6Mounting / Installation..................................................................................10

6.1 Requirements for the electrician.................................................10

6.2 Mounting.....................................................................................12

7User case ....................................................................................................13

7.1 One M2306 and M2307..............................................................13

7.2 One M2306 and M2307..............................................................15

7.3 Up to two lifts per building...........................................................17

7.4 Up to four lifts per building..........................................................18

8Operation.....................................................................................................19

8.1 User Scenario Illustration of visitor

target floor ..................................................................................19

8.2 User Scenario Illustration of resident

target floor ..................................................................................20

9Configuration through the PC software........................................................21

9.1 Connected to PC ........................................................................21

9.2 Configuration..............................................................................22

=== Ende der Liste fürT extmarke TOC ===

ABB-Welcome

Pos: 6 /Busch-Ja eger( Neustruktur)/M odul-Stru ktur/Online-Dokumen tation/Überschrifte n( --> Für alle Dokum ente <--)/1. Ebene/S - T/Sicherheit @ 18\mod _1302612791790_1 5.docx @ 103357@ 1 @ 1

1 Safety

Pos: 7/ Busch-Jaeger (Neus truktur)/Modul-Str uktur/Online-Dokum entation/Sicherheit (--> Für alle Doku mente< --)/Warnhin weise/Sicherheit - 230 V @ 18\mod_1302606 816750_15.docx @ 103308 @ @ 1

Warning

Electric voltage!

Risk of death and fire due to electrical voltage of 100-240 V.

–Work on the 100-240V supply system may only be performed by

authorised electricians!

–Disconnect the mains power supply prior to installation and/or

disassembly!

Pos: 10 /Busch-Jaeg er( Neustruktur)/Mo dul-Struktur/Onlin e-Dokumentation/Üb erschriften (--> Für alleD okument e<--) /1. Ebene/U -Z/U mwelt @ 18\mod_1302 614158967_15.docx @ 10 3383@ 1 @ 1

2 Environment

Pos: 11 /Busc h-Jaeg er (Neustr uktur)/Modul- Struktur/O nline-Doku mentation/U mwelt (--> Für alleD okum ente<--)/Hi nweise/Hin weis- U mwelt- Hinweis Ele ktrogeräte@ 18\m od_130276397343 4_15.docx @ 103500 @ @1

Consider the protection of the environment!

Used electric and electronic devices must not be disposed of with

domestic waste.

–The device contains valuable raw materials which can be recycled.

Therefore, dispose of the device at the appropriate collecting

depot.

Pos: 12 /DinA4 - Anleitunge n Online/Ueberschrif ten/2./ABB Gera ete@ 1 9\mod_132 3162843832_15.doc x@ 1 10875 @ 2 @ 1

2.1 ABB devices

Pos: 13 /Busc h-Jaeg er (Neustr uktur)/Modul- Struktur/O nline-Doku mentation/U mwelt (--> Für alleD okum ente<--)/Hi nweise/Hin weis- U mwelt- ABB Ele ktrogeräte@ 19\m od_1323162745839_1 5.docx @ 110867 @ @1

All packaging materials and devices from ABB bear the markings and test seals for

proper disposal. Always dispose of the packaging material and electric devices and their

components via the authorized collecting depots and disposal companies.

ABB products meet the legal requirements, in particular the laws governing electronic

and electrical devices and the REACH ordinance.

(EU-Directive 2002/96/EG WEEE and 2002/95/EG RoHS)

(EU-REACH ordinance and law for the implementation of the ordinance (EG)

No.1907/2006)

ABB-Welcome

3 Technical data

Pos: 14 /Busch-Jaeg er( Neustruktur)/Mo dul-Struktur/Onlin e-Dokumentation/Te chnische Daten/Di mmer/Technisc heD aten - 6591 U-101 @ 23 \mod_133308908 5280_15.docx @ 2070 39@ @ 1

General

Single-wire

clamps

2 x 0.28 mm–2 x 0.75 mm;

Fine-wire clamps

2 x 0.28 mm –2 x 0,75 mm;

Bus voltage

20 V DC –30 V DC

Size

4 TE

Protection

IP20

Operating

temperature

-25 °C –+55 °C

Size

M2306: 90 x 72 x 65 mm

M2307: 216 x 110 x 45 mm

ABB-Welcome

Pos: 15 /Busch-J aeger (Neustru ktur)/Modul-Struktur /Online-Doku mentation/Steu ermodule - Onli ne-Dokumentation (--> F üralle Do kumente <--)/+++++ +++++++ Seitenumbruch +++++++ +++++ @ 9\mod_1268 898668093_0.doc x@ 52149 @ @ 1

4 Function

Pos: 22 /Busch-Jaeg er( Neustruktur)/Mo dul-Struktur/Onlin e-Dokumentation/Üb erschriften (--> Für alleD okument e<--) /2. Ebene/G- L/Lastarten @ 20\mod_1326269 704379_15.docx @ 136905 @ 2 @ 1

The lift control modules include the M adaptor(M2306) and lift control relay module(M2307),these

two devices together make the control ofthe lift only to authorized floor possible.

In case the resident presses the "unlock" buttonwhen receiving the guest's call from outdoor station,

or the authorized user swipes theregistered card or enters the correct password ,the lift will go down

automatically to the floor where installs the outdoor station. Then the lift will go to the dedicated floor

where this resident lives, the lift cannot go to other floors even pressing the other floors' button in the

lift.

The configuration should be done through the dedicated configuration software by connecting the M

adaptor with PC/Laptop.

ABB-Welcome

Pos: 30 /Busch-Jaeg er( Neustruktur)/Mo dul-Struktur/Onlin e-Dokumentation/Üb erschriften (--> Für alleD okument e<--) /1. Ebene/A- F /Anschluss @ 19\mod_1 309248278435_15.doc x@ 1 07413@ 1 @ 1

5 Connection

5.1 M2306

Pos: 31 /Busch-Jaeg er( Neustruktur)/Mo dul-Struktur/Onlin e-Dokumentation/A nschluss/Dim mer/Anschluss - 6591 U-1 01@ 2 3\mod_1333093 920008_15.doc x@ 207 132 @ @ 1

Fig.

No.

Function

Status

- ON = Connected with the system controller / internal bus

- OFF = No connected with the system controller / internal bus

- Blinking = Working with the system controller / internal bus

- ON = Power on

- OFF = Power off

- Blinking = Working

Connect with M2307

Power Supply

Connect with the system controller / internal bus

ABB-Welcome

5.2 M2307

5.2.1

Pos: 31 /Busch-Jaeg er( Neustruktur)/Mo dul-Struktur/Onlin e-Dokumentation/A nschluss/Dim mer/Anschluss - 6591 U-1 01@ 2 3\mod_1333093 920008_15.doc x@ 207 132 @ @ 1

Fig.

No.

Function

Power LED

- ON = Power on

- OFF = Power off

Setting LED

- Blinks when working normally

Address

Set the module address

The address range is 1--16, only the left 4 bits are used

Power Supply

Connect with M2306

Connect with the lift controller

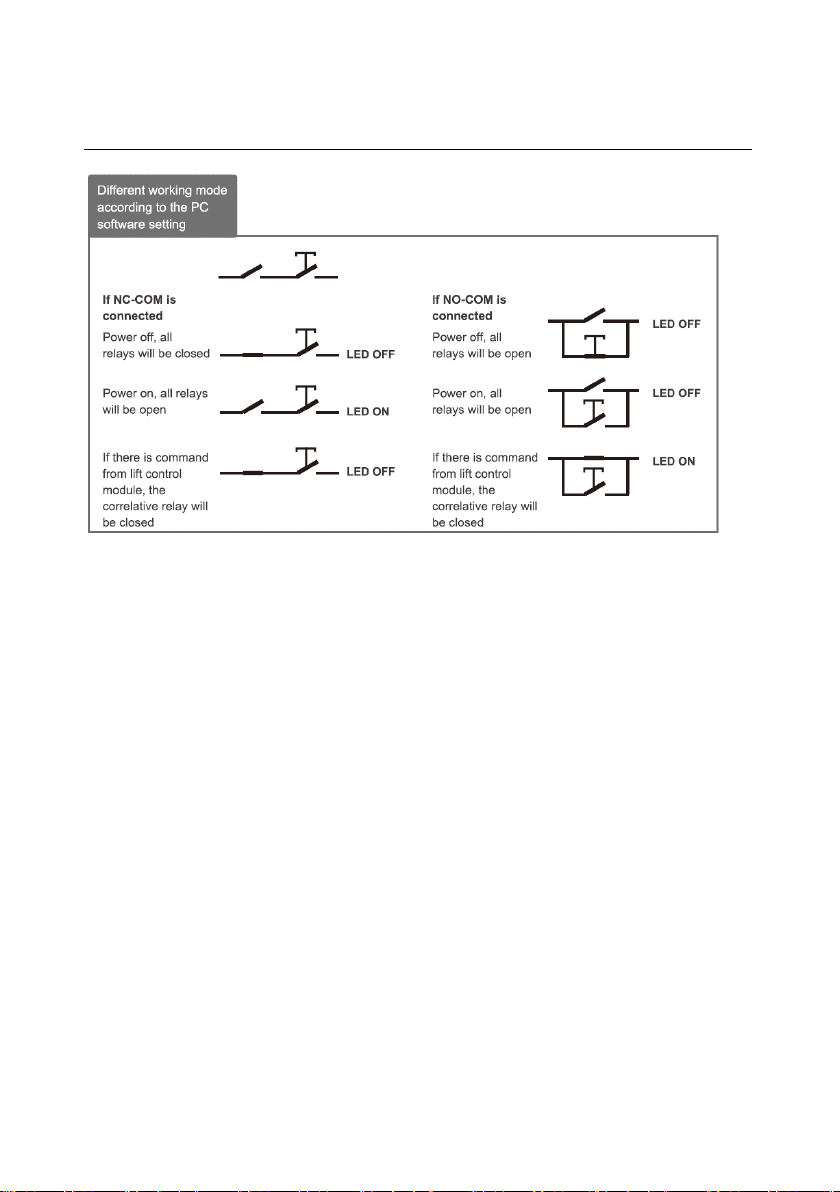

ABB-Welcome

Pos: 24 /Busch-J aeger (Neustru ktur)/Modul-Struktur /Online-Doku mentation/Steu ermodule - Onli ne-Dokumentation (--> F üralle Do kumente <--)/+++++ +++++++ Seitenum bruch++ +++++++ +++ @ 9\mod _1268898668 093_0.docx @ 5 2149 @ @ 1

ABB-Welcome

5.2.2 Lift control relay module address by binary setting

Fig.

ABB-Welcome

6 Mounting / Installation

Pos: 34 /Busc h-Jaeger ( Neustru ktur)/Modul-Stru ktur/Online-D okumentati on/Sicherheit ( --> Füralle Do kumente <--)/Warnhinw eise/Sicherheit - Nied erspannungs- un d 230 V-Leitungen @ 18\ mod_1302617821 491_15.docx @ 10346 5@ @ 1

Warning

Electric voltage!

Risk of death and fire due to electric voltage of 230 V.

–Low-voltage and 230 V cables must not be installed together in a

flush-mounted socket!

In case of a short-circuit there is the danger of a 230 V load on the

low-voltage line.

Pos: 35 /Busc h-Jaeg er (Neustr uktur)/Modul- Struktur/O nline-Doku mentation/Sich erheit (--> Für alle Dokum ente <--)/Warnhinweis e/Sicherheit - Vorg eschaltete Sicherung absch alten @ 20\mod_ 1326441711467 _15.docx @ 137043 @ @ 1

Warning

Electric voltage!

The upstream fuse must be disconnected when working on the lighting

system.

Pos: 36 /Busc h-Jaeg er (Neustr uktur)/Modul- Struktur/O nline-Doku mentation/Sich erheit (--> Für alle Dokumente <--) /Warnhinweise/Sicherh eit- Fac hkenntnisse @ 18\mod_130 2774384017_15.doc x@ 1 03564 @ 2@ 1

6.1 Requirements for the electrician

Warning

Electric voltage!

Install the device only if you have the necessary electrical engineering

knowledge and experience.

•Incorrect installation endangers your life and that of the user of the

electrical system.

•Incorrect installation can cause serious damage to property, e.g. due

to fire.

The minimum necessary expert knowledge and requirements for the

installation are as follows:

•Apply the "five safety rules" (DIN VDE 0105, EN 50110):

1. Disconnect the power;

2. Secure against being reconnected;

3. Ensure there is no voltage;

4. Connect to earth;

5. Cover or barricade adjacent live parts.
