Aaeon GENE-U15B Manuel utilisateur

SubCompact Board GENE-U15B

GENE-U15B

Intel

® Atom™Z5x0P Processor

Intel®System Controller Hub US15WP

10/100/1000Base-TX

1 SATA 3.0Gb/s, Onboard SST SSD

4 COM, 6 USB2.0, Digital I/O

1MiniCard

GENE-U15B Manual Rev.A 2nd Ed.

June 2011

All manuals and user guides at all-guides.com

all-guides.com

SubCompact Board GENE-U15B

This document is copyrighted, 2011. All rights are reserved. The

original manufacturer reserves the right to make improvements to the

products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or

transmitted in any form or by any means without the prior written

permission of the original manufacturer. Information provided in this

manual is intended to be accurate and reliable. However, the original

manufacturer assumes no responsibility for its use, or for any in-

fringements upon the rights of third parties that may result from its

use.

The material in this document is for product information only and is

subject to change without notice. While reasonable efforts have been

made in the preparation of this document to assure its accuracy,

AAEON assumes no liabilities resulting from errors or omissions in

this document, or from the use of the information contained herein.

AAEON reserves the right to make changes in the product design

without notice to its users.

All manuals and user guides at all-guides.com

SubCompact Board GENE-U15B

Acknowledgments

All other products’ name or trademarks are properties of their

respective owners.

Award is a trademark of Award Software International, Inc.

CompactFlash™ is a trademark of the Compact Flash

Association.

Intel®, Atomare trademarks of Intel®Corporation.

Microsoft Windows®is a registered trademark of Microsoft Corp.

ITE is a trademark of Integrated Technology Express, Inc.

IBM, PC/AT, PS/2, and VGA are trademarks of International

Business Machines Corporation.

SoundBlaster is a trademark of Creative Labs, Inc.

All other product names or trademarks are properties of their

respective owners.

All manuals and user guides at all-guides.com

SubCompact Board GENE-U15B

iii

Packing List

Before you begin installing your card, please make sure that the

following materials have been shipped:

1700060157 Keyboard & Mouse Cable

CD-ROM for manual (in PDF format) and drivers

GENE-U15B

If any of these items should be missing or damaged, please

contact your distributor or sales representative immediately.

All manuals and user guides at all-guides.com

SubCompact Board GENE-U15B

Contents

Chapter 1 General Information

1.1 Introduction................................................................1-2

1.2 Features....................................................................1-3

1.3 Specifications............................................................1-4

Chapter 2 Quick Installation Guide

2.1 Safety Precautions....................................................2-2

2.2 Location of Connectors & Jumpers...........................2-3

2.3 Mechanical Drawing..................................................2-5

2.4 List of Jumpers..........................................................2-7

2.5 List of Connectors .....................................................2-7

2.6 Setting Jumpers ........................................................2-9

2.7 LVDS Inverter Voltage Selection (JP1).....................2-10

2.8 LVDS Panel +5V/+3.3V Selection (JP2)...................2-10

2.9 LVDS-Inverter +5V/+12V Selection (JP3).................2-10

2.10 COM2 Ring/+5V/+12V Selection (JP4)...................2-10

2.11 Touch Panel 4/5/8-wire Selection (JP5)..................2-10

2.12 CPLD Reset Selection (JP6)...................................2-11

2.13 Auto Power Button / Front Panel Button Selection (JP7)

.........................................................................................2-11

2.14 CMOS Selection (JP8)............................................2-11

2.15 CRT Always On Disable/ Enable (JP9)...................2-11

2.16 LVDS LCD Connector (CN5) ..................................2-11

All manuals and user guides at all-guides.com

SubCompact Board GENE-U15B

2.17 LVDS Inverter +5V/+12V Connector (CN6) ............2-12

2.18 Touch Panel Connector (CN8)................................2-12

2.19 RS-232 Serial Port Connector (CN11)....................2-13

2.20 RS-232/422/485 Serial Port Connector (CN12)......2-13

2.21 Fan Connector (CN17)............................................2-14

2.22 RS-232 Serial Port Connector (CN18)....................2-14

2.23 PS2 Keyboard/Mouse Connector (CN19)...............2-14

2.24 RS-232 Serial Port Connector (CN20)....................2-14

2.25 CPLD Programming Connector (CN21)..................2-15

2.26 12V Power Jack Connector (CN27)........................2-15

2.27 Output +5V_DUAL / PSON# /SM Bus Connector (CN28)

.........................................................................................2-15

2.28 Front Panel Connector (CN29) ...............................2-16

2.29 USB Connector (CN30)...........................................2-16

2.30 Digital I/O Connector (CN31)..................................2-16

2.31 5V Power Jack Connector (CN32)..........................2-17

2.32 USB Connector (CN34)...........................................2-17

2.33 Output Power Connector (CN36)............................2-18

2.34 Audio 2.1 Channel Connector (CN37)....................2-18

2.35 LPC Connector (CN39)...........................................2-18

2.36 VGA Display Connector (CN40)..............................2-19

2.37 +5VSB External Input Connector (CN41) ...............2-19

Chapter 3 Award BIOS Setup

3.1 System Test and Initialization. ..................................3-2

3.2 Award BIOS Setup....................................................3-3

All manuals and user guides at all-guides.com

all-guides.com

SubCompact Board GENE-U15B

Chapter 4 Driver Installation

4.1 Installation.................................................................4-3

Appendix A Programming The Watchdog Timer

A.1 Programming .........................................................A-2

Appendix B I/O Information

B.1 I/O Address Map....................................................B-2

B.2 Memory Address Map............................................B-3

B.3 IRQ Mapping Chart................................................B-4

B.4 DMA Channel Assignments...................................B-4

Appendix C Mating Connector

C.1 List of Mating Connectors and Cables.................. C-2

Appendix D DIO

D.1 DIO........................................................................ D-2

All manuals and user guides at all-guides.com

SubCompact Board GENE-U15B

Chapter 1 General Information 1- 1

General

Chapter

Information

All manuals and user guides at all-guides.com

SubCompact Board GENE-U15B

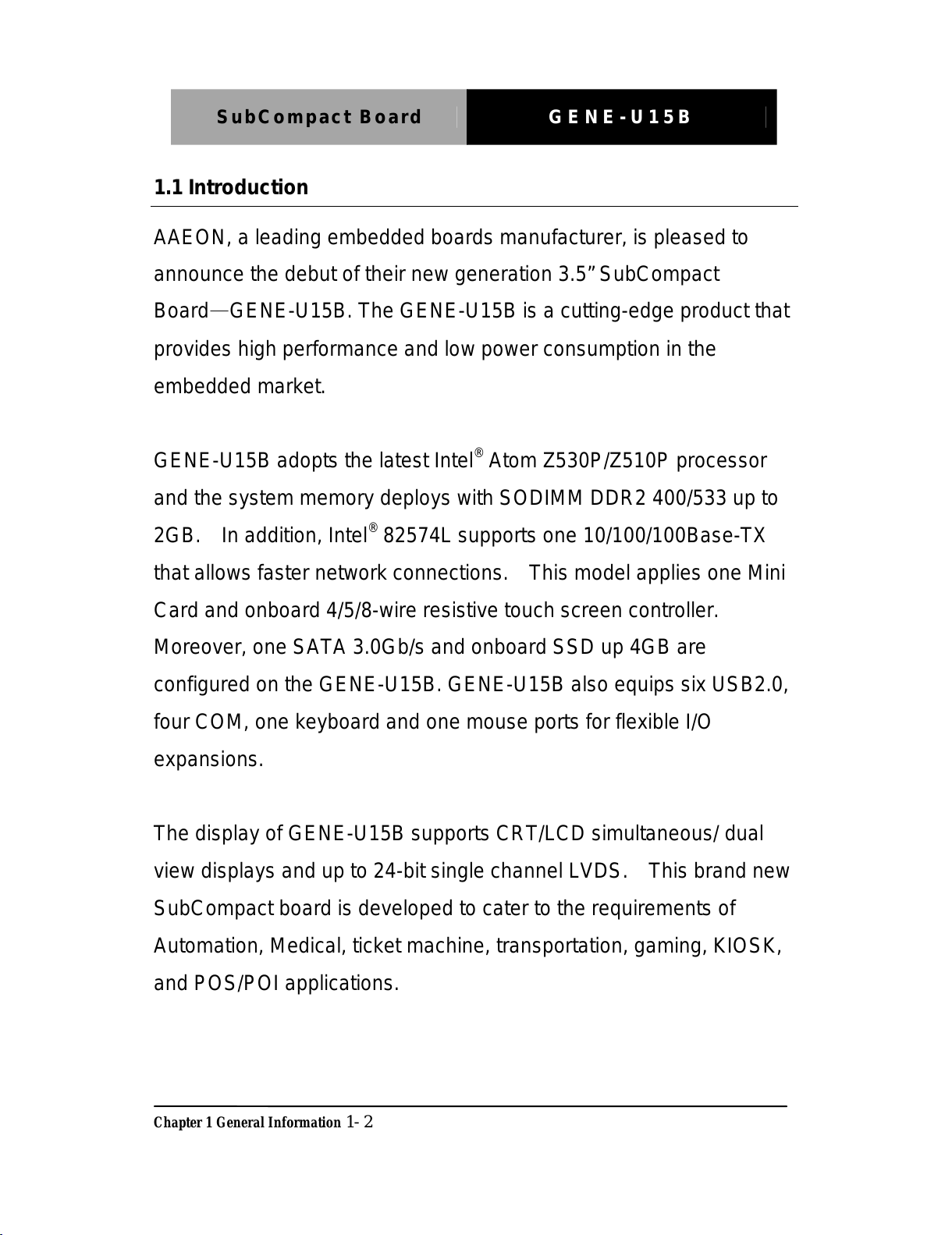

1.1 Introduction

AAEON, a leading embedded boards manufacturer, is pleased to

announce the debut of their new generation 3.5” SubCompact

Board—GENE-U15B. The GENE-U15B is a cutting-edge product that

provides high performance and low power consumption in the

embedded market.

GENE-U15B adopts the latest Intel®Atom Z530P/Z510P processor

and the system memory deploys with SODIMM DDR2 400/533 up to

2GB. In addition, Intel®82574L supports one 10/100/100Base-TX

that allows faster network connections. This model applies one Mini

Card and onboard 4/5/8-wire resistive touch screen controller.

Moreover, one SATA 3.0Gb/s and onboard SSD up 4GB are

configured on the GENE-U15B. GENE-U15B also equips six USB2.0,

four COM, one keyboard and one mouse ports for flexible I/O

expansions.

The display of GENE-U15B supports CRT/LCD simultaneous/ dual

view displays and up to 24-bit single channel LVDS. This brand new

SubCompact board is developed to cater to the requirements of

Automation, Medical, ticket machine, transportation, gaming, KIOSK,

and POS/POI applications.

Chapter 1 General Information 1- 2

All manuals and user guides at all-guides.com

SubCompact Board GENE-U15B

1.2 Features

zIntel®Atom™ Z530P/Z510P Processor

zIntel®System Controller Hub US15WP

zDDR2 400/533 SODIMM, Max. 2 GB

zGigabit Ethernet x 1

zCRT, 24-Bit Single Channel LVDS LCD

z2CH HD Audio

zSATA 3.0Gb/s x 1, Onboard SSD Up To 4GB

zUSB2.0 x 6, COM x 4, 8-Bit Digital I/O

zOnboard 4/5/8-wire Resistive Touch Screen Controller

zMini Card x 1

z+12V or +5V (Optional) Only Operation

Chapter 1 General Information 1 - 3

All manuals and user guides at all-guides.com
