Unpacking And Setting Up Your CubePro

Contents

*The number of cartridges depends on the ordered conﬁguration.

NOTE: The appearance of some components may vary.

Unpacking And Initial Setup

CAUTION: Due to the size and weight of the printer, this procedure may

require more than one person. Ensure there are enough people to safely and

comfortably move the printer to its ﬁnal location.

NOTE: Ensure that you save all foam and packing material for the future

repacking of your CubePro. Transporting the printer without original packing

materials may damage the printer

Carefully cut the straps if applicable and then pull the tabs on all four release clips.1.

NOTE: There is one release clip on each side of the box.

Pull the handles (A) and remove the release clips from the outer box.2.

Lift the box away from the printer.3.

Remove the accessories tray (A).4.

Remove the upper foam supports (A) from the printer.5.

Pull the protective bag down around the printer and remove the printer assembly from6.

the lower foam support.

Position the printer where it will be used.7.

NOTE: Ensure the printer is placed in a location where its size and weight will

be properly supported.

Unpack the top layer of the accessories tray.8.

NOTE: Depending on the printer conﬁguration, the arrangement of the

accessory boxes may diﬀer. Unpack the power cord (A), the spacer (B),

material cartridge, tool kit and Cube Glue(C). Your conﬁguration may include

1, 2 or three cartridges. For conﬁgurations with fewer than three cartridges

included, empty boxes may be used as spacers.

Unpack the bottom layer of the accessories tray.9.

NOTE: Depending on the printer conﬁguration, the arrangement of the

accessory boxes may diﬀer. Unpack the print pad (A), the jet wiper assembly

(B), and material cartridges (C). Your conﬁguration may include 1, 2 or 3

cartridges. For conﬁgurations with fewer than three cartridges included,

empty boxes may be used as spacers.

CAUTION: The print pad is fragile. Exercise caution when handling the print

pad.

Open the front door. Cut away the zip ties (A) and remove the foam tubing from the10.

print jet area.

NOTE: For illustration purposes only, the door was removed from the image.

Do not attempt to remove the door from the printer.

Loosen and remove the four (4) 4mm screws securing the Z-Axis guard and remove11.

the guard. Save the guard and screws for future repacking.

Using a 4mm hex head driver, attach the mounting posts to the jet wiper assembly12.

with the supplied screws and washers.

NOTE: Tighten the screws until the posts are secure.

CAUTION: Do not over-tighten the screws. The jet wiper assembly can break

if the screws are over-tightened.

Move the jet wiper assembly to the back of the printer and locate the keyhole slots13.

(A).

Mount the jet wiper mounting posts to the back panel of the printer through the14.

keyhole slots.

NOTE: Slide the mounting pins downward.

Align the jet wiper assembly bottom tab (A) with the slot in the ﬂoor (B) and slide the15.

jet wiper assembly downward.

NOTE: If the jet wiper assembly is fully seated into the keyhole slots but the

bottom does not rest on the thumbscrew head, remove the jet wiper and

turn the thumbscrew counter-clockwise until the jet wiper bottom rests on

the thumbscrew head and the keyhole slots are fully seated. This may

require repeated removals and re-installations of the jet wiper. If the keyhole

slots will not seat, the thumbscrew may need to be adjusted downward by

turning clockwise.

NOTE: Refer to the section titled Adjusting the Jet Wiper for information

about adjusting the jet wiper scraper height.

Remove the print pad from the box and place it onto the print platform with the round16.

magnet on the bottom of the pad inserted into the triangular opening on the platform.

Ensure the print pad is securely seated on the print plate.

Connect the power cord to the power inlet port (B) on the right side of the printer and17.

the other end to a wall outlet. Press the power on/oﬀ switch (A) to power on the

CubePro.

Press the on/oﬀ button (A) beside the LED screen to power on the CubePro18.

touchscreen display.

Press the touchscreen to navigate to the main menu.19.

NOTE: Turning on the touchscreen will also turn on the interior LED lights.

Setup And Activation

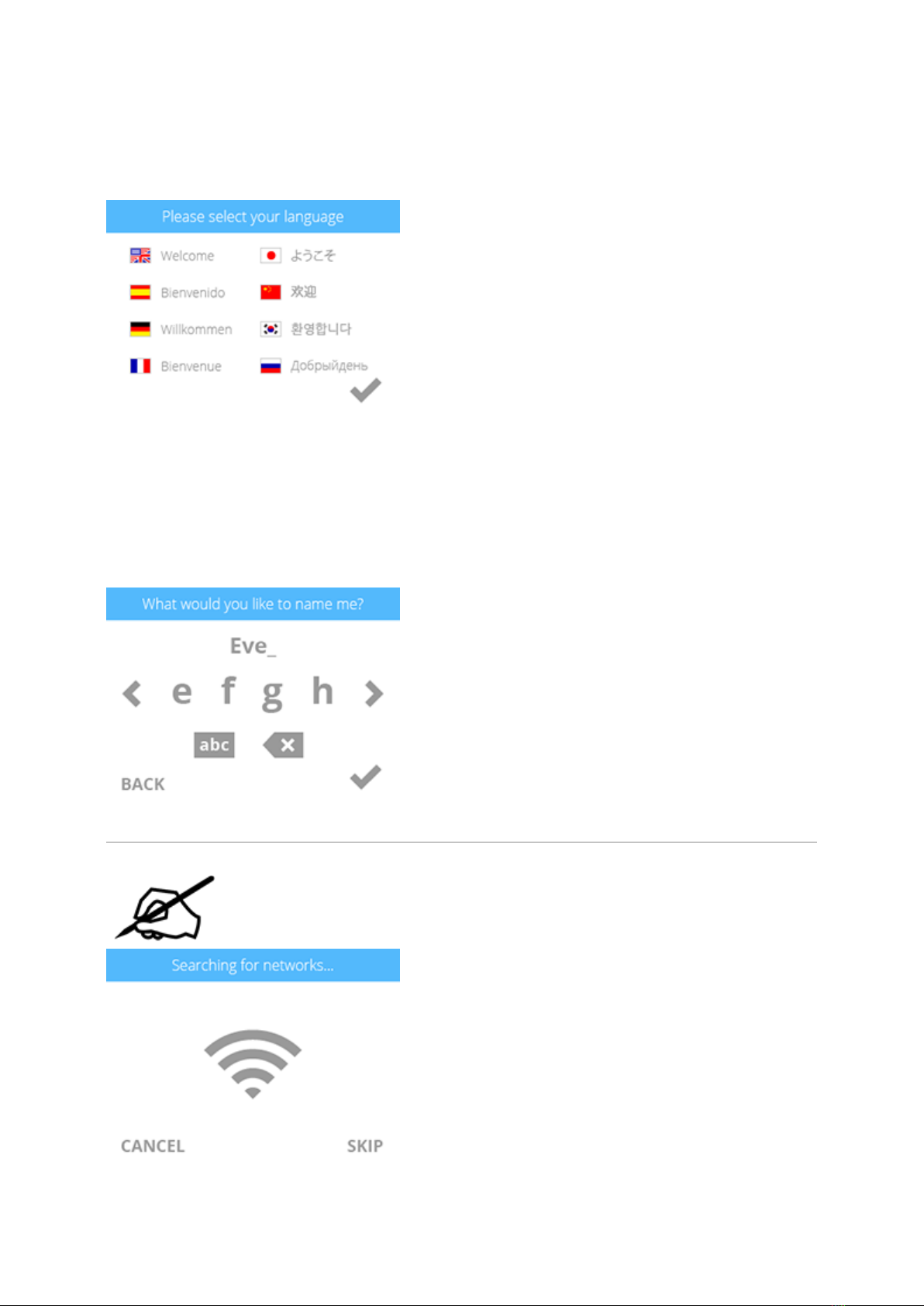

Select your language. Press the checkmark to conﬁrm your selection.1.

Enter a name for your printer. Scroll to the letters you wish to select by pressing the2.

arrow symbols on each side of the screen. Press the letters to select them. Select the

checkmark to continue. If you do not wish to name your CubePro, press SKIP to move

to the next screen and continue with step 4.

NOTE: The printer will search for area wireless networks.

Connect your printer to your wireless network. Use the up or down arrow to scroll to3.

your network choice. Select your network.

NOTE: If your network is password protected, the printer will ﬁrst prompt you

to enter the password.

NOTE: The printer can also connect to an ad hoc network, a decentralized

network that wirelessly connects a local computer to the printer directly. The

computer must have a wireless adapter conﬁgured for ad-hoc mode. The

adapter must use the same SSID as is found in the printer. Connecting to an

ad hoc network is discussed further in the section titled Setting Up an Ad

Hoc Network.

NOTE: Connection to a network is conﬁrmed when a checkmark appears to

the left of the network name. If the network is secured, a lock icon will

appear to the right of the network name.

Select the checkmark to continue the warranty activation process.4.
