Dimension GS-2024

Affordability and Availability

ZyXEL Dimension GS-2024, a Managed Layer 2 Wiredspeed Gigabit performance switch, is a cost effective Gigabit

connectivity solution for the SMB and Enterprise LAN market.

With non-blocking 48 Gbps switching fabric, the GS-2024 provides 24-port 1000 Base-T Layer 2 switching capability at

wire-speed over current CAT-5 cabling to the desktops, as well as two open SFP slots providing fiber connectivity for long

loop reach applications.

High Performance

The highly effective switch architecture of ZyXEL GS-2024 offers 48Gbps non-blocking switch fabric, 35.7 million packet-

per-second forwarding rate and wire-speed performance. Ten times bandwidth than traditional Fast Ethernet that offer a

nearly wait network experience which is suitable for Today’s diverse E-Business applications. These benefits allow

customers to enjoy exceptional network speed with little effort.

Industry Standard-based Network Management

ZyXEL GS-2024 features a comprehensive set of network management interface, including Web-based management

interface, CLI management interface (Local/Remoter) and a built-in out-of-band MGMT RJ-45 port. User can easily

configure, troubleshoot and monitor switches through these methods.

The GS-2024 also supports ZyXEL iStackingTM a superior Web-based management software that allows administrators to

remotely manage multiple switches located differently. Administrators can configure, monitor, troubleshoot and manage

up to 24 switches at once with just one IP, regardless of the physical locations.

Enterprise-class Feature Set

With all ports support N-way auto negotiation and MDI/MDI-X crossover, the GS-2024 supports 802.1p priority queue,

802.1Q VLAN, port-based VLAN, 802.3ad port aggregation, 802.1w RSTP and rate limiting. Corporate IT users can also

benefit from the QoS and Security features of ZyXEL GS-2024. For traffic management, the GS-2024 supports IEEE 802.1p

that classifies and prioritizes network traffic by four independent queues. On security, the GS-2024 supports Specific MAC

Addresses Forwarding Per Port, which means only designated subscribers has the privilege to pass through the specific

ports. In addition, the GS-2024 also supports IEEE802.1x port authentication.

Key Benefits

24-port Managed Layer 2

Gigabit Ethernet Switch with 2 SFP Slots

Dimension GS-2024

24-port Managed Layer 2 Gigabit Ethernet Switch with 2 SFP Slots

Specifications

System Specifications

Standard Compliance

• IEEE 802.3 10 Base-T Ethernet

• IEEE 802.3u 100 Base-Tx Ethernet

• IEEE 802.ab 1000 Base-T Ethernet

• IEEE 802.3z

• IEEE 802.3x Flow control

• IEEE 802.1d Spanning tree protocol

• IEEE 802.1w Rapid Spanning tree

protocol

• IEEE 802.1p Class of service,

priority protocols

• IEEE 802.1Q VLAN tagging

• IEEE 802.1x

• IEEE 802.3ad Port aggregation

Performance

• 48Gbps non-blocking switching fabric

• 35.7 million packet-per-second

forwarding rate

• Flexible design for both Gigabit

copper and Gigabit fiber connectivity

• 1488000pps forwarding rate for

1000 Base-T/1000 Base-X connectivity,

148800pps forwarding rate for

100 Base-Tx connectivity

• Wire-speed performance

MAC and Packet Buffer

• 8K MAC entries

• 4Mbits packet buffer

Traffic Management and QoS

• IEEE 802.1p

• 8 egress queues per port for different

types of traffic

• WRR (Weighted Round Robin)

scheduling for different prioritization

of packets

• SPQ (Strict Priority Queuing) for

highest priority packets to get best

service

• IEEE 802.1Q tag-based and

port-based VLAN

• 256 static VLAN, up to 4K

dynamic VLAN

• Support GVRP, automatic VLAN

member registration

• Supports jumbo frame, up to 9K Bytes

• Supports IGMP snooping

• Congestion control on all ports

• Rate limiting(Ingress rate)

- Allow bandwidth to be shaped in

steps at 64Kbps

- Supports 14 scales for incremental

rate limiting incrementally

Link Aggregation

• IEEE 802.3ad compliant

• Support LACP, static and dynamic link

aggregation

• Up to 4 aggregation groups

• 8 ports per group randomly selected

Redundancy for Fault Backup

• IEEE802.1w Rapid Spanning Tree

Protocol (RSTP) provides rapid

convergence of spanning tree

independent of spanning-tree timer

User Security and Authentication

• MAC filtering per port secures access

to each port

• Specific MAC forwarding per port:

only specified MAC addresses can

access the network (port lock)

• 802.1x port-based security, prevent

unauthorized client access to the

network

• Private VLAN provides security and

isolation between ports on a switch,

ensures that users can not snoop on

each other’s traffic

Network Administration Security

• User name/password required for

web/telnet/local console

administrators

• Two level security by specific SNMP

read/write community

Network Management

• Supports ZyXEL iStackingTM, up to 24

switches can be managed by one IP

• Web-based management

• Telnet CLI

• SNMP v2c

• RS-232c Local console

• IP management: static IP or

DHCP client

• RMON four RMON groups 1, 2, 3, 9

(history, statistics, alarms, and events)

for enhanced traffic management,

monitoring, and analysis

• Port mirroring: supports

Source/Destination/Both port mirroring

Hardware Specifications

Interface connections

• 24 100/1000 Base-T, auto-negotiation

and cross-over

• 2 shared SFP open slots

• 1 console port,

D-Sub 9 pin Female (DCE)

• 1 out-of-band management port, RJ-45

Physical Specification

• Dimensions:

440 (L) x 300 (D) x 445 (H) mm

• Weight: 4 Kg

Power Requirement

• Input voltage of AC: 100-240VAC,

50/60Hz

• Max power rating of AC: 50 Watt

Environmental Specification

• Operating temperature: 0°C~ 45°C

• Storage temperature: -25°C ~ 70°C

• Operating humidity: 10% ~ 90%,

non-condensing

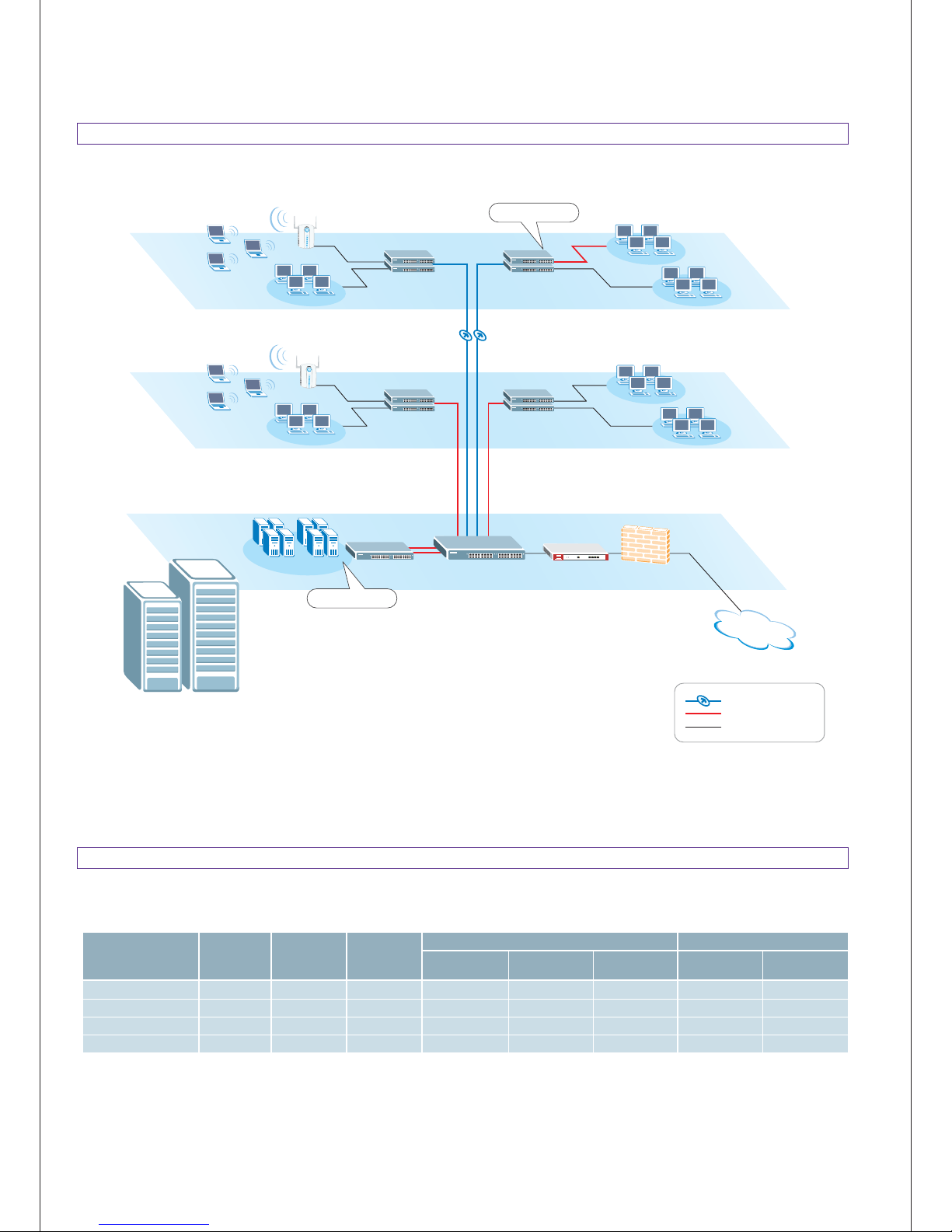

Application Diagram

Operational Information

Internet

Model Name

Optical

Wavelength ConnectorReceiver 62.5um 50um 9/10um

Supply Voltage Max Current

Sensitivity Multi-Mode Fiber Multi-Mode Fiber Single-Mode Fiber

SFP-SX -17 dBm 850nm LC 220 m 550 m - 3.15 ~ 3.45 V 300 mA

SFP-LX-10 -20 dBm 1310nm LC 550 m 550 m 10 km 3.15 ~ 3.45 V 300 mA

SFP-LHX1310-40 -23 dBm 1310nm LC - - 40 km 3.15 ~ 3.45 V 300 mA

SFP-ZX-80 -24 dBm 1550nm LC - - 80 km 3.15 ~ 3.45 V 300 mA

Transmission Distance vs. Fiber Cable Specification Operational Ranges

L3 Core Switch

Floor 1

Floor 2

Floor 3

GS-2024

Data Center

Firewall

Admin.

Sales

GS-2024 GS-2024

1000Mbps/Fiber

1000Mbps/Copper

10/100Mbps/Copper

Gigabit to the Server

Gigabit Fiber Trunk

Gigabit Copper Trunk

Gigabit to the desktop

Transceiver (Optional)

Dimension GS-2024

24-port Managed Layer 2 Gigabit Ethernet Switch with 2 SFP Slots

Communications Corp.All other brands, product names, or trademarks mentioned are the property of their respective owners.

All specifications are subject to change without notice.
