User’s Guide

ES1100 Series

Unmanaged Fast Ethernet Switches

Version 1.00 Edition 5, 07/2019

ES1100 Series User’s Guide

IMPORTANT!

READ CAREFULLY BEFORE USE.

KEEP THIS GUIDE FOR FUTURE REFERENCE.

This is a User’s Guide for a series of products. Not all products support all firmware features. Screenshots

and graphics in this book may differ slightly from your product due to differences in your product

firmware or your computer operating system. Every effort has been made to ensure that the information

in this manual is accurate.

Related Documentation

•MoreInformation

Go to support.zyxel.com to find other information on the Switch.

Document Conventions

ES1100 Series User’s Guide

Document Conventions

Warnings and Notes

These are how warnings and notes are shown in this guide.

Warnings tell you about things that could harm you or your device.

Note: Notes tell you other important information (for example, other things you may need to

configure or helpful tips) or recommendations.

Syntax Conventions

• All models may be referred to as the “Switch” in this guide.

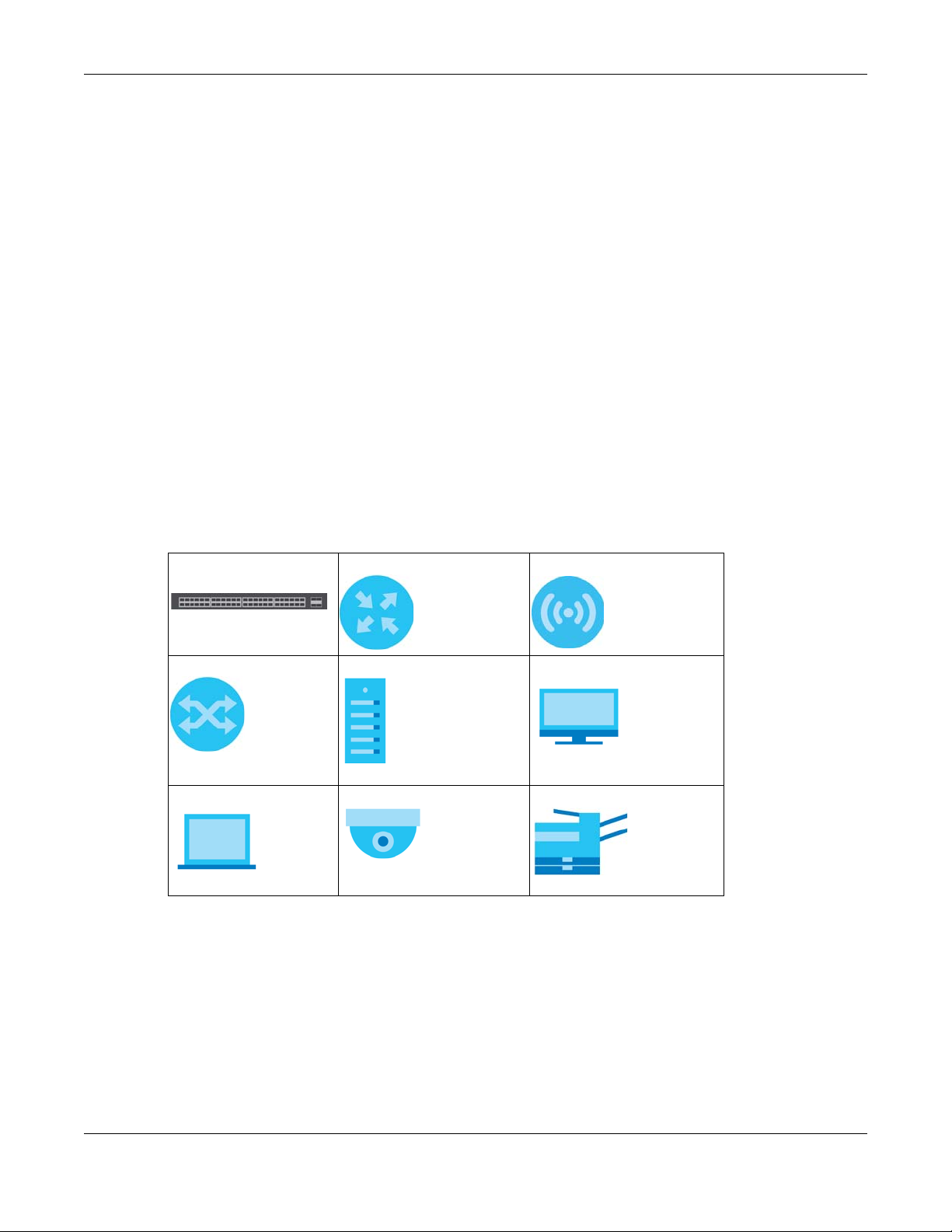

Icons Used in Figures

Figures in this user guide may use the following generic icons. The Switch icon is not an exact

representation of your device.

Switch Generic Router Wireless Router / Access Point

Generic Switch Server Desktop

Laptop Analog Camera Printer

Table of Contents

ES1100 Series User’s Guide

Table of Contents

Document Conventions ......................................................................................................................3

Table of Contents.................................................................................................................................4

Chapter 1

Getting to Know Your Switch ..............................................................................................................5

1.1 Overview ........................................................................................................................................... 5

1.1.1 Power over Ethernet (PoE) ..................................................................................................... 6

1.2 Applications ...................................................................................................................................... 6

1.2.1 Backbone Example Application ........................................................................................... 6

1.2.2 Bridging Example Application ............................................................................................... 7

1.2.3 PoE Example Application ....................................................................................................... 8

Chapter 2

Hardware Description and Connection.............................................................................................9

2.1 Rear Panel ...................................................................................................................................... 9

2.1.1 Rear Panel Power Connection ............................................................................................ 10

2.2 Front Panel ...................................................................................................................................... 10

2.2.1 RJ-45 Auto-negotiating Ports ............................................................................................... 10

2.2.2 IEEE 802.3az Energy Efficient Ethernet ................................................................................. 11

2.2.3 Front Panel Connections ...................................................................................................... 11

2.2.4 Front Panel LEDs .................................................................................................................... 11

2.3 Hardware Installation ..................................................................................................................... 12

2.3.1 Wall Mounting ....................................................................................................................... 13

2.3.2 Rack Mounting ...................................................................................................................... 14

2.3.3 Mounting the Switch on a Rack .......................................................................................... 15

Chapter 3

Troubleshooting..................................................................................................................................17

3.1 Improper Network Cabling and Topology .................................................................................. 18

Appendix A Customer Support ....................................................................................................... 19

Appendix B Legal Information ......................................................................................................... 25

Index...................................................................................................................................................29

ES1100 Series User’s Guide

CHAPTER 1

Getting to Know Your Switch

1.1 Overview

This User’s Guide covers the following models: ES1100-8P, ES1100-16, ES1100-16P, ES1100-24, and ES1100-

24E. The Switch can be used to build high-performance switched workgroup networks.

The following features apply to all models:

• Conforms to IEEE 802.3, 802.3u, and 802.3x wired Ethernet standards.

• 10/100 Mbps Fast Ethernet RJ-45 ports.

• Auto-negotiating Ethernet RJ-45 ports.

• Auto-sensing crossover for all RJ-45 ports.

• Supports N-Way protocol for speed (10/100/1000 Mbps) and duplex mode (Half/Full) auto-detection.

• Supports store-and-forward switching.

• Supports automatic address learning (8000 MAC addresses for ES1100-16, ES1100-16P, ES1100-24, and

ES1100-24E; 1000 MAC addresses for ES1100-8P).

• Full wire speed forwarding rate.

• 802.1p CoS support.

• Inactive link detection to reduce power usage on idle devices.

• Detects cable length and adjusts power usage based on this.

Table 1 ES1100 Series Comparison Table

PORT/SWITCH DETAILS ES1100-8P ES1100-16 ES1100-16P ES1100-24 ES1100-24E

16 10/100Base-TX Ethernet ports

24 10/100Base-TX Ethernet ports

8 10/100Base-TX Ethernet ports

(including 4 FE PoE ports)

16 10/100Base-TX Ethernet ports

(including 8 FE PoE ports)

IEEE 802.3az ON/OFF switch

Power ON/OFF switch

FE PoE ports

IEEE 802.3az EEE

Loop detection

Jumbo frame

Chapter 1 Getting to Know Your Switch

ES1100 Series User’s Guide

1.1.1 Power over Ethernet (PoE)

The Switch is a Power Sourcing Equipment (PSE) because it provides a source of power via its Ethernet

ports. Each device that receives power through an Ethernet port is a Powered Device (PD).

The Switch is configured in consumption mode, that is, it supplies the actual power the PD needs.

The Switch supports the IEEE 802.3af Power over Ethernet (PoE) standard.

The Switch supplies power with the lowest numbered port having the highest priority by default. For

example, port 1 has the highest priority, port 2 the next, and so on.

Not all models support PoE. See Table 1 on page 5.

Key PoE feature comparison is as follows:

1.2 Applications

This section provides two network topology examples in which the Switch is used.

1.2.1 Backbone Example Application

The Switch is an ideal solution for small networks where rapid growth can be expected in the near future.

The Switch can be used standalone for a group of heavy traffic users. You can connect computers and

servers directly to the Switch’s port or connect other switches to the Switch.

In this example, all computers can share high-speed applications on the server. To expand the network,

simply add more networking devices such as switches, routers, computers, print servers etc.

Table 2 PoE Comparison

FEATURE ES1100-8P ES1100-16P

PoE Ports 4 (ports 1-4) 8 (ports 1-8)

PoE Power Budget 64 W 130 W

Power management mode Consumption Consumption

PoE Standard IEEE 802.3af IEEE 802.3af

Maximum Power per Port 15.4W 15.4W

Chapter 1 Getting to Know Your Switch

ES1100 Series User’s Guide

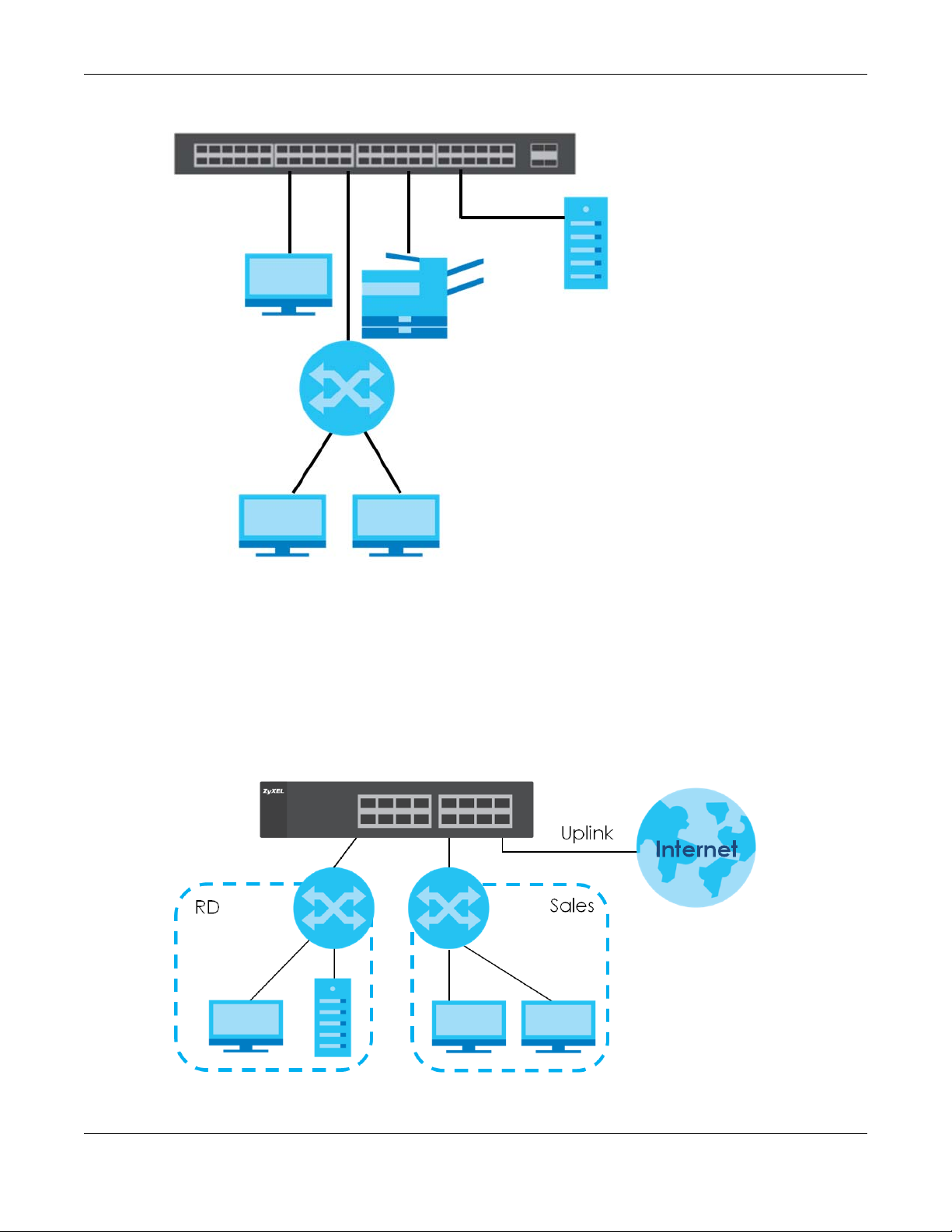

Figure 1 Backbone Example Application

1.2.2 Bridging Example Application

With its large address table and high performance, the Switch is an ideal solution for department

networks to connect to the corporate backbone or for connecting network segments.

The following figure depicts a typical segment bridge application of the Switch in an enterprise

environment. The two networks (RD and Sales), the standalone server and the computers can all

communicate with each other and share all network resources.

Figure 2 Bridging Example

Chapter 1 Getting to Know Your Switch

ES1100 Series User’s Guide

1.2.3 PoE Example Application

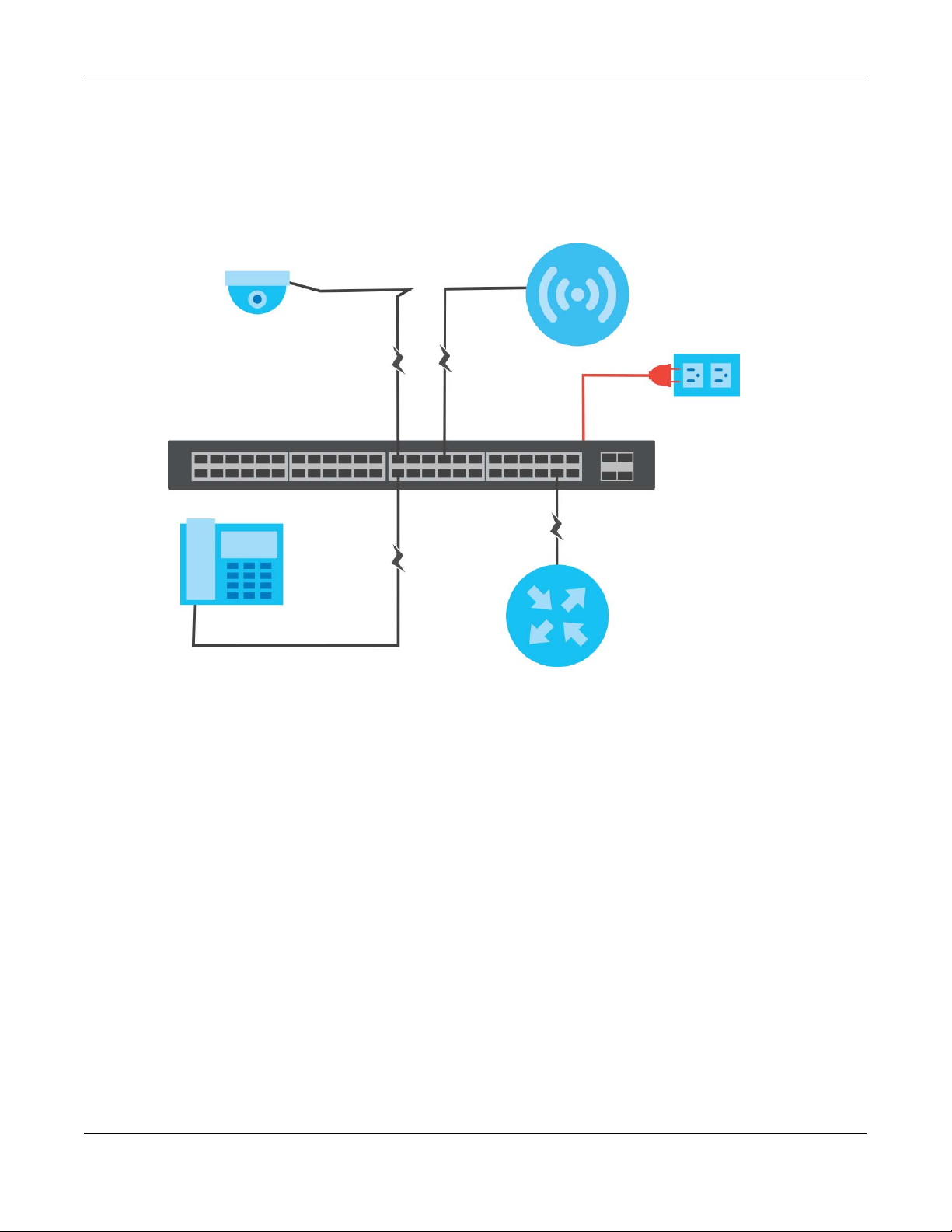

The following example figure shows a Switch supplying PoE (Power over Ethernet) to Powered Devices

(PDs) such as an IP camera, a wireless router, an IP telephone and a general outdoor router that are not

within reach of a power outlet. For more information about PoE, see Section 1.1.1 on page 6.

Figure 3 Powered Device Examples

ES1100 Series User’s Guide

CHAPTER 2

Hardware Description and

Connection

2.1 Rear Panel

The three-pronged power receptacle is located on the rear panel of the Switch. Refer to the power

supply requirements on the panel.

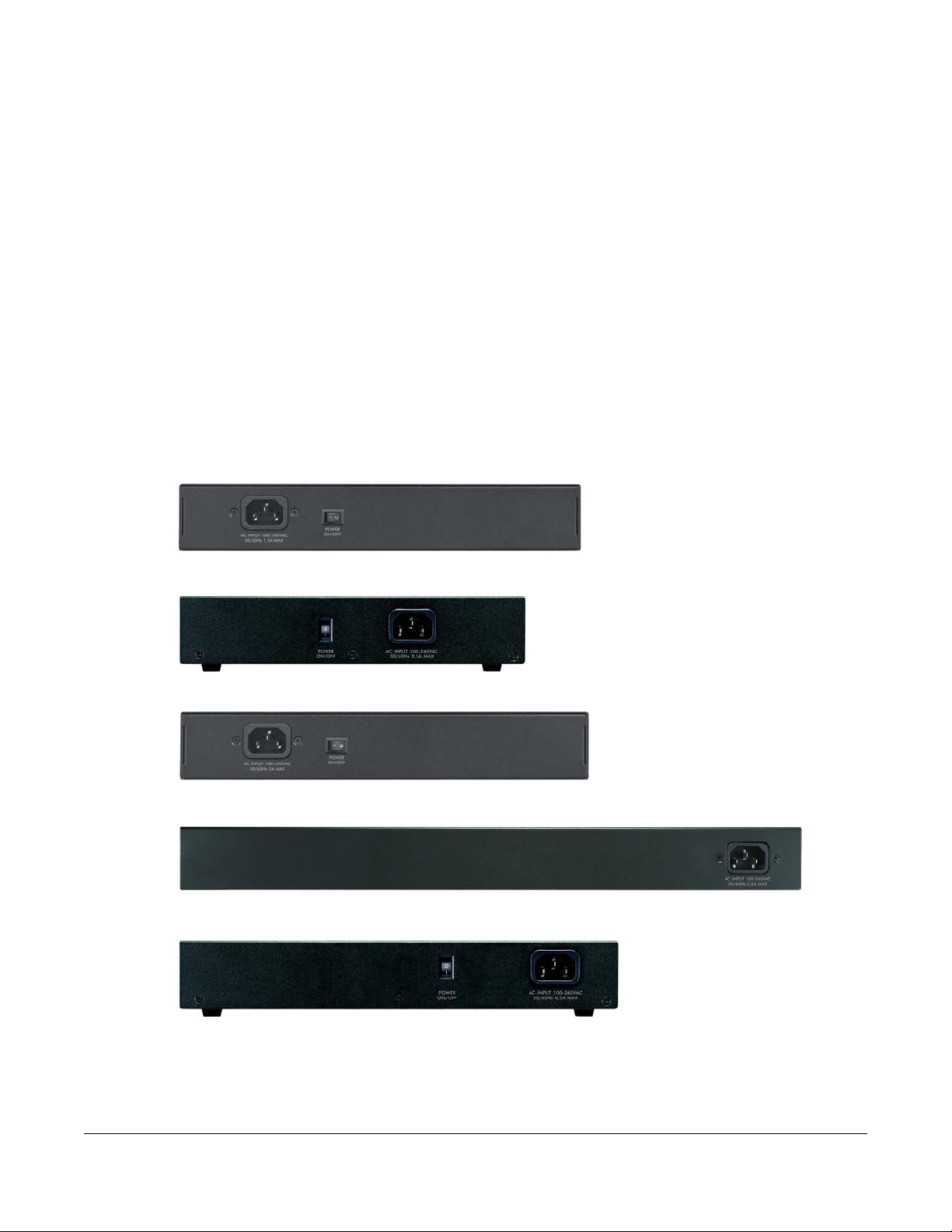

Figure 4 Rear Panel

ES1100-8P

ES1100-16

ES1100-16P

ES1100-24

ES1100-24E

Chapter 2 Hardware Description and Connection

ES1100 Series User’s Guide

2.1.1 Rear Panel Power Connection

Connect one end of the supplied power cord to the power receptacle on the back of the Switch and

the other end to the appropriate power source.

For ES1100-8P, ES1100-16, ES1100-16P and ES1100-24E, use the POWER ON/OFF switch to have the Switch

power on or off.

2.2 Front Panel

The front panel of the Switch includes the auto-negotiating 10 Base-T/100 Base-TX RJ-45 ports and the

LEDs. The following shows the front panels of each ES1100 model.

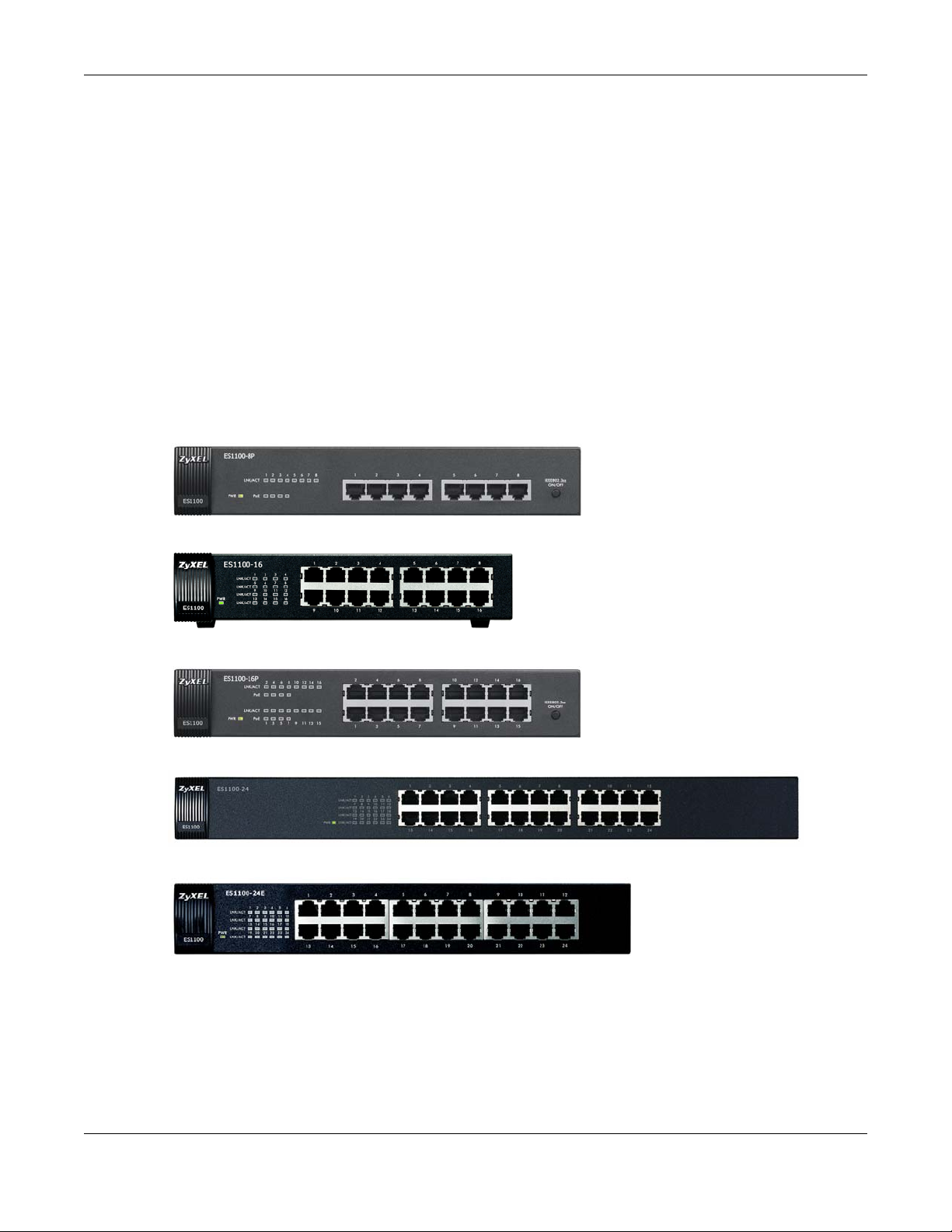

Figure 5 Front Panels

2.2.1 RJ-45 Auto-negotiating Ports

All the RJ-45 ports in the ES1100 series are auto-negotiating and supports auto-crossover.

An auto-negotiating port can detect and adjust to the optimum Ethernet speed (10/100/1000 Mbps)

and duplex mode (full duplex or half duplex) of the connected device.

ES1100-8P

ES1100-16

ES1100-16P

ES1100-24

ES1100-24E
