Switch 1000

Series

Enterprise LAN Switches

Switch 1000

Series

Enterprise LAN Switches

Ł

Full Wire-speed Store-and-

forward Technology Support

Ł

Auto MDI/MDI-X Support for

Hassle-free Usage

Ł

IEEE802.1p CoS Support to

Priority Transmission According

to the Packet Priority Level (GS-

1100)

Ł

IEEE 802.3x Flow Control to

Optimize Transmission by

Reducing Congestion (GS-1100)

Ł

Jumbo Frame Mode Support

(Up to 9K bytes) to Maximize

Efficiency of Transmitting Giant

Packets (GS-1100)

Ł

1U, 19-inch Rack Mountable

Cost-Advantageous Gigabit to

the Desktop Solution

Unmanaged Switch for Small and Medium Enterprises

The full 16/24-port Unmanaged Ethernet Switches range is designed to boost your network

for better performance and efficiency.With the auto-negotiation function, the ZyXEL 1000

Series of LAN switches connects the network counterparts with the highest possible network

speed and activates the duplex mode automatically.

Benefits

Hassle-free Installation and Use

Connectivity can be as easy as plugging a cable to a port on the switch, since all other functions are

performed automatically. All ports on the ZyXEL Switch 1000 Series are Auto MDI/MDIX-capable, so

you don’t need to worry about the Ethernet cable type; the auto-negotiation also helps adjusting

link speed intelligently to achieve the best communication quality. In other words, there is no need

to bother tweaking the switches or flipping through user manuals.The ZyXEL LAN Switches 1000

Series is rack-mountable, it can be placed on a rack to save precious office space.

Cost-effective Solution for Gigabit Migration (GS-1100)

The ZyXEL GS-1116A/GS-1124B is a 16-port/24-port unmanaged Gigabit switch providing a cost-

effective solution to empower“Gigabit to the desktop”connectivity.This brings significant

performance improvement with increased network bandwidth.

Wire-speed Gigabit Engine Boosting the Transmission (GS-1100)

With a robust hardware design, the GS-1116A/GS-1124B performs packet forwarding at wire-speed,

which instantly transfers giant packets without performance degradation. In addition, with the

support to 802.3x flow control, the GS-1116A/GS-1124B guarantees smooth transmission by

adjusting packet transmission to reduce congestion.

Switch 1000 Series

Enterprise LAN Switches

Switch 1000 Series

Enterprise LAN Switches

Switch 1000 Series

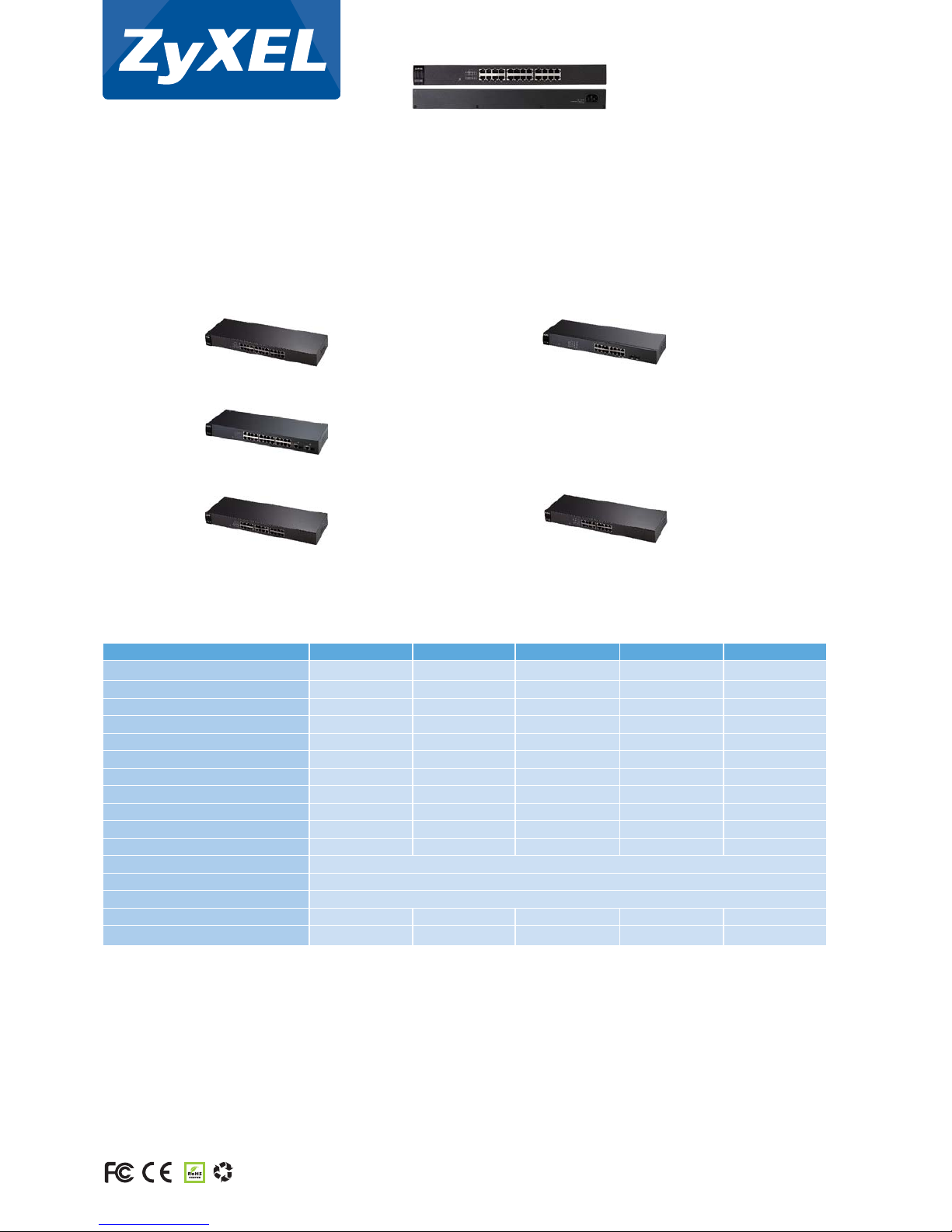

The ZyXEL LAN Switches 1000 Series come with three groups:

The GS-1100 group is unmanaged Gigabit switches ideal for high-bandwidth requirements.

The ES-1100 group provides 24 10/100Base-TX ports plus 2 GbE dual-personality uplinks ideal for remote office scenarios.

The ES-1000 group provides a standard 16/24 10/100Base-TX port ideal for closed office scenarios.

GS-1100

GS-1116A

ES-1100

ES-1000

• 24 1000Base-T ports

• Switching capacity: 48 Gbps

• Forwarding rate:38.7 Mpps

• 14 1000Base-T ports

• 2 GbE dual-personalities

• Switching capacity: 32 Gbps

• Forwarding rate:26.8 Mpps

• 24 10/100Base-TX ports

• Switching capacity: 4.8 Gbps

• Forwarding rate:3.6 Mpps

• 16 10/100Base-TX ports

• Switching capacity: 3.2 Gbps

• Forwarding rate:2.4 Mpps

• 24 10/100Base-TX ports

• 2 GbE dual-personalities

• Switching capacity: 8.8 Gbps

• Forwarding rate:6.6 Mpps

Standard Compliance

• IEEE 802.3 10Base-T Ethernet

• IEEE 802.3u 100 Base-Tx Ethernet

• IEEE 802.ab 1000 Base-T Ethernet

• IEEE 802.3z

• IEEE 802.3x flow control

Safety Agency Certification

• UL 60950-1

• CSA 60950-1

• EN 60950-1

• IEC 60950-1

• EU RoHS compliant

Model Name GS-1124B GS-1116A ES-1124 ES-1024B ES-1016B

10/100Base-TX 24 24 16

1000Base-T 24 14

Dual Personality GbE Port 2 2

Auto MDI/MDI-X Yes Yes Yes Yes Yes

Switching Capacity 48 Gbps 32 Gbps 8.8 Gbps 4.8 Gbps 3.2 Gbps

Switching Forwarding Rate 38.7 Mpps 26.8 Mpps 6.6 Mpps 3.6 Mpps 2.4 Mpps

Packet Buffer 500 Kb 500 Kb 2.5 Mb 1.25 Mb 1.25 Mb

MAC Address 8K 8K 8K 4K 4K

802.1p CoS Yes Yes Yes Yes Yes

Broadcast Storm Control - - - Yes Yes

VLAN Packet Pass Through Yes Yes Yes Yes Yes

Operating Temperature 0

ºC ~ 45ºC

Storage Temperature -25

ºC ~ 70ºC

Operating Humidity 10% ~ 90%, (non-condensing)

Dimensions (W) x (D) x (H) mm 440 x 130 x 45 440 x 130 x 45 440 x 130 x 45 440 x 130 x 45 440 x 130 x 45

Weight 2 kg 3 kg 2.2 kg 1.47 kg 1.39 kg

Feature Matrix

ES-1124

ES-1024B

GS-1124B

ES-1016B

65-100-100007B 03/09

For more product information, visit us on the web at www.ZyXEL.com

ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned are the property of their

respective owners. All specifications are subject to change without notice.
