ZyXEL Communications FTU2000 Manuel utilisateur

www.zyxel.com

Fiber Termination Unit

Edition 1, 2/2010

FTU2000

Corporation

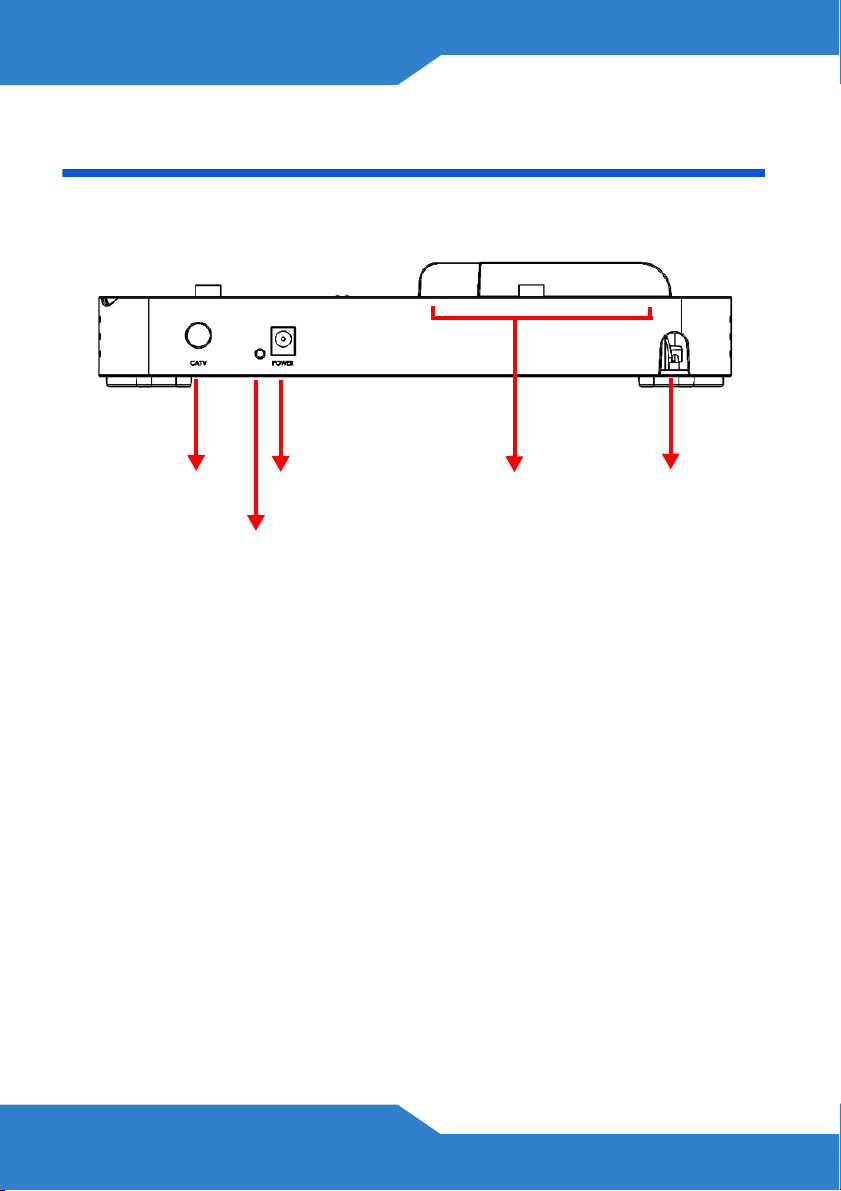

Device Panel

CATV

POWER LED

POWER FIBER PORT FIBER

with COVER ENTRANCE

or EXIT

PORT

Overview

The FTU2000 is a Fiber Termination Unit (FTU) which can deliver Fiber

to the Home (FTTH) network services such as data, voice and video to

home users. The FTU2000 provides cable television (CATV) service to

subscribers. Simply connect the FTU2000 to the CATV fiber outlet in

your home. To watch CATV channels, use a coaxial cable to connect the

FTU2000 to the television set as shown in the following figure.

The FTU2000 works in tandem with the FSG2200HNU Integrated

Access Device (IAD), which combines high-speed Internet access, a

built-in switch, a firewall and high-speed wireless networking capability.

The FSG2200HNU also has two USB 2.0 port for sharing files via a USB

compatible storage device and two phone ports for making calls over the

Internet (Voice over IP or VoIP).

Hardware Connections

1. To set up your Internet connection, choose:

a. FIBER (CATV): Use a fiber cable to connect this port to the CATV

fiber outlet; OR

b. FIBER (DATA): If you have an FSG2200, follow the steps in

Connecting to a FSG2200HNU. The FTU2000 enables the

FSG2200HNU to connect to a fiber network resulting in faster data

transfer rates.

2. CATV: Use a coaxial cable to connect this port to your television.

3. POWER: Use the power adaptor provided to connect an appropriate

power source to this socket. The LED light turns green once the

FTU2000 is ready.

If you are using both FTU2000 and FSG2200HNU, the power coming

from the FSG2200HNU is enough for both devices and there is no need

to connect the FTU2000 to a power source. In this setup, the CATV

service is not available when the FSG2200HNU is turned off.

4. Verify that the hardware setup is working by turning on your

television. You should be able to watch the CATV channels indicated

in your subscriber plan.

Contact your CATV provider if you cannot access the cable channels.

Connecting to a FSG2200HNU

If you have subscribed to both CATV and fiber-based Internet services

but have only one fiber outlet at home, you can use the FTU2000 to

bridge the fiber port to the FSG2200HNU. Follow these steps to connect

the FTU2000 to the FSG2200HNU.

Before proceeding, the fiber cables (CATV and data) should be

connected to the FTU2000 and properly coiled within the casing. Refer

to Coiling the Fiber Cables for instructions.

1. The FTU2000 has a nodule on the top panel that serves as an

opening for the fiber cable going to the FSG2200HNU. Remove the

screw holding the cover in place.

2. On the bottom panel of the FSG2200HNU, lift off the cover of the fiber

port. Connect the fiber cable (data) coming from the FTU2000 to this

port.

3. Place the FSG2200HNU on top of the FTU2000, such that the nodule

of the FTU2000 goes into the hollow for the fiber port of the

FSG2200HNU, as shown below:

Slide the FSG2200HNU to your right so that the two devices are

connected and locked in snugly.

Coiling the Fiber Cables

The following diagrams show how to properly coil the fiber cable within

the FTU2000 casing.

There are four fiber cable entrances/exits in the FTU2000 casing. Follow

The coiling method approproate to where and how you are going to

position the device in your home.

• The following diagrams show the coiling method when you are

using the FTU2000 as a standalone unit, where you only need one

(1) fiber optic cable.

• The following diagrams show the coiling methods used when you

are using the FTU2000 together with the FSG2200HNU. This setup

uses two (2) fiber optic cables.

Refer to the Quick Start Guide and User Guide of your FSG2200HNU for

instructions on how to configure and use it.

Product Specifications

The following tables summarize the FTU2000’s hardware and firmware

features.

Standards Certifications

Hardware Specifica tions

Box dimensions 326 mm (L) x 184 mm (W) x 91 mm (H)

Weight 350 g

Input Power 12VDC 1.0 A

Operation

Temperature

0º ~ 40º C

Storage Temperature -25º ~ 65º C

Humidity Operating Humidity: 20% to 85% RH

Storage Humidity: 20% to 90% RH

Distance between the

centers of the holes

(for wall-mounting) on

the device’s back

192 mm (vertical)

95.95 mm (horizontal)

Screw size for wall-

mounting

M4 tap

Item Region Description

Safety European Union (CE-LVD) EN 60950-1:2006

IEC 60950-1

Wall-mounting Instructions

Do the following to hang your FTU2000 on a wall.

1. Locate a high position on a wall that is free of obstructions. Use a

sturdy wall.

You can hang the FTU2000 horizontally or vertically.

EMI North America FCC Part 15 Class B (with -

4dB margin)

European Union (CE Mark) EN550222006 Class B (with

-4dB margin)

EN61000-3-2

EN61000-3-3

EMS European Union (CE mark) EN55024

Electrostatic Discharge EN61000-4-2

Radio-Frequency Electromagnetic Field EN61000-4-3

EFT/Burst EN61000-4-4

Surge EN61000-4-5

Conducted Susceptibility EN61000-4-6

Power Magnetic EN61000-4-8

Voltage Dips/Interruption EN61000-4-11

Power

Supply

North America UL 60950-1

European CE mark

EN60950 (2001)
