ZyXEL Communications P-792H Manuel utilisateur

www.zyxel.com

G.SHDSL.bis Broadband

Gateway

Version 3.70

Edition 1, 04/2010

P-792H v2

DEFAULT LOGIN DETAILS

IP Address: http://192.168.1.1

Admin Password: 1234

User Password: user

ZyXEL Communications Corporation

Device Panels

POWER

LED ETHERNET

LED 1-4 DSL

LED INTERNET

LED

ON/OFF RESET

POWER ETHERNET

PORT1-4

DSL

PORT

CONSOLE

P-792H v2

Overview

The P-792H v2 is a secure G.SHDSL.bis broadband gateway. It provides

high-speed Internet access or high-speed point-to-point connections with

other ZyXEL devices of the same type. The P-792H v2 itself can act as a

router or as a bridge.

See your User’s Guide for background information on all features.

The included CD provides multi-media animations that help you set up

your P-792H v2.

Hardware Connections

1. DSL: Use the provided telephone cable to connect the P-792H v2’s

DSL port to a telephone jack.

2. ETHERNET: Use an Ethernet cable to connect a computer to the

ETHERNET port for initial configuration and/or Internet access.

3. POWER: Use the power adaptor provided with your P-792H v2 to

connect an appropriate power source to the POWER socket. Make

sure the power source is on.

4. Push in the POWER button. Look at the lights on the front panel.

• The POWER light blinks while your P-792H v2 starts up and stays

on once it is ready. The DSL LED blinks while the P-792H v2 is

trying to establish a connection with the ISP and stay on when the

connection is established. The INTERNET light is on when you are

able to access the Internet and blinks when the P-792H v2 is

sending or receiving data.

• The ETHERNET light stays on if the ETHERNET port is properly

connected and blinks when there is traffic.

If any of these lights are not on, check your connections, and inspect

your cables for damage. If the lights are still off, contact your local

vendor.

P-792H v2

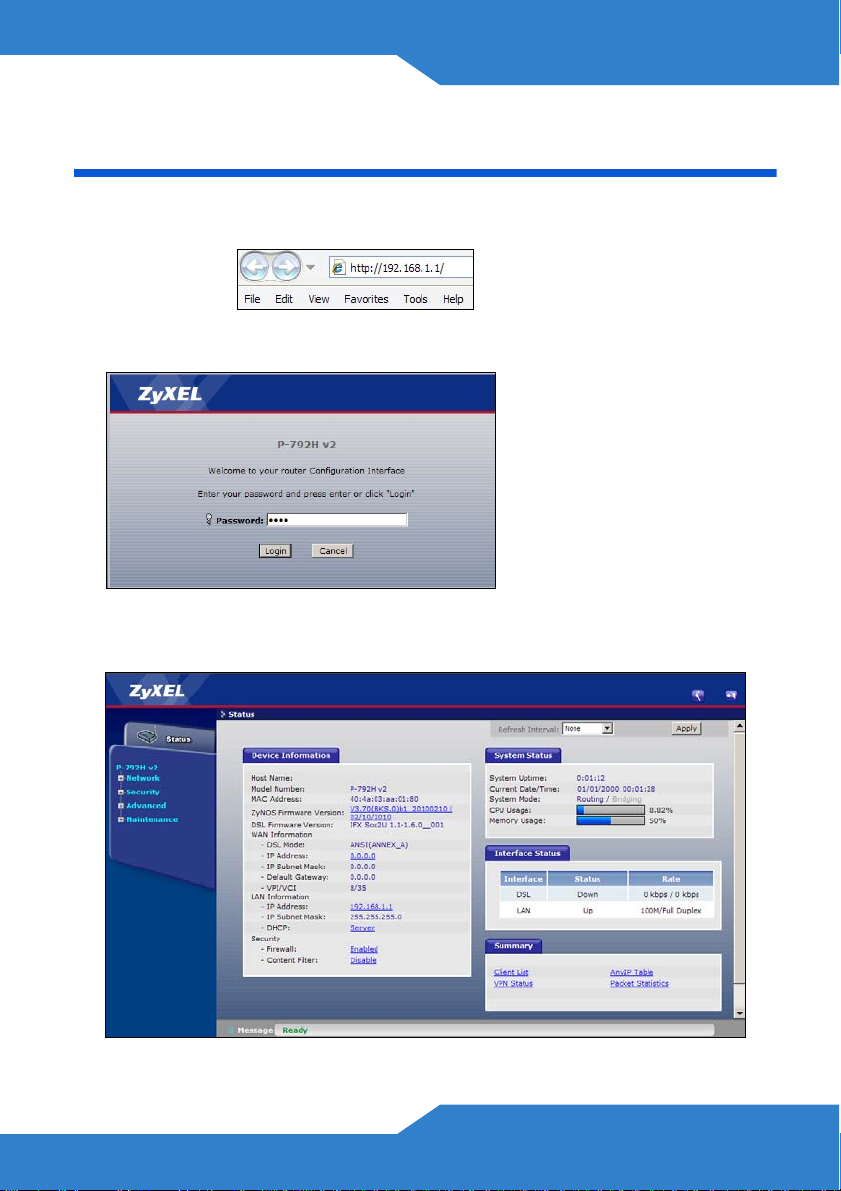

Status Page

1. In your browser, go to http://192.168.1.1.

2. Enter the default password user to go directly to the Status screen.

3. See the User’s Guide for field descriptions of the Status screen.

Internet Setup

You must have an account for Internet access, and you should have the

information provided by your Internet Service Provider (ISP).

1. Open your web browser, and go to http://www.zyxel.com.

Your P-792H v2 tries to detect your Internet connection. Wait for the P-

792H v2 to finish detection. If any other screens appear, follow the

directions in the screen.

If the web page opens correctly, your P-792H v2 is ready for you to use.

If the web page does not open, follow the rest of the steps. You should

have the information provided by your ISP.

2. In your browser, go to http://192.168.1.1.

3. Enter the admin password 1234 to set up your internet and wireless

connections and security settings. Click Login.

P-792H v2

4. When you login the for first time, it is recommended that you change

the default password. Follow the directions in this screen to do so.

5. Click Go to Wizard setup. Then, click Apply.

6. Click INTERNET SETUP. Wait while your P-792H v2 tries to detect

your DSL connection.

7. Follow the directions in the wizard. Do not change default settings if

your ISP did not provide information.

P-792H v2

Troubleshooting

1. If you cannot access the web configurator using Internet Explorer in

Windows XP or Windows Server 2003, make sure you allow pop-up

windows, JavaScripts and Java permissions or set the Internet

security level lower than High in Internet Explorer (in Internet

Explorer, click Tools > Internet Options > Security > Custom

Level...). See the appendix in the User’s Guide for more information.

2. If you cannot access the Internet when your computer is connected to

the ETHERNET port, follow these steps.

a. Check the lights on the front panel. If they are different from what is

described in Hardware Connections , make sure the P-792H v2 is

correctly connected. If the lights are still different, turn off the

device, wait a few seconds, and turn it on again.

b. Follow the steps in Internet Setup again. Make sure you enter the

correct information. For example, if your account has a user name

and password, make sure you type it correctly. In addition, if you

are not sure which encapsulation your ISP uses, contact your ISP.

c. If you are using a new Internet account, contact your ISP to make

sure it is active.

d. If you still have problems, see Troubleshooting in the User’s

Guide.

Viewing Certification(s)

• Go to www.zyxel.com.

• Select your product from the drop-down list box on the ZyXEL home

page to go to that product's page.

• Select the certification you wish to view from this page.
