ZyXEL Communications P-2701RL Manuel utilisateur

www.zyxel.com

P-27xx Series

Models:

P-2701RL VoIP ATA / Gateway with Lifeline

P-2702R VoIP ATA / Gateway

ZyXEL Communications Corporation

Firmware Version 1.0

Edition 1, 11/2009

Default Login Details

IP Address http://192.168.1.1

User Name admin

Password 1234

P-27XX Series User’s Guide 3

CHAPTER 1

Introduction

1.1 Overview

This guide helps you set up and use your ZyXEL Device (either the P-2702R VoIP

ATA / Gateway or the P-2701RL VoIP ATA / Gateway with Lifeline).

This guide contains the following sections:

SECTION PAGE DESCRIPTION

Installation

Requirements 5A checklist of things you need before you install the

ZyXEL Device.

Making Hardware

Connections 5How to connect the ZyXEL Device to your network, your

computer and telephone(s).

Initial Configuration 7 How to configure your ZyXEL Device to access the

Internet and make Voice over Internet (VoIP)

phonecalls.

For the P-2701RL, it also explains how to set up regular

phone services that do not use the Internet.

Placing Phone Calls 13 How to make calls from the phone(s) connected to the

ZyXEL Device.

Advanced Phone

Configuration 14 How to configure advanced VoIP options.

Speed Dial Settings 21 How to create a list of speed dial numbers.

Troubleshooting 23 Possible solutions for any issues that may arise.

Specifications 29 Information about your ZyXEL Device’s physical

specifications

Features 30 Supported firmware specifications.

Wall Mounting

Instructions 33 How to attach the ZyXEL Device to a wall.

Safety Warnings 35 Using the ZyXEL Device safely.

Open Software

Announcements 35 Description of ZyXEL’s open software use and where to

download open source components modified by ZyXEL.

Legal Information 37 Certifications, warranty and customer support

information.

Chapter 1 Introduction

P-27XX Series User’s Guide

1.2 How It Works

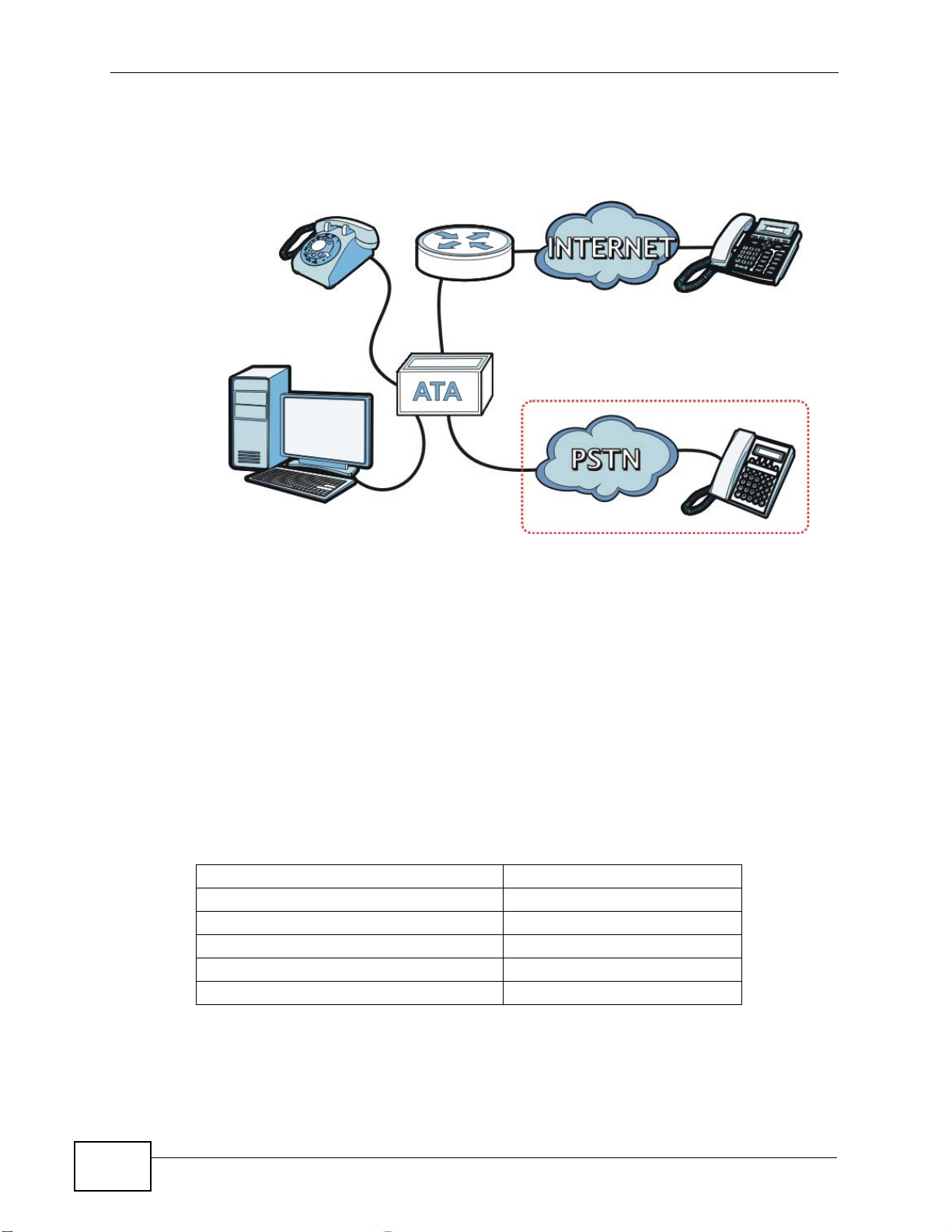

The following figure shows how the ZyXEL Device works:

• When you make a phone call over the Internet, you use a telephone (A) to dial

the number. The P-2701RL supports one telephone connection, and the P-2702R

supports two telephone connections.

The telephone is connected to your ZyXEL Device (C), which is connected to the

broadband modem or router that provides Internet access (D).

• When you want to use the Internet, you use your computer (B). Your computer

is connected to your ZyXEL Device (C), which is connected to the broadband

modem or router that provides Internet access (D).

You also use your computer to configure the ZyXEL Device.

•P-2701RL Only (E): Use your telephone (A) to make calls over the regular

telephone network (PSTN or Public Switched Telephone Network).

Important information about your ZyXEL Device:

Default Management IP Address 192.168.1.1

Default Subnet Mask 255.255.255.0

Default Admin User Name admin

Default Admin Password 1234

Default User Name user

Default User Password user

ACD

Chapter 1 Introduction

P-27XX Series User’s Guide 5

1.3 Installation Requirements

Make sure you have the following things before you set up your ZyXEL Device:

• Internet Account - Information provided by your ISP (the company that lets you

connect to the Internet). This information might include your user name,

password, and so on.

• VoIP Account - Information provided by your VoIP service provider (the

company that lets you make phone calls over the Internet). This information

might include your URI, number, and so on.

• Web Browser - Internet Explorer 6.0 or later or Firefox 1.5 or later with

JavaScript enabled.

1.4 Making Hardware Connections

The following shows you how to make the ZyXEL Device’s hardware connections.

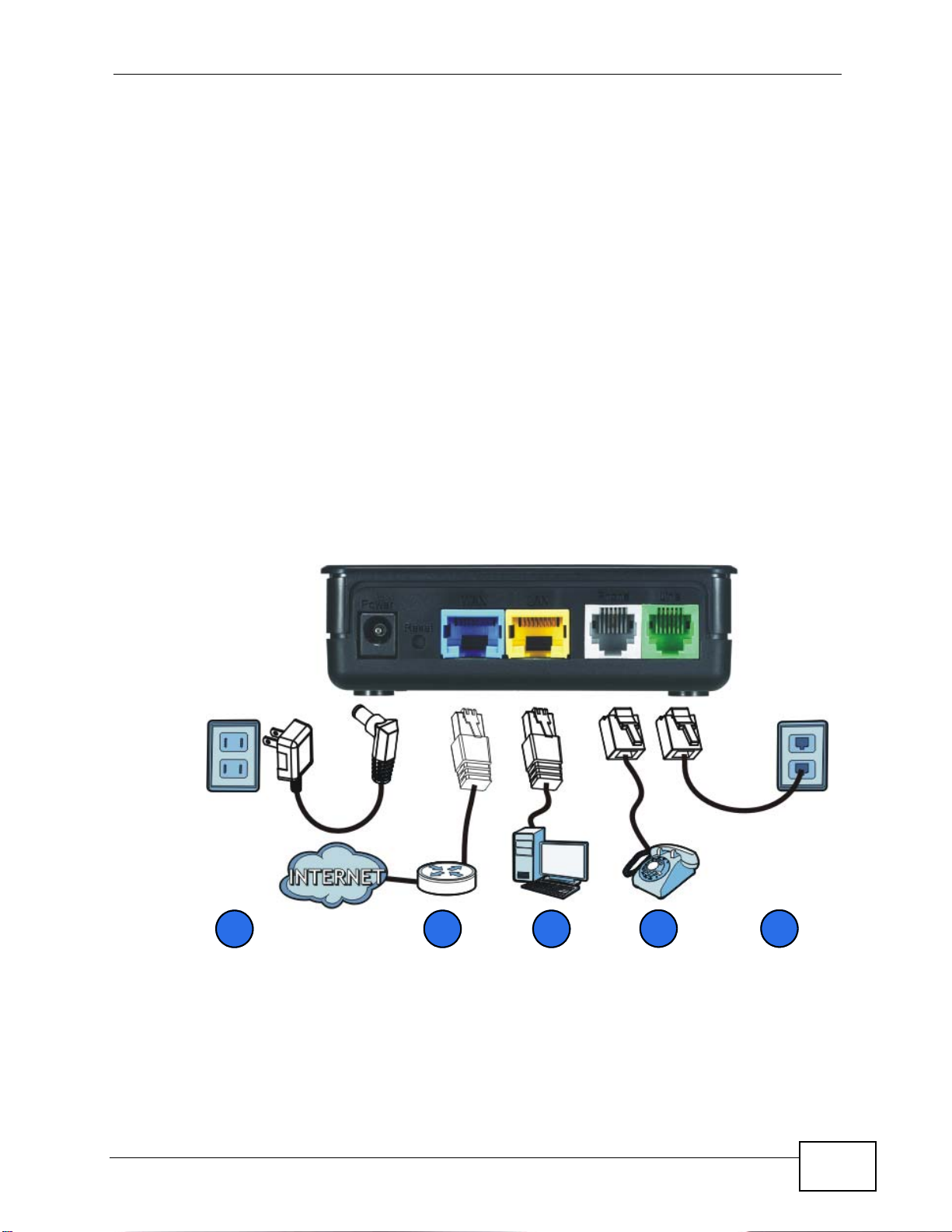

Figure 1 P-2701RL Hardware Connections

12345

Chapter 1 Introduction

P-27XX Series User’s Guide

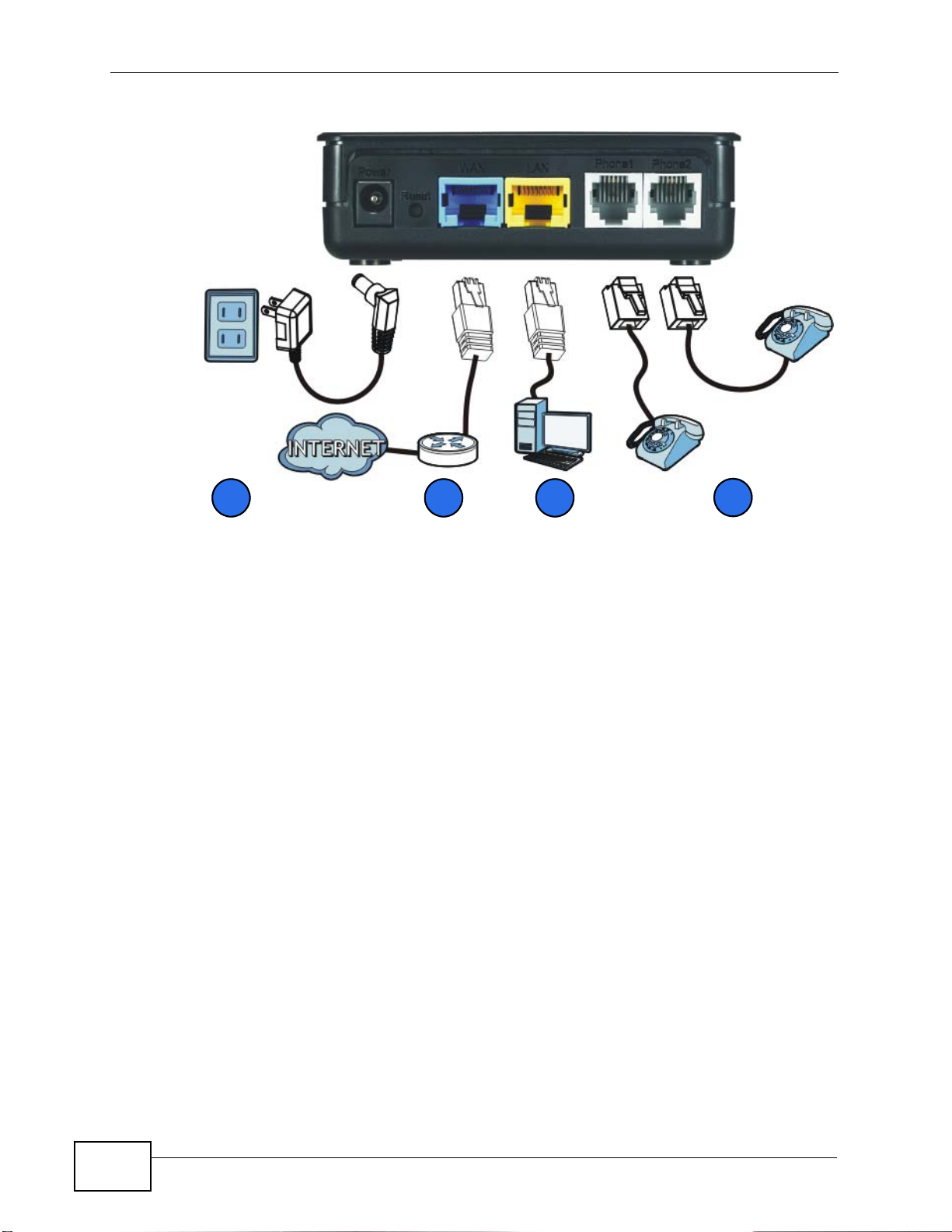

Figure 2 P-2702R Hardware Connections

1LINE (P-2701RL only): Use a telephone cable to connect the telephone jack to

this port.

2PHONE 1 / PHONE 2: Use a telephone cable (and any telephone adaptor

provided with your ZyXEL Device) to connect your telephone to this port.

3LAN: Use an Ethernet cable to connect your computer to this port.

4WAN: Use an Ethernet cable to connect your broadband modem or router to this

port.

5POWER: Use the power adaptor provided with your ZyXEL Device to connect an

appropriate power source to this jack.

On the front panel, the POWER light flashes green while your ZyXEL Device starts

up, and stays green once it is ready. The WAN and LAN lights turn on if the WAN

and LAN ports are properly connected. These lights flash when the ZyXEL Device

is sending or receiving data.

2345

P-27XX Series User’s Guide 7

CHAPTER 2

Initial Configuration

This chapter shows you how to set up your ZyXEL Device by connecting to its

built-in Web Configurator with your computer.

2.1 The Web Configurator

The web configurator is an HTML-based management interface that allows easy

device setup and management via a web browser.

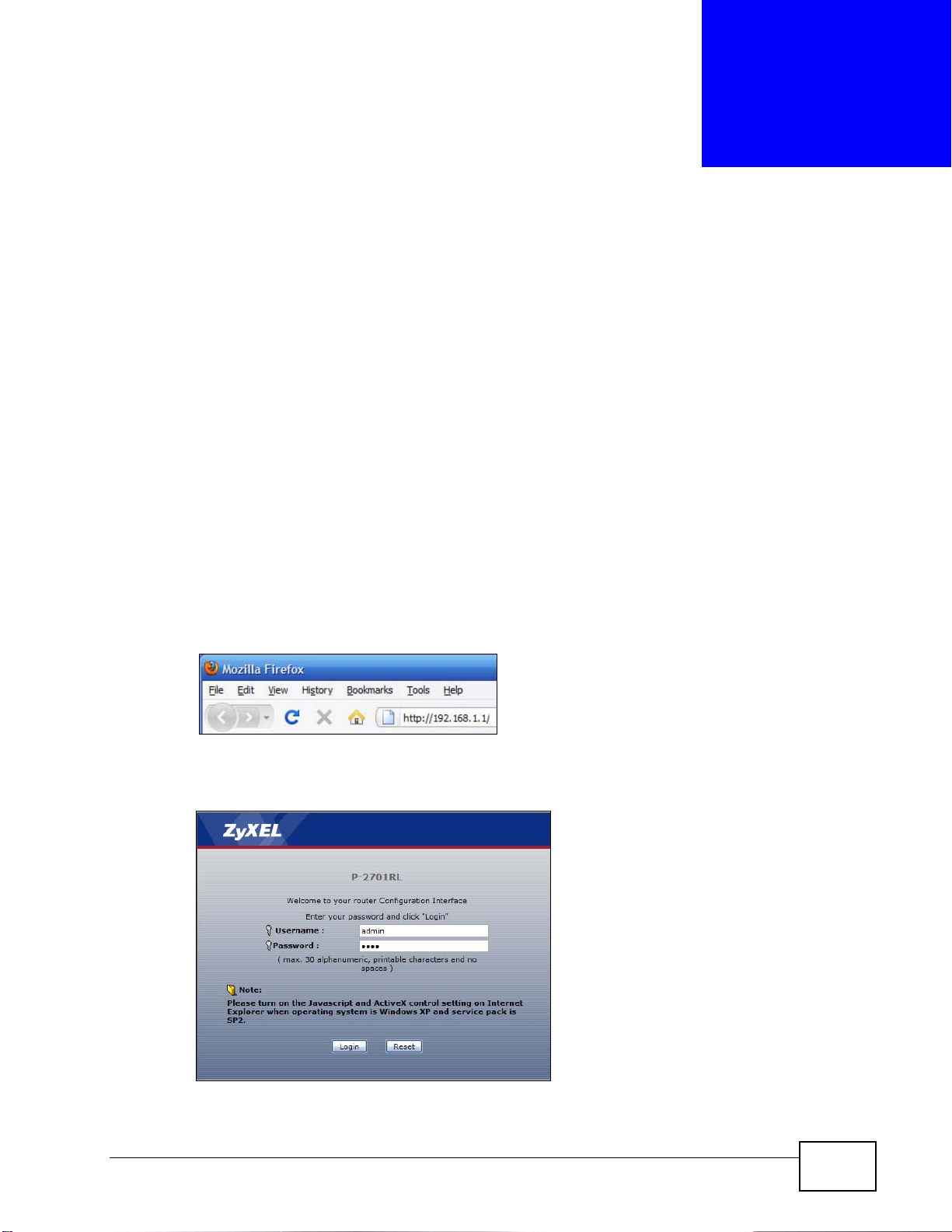

To connect to the Web Configurator:

1Launch your web browser.

2Enter http://192.168.1.1 as the address.

3Enter the default administrator User Name (admin) and Password (1234), then

click Login.

Chapter 2 Initial Configuration

P-27XX Series User’s Guide

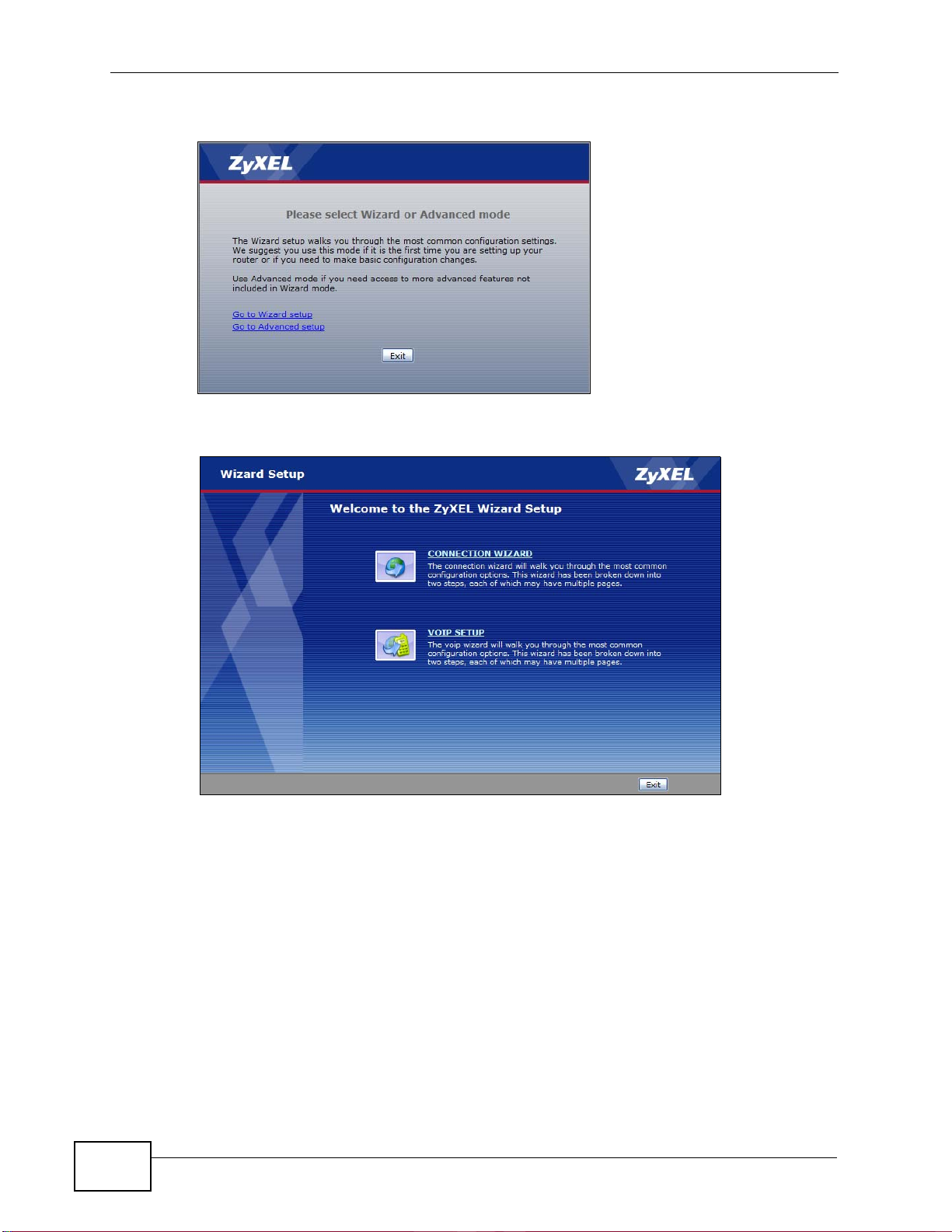

4Click Go to Wizard setup.

5The Configuration Wizard opens.

2.2 The Connection Wizard

This section shows you how to configure your Internet connection settings using

the Connection Wizard.

Note: You must have an active Internet account with a service provider in order to

complete this section.

1In the Wizard Setup screen, select Connection Wizard.

2In the Welcome screen, click Next.

Chapter 2 Initial Configuration

P-27XX Series User’s Guide 9

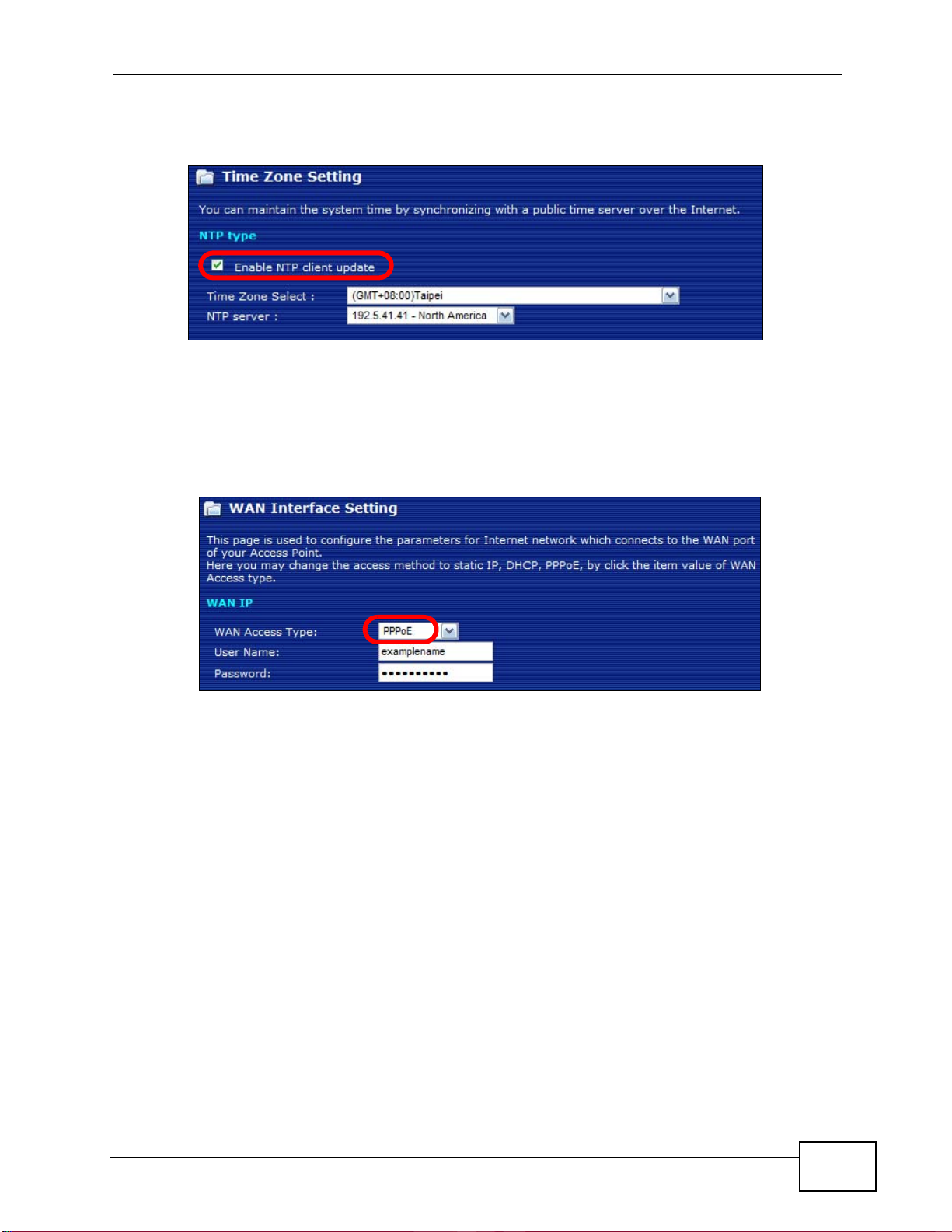

3In the Time Zone Setting screen, select Enable NTP Client Update if you want to

maintain the ZyXEL Device’s internal clock by synchronizing it with a time server.

If you do this, choose a Time Zone and an NTP Server closest to your location

from their respective menus, then click Next to save your settings and go to the

next screen.

4The WAN Interface Setting screen has different fields, depending on the type of

Internet access your ISP uses.

You can choose either Static IP,Dynamic IP, or PPPoE:

•Static IP means the ISP has assigned your Internet access account a single

IP address that will never change, regardless of whether you are online or

not. See Section 2.2.1 on page 10 for details.

•Dynamic IP allows the ISP to randomly assign your ZyXEL Device an IP

address each time it requests a WAN (or Internet) session. The IP address is

released as soon as the ZyXEL Device disconnects from the ISP. See Section

2.2.2 on page 10 for details.

•PPPoE emulates a standard dial-up connection over the Internet and requires

that each time the ZyXEL Device requests a WAN session you log in with your

ISP-assigned user name and password. See Section 2.2.3 on page 10 for

details.

Choose the setting required by your ISP then follow the instructions in the

appropriate section below. If you are not sure which setting to use then contact

your ISP.

Chapter 2 Initial Configuration

P-27XX Series User’s Guide

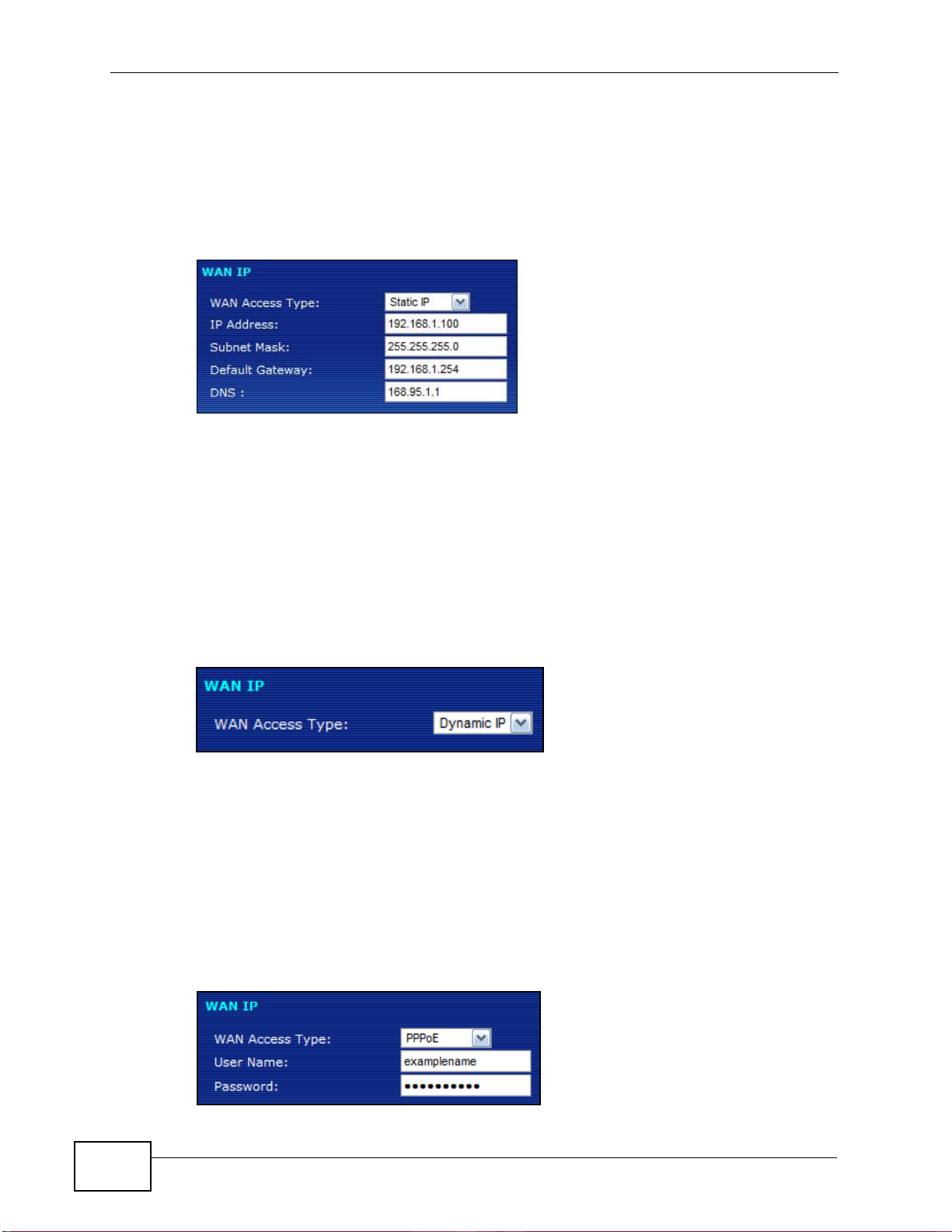

2.2.1 Static IP Connection Settings

Follow these steps if your ISP uses a static IP connection.

1Select Static IP from the WAN Access Type menu. The screen changes to

provide options for this setting.

2Enter the settings as provided by your ISP.

3Click Finished to save your settings.

2.2.2 DHCP Connection Settings

Follow these steps if your ISP uses a dynamic IP connection.

1Select Dynamic IP from the WAN Access Type menu.

2Click Finished to save your settings.

2.2.3 PPPoE Connection Settings

Follow these steps if your ISP uses a PPPoE connection.

1Select PPPoE from the WAN Access Type menu. The screen changes to provide

options for this setting.
