P-662HW-D Series

ADSL2+ 4-Port Wireless Security Gateway

Quick Start Guide

Version 3.40

Edition 1

3/2006

P-662HW-D Series Quick Start Guide

Overview

Use the included CD or follow the directions in this Quick Start Guide to set up your P-662HW-D.

How to Use the Included CD

This CD provides multi-media animations that help you set up your P-662HW-D.

1On the included CD, click Multimedia Auto Provisioner > Installation Tutorial.

2At the end of the tutorial, click Configuration Genie.

1 Hardware Connections

1DSL: Use a telephone wire (and telephone adaptors, if provided with your P-662HW-D) to connect your P-

662HW-D to a telephone jack.

2ETHERNET: Use an Ethernet cable to connect a computer to the ETHERNET port for initial configuration

and/or Internet access.

3POWER: Use the power adaptor provided with your P-662HW-D to connect an appropriate power source

to the POWER socket.

4Push in the POWER button. Look at the lights on the front panel.

•ThePOWER light blinks green while your P-662HW-D starts up and stays green once it is ready.

•TheDSL light is on if a DSL connection is established.

• Each ETHERNET light stays on if the corresponding Ethernet port is properly connected and blinks when there

is traffic.

•TheWLAN light is on if the wireless network is on.

P-662HW-D Series Quick Start Guide

If the lights are not on, check your connections, and inspect your cables for damage. If you still have

problems, contact your local vendor.

2 Status Page

1In your browser, go to http://192.168.1.1.

2Enter the default password user to go

directly to the Status screen.

If your browser cannot find this screen,

check its security settings. See

Troubleshooting for details.

P-662HW-D Series Quick Start Guide

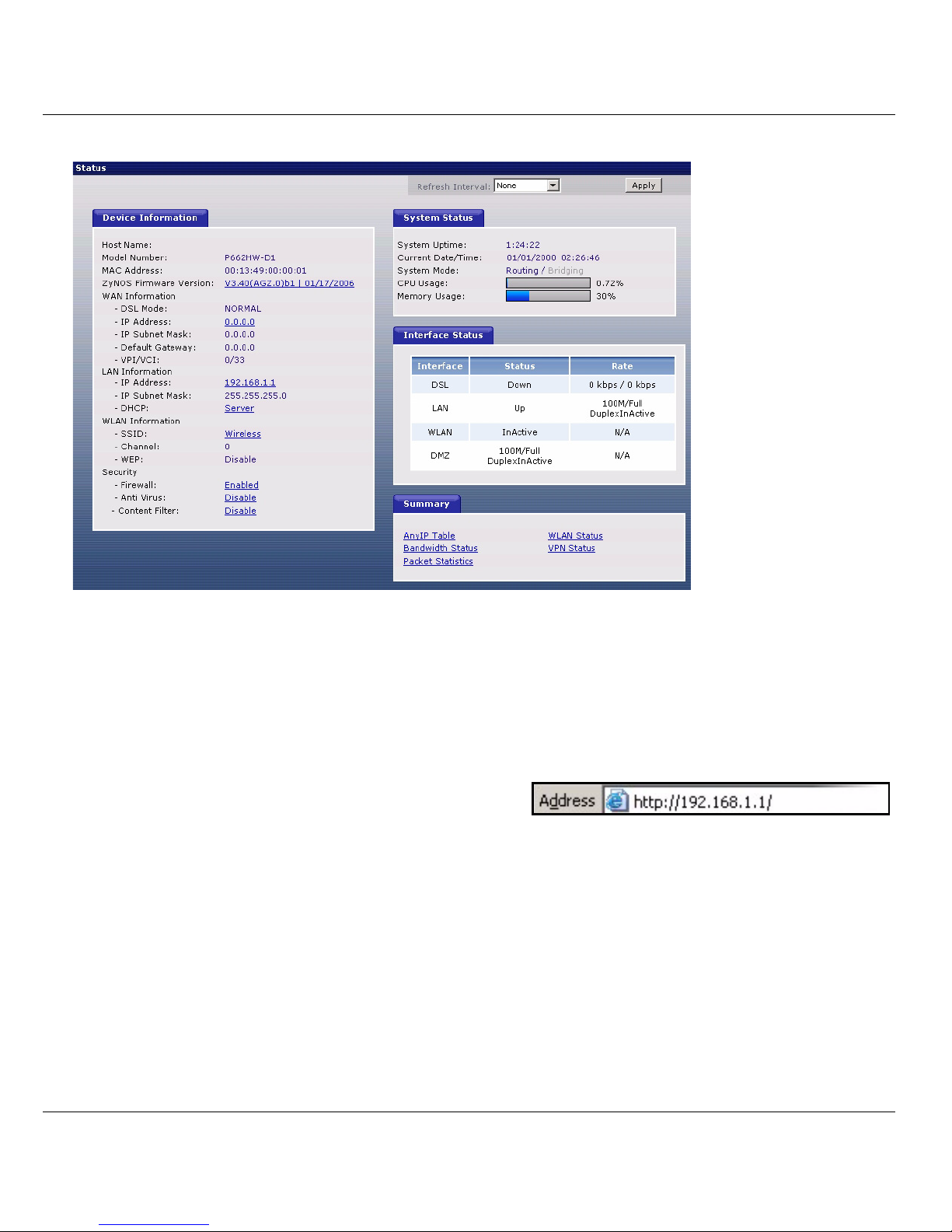

3See the User’s Guide for field descriptions of the Status screen.

3 Internet Setup

1Open your web browser, and go to http://www.zyxel.com.

Your P-662HW-D tries to detect your Internet connection. This takes about two minutes. If any other screens

appear, follow the directions in the screen.

If the web page opens correctly, your P-662HW-D is ready to use. If the web page does not open, follow the rest

of the steps. You should have the information provided by your ISP.

2In your browser, go to http://192.168.1.1

P-662HW-D Series Quick Start Guide

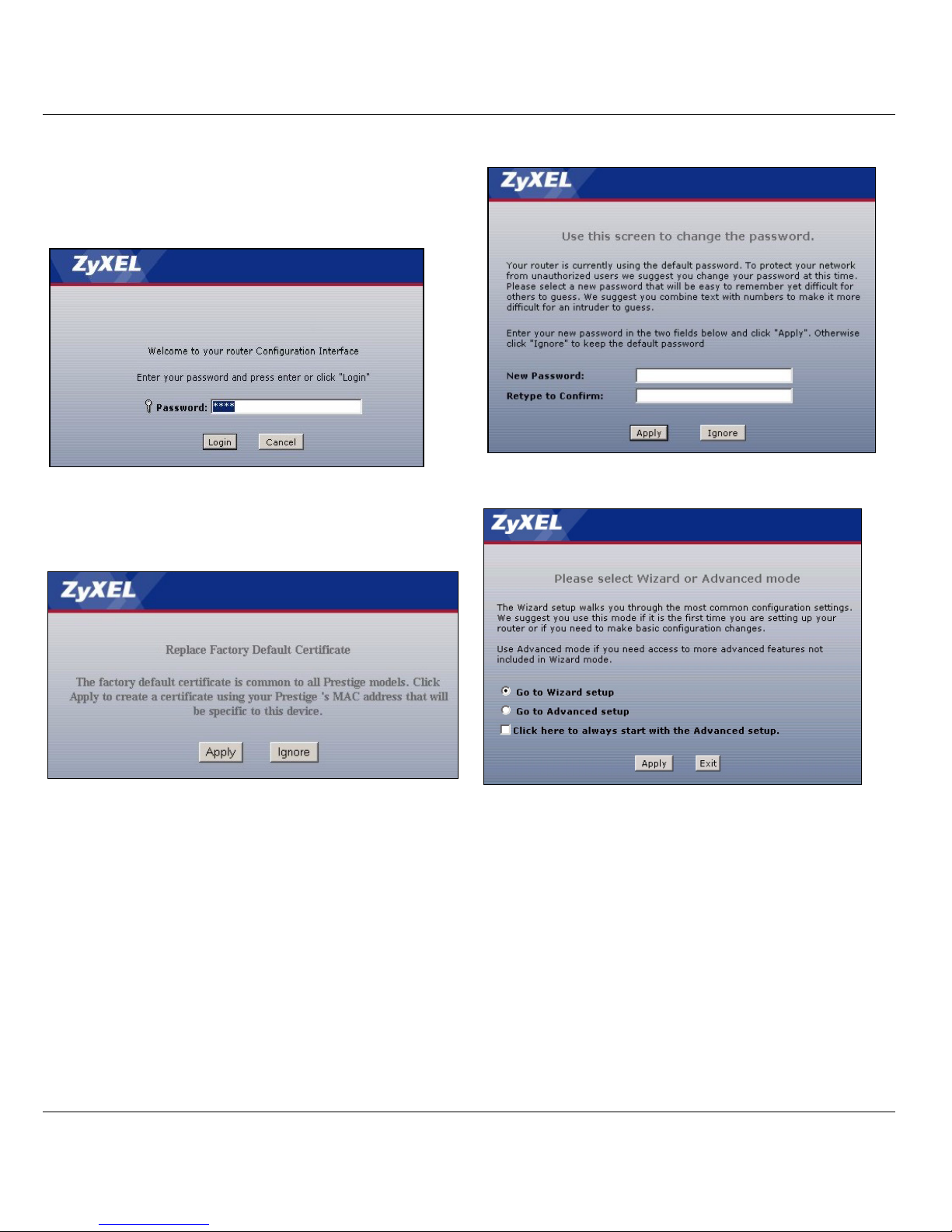

3Enter the admin password 1234 to set up your

internet and wireless connections and security

settings. Click Login. If your browser cannot find

the login screen, check its security settings. See

Troubleshooting for details..

4Follow the directions in this screen.

5Click Apply to replace the factory default

certificate. This creates a unique certificate for

your P-662HW-D. If you click Ignore, this prompt

will show up every time you login.

6Select Go to Wizard setup and click Apply.

P-662HW-D Series Quick Start Guide

OTIST

ZyXEL's One-Touch Intelligent Security Technology (OTIST) feature allows you to automatically configure the

SSID and WPA-PSK on all OTIST-equipped wireless clients within range of the P-662HW-D.

Note: If you enable OTIST but select Disable wireless security using the wireless wizard, the P-

662HW-D will create a WPA-PSK automatically.

If you enable OTIST and select Manually assign a WEP key using the wireless wizard, the P-

662HW-D will replace the WEP key with a WPA-PSK.

Enable OTIST only if your wireless clients support WPA and OTIST.

You must enable OTIST on the P-662HW-D and all wireless clients within three minutes in any order.

To start OTIST on the P-662HW-D, hold in the RESET button for one to five seconds. Do not hold the RESET

button in for too long, as this will reset the P-662HW-D to the factory defaults.

To enable OTIST on wireless clients, click Start in the Adapter screen. The Setup Key is 01234567 by default.

If you have previously saved a setup key on the P-662HW-D, use it instead of the default.

For more information, see Wireless LAN in the User's Guide.

Troubleshooting

1If you cannot access the web configurator using Internet Explorer in Windows XP or Windows Server 2003,

make sure you allow pop-up windows, JavaScript and Java permission or set the Internet security level to

any level lower than High in Internet Explorer (in Internet Explorer, click Tools > Internet Options >

Security > Custom Level...). See the appendix in the User’s Guide for more information.

2If you cannot access the Internet when your computer is connected to the ETHERNET port, follow these

steps.

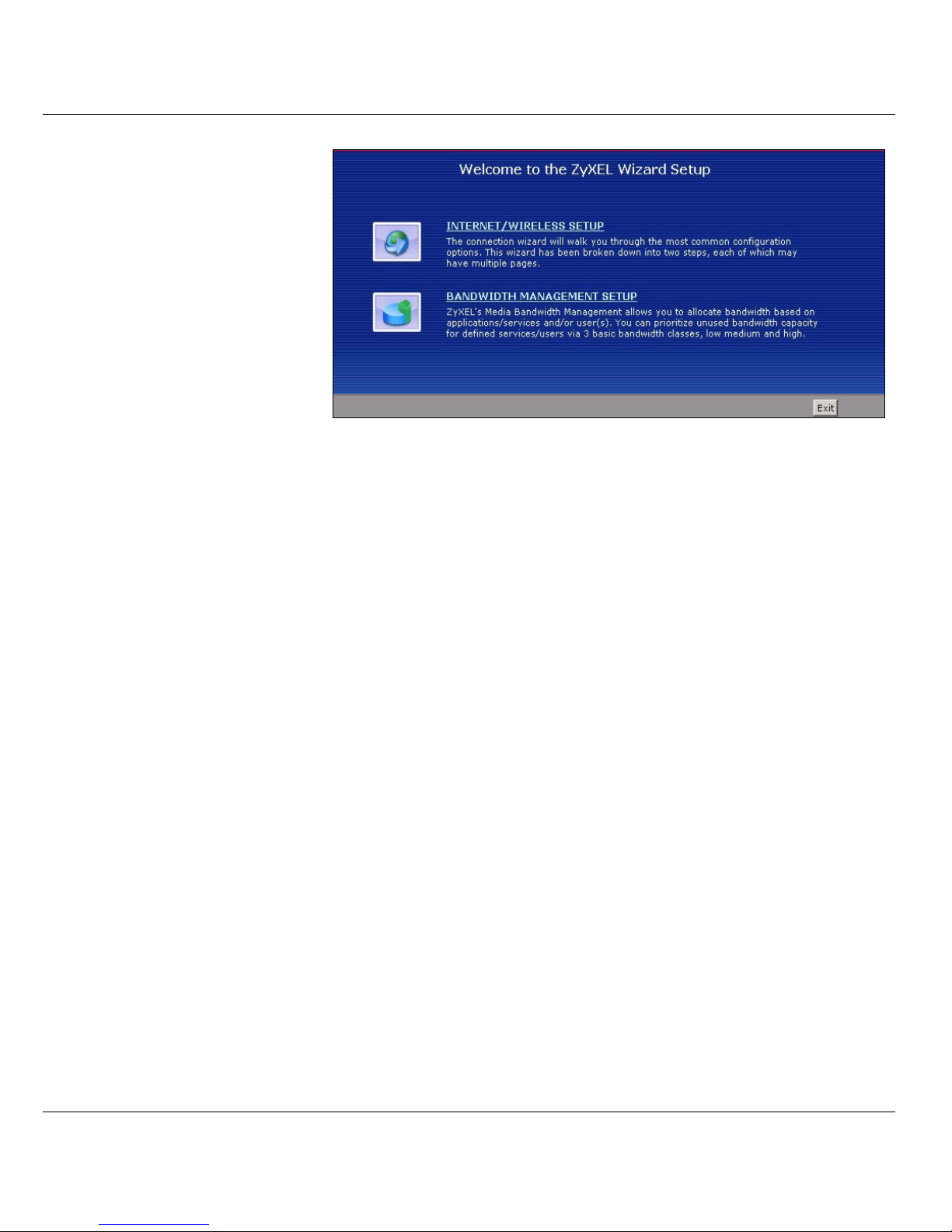

7Click INTERNET / WIRELESS

SETUP. Wait while your P-

662HW-D tries to detect your

DSL connection.

8Follow the directions in the

wizard. Do not change default

settings if your ISP did not

provide them.

P-662HW-D Series Quick Start Guide

A) Check the lights on the front panel. If they are different from what is described in section 1, make sure

the connections are correct. (See section 1.) If the lights are still different, turn off the device, wait a few

seconds, and turn it on again.

B) Follow the steps in section 3again. Make sure you enter the correct information. For example, if your

account has a user name and password, make sure you type it correctly. In addition, if you are not sure

which encapsulation your ISP uses, contact your ISP.

C) If you are using a new Internet account, contact your ISP to make sure it is active.

D) If you still have problems, see Troubleshooting in the User’s Guide.

3If you cannot access the Internet using the wireless network, follow these steps.

A) On a computer in the wireless network, open your browser, and go to http://192.168.1.1. If you see the

screen in step 3of section 3, follow suggestions A- Dabove. If you do not, go to the next step.

B) Make sure your P-662HW-D and your computer are using the same settings. Follow the steps in section

Viewing Your Product’s Certifications

1Go to www.zyxel.com.

2Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.

3Select the certification you wish to view from this page.
