Z1320

Wi-Fi6 Wireless Router

User Manual

Step 1-Install the Device

Laptop Mobile Phone

Wi-Fi

Laptop

RJ-45

Power Outlet

Modem

Network

Cable Jack

RJ-45

Power WAN LAN1 LAN2 Reset WPS

Step 2-Add the Router

Download and install ZLife Lite. For iOS, download

ZLife Lite on App Store. For Android, download it on

Google Play.

Tap Add device.

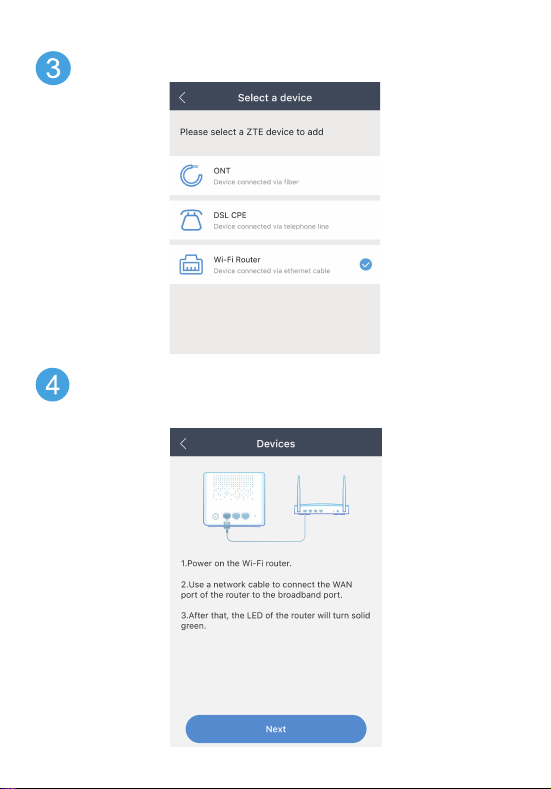

Tap Wi-Fi Router.

Connect the WAN port of the router to the broadband

port. Tap Next.

NOTE:

If the operating system of your mobile phone is

Android, you must connect to Wi-Fi manually after

scanning the QR code. If you do not want to enter the

password manually, tap copy the password. This opera-

tion arises from Android rather than ZLife Lite because

of Android security requirements.

Scan the QR code found at the bottom of the router.

If no QR code is present, enter your wireless account

and password.

To perform more advanced congurations, go to the

web page for router management. For the login

address and the default username and password, see

the label at the bottom of the router.

NOTE:

After the router is added successfully, the Congure

network screen is displayed. Tap Bind immediately.

After the router is added successfully, the indicator is

green and steady.

LED indicator/WPS

Step 3- Set Up a Mesh Network

NOTE:

Step 3 is required only if you want to deploy multiple

Z1320 routers.

Method 1: Use ZLife Lite app for connection

1. Make sure the router you have just congured is connected

to the Internet.

2. After the new router is powered on, follow the instructions

given by the app.

3. After the new router is connected to the existing router, the

LED of the new router will turn solid blue.

Method 2: Use WPS key for connection

1. Make sure the router you have just congured is connected

to the Internet.

2. Place a new router close to the existing router, and then

power it on.

3. Press the WPS buttons on the routers until the LEDs blink

green. The time between pressing the two WPS buttons

should be less than 1 minute.

4. The pairing process may take up to 2 minutes. When pairing

is complete, the LED of the new router will turn solid blue.

5. Now you can move your new router to your intended

location.

Troubleshooting

The Power indicator on the front panel is o after the

power button is pressed.

Power switch does not turn on.

The power adapter is not correctly connected to the device.

Be sure to use the power adapter supplied with the device.

Unable to connect to the network.

Check that the Ethernet cable is correctly connected to the

WAN interface and the Ethernet cable is correctly connected

to the LAN interface.

Check that the WAN indicator on the front panel is on and

the Internet indicator on the front panel is solid green or

ashing green.

Restore the factory default settings.

After the power is on, use a needle to press the button for over

5 seconds to restore the default factory settings.

FAQ

How to use the Repeater mode?

Only the Repeater mode(used to extend the Wi-Fi signals of

the existing router or optical modem) needs to be set on the

Web interface. Other modes can be self-adaptive without this

operation.

1. After the device is powered on, use a network cable to

connect the network interface of the computer to the LAN

interface of the device.

2. In the address bar of the browser, enter 192.168.50.1, and

press Enter to open the Web page.

3. Enter the username and password (initial username: admin,

initial password: ZTE_Dipper), and click Login.

4. On the main page of the Z1320, select Management &

Diagnosis >Work Mode to open the Work Mode page.

5. Select Repeater from the Mode drop-down menu and click

Apply.

6. Extended Wi-Fi.

Use wired mode to extend Wi-Fi: Connect the LAN

interface of the existing router or optical modem to the

WAN interface of Z1320 with a network cable.

Use wireless mode to extend Wi-Fi: The WPS key can be used

for pairing. lf the existing router or optical modem does not

support the WPS key mode, perform the following opera-

tions:

On the main page of the Z1320, select Local Network>

WLAN >WLAN Discovery > WLAN Discovery to open

the WLAN Discovery page.

Click Scan wireless network to scan the Wi-Fi signal, select

the wireless network you want to connect to, and enter

the password to connect to the wireless network.

7. After the device is networked. the device can be managed

on the APP by following the operation of Step 2 and Step 3.
