Zte MF971R Manuel utilisateur

1

MF971R

Quick Start Guide

ZTE CORPORATION

NO. 55, Hi-tech Road South, Shenzhen, P.R.China

Postcode: 518057

2

Getting to Know Your Device

Appearance

The following figure is for your reference only.

3

1. Power key

 Press and hold for about 1.5 seconds to power on/off

your device.

 Press and hold for about 8 seconds to restart your device.

2. WPS key

Press and hold for 1.5 seconds to activate the WPS function.

3. Indicator light

4. Charging/micro-USB jack

5. micro-SIM card slot cover and reset hole

4

Getting to Know Your Device

Indicator lights

Indicator Status

Description

Battery

Red solid /

blinking

The battery is low. Please

charge the battery.

Green

blinking

The battery is being

charged.

Green

solid

The battery level is middle

or high.

Light off Your device is powered off

and not being charged.

Wi-Fi

Blue solid Wi-Fi is active.

Blue

blinking

WPS is active.

Light off Wi-Fi is off.

SMS

Blue solid You have unread

messages.

Blue

blinking

You have new messages

or the message storage is

full.

5

Light off There is neither an

unread message nor a

new message.

Network

Red The device is in error

status.

 The device is not

registered to the

mobile network.

 There is no micro-SIM

card inserted.

 There is no network

service available.

Green

solid

The device is registered

to the 2G/3G mobile

network.

Green

blinking

The device is connected

to the 2G/3G mobile

network and data is being

transferred.

Blue solid The device is registered

to the 4G LTE network.

6

Blue

blinking

The device is connected

to the 4G LTE network

and data is being

transferred.

Getting to Know Your Device

Connection Scenarios

The device allows multiple clients to surf on the Internet at the

same time. The following figure is for your reference only.

A micro-SIM card can be used to access the Internet.

7

8

Installing the micro-SIM Card

1. Open the micro-SIM card slot cover.

NOTE:

Do not remove the cover rudely, because it is connected with the

device.

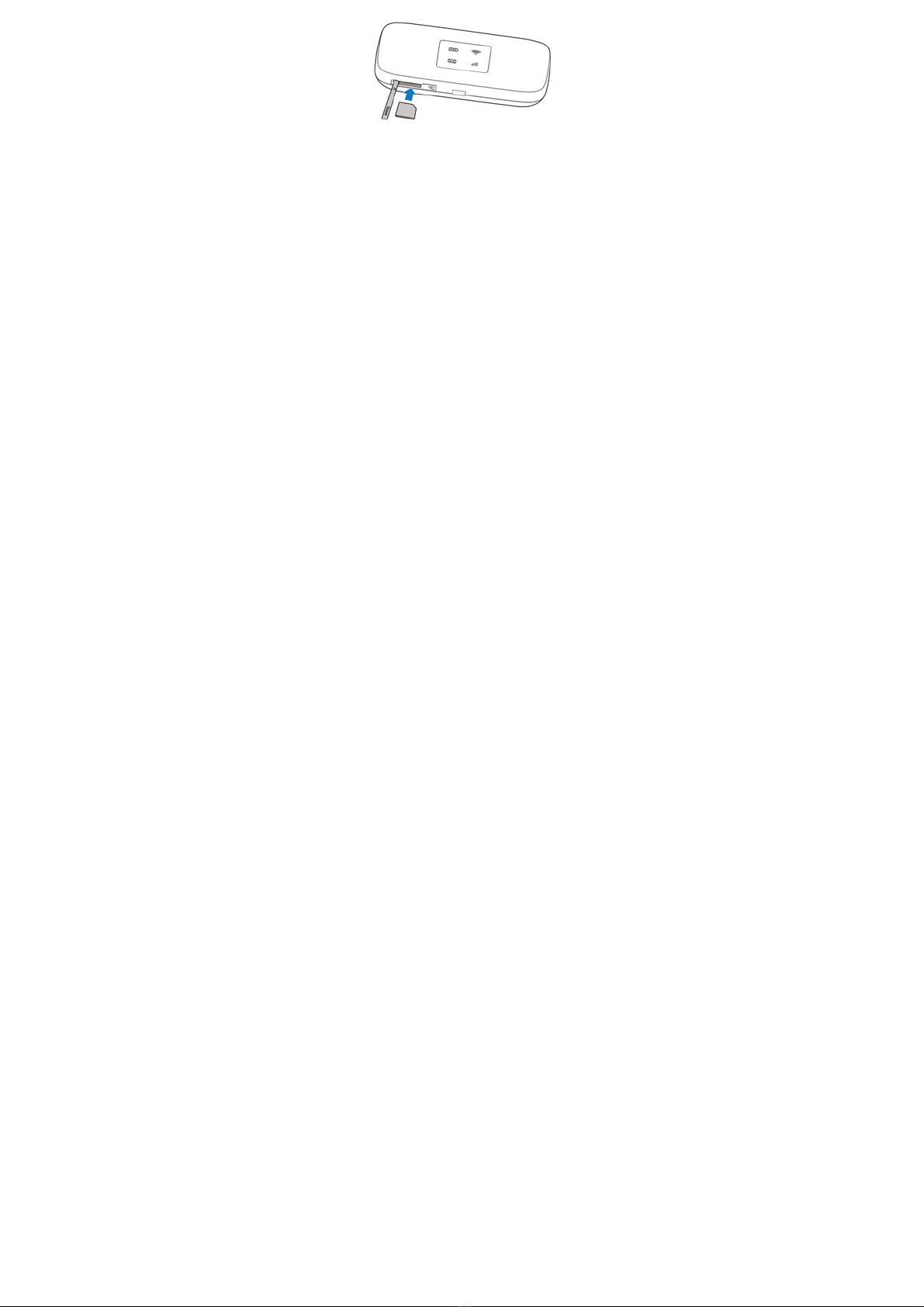

2. Install a micro-SIM card to the micro-SIM card slot.

WARNING!

To avoid damage to the device, do not use any other kind of SIM

cards, or any non-standard micro-SIM card cut from a SIM card.

You can get a standard micro-SIM card from your service

provider.

9

3. Close the micro-SIM card slot cover.

10

Connecting to Your Device

Using Wi-Fi

1. Power on your device.

2. Ensure that your computer or other client devices have

enabled Wi-Fi, and search for available wireless networks.

NOTE:

Refer to your Wi-Fi-enabled client device manual for further

details on how to search for wireless networks. If you use a

computer, you need to set your computer to obtain an IP address

automatically.

3. Select the Wi-Fi name (SSID) of your device, and click

Connect.

4. Enter the Wi-Fi password if necessary, and click OK.

NOTE:

Refer to the chapter Getting to Know the Wi-Fi SSID and

Password to get the default Wi-Fi SSID and password.

5. Wait until the client device is connected to your device

successfully.

Using a USB Cable

1. Connect a computer to your device with a USB cable.

2. Power on your device. The operating system detects and

identifies new hardware, and automatically installs the

software.
