Zte VS2801SG Manuel utilisateur

1GE DUAL MODE ONU

USER MANUAL

Version V1.0

Release Date 2020-08-24

1GE Dual Mode ONU User Manual

Contents

Chapter 1 Product Introduction 1

1.1 Product Description 1

1.2 Special features 1

1.3 Technical Parameter 1

1.4 Application chart 2

1.5 Panel description 2

Chapter 2 Quick Installation 4

2.1 Standard Packing Contents 4

2.2 Quick Installation 4

Chapter 3 Conﬁguration 6

3.1 Login 6

3.2 Status 7

3.2.1 Device Information 7

3.2.2 Network Interface 7

3.2.3 User Interface 8

3.3 Network 9

3.3.1 Internet 9

3.3.2 LAN 11

3.3.3 PON Settings 14

3.3.4 Routing(Ipv4) 16

3.4 Security 18

3.4.1 Firewall 18

3.4.2 Service Control 20

3.4.3 MAC Filter 21

3.5 Application 22

3.5.1 Multicast 22

3.5.2 BPDU 24

3.5.3 DNS Service 25

3.5.3 Port Forwarding 26

3.6 Administration 27

3.6.1 User Management 27

3.6.2 Login Timeout 27

Page 1

1GE Dual Mode ONU User Manual

3.6.3 System Management 28

3.6.4 Diagnosis 29

3.6.5 Loopback Detection 31

3.6.6 LED Control 33

3.8 Help 33

Page 2

1GE Dual Mode ONU User Manual

Chapter 1 Product Introduction

1.1 Product Description

1GE Dual mode ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home)

broadband speed, SOHO broadband access, video surveillance and other requirements and

design EPON/GPON Gigabit Ethernet products. It is based on mature and stable,

cost-effective EPON/GPON technology, high reliability, easy management, configuration

flexibility and good quality of service (QoS) guarantees. They are fully compliant with GPON

and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and so on. Dual mode

ONU can detect and exchange PON mode automatically.

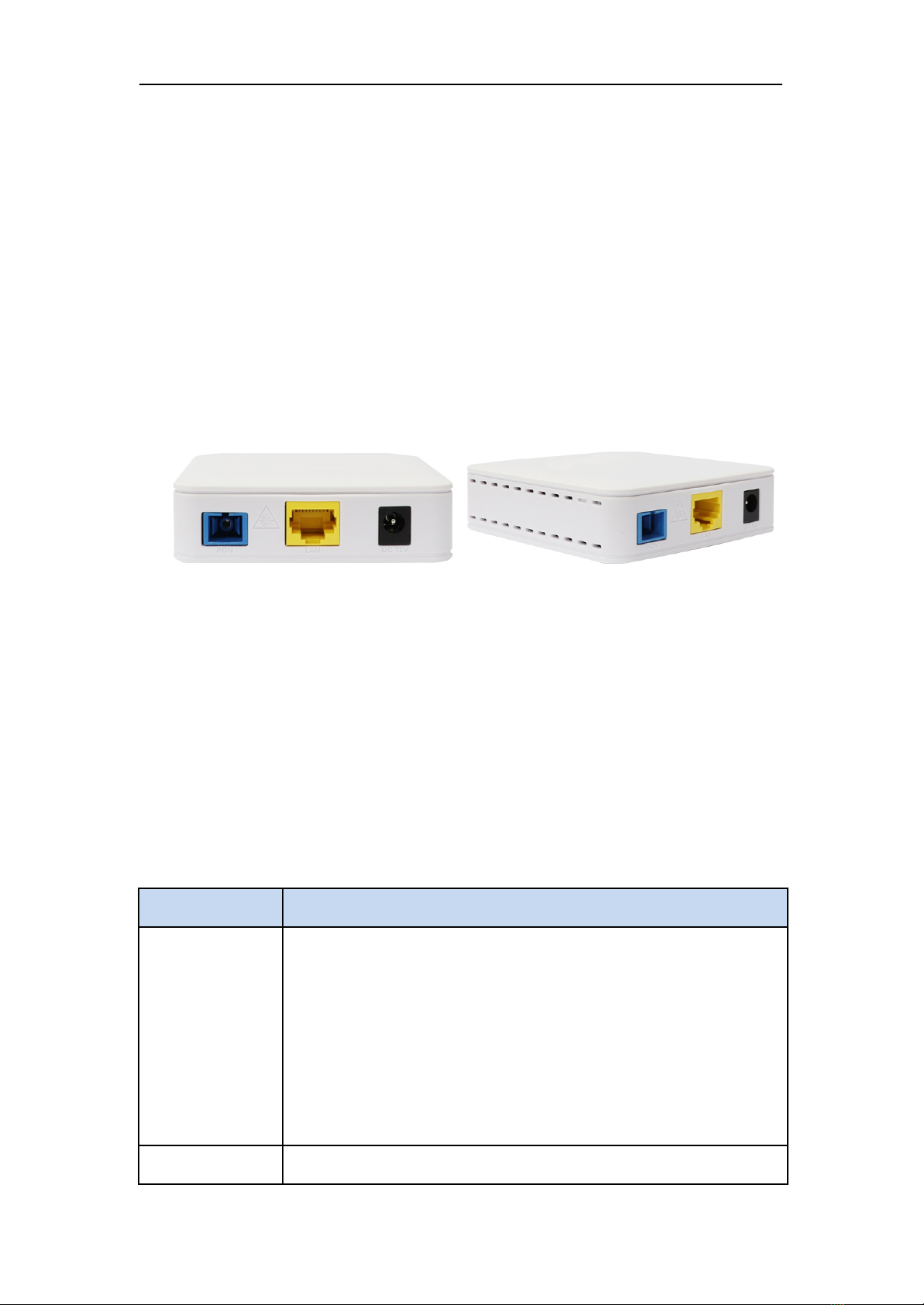

Figure 1-1: 1GE Dual Mode ONU

1.2 Special features

●Integrated auto detecting, auto configuration, and auto firmware upgrade technology.

●Support OAM/OMCI remote configuration and maintenance.

●Support rich VLAN, DHCP Server and IGMP snooping multicast feature.

●Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

●Support NAT, Firewall function.

●Support bridge and router mode.

1.3 Technical Parameter

Technical items

Descriptions

1 G/EPON port(EPON PX20+ and GPON Class B+)

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

Wavelength

Tx1310nm,Rx 1490nm

Page 1

1GE Dual Mode ONU User Manual

Optical interface

SC/PC connector

Interface

1* 10/100/1000Mbps auto adaptive Ethernet interfaces. Full /Half

Duplex, RJ45 connectors.

Indicator

3 indicators, SYS, LINK/ACT, REG.

Operating condition

-5℃～55℃，10%～90%（non-condenseing）

Storing condition

-30℃～60℃，10%～90%（non-condenseing）

Power supply

DC 12V, 0.5A

Power consumption

≤4W

Dimension

82mm×82mm×25mm（L×W×H）

Net weight

0.08Kg

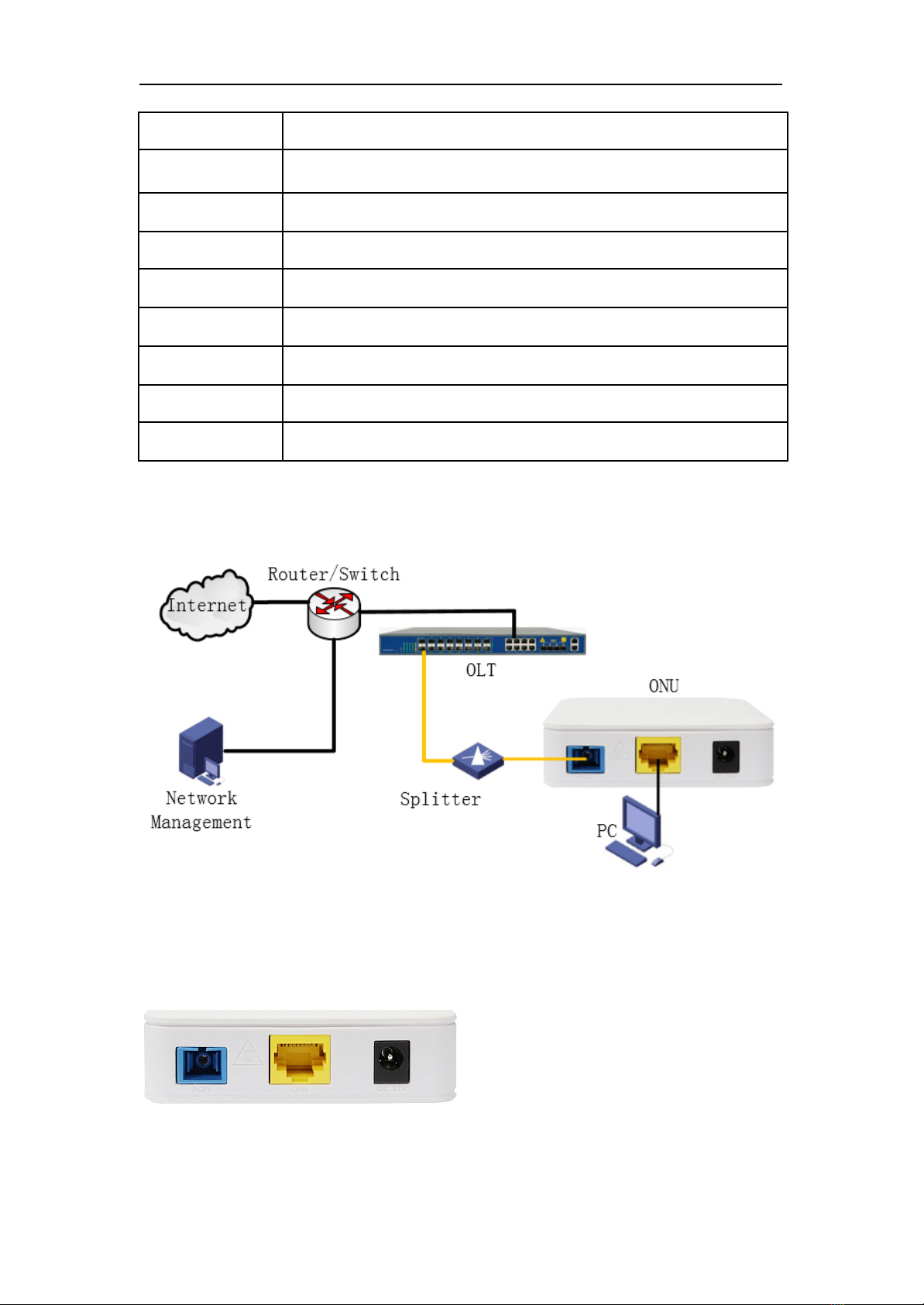

1.4 Application chart

Figure 1-2: Application chart

1.5 Panel description

Interface/Button panel

Page 2

1GE Dual Mode ONU User Manual

Figure 1-3: Interface/Button panel

Name

Function

PON

Connect to OLT by SC type fiber connector, single mode optical fiber

cable.

LAN

Connect PC or other devices with Ethernet port by Cat5 cable, RJ-45

connector.

DC 12V

Connect with power adapter. DC 12V, 0.5A.

RST

Press RST button over 10 seconds, onu restores factory default and

reboot.

Indication Panel

Figure 1-4: Indication panel

LED

Mark

Status

Description

Interface

LINK/ACT

Port is connected properly (LINK).

Off

Port connection exception or not connected.

Blink

Port is sending or/and receiving data (ACT).

Registration

REG

Green：the device is registered to PON system.

OFF

Device has received optical signal and not registered to the

PON system.

Blink

Red：the Device does not receive optical signals.

Green：the device registration is incorrect.

System

SYS

On / Off

System is not running or fatal error

Blink

Normal running

Page 3

1GE Dual Mode ONU User Manual

Chapter 2 Quick Installation

2.1 Standard Packing Contents

When you received our product, please check carefully to make sure that our products

whether have some defects or not. If something wrong with shipping, please contact carrier;

other damage or lack of some parts, please contact with dealer.

Contents

Quantity

Dual Mode ONU

1 pcs

Power Adapter

1 pcs

Installation Guide

1 pcs

2.2 Quick Installation

1. Connecting the optical fiber cable to the unit.

a) Remove the protective cap of the optical fiber.

b) Clean the end of the optical fiber with an optical fiber end cleaner.

c) Remove the protective cap of the ONU optical interface (PON interface). Connect the

fiber to the PON port on the unit.

Note: When measuring the optical power before connecting to the ONU, it is

recommended to use a PON Inline Power Meter.

While connecting, please note:

●Keep the optical connector and the optical fiber clean.

●Make sure there are no tight bends in the fiber and that the bending diameter is greater

than 6cm. Otherwise, the optical signal loss may be increased, to the extent that signal

may be unavailable.

●Cover all optic ports and connectors with protective cap to guard against dust and

moisture when the fiber is not used.

2. Apply power to the unit. Push the power button.

3. After the ONU is power ON, Indicators should light up as for normal operation. Check

whether the PON interface status LED (PON) is on continuously. If it is, the connection is

normal; otherwise there is either problem of the physical connection or the optical level at

either end. This may be caused by either too much or too little attenuation over the optical

fiber. Please refer to the Layout Description section of this installation manual for normal

LED activity.

4. Check all signal levels and services on all the ONU communication ports.

Unit Installation Adjustment

Installing the ONU on a horizontal surface (Bench top)

Put the ONU on a clean, flat, sturdy bench top. You must keep the clearance for all sides of

the unit to more than 10cm for heat dissipation.

Installing the ONU on a vertical surface (Hanging on a wall)

You can install the ONU on a vertical surface by using the mounting holes on the bottom

of the ONU chassis and two flat-head wood screws.

a) Insert the screws into the wall. The screw positions must be in the same horizontal line

Page 4

1GE Dual Mode ONU User Manual

and the distance between them must be 145mm. Reserved at least 6mm between the

screw caps and the wall.

b) Hang the ONU on the screws through the mounting holes.

Page 5

1GE Dual Mode ONU User Manual

Chapter 3 Conﬁguration

After finishing the basic connection configuration, you can use its basic function. In order

to satisfy individuation service requirements, this charter provides the user parameter

modification and individuation configuration description.

This model of ONU is designed as SFU(single family unit, bridge mode), there is no bridge

mode WAN in ONU. When it works on bridge mode, VLAN of LAN port should be

configured by OLT. When it works on router mode, you may configure through its web

management.

3.1 Login

The device is configured by the web interface. The following steps will enable you to login:

1. Conform “2.2 Quick Installation” to install;

2. The device default IP is 192.168.1.1;

3. Open your web browser, type the device IP in address bar;

4. Entry of the user name and password will be prompted. Enter the default login user name

and password.

By default, there are two user levels for management. Administration level user name is

"admin", password is "stdONUi0i". Normal level user name is "user", password is

"user".

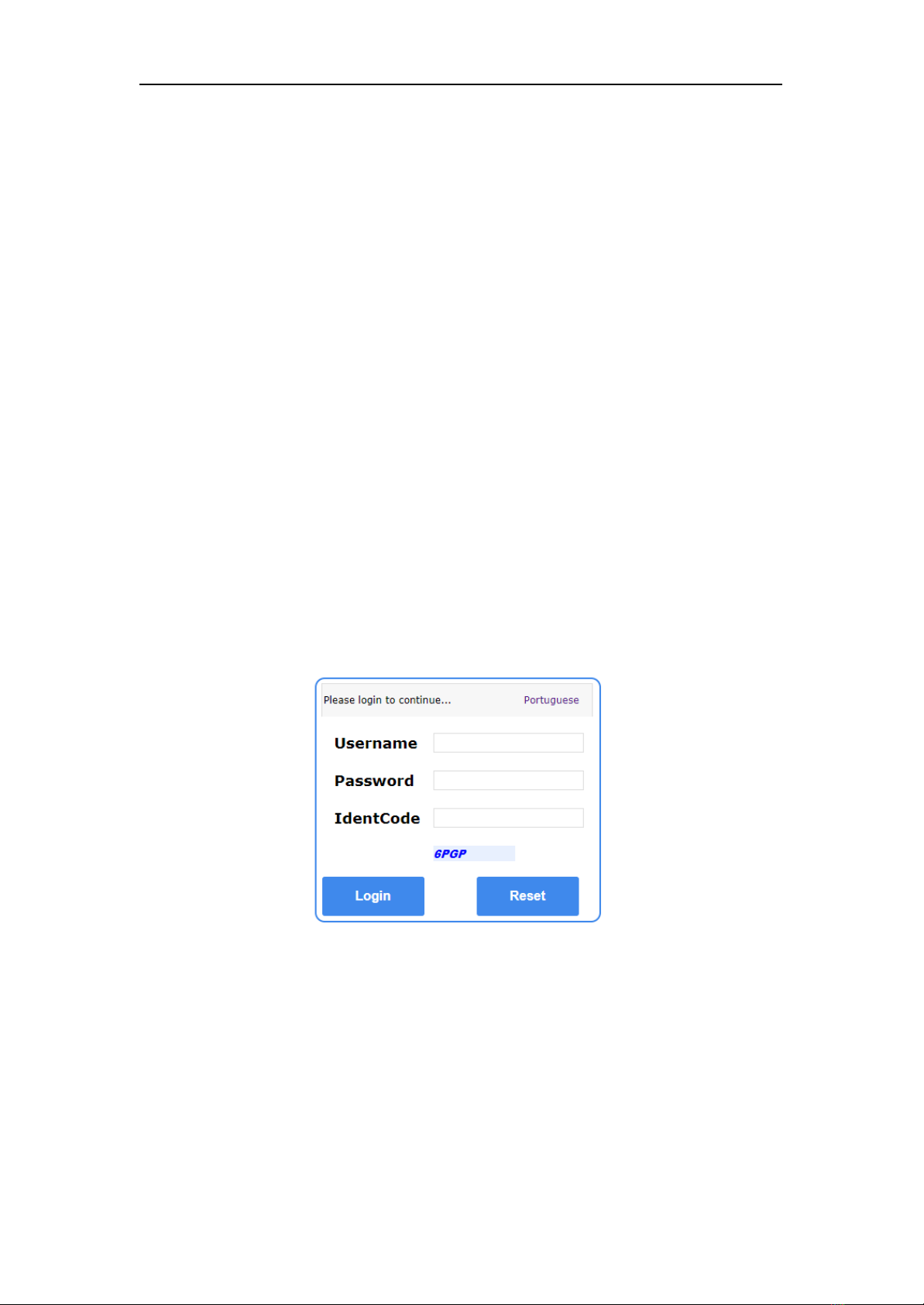

Figure 3-1: Login

For security, you will be asked to modify password after you logged in by default

password. The new password must meet the requirements that display on the webpage. After

submitted, it requires you to login by new password.

Page 6

1GE Dual Mode ONU User Manual

Figure 3-2: Change Password

3.2 Status

This part shows the main information of product.

3.2.1 Device Information

This page shows the device basic information, such as Device Model, Hardware Version,

Software Version, PON SN, PON mode and so on.

Figure 3-3: Device Information

3.2.2 Network Interface

3.2.2.1 WAN Connection

This page shows WAN connection information you have configured.

Page 7
