Belts Replacement

SOURCE:

https://support.zortrax.com/belts-replacement/

Table Of Content

Unplugging the Power Cable 3

Unplugging the Extruder Cable 4

Unscrewing the Axis Block Covers, part 1 5

Unscrewing the Axis Block Covers, part 2 6

Extruder Removal 7

Lower Long Belt Replacement 8

Unscrewing the Belt Tensioners 8

Loosening the Screws on the Self-Aligning Bearings 8

Unscrewing the Self-Aligning Bearing, part 1 8

Unscrewing the Self-Aligning Bearing, part 2 8

Lower Long Belt Removal 8

Lower Long Belt Installation 8

Securing the Self-Aligning Bearing, part 1 8

Securing the Self-Aligning Bearing, part 2 8

Tightening the Screws on the Self-Aligning Bearings 8

Short Belt Replacement 15

Unplugging the Motor Cable 15

Unscrewing the Axis Motor 15

Axis Motor Removal 15

Unscrewing the Self-Aligning Bearing 15

Short Belt Removal 15

Short Belt Installation 15

Securing the Self-Aligning Bearing 15

Axis Motor Installation, part 1 15

Axis Motor Installation, part 2 15

Securing the Axis Motor 15

Extruder Installation 22

Securing the Axis Block Covers, part 1 23

Securing the Axis Block Covers, part 2 24

Securing the Belt Tensioners 25

Tightening the Screws on the Axis Block Covers 26

Tightening the Self-Aligning Bearing Screws 27

Unplugging the Power Cable

Turn off the printer and unplug the power cable.

Unplugging the Extruder Cable

Unplug the extruder cable.

Unscrewing the Axis Block Covers, part 1

Unscrew one screw that secures the axis block cover on each block.

Unscrewing the Axis Block Covers, part 2

Unscrew the other screw that secures the axis block cover on each block.

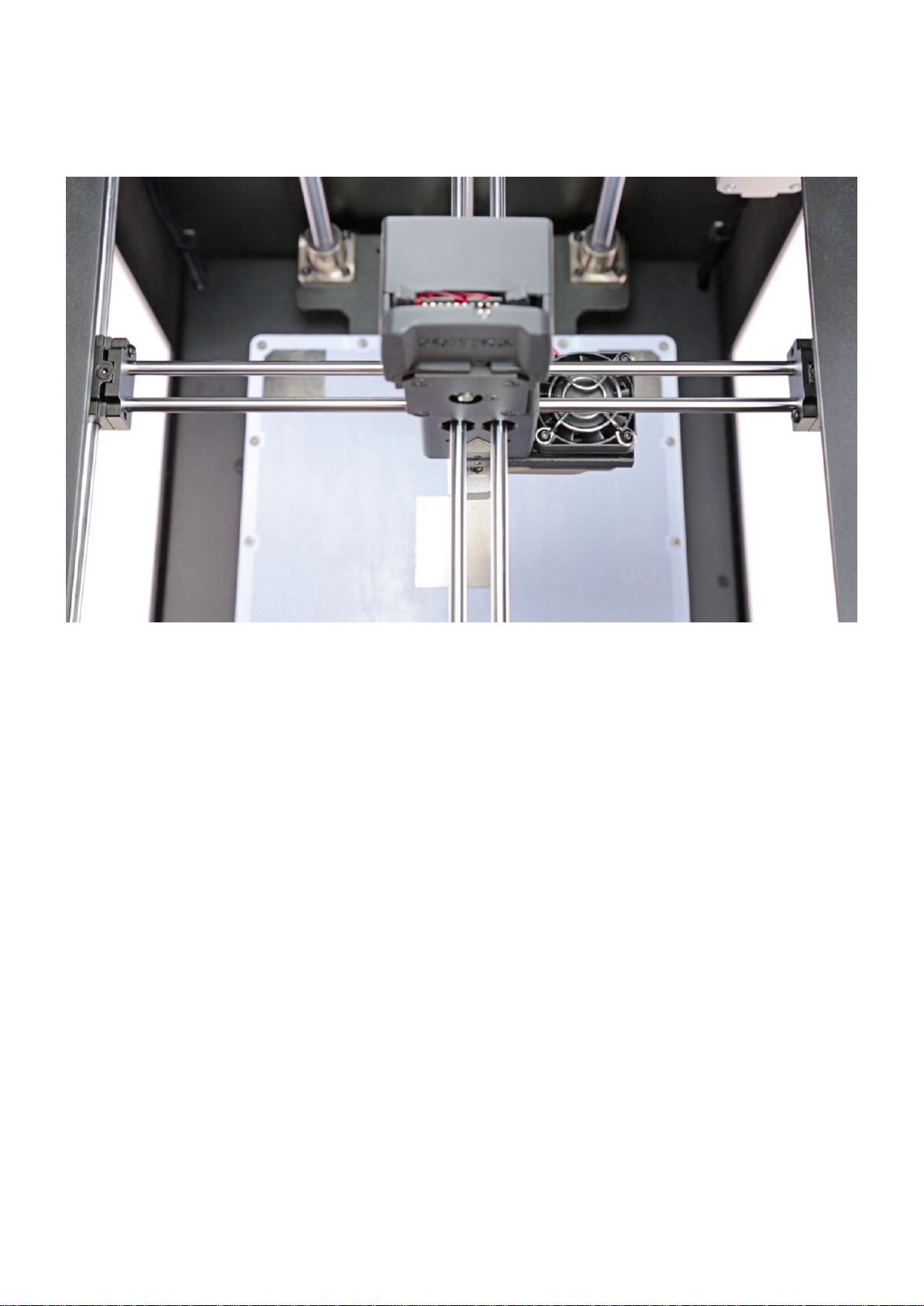

Extruder Removal

Remove the extruder along with its guide rails.

Lower Long Belt Replacement

UNSCREWING THE BELT TENSIONERS

Unscrew the screw that secures the belt tensioner on the belt to be replaced and remove

the belt from the block.

The Y axis belt tensioners are placed on top of the Y axis blocks, whereas the X axis

belt tensioners are placed on the bottom of the axis blocks.

LOOSENING THE SCREWS ON THE SELF-ALIGNING BEARINGS

Loosen the screws on the self-aligning bearings on the axes that hold the lower long

belt.

UNSCREWING THE SELF-ALIGNING BEARING, PART 1

Unscrew the self-aligning bearing of the axis that holds the lower long belt to be

replaced. Use a wrench or pliers to hold the nuts of the screws.

UNSCREWING THE SELF-ALIGNING BEARING, PART 2

Unscrew the other self-aligning bearing of the axis that holds the lower long belt to be

replaced. Use a wrench or pliers to hold the nuts of the screws.

LOWER LONG BELT REMOVAL
