Zolia ZD 700 Manuel utilisateur
EN- AUTOMATIC PET FEEDER ZD 700- pages 2-8
FR -DISTRIBUTEUR AUTOMATIQUE DE CROQUETTES ZD 700- pages 9-15
ES - DISPENSADOR AUTOMÁTICO DE PIENSO ZD 700- páginas 16 -22
DE - FUTTERAUTOMAT ZD 700- seiten 23-29
IT - DISTRIBUTORE AUTOMATICO DI CROCCHETTE ZD 700- pagine 30-36
PT - DISTRIBUIDOR AUTOMÁTICO DE CROQUETTES ZD 700- páginas 37-43
NL - AUTOMATISCHE BROKJESDISPENSER ZD 700- bladzijde 44-50

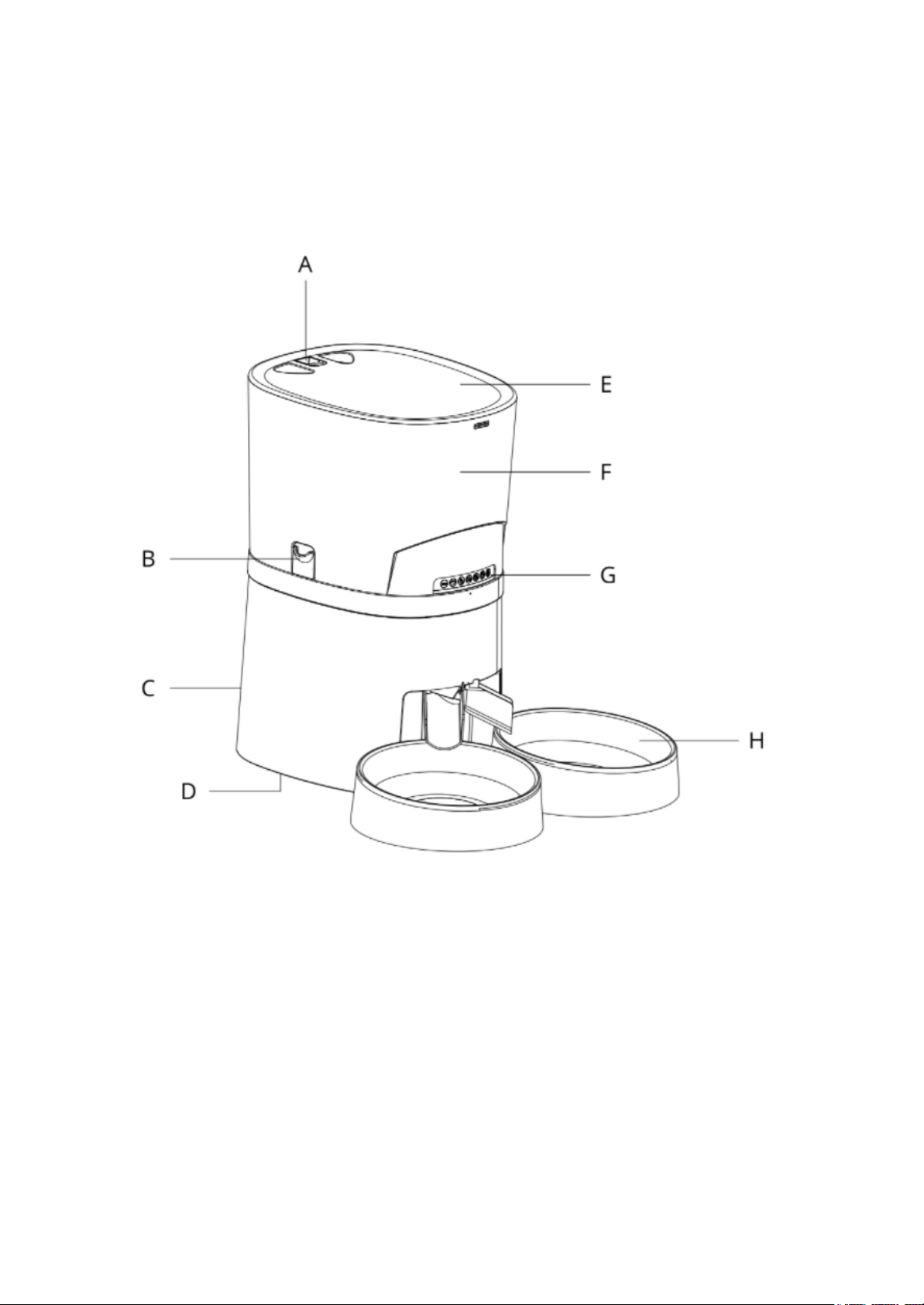

AUTOMATIC PET FEEDER ZD 700
A- Hopper lid lock
B- Hopper release button
C- Power interface
D- Battery location (4 type D alkaline batteries not included) + Power On/Off switch
E- Feeder lid
F- Hopper
G- Control panel
H- Stainless steel bowl
Notice:
The feeder ZD 700 is for indoor household use only.
The base of the dispenser with the touch pad is not washable. The kibble container, the
bi-directional distribution elements, the stainless steel bowls and their holder can be
removed and washed.
Please prevent pets from biting the power cord, as this could cause major problems.
Please place the feeder horizontally and close the lid to keep the food from spilling out if pets
knocked over the equipment.
Set up instructions:
Control panel:
A D
B E
C F
G
A- Meals switch button
B- Meals portion: in order to set the quantity of portion per meal ( 0-48 portions)
C- Manual feeding button: dispensing one meal portion by pressing this button
D- Hours setting button
E- Minutes setting button
F- Clock setting button: press this button to enter the time setting and save it once done
G- Recording button: record the voice, play the voice or delete the voice recording function
Time set up:
Press and hold for three seconds to unlock the screen and enter the time setting
mode automatically. The hour field and minute field blinks. Press and to set
hours and minutes time as your demand. Press and hold the button for 3 seconds to
exit the time setting.
You can switch the 12 hour clock and 24 hour clock by pressing the and
synchronously.
Feeding set up:
This automatic pet feeder supports 0.5cm - 2cm food kibble size, please don’t exceed this
standard, otherwise the device will be damaged.
You can set up until 6 meals per day with our ZD 700 pet feeder. Each meal can have at
most 48 portions.
Each portion size is about 16ml of food kibble. As different food kibble size will cause an
error when dispense food, you should program a suitable feeding plan according to your
food kibble size and types.
Here are the estimated weight per portion based on dry food size:
A 0.5 cm portion of kibble weighs about 14 g
A 2 cm portion of kibble weighs about 10 g
● Meal 1:
Press one time to enter the feeding setting. At this time, the meal 1, the feeding
time and feeding portions quantity will blink, press and to adjust the feeding
time, then press to adjust the meal portions.
A- Time of meal
B- Number of meals per
day
C-Number of servings
desired per meal
● Meal 2:
After finishing the meal 1 setting, you can also press the one time to choose meal 2.
The meal feeding time and feeding portions quantity will blink, press: and to
adjust the feeding time, then press to adjust the meal portions.
A- Time of meal
B- Number of meals per
day
C- Number of servings
desired per meal
You can use the same method to program 3, 4, 5, 6 feeding plans. If you don’t need to
program others' feeding plan or delete the previous one, you can set the feeding portions
quantity to 0.
Number of meals per day
Number of servings per meal
Recording setup:
Press and hold it for three seconds then you can record for Max 10 seconds after
the recording indicator is lighting up. If you release your hand when recording, the system
will recognize you have finished the recording. After finishing the recording, you can press
one time to play your recording. If you need or want to delete or close the recording
function, you can press two times until the recording indicator light.
Blinks 3 times, then the recording message is deleted.
Manually feeding:
Press and hold it for three seconds, one portion of dry food will be released.
Low battery reminder:
When the batteries are low, the on the LCD screen will turn on. After new batteries
are installed, the on the LCD screen will be turned off.
Reset function:
You can press both the and for three seconds to factory reset.
Two way distributor system:
The two way dispenser with a slot in the middle of it is suitable for pet food kibbles between
0.5- 2cm.

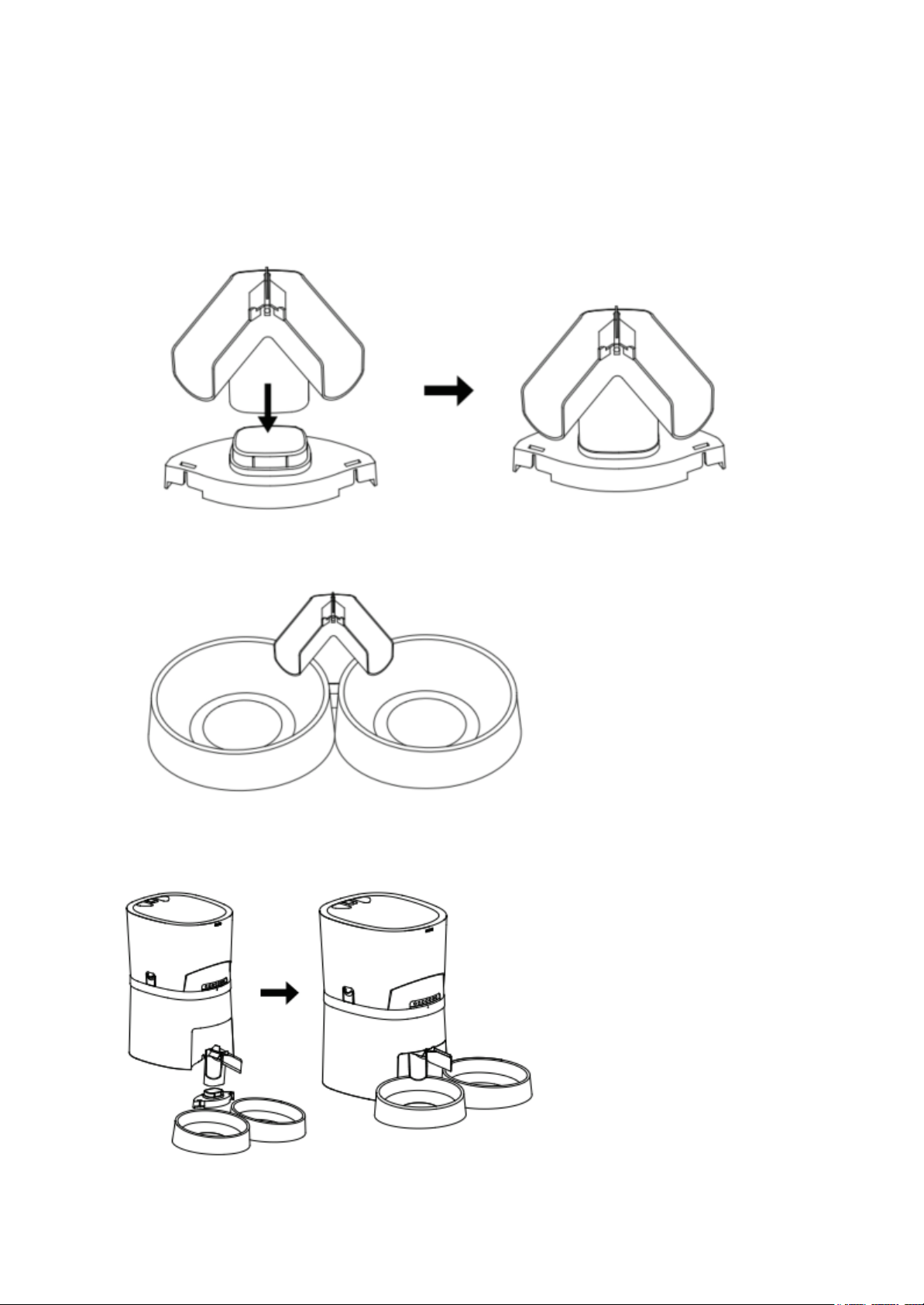

Installation:
● Step 1- Install the two-way dispenser into the base:
● Step 2- Connect the two-way dispenser to the double bowl:
● Step 3- Connect the food dispenser to the two-way distributor:
WARNING:
◾
Do not put your fingers into the power outlet or touch the motor rotor.
◾
This product must be used with 4 "D" size batteries.
Note: Batteries should be removed from the unit if it is not used for a long period of time to
avoid damage due to leakage.
◾
This dispenser only works for dry food. If you have any questions, please contact the
dealer or the manufacturer.
DISTRIBUTEUR AUTOMATIQUE DE CROQUETTES ZD 700

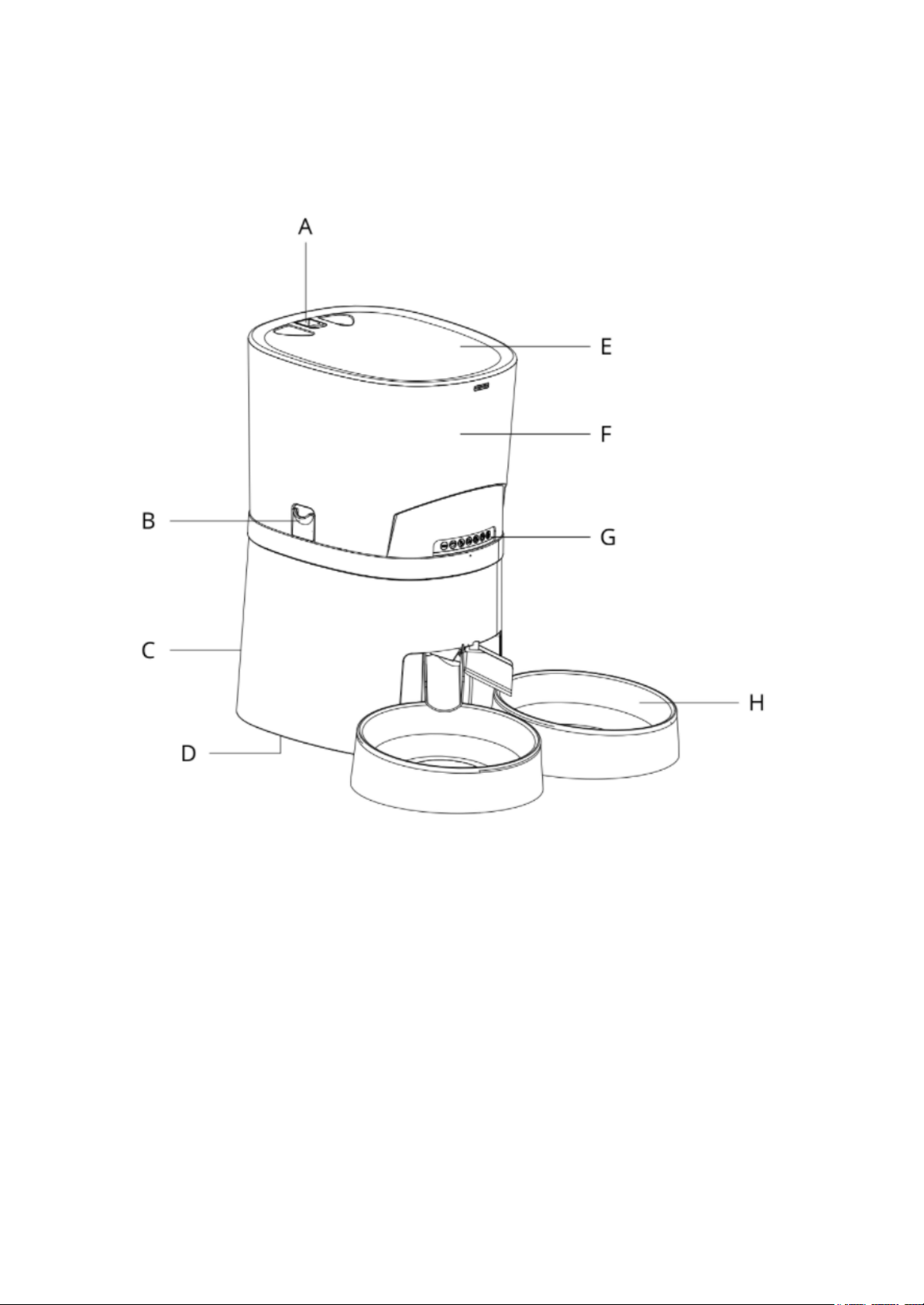

Caractéristiques du produit :
A- Bouton d’ouverture du couvercle
B- Bouton de montage/démontage partie réservoir
C- Emplacement pour le câble d’alimentation
D-Emplacement pour les piles (4 piles alcalines de type D non fournies) + bouton
Marche/arrêt
E- Couvercle du distributeur
F- Réservoir de croquettes
G- Ecran tactile pour la programmation des repas
H- Bols en acier inoxydable
Notice:
Le distributeur de croquettes ZD 700 est destiné à un usage domestique en intérieur
uniquement.
La base du distributeur avec l’écran digital n’est pas lavable. Le réservoir, les éléments de
répartition bi-directionnel, les bols en acier inoxydable et leur support peuvent être démontés
et lavés.
Vérifiez que vos animaux ne mordent pas le câble d'alimentation, car cela pourrait provoquer
des dommages.
Veillez à toujours fermer le couvercle pour éviter que la nourriture ne se répande si vos
animaux renversent l'équipement.
Instructions d’installation:

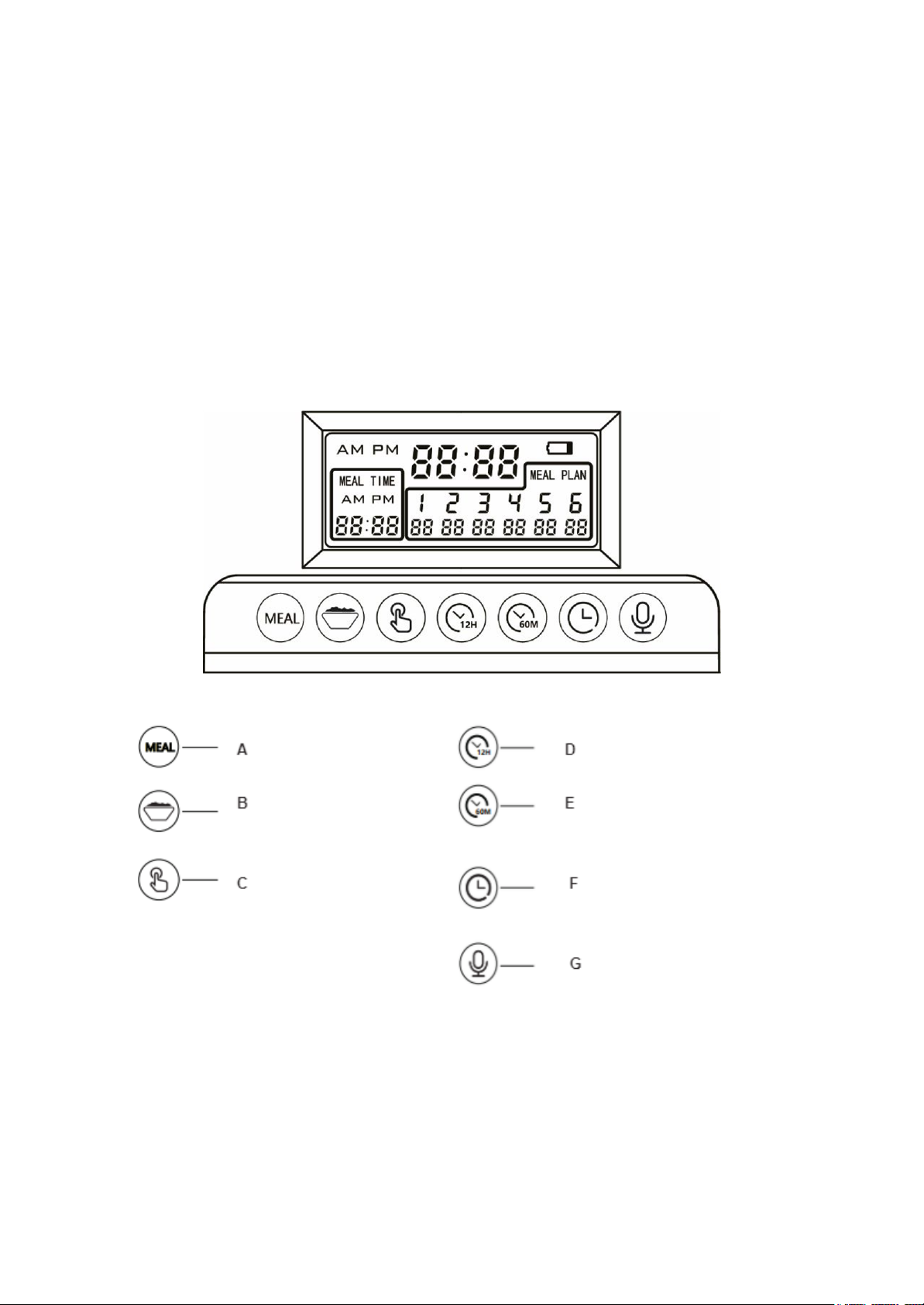

Ecran tactile:
A- Bouton de programmation du nombre de repas (1-6 repas)
B- Bouton de programmation du nombre de portions du repas ( 0-48 portions)
C- Bouton de distribution manuelle: distribue une portion de repas en appuyant sur le bouton
D- Bouton de réglage des heures : programmez l'heure des repas
E- Bouton de réglage des minutes : programmez l'heure des minutes des repas
F- Bouton de réglage de l'horloge : appuyez sur ce bouton pour accéder au réglage de
l'heure et le sauvegarder une fois terminé
G: Bouton d'enregistrement : enregistrez votre voix, écoutez ou supprimez le message
