ZKTeco SBT1000S Manuel utilisateur

Swing Barrier Turnstile Installation Guide

Applicable Models: SBT1000S

Version: 1.2Date: May. 2018

Chapter 1 Overview

1.1 Preparation

1) Cut a slot from the floor with a proper tool. The depth and width should be approximately

100mm and 30mm.

2) Put the wire through the pipe.

3) In order to avoid the impact on communication, 220V/110V power line (high voltage) and signal

line (low voltage) should be separated. The ground wire must be connected.

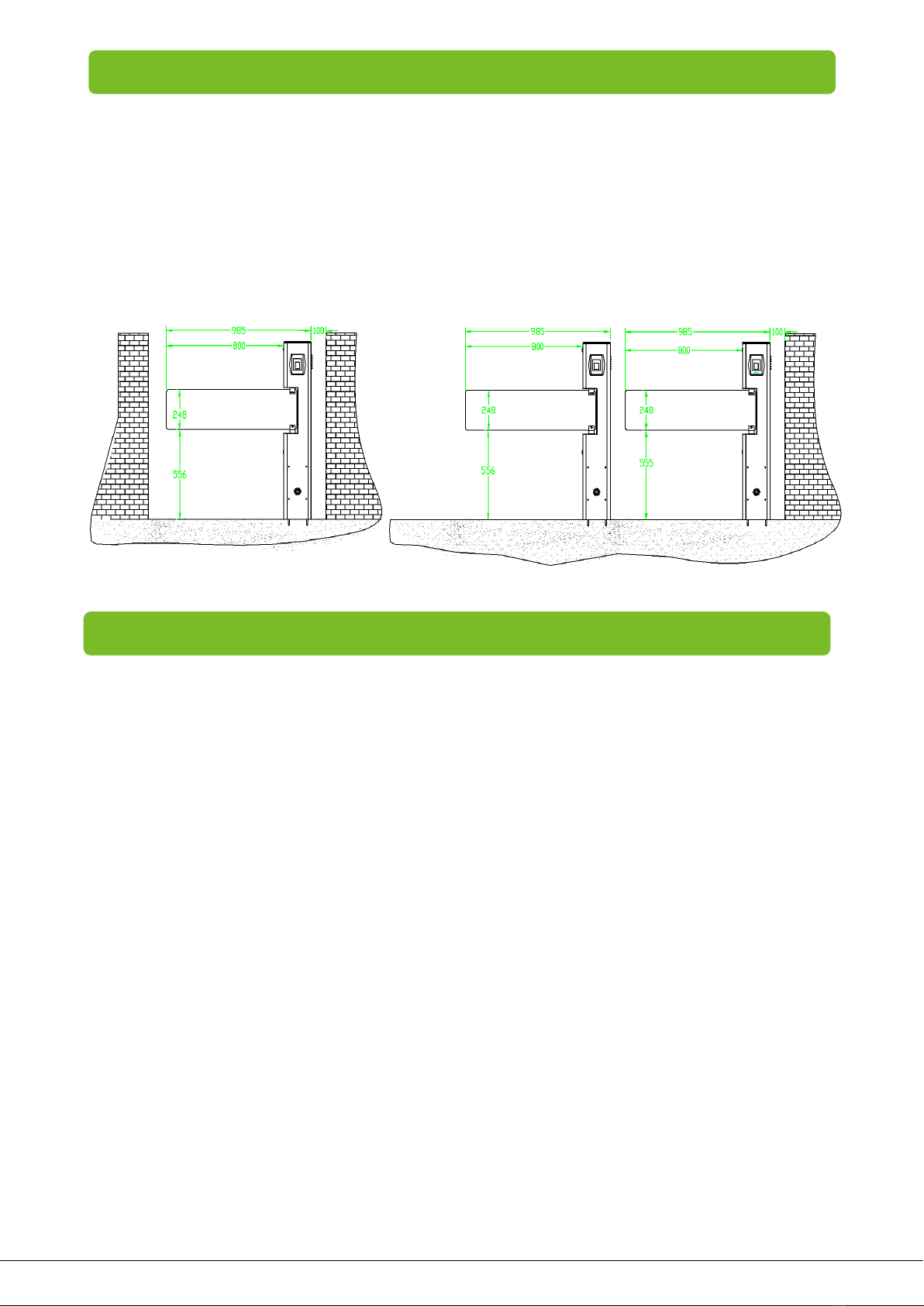

SBT1000S series appearances and sizes as shown in Figure 1-1

Figure 1-1

Chapter 2 Installation

2.1 Before the installation, it is necessary to check the device first:

1) Connect the wires to power supply.

2) Open the air switch to test whether the device is working properly, wait for 10 seconds for the

gate to complete self-test program. If everything is normal, you can start the installation

procedures. If an exception occurs, please contact your vendor for information.

2.2 Cables installation

For the outlets of the concealed cables, please refer to the drawing showing the mounting holes.

The input voltage for this swing barrier turnstile is AC100-120V/200-240V. Note that the PVC conduits

are buried 100mm below the ground, with the height of the exposed part more than 100mm.As

shown in Figure 2-2.

Figure 2-2

2.3 Chassis installation

1) Verify the accessories on the list and gather tools.

2) Posit the machine on the right place.

3) Drill on the ground according to the positioning tape.

4) Embedding four expansion bolts (M12) into the positioning holes.

5) Remove the access cover, as shown in Figure 2-4A.

6) Put pads and use a wrench to tighten nuts, as shown in Figure 2-4B.

7) Close the access cover, as shown in Figure2-4C.

8) Install the barrier arm (glass baffle or U-shaped stainless steel pipes), as shown in Figure2-4D.

Figure 2-3A

Figure 2-3B

Screw pad

Chassis

Ground

Expansion bolt

4-M12

Ground

Base concrete

Chapter 3 Wiring diagram and menu instruction

3.1 Wiring diagram

Check circuit according to the following wiring diagram:

Figure 3-1

UP DOWN ENT ESC

Reader

Reader 2

485 Reader

GND

Lock1

Lock2

485A EGND 458B

IR7

IR8

IR6

IR5

IR3

IR4

IR2

IR1

2VN

V5V

ZUO YOU GND 12V

IN SW IN SW IN SW

C-

-H

24VOUT GND

Encoder

lectromagne

ticclutch

NDVC

VCC GND VCC GND

DVC

VCC GND

AP-R：IR3

IR3 on the top

SPK

24V

Firefighting port

SBT1000S series

Wiring diagram

Firefightingboa

LED light

KR800

Infrared sensor

Motor

Figure 2-3C

Figure 2-3D

3.2 Menu instruction

There are 4 keys on the control panel, including "UP", "DOWN", "ENT" and "ESC".

Press the ENT button, enter the password input interface, the default password is: UP, UP, DOWN,

DOWN, DOWN, DOWN. If any step fails please press the ESC button to get back.

3.3 Modify the menu

After enter the menu operation system, press “UP” or “DOWN” to select an item and then press “ENT”

to enter the menu, press “UP” or “DOWN” to modify the menu. Finally press “ENT” to confirm.

Chapter 4 Troubleshooting

Number Failure description Analysis and solution

1Gate open, but it is not in place

Motor resistance may be too large,

Increase the value of minimum

compensation speed.

2No sound 1. Check if the speaker wire is loose.

2. Check if voice is turned off.

3Swing arm is not centered Enter the menu of "Swing arm zero

correction" to adjust the zero position.

4The control panel LCD shows

"Encoder wiring error"

Please check if the wiring of encoder A, B

phase is reversed, If yes, replace it.

5The direction of gate open is

inconsistent with swiping card.

Access controller left and right gate

signal line is reversed, right and left can

be adjusted

6Swipe card, but gate does not

open.

Check if the menu setting interface

does not exit.

2. Check if the gate signal of the access

controller is connected to the gate

controller.

3. Enter menu to see if current mode is

set to card unavailable.
