35” high stand alone barrier 35” high barrier attached

directly to SU5000 and wall

Quick Guide Modular Post and Panel Barriers

12660 Colony Street, Chino, CA 91710 • +1 (909) 591-8431 • alvaradomfg.comQGD3881

As a ﬁnishing touch for your installation,

Alvarado oers a number of options to

close o open spaces around installed

optical turnstiles.

Wall

Mounting Clip Wall ChannelClear Panel

Center PostEnd Post Wall Channel

90° Corner Post 135° Corner Post

Post

69”

6”

46”

35”

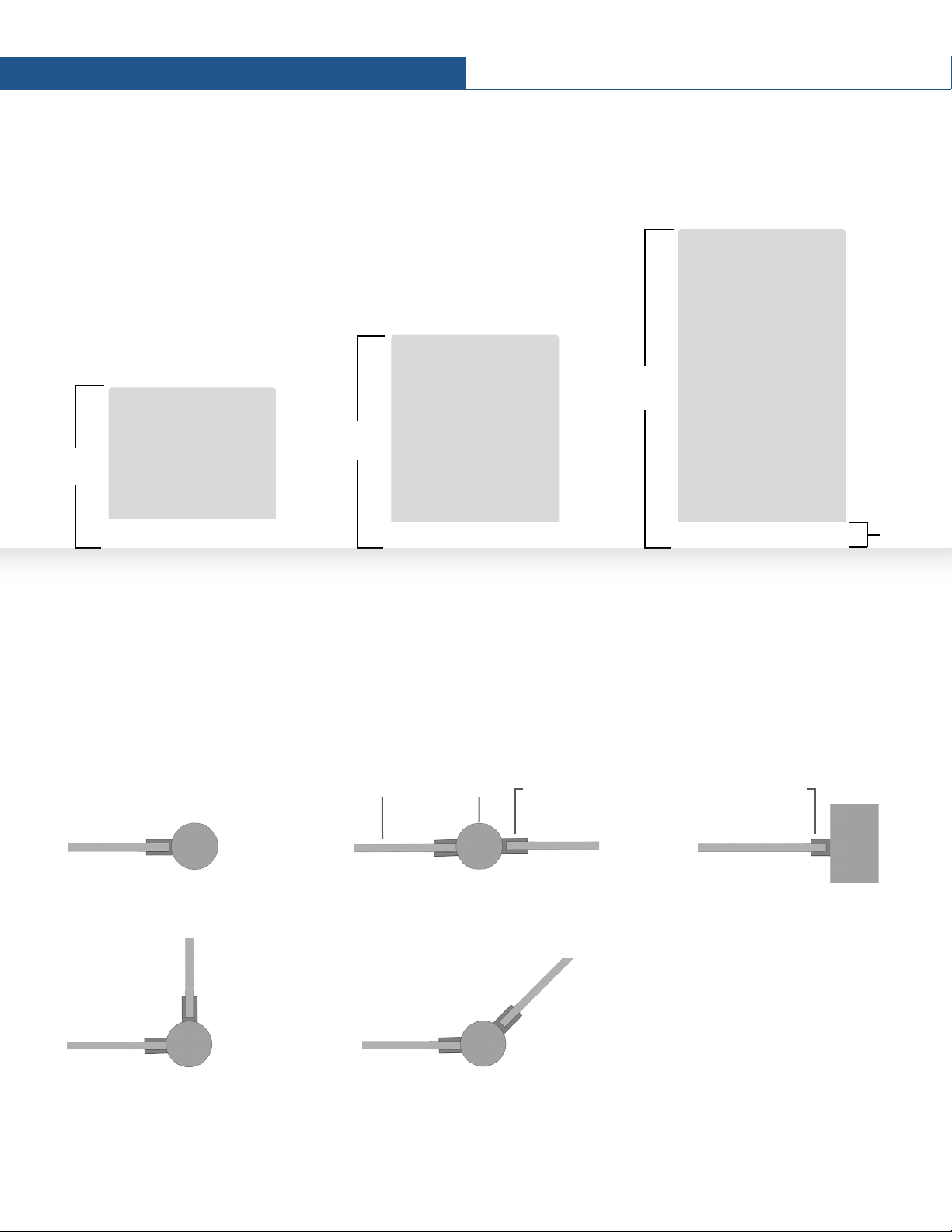

AVAILABLE BARRIER PANEL HEIGHTS

Panels come in three heights that match the standard barrier heights of our SU5000 turnstiles.

AVAILABLE POST CONFIGURATIONS*

Posts are available in a variety of conﬁgurations, providing ﬂexible layout and installation options.

Quick Guide Modular Post and Panel Barriers

*Top down views shown

Post to Post

Panel Height (A) Panel Width (B) Post Height (C)

35” 24” / 36” / 47” 35”

46” 24” / 36” / 47” 35”

69” 24” / 36” / 47” 48”

Post to Wall

Panel Height (A) Panel Width (B) Post Height (C) Channel Height (D)

35” 24” / 36” 35” 28.25”

46” 24” / 36” 35” 28.25”

69” 24” 48” 41.25”

SU5000 to Wall

(C)

(D)

(A) (A)

(B)

Post to WallPost to Post

wall channel

Quick Guide

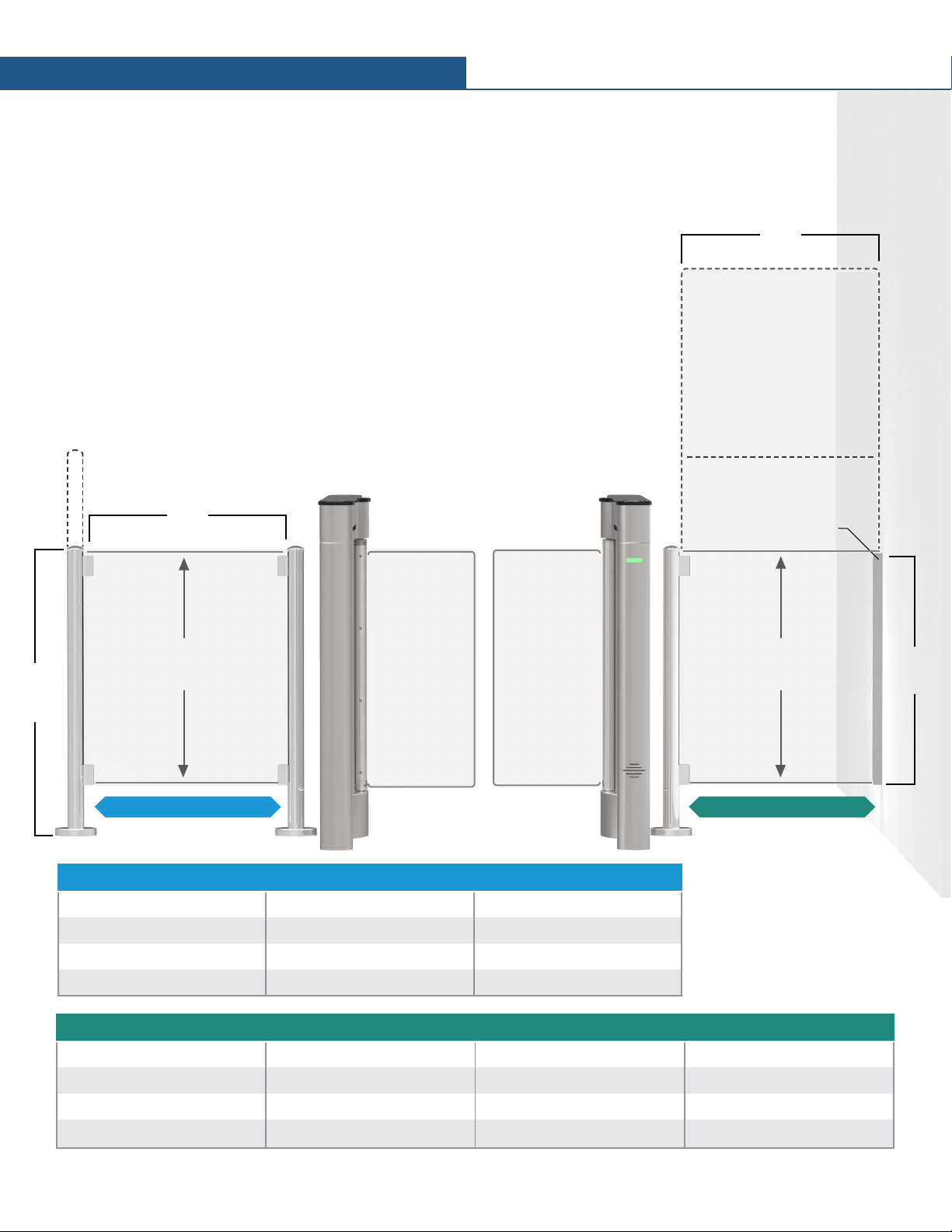

OPTION 1: STAND ALONE BARRIERS

Barrier panels attach to modular posts installed next to the

turnstile, rather than attaching directly to the sides of the

turnstile.

AVAILABLE SIZES

Standard panel heights, post, wall channel heights and panel

widths are shown below. Panel heights (A), post heights

modiﬁed. Narrower panel widths (B) can be provided. Panel

widths wider than the widths shown below are not available.

Modular Post and Panel Barriers

SU5000 to Wall

Panel Height (A) Panel Width (B) Channel Height (D)

35” 24” / 36” 28.25”

46” 24” / 36” 28.25”

69” 24” 41.25”

Quick Guide

(C)

(A) (A)

SU5000 to Post

Panel Height (A) Panel Width (B) Post Height (C)

35” 24” / 36” 35”

46” 24” / 36” 35”

69” 24” 48”

(D)

(B)

wall channel

SU5000 to WallSU5000 to Post

(D)

OPTION 2: SU5000 ATTACHED BARRIERS

Alvarado also oers barrier panels that attach directly to

SU5000 optical turnstiles. This option is not available with

other turnstile models.

AVAILABLE SIZES

Standard panel heights, post, wall channel heights and panel

widths are shown below. Panel heights (A), post heights

modiﬁed. Narrower panel widths (B) can be provided. Panel

widths wider than the widths shown below are not available.

Modular Post and Panel Barriers

VOGUE POST

• Height: 35” and 48”

• Post diameter: 2.25”

• Base cover diameter: 5.5”

• Press ﬁt cap

• Available ﬁnishes:

• Satin stainless steel

• Powder coated

SPACE SAVER POST

• Height: 35”

• Base diameter: 2.25”

• Base cover diameter: 3.5”

• Press ﬁt cap

• Available ﬁnishes:

• Satin stainless steel

• Powder coated

C POST

• Height: 36”

• Post diameter: 3”

• Base cover diameter: 5.5”

• Welded cap

• Available ﬁnishes:

• Powder coated

BARRIER SPECIFICATIONS

OPTION 3: INDIVIDUAL POSTS

Individual posts can also be used to close o small open areas. Available sizes and ﬁnishes are shown below.

Quick Guide

CLEAR PANEL

• Cast acrylic

• Abrasion resistant coating

• Thickness: 0.5”

• Top corner radius: 1”

• No radius on bottom corners

VOGUE POST

• Post diameter: 2.25”

• Base cover diameter: 5.5”

• Available ﬁnishes:

• Satin stainless steel

• Powder coated

WALL CHANNEL

• U channel depth: 0.75”

• Capped bottom

Modular Post and Panel Barriers
