ZKTeco VT07-C22L Manuel utilisateur

User Manual

USER MANUAL

VT07-C22L

For TCP/IP with 2WIRE system

April, 2023

Remark

Please follow the user manual for correct installation and testing. If

there is any doubt please call our tech-supporting and customer

center.

Our company applies ourselves to reformation and innovation of our

products. No extra notice for any change. The illustration shown here

is only for reference. If there is any difference, please take the actual

product as the standard.

The product and batteries must be handled separately from

household waste. When the product reaches the end of service life

and needs to be discarded, please contact the local administrative

department and put it in the designated collection points in order to

avoid the damage to the environment and human health caused by

any disposal. We encourage recycling and reusing the material resources.

Product Features ..................................................... 1

Technical Parameters .............................................. 1

Pictures..................................................................... 2

Operations................................................................ 7

1. Security................................................................. 8

2. Smart................................................................... 14

3. Intercom.............................................................. 17

4. Message.............................................................. 20

5. Setup................................................................... 20

Web Settings.......................................................... 23

System Configuration............................................ 25

System Diagram..................................................... 29

Installation.............................................................. 31

Troubleshooting..................................................... 34

Safety Instructions................................................. 35

CATALOG

Product Features

Building intercom application:

Talkback: Support video call, monitoring, unlocking, and checking the call

records.

Security: Support 8 alarm zones with 3 states, zone and scene setup.

Smart: Support smart home extension by RS485 communication(Optional).

Operating system: Linux

Technical Parameters

Voltage: DC 48V

Rated power: 7W(VT07-C22L/VT07-C23L)

8W(VT10-B21L)

Standby power consumption: 3W

Display screen: 7''/10.1''

Touch screen: Capacitive / Resistive touch screen

Resolution: 7'': 800x480

10.1'': 1024x600

Operating temperature: -10℃~+55℃

Storage temperature: -10℃~+60℃

Storage Relative humidity: 20%~80%

CPU: quad-core 1.2 GHz

Memory: 64MB

Flash: 128MB

IP grade: IP30

Pictures

Model

VT10-B21L

Speaker

10.1'' capacitive

touch screen

Microphone

Model

VT07-C23L

7'' capacitive

touch screen

Speaker

Handsfree

Reserved

Calling management

center

Monitoring

Unlocking

Microphone

Model:VT07-C22L(With keys)

7'' capacitive

touch screen

Microphone

Speaker

Unlocking

Monitoring

Calling management center

Reserved

Handsfree

-5-

Model:

VT07-C22L

7'' capacitive

touch screen

Speaker

Microphone

◇Indoor monitor doesn’t support the connection with external camera, audio

extension, WIFI, Bluetooth, external USB and TF storage card.

◇Standard indoor monitor doesn’t include RS485 communication function.

Please contact the supplier if you have such requirement.

Operations

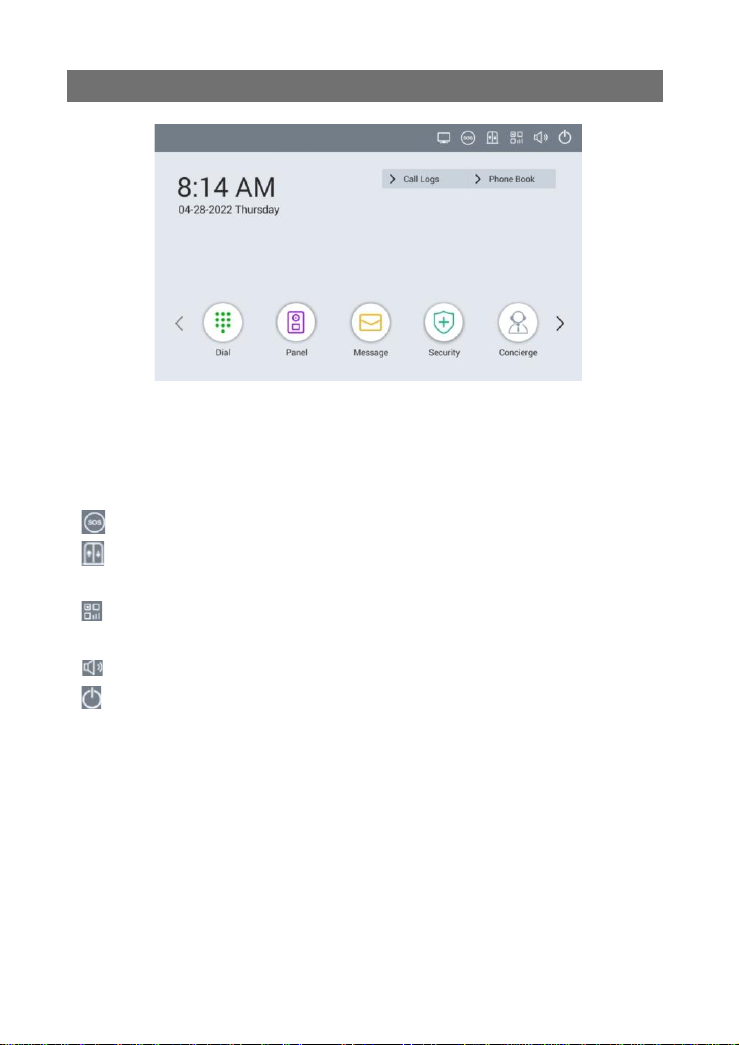

Main menu: Dial, Panel, Message, Security, Concierge, Monitor, Setup.

Instructions of status bar and shortcut key:

Call logs: Click to check call logs.

Phone Book: Click to check and call contacts.

SOS: Click to make a direct emergency call to Master Station.

Lift control: Click to summon the elevator to go up or down. Click

Permit inside of it to release the floor button in the elevator.

QR code: Click to scan QR code with Smart Life app to add this Indoor

Monitor to your phone.

Mute: Click to mute.

Turn off: Click to turn off the screen.

Dial

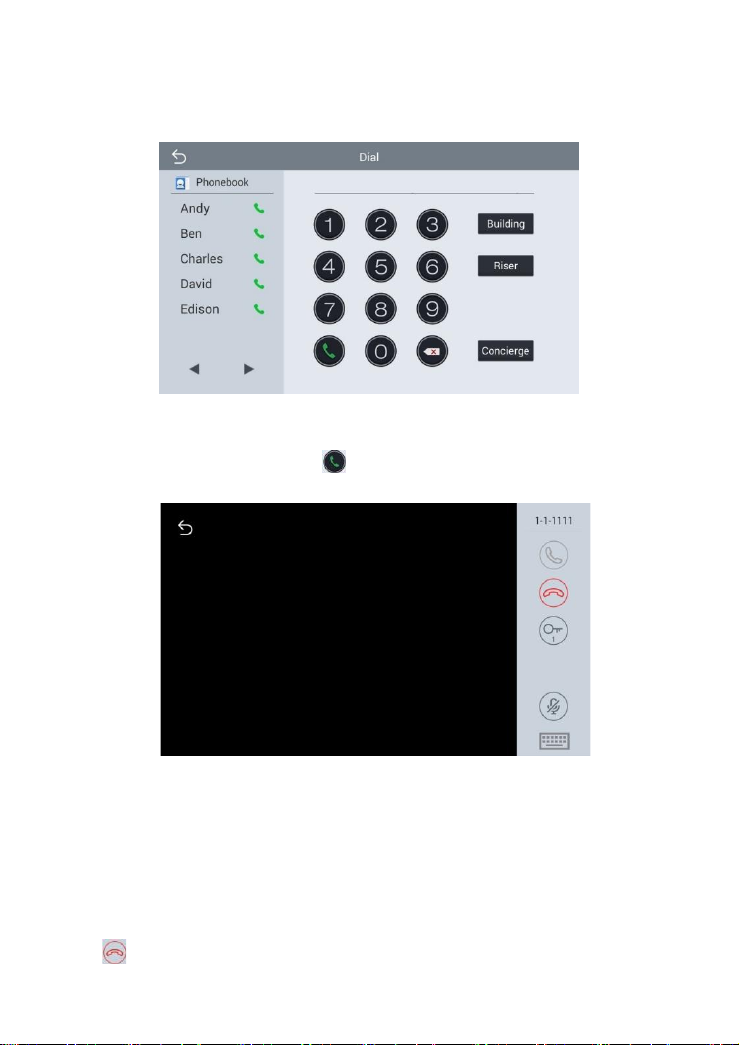

Click “Dial” icon, the system will enter the following interface:

1.1

Call Resident

Input 1-3 digits building No.+ “Building” + 2-digit Unit No. + “Riser”

+4-digit room No., then click

icon to call.

The system will enter into the following interface:

When the call is answered, the system will enter into call state:

If there is a camera, the caller’s image will be displayed on the screen;

When the call is answered, the video will be uploaded into the

indoor monitor.

When calling, the indoor monitor will ring; if there is no answer

within 25 seconds, the call will be ended.

click icon to end the call.
