QUICK START GUIDE

VF Series

Version: 1.0

Date: March, 2018

VF Series Quick Start Guide

Version: 1.0

1. Overview

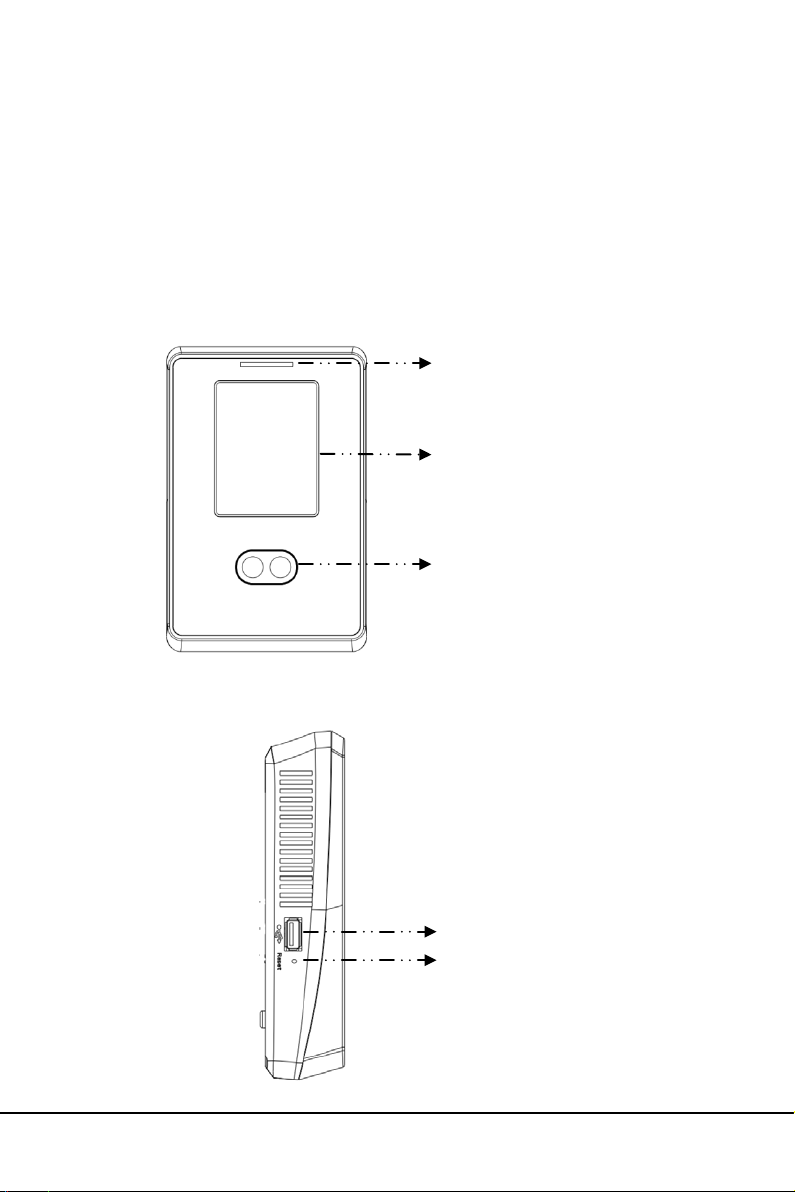

Take VF300/380 as an example:

USB Port

Left side view

Touch Screen

Front view

Indicator

Camera & Card Read Area

Reset Button

Lock Button Sensor Aux-in

COM

BUT

GND

SEN

AUX

12V

GND

COM

Alarm

+12V Out

TCP/IP

Power

Tamper Alarm Switch

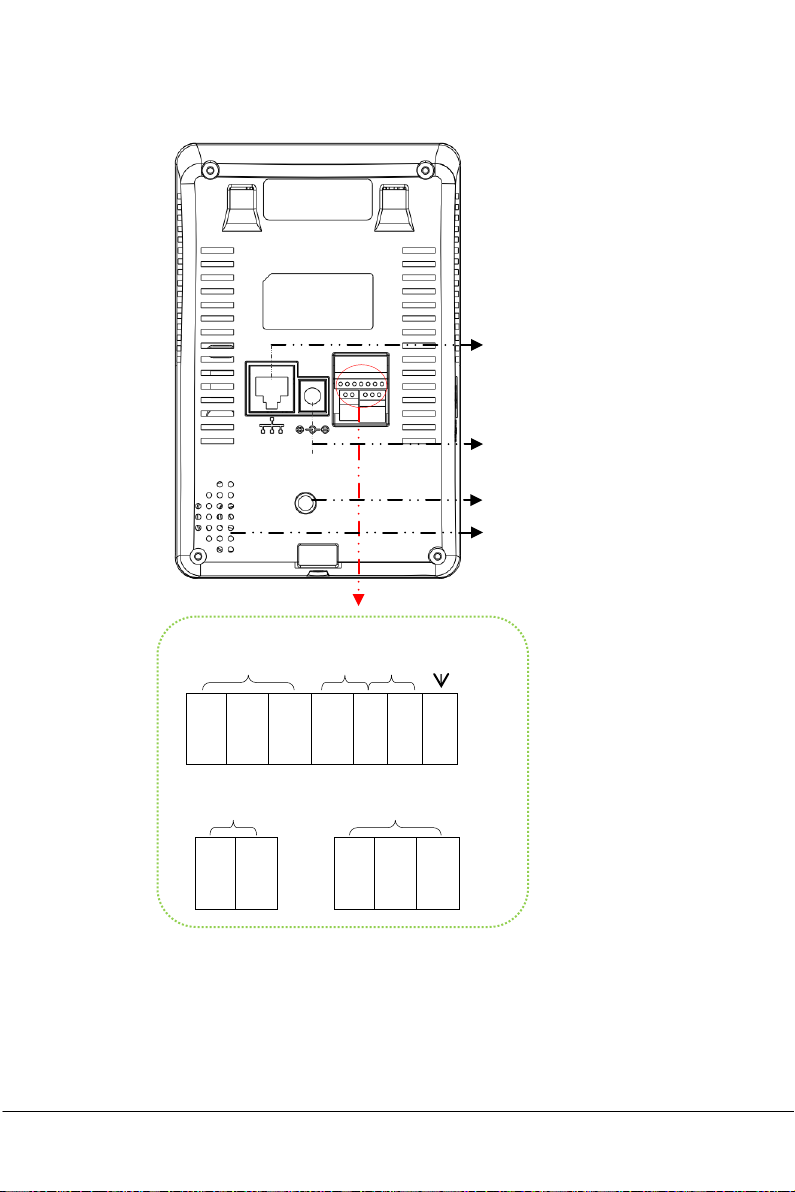

Rear view

Speaker

2. Installation Environment

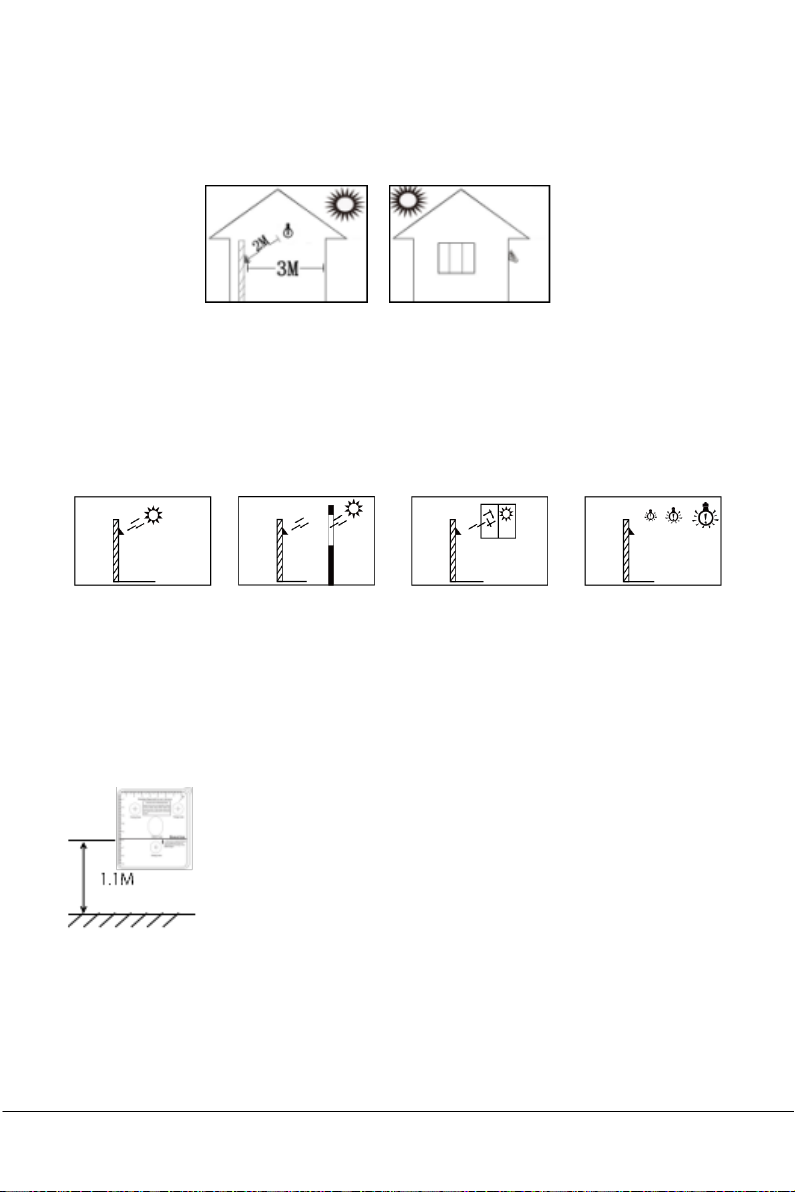

Recommended location:

The device can be installed in indoor and outdoor places. Direct sunlight shall

be avoided if the device is installed in outdoor places. Install the device

indoors at least 10 feet (3m) away from windows, and 6.5 feet (2m) away from

light fixtures.

Not recommended locations:

Direct sunlight Direct sunlight Indirect sunlight Too close to

outdoors through window through window light fixtures

3. Installation Steps

Step1:

Affix the paper template to the wall and drill three

holes within the three marked circles on the paper

template.

We recommend affixing the template about 3.6 feet

(1.1m) above the ground, assuming the average

height of your users is 5-6 feet tall (1.55m-1.85m).

The installation height 4 feet (1.2m) is applicable for

the body height over 5.4 feet (1.65m).

①②③④

Step2:

Align the wall mounted base to the holes on the wall, and use three screws to

fix it onto the wall (figure①); align the iron board to the holes on the wall

mounted base, and use four screws to fix it onto the wall mounted base

(figure②); connect the device with the iron board (from the top down), to

ensure it is tightly jointed with the board (figure③); finally use one screw to fix

the device and the iron board (figure④).

4. Cautions

Recommended standing position:

1) Recommended:

2) Several wrong ways:

For users 5-6 feet tall (1.55m-1.85m) we

recommend users stand about 2 feet (0.5m) from

the wall.

When viewing your image on the device display

window, step away if your image appears too

bright. Step closer if your image appears too dark.

When enrolling users and then

subsequently verifying those users, it’s

important those users consistently stand

(or sit) at the same distance and angle

from the device.

Different posture Different height

Too close Too far

Enrollment and verification:

During the enrollment, follow the voice prompts by

focusing eyes inside the green box. The user needs to move the face up or

down during face registration. The pose for registration is shown in the figure

above.

During the verification, position your head such that

your face appears in the center of the device display

window. Focus your face inside the green box.

5. Troubleshooting

The face cannot be recognized by the device in veriﬁcation.

Solutions:

1) Check if your facial expression, standing posture and distance during

veriﬁcation are the same with that in enrollment.

2) Check if the device is under direct sunlight or near the windows.

Veriﬁcation fails as user wears glasses during veriﬁcation but not in face

enrollment.

Solution: You can enroll your face wearing glasses in the ﬁrst or second time of

face capturing, since the device supports 3 times of capturing face templates.

The device makes a misjudgment in veriﬁcation.

Solution: There is a certain probability of misjudgment. You can re-enroll your

face.
