Zip SEE995 Manuel utilisateur

SEE995

Instruction Manual

ZipNVR.com

SEE995

ZipDVR.com

Table of Contents

Introduction 3

SEE995 ............................................................................................................................ 3

Tools & Handy Extras 3

Connections & Dipswitches 4

Dipswitch 4-In-1 Technology 4

Mounting 5

Eyeball ........................................................................................................................... 5

Motorised Lens 6

OSD Menu 7

5MP OSD Menu Motorised .............................................................................................. 8

Key Menu Settings ........................................................................................................ 10

Troubleshooting 11

Camera Rebooting / Turning Off ................................................................................... 11

Poor Quality Images ..................................................................................................... 11

Image is Black & White ................................................................................................. 11

NCD / No Image Displayed on Recorder ....................................................................... 11

General Maintenance 12

Specification 13

SEE995 .......................................................................................................................... 13

Conditions 14

General Company Disclaimer ....................................................................................... 14

WEEE Declaration ......................................................................................................... 14

Copyright ...................................................................................................................... 14

Index

ZipDVR.com

Introduction

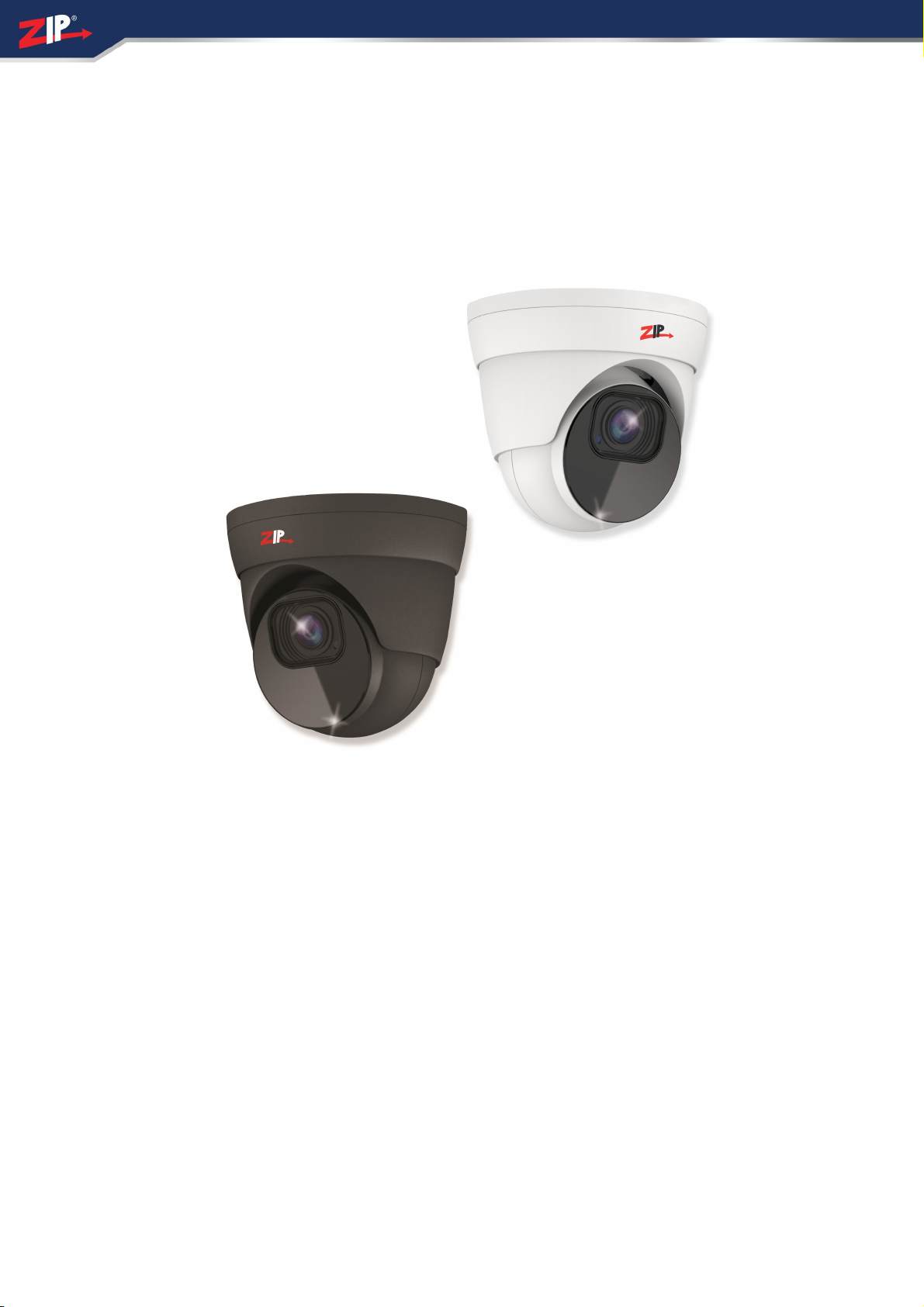

1.1 SEE995

The SEE995 has a motorised lens so that you can set the zoom and focus from the

DVR. With 4-in-1 technology design means you can set the output signal to either

TVI, CVI, AHD or CVBS.

Built in twin IR arrays provide 40m of night time vision to get 24/7 performance on

these new eyeballs.

This 5MP model is a perfect match for higher spec DVRs such as the new Zip Supa

DVR that can record in 5MP quality. Pick this model for finer detailing if your

business relies on its CCTV to protect employees or stock.

Tools & Handy Extras

Screwdriver

Drill

12V DC PSU

Drill bits

BNC Crimp Tool & BNCs

RG59 Coax Cable

Digital Multi-Meter

LCD400K - CCTV Test monitor

24/10/2023

SEE995

ZipDVR.com

Connections & Dipswitches

The camera has a 2.1mm socket which requires 12V DC, use a regulated power

supply rated above the current draw of the camera.

The camera is polarity sensitive so connections must be correctly made.

The camera has a standard BNC connector for the 4-in-1 video output, the output can

be changed to AHD, CVIor CVBS if required.

Dipswitch 4-In-1 Technology

Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. As default the

camera is set to HD-TVI, however the output can be changed to AHD, CVIor CVBS

if required.

This output can be changed with the dip switches on the fly-lead of the camera.

Please note the “Output Mode” in the menu of the DVR won’t change the format, as

the dip switch overrides the output.

The dip switch configuration can be found below:-

Index

ZipDVR.com

Mounting

5.1 Eyeball

A template is provided in the box for marking the hole positions for the fixing screws.

24/10/2023

SEE995

ZipDVR.com

Motorised Lens

To access the Motorised Lens via coaxitron:-

1. Click on the image in Live view

2. Click on the PTZ button at the bottom of the screen

3. Use Zoom + and - to zoom in and out, the camera should automatically focus

when Zoom +/- is released

Index

ZipDVR.com

OSD Menu

Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set

as default.

To access the Cameras Menu via coaxitron:-

1. Click on the image in Live view

2. Click on the PTZ button at the bottom of the screen

3. Click on the IRIS + / centre button to display the menu

Use the directional arrows to move up

and down through the menu.

Use the directional arrows left and right to

change the option.

Use IRIS + to select & enter that menu

option.

24/10/2023

SEE995

ZipDVR.com

7.1 5MP OSD Menu Motorised

BRIGHTNESS

0 ~ 100 (Default 34)

EXPOSURE MODE

GLOBAL /

BLC

0 ~ 7 (Default 4)

RETURN

AF MODE

SEMI / AUTO / MANUAL

ZOOM

- / +

FOCUS

- / +

BOOT MODE

SAVE POS / WIDE END / TELE END /

TDN AD

OPEN / CLOSE

FOCUS TRIGGER

SELECT (IRIS +)

LENS INIT

SELECT (IRIS +)

RETURN

AWB

MODE

PRO / GREYWORLD

RGAIN

0 ~ 100 (Default 50)

BGAIN

0 ~ 100 (Default 50)

DAY / NIGHT

MODE

EXT / COLOR / B/W

RETURN

IMAGE ENHANCE

CONTRAST

AUTO /

MANUAL

0 ~ 20 (Default 5)

SHARPNESS

AUTO /

MANUAL

0 ~ 20 (Default 3)

SATURATE

AUTO /

MANUAL

0 ~ 20 (Default 10)

3DNR

AUTO /

MANUAL

0 ~ 20 (Default 13)

Index

ZipDVR.com

2DNR

AUTO /

MANUAL

0 ~ 20 (Default 19)

RETURN

VIDEO SETTING

NO ADJUSTMENT SEE 4-IN-1 SWITCH

STANDARD

5MP 20 / 4MP 25 / 4MP 30 / 1080P 25 /

1080P 30 /

REBOOT & APPLY

RETURN

LANGUAGE

ENGLISH / SIMPLIFIED CHINESE / TRADITIONAL CHINESE /

RUSSIAN / SPANISH / FRENCH / POLISH / ITALIAN /

PORTUGUESE

WDR

OFF / ON

FUNC

PRIVACY

MODE

OFF / ON

AREA 0

CUSTOMISE

AREA 1

CUSTOMISE

AREA 2

CUSTOMISE

AREA 3

CUSTOMISE

COLOR

RED / GREEN / BLUE

TRANSPARENCY

OFF / ON

RETURN

RESET

SAVE – EXIT

EXIT

24/10/2023

SEE995

ZipDVR.com

7.2 Key Menu Settings

Exposure Mode - AUTO / GLOBE / GLOBAL sets the required shutter speed for

the current light level. The shutter speed will automatically detect the required length

of time to keep the digital sensor exposed to light. FLK option sets the shutter speed

to stop synchronisation with lighting so that pulsing effect is minimised.

White Balance - Colour adjustment of the camera to be set up so objects appear a

natural colour. ATW / PRO (Automatic tracking white balance) continually tracks and

adjusts the white balance, making it suitable for use in cameras in which the image

content and lighting are subject to changes.

Day & Night - The camera can be set to colour or B&W mode or have it

automatically switch External is set as default, the switch between colour and black &

white is controlled by an external trigger In this a light dependent resistor.

DNR (Noice Reduction) - Noise Reduction is the process of removing noise from

the video signal by applying a digital filter. 2D noise reduction reduces noise in the

foreground of the image where as 3D noise reduction reduces noise in both the

foreground and the background of the image.

D-WDR - Digitally adjusts the exposure in areas of the frame to maintain optimum

levels in both the dark and bright areas of an image.

NOTE - Some models may not have D-WDR function.

Reset - Defaults the camera to factory settings. This setting helps when fault finding

issues with the camera to ensure all settings are defaulted.
