Zip SEE885 Manuel utilisateur

5MP All-In-One 5-50mm Motorised Lens

xSEE885

ZipNVR.com

xSEE885

ZipNVR.com

Table of Contents

Part 1 Introduction 1

Part 2 Tools & Handy Extras 1

Part 3 Connections, Dimensions & Key Features 2

Part 4 4-In-1 Technology 3

Part 5 OSD Menu 4

1 Key Menu Settings.......................................................................................................... 6

Part 6 Troubleshooting 7

1 Camera Rebooting / Turning Off ..................................................................................... 7

2 Poor Quality Images ....................................................................................................... 7

3 Image isBlack & White .................................................................................................. 7

4 NCD / No Image Displayed on Recorder ......................................................................... 7

Part 7 General Maintenance 8

Part 8 Specification 8

Part 9 Conditions 9

1 General Company Disclaimer ......................................................................................... 9

2 WEEE Declaration ........................................................................................................... 9

3 Copyright ........................................................................................................................ 9

Index 10

Introduction

ZipNVR.com

1 Introduction

The SEE885 has multiformat HD modes for TVI, AHD, CVI and CVBS

In addition it comes in two colours, matt Grey & White. The SEE885 camera produces

exceptionalquality images using the 1/2.7"Progressive CMOS Sensor.

With an impressive 80M Infra-Red Range to help improve light capture at night.

The SEE885 has Coaxitron Controlfacility for changing the Motorised Zoom& Focus and also

the OSD menu specifications via a ZIP SUPA or ZIP XTRA DVR.

2 Tools & Handy Extras

Screwdriver

Drill

Hammer

POW151 - 12V DC 500mA Plug-in PSU

Drillbits

BNC Crimp Tool& BNCs

RG59 Coax Cable

DigitalMulti-Meter

LCD400K - CCTV Test monitor

xSEE885

ZipNVR.com

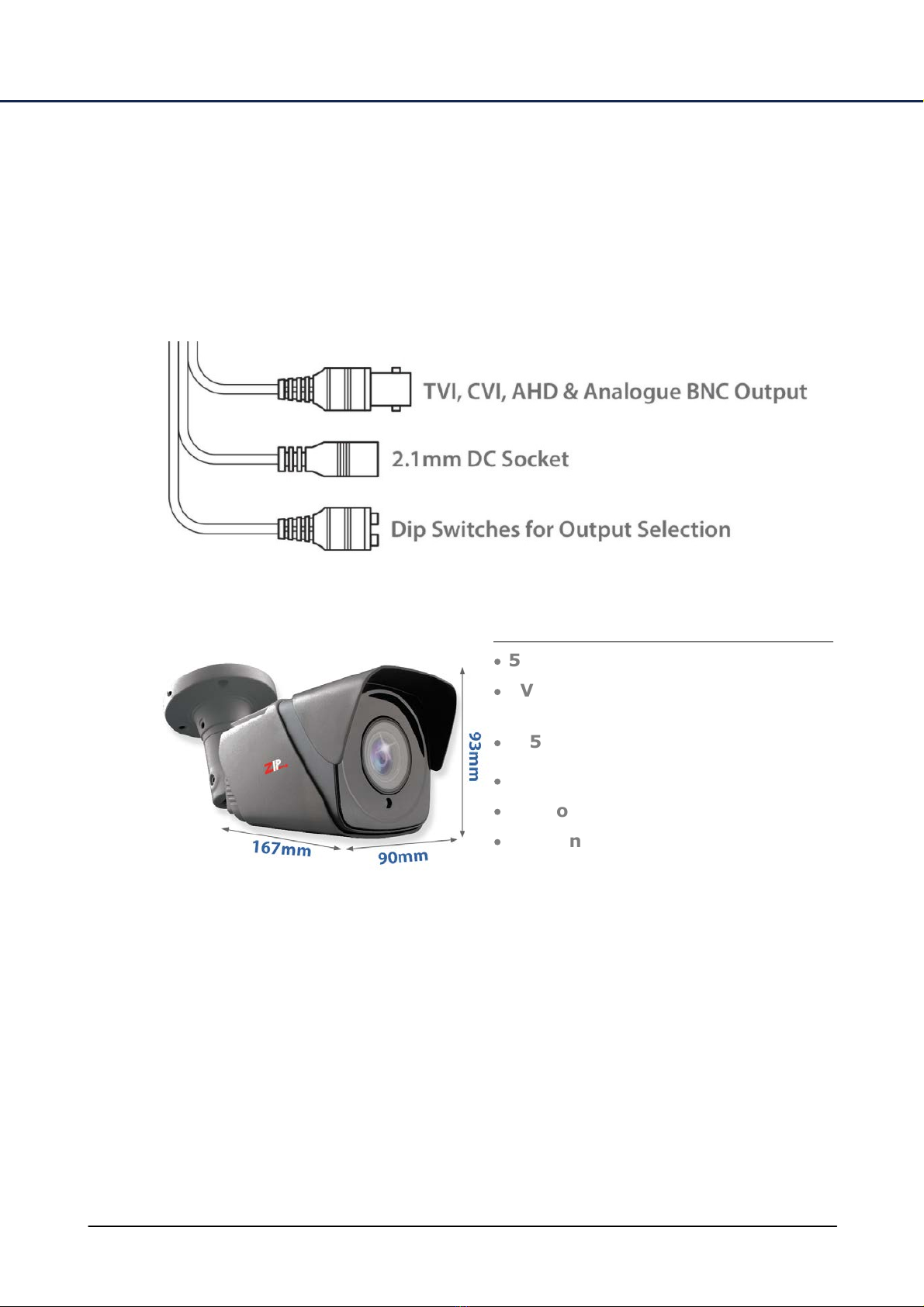

3 Connections, Dimensions & Key Features

The camera is provided with a fly lead with a 2.1mm DC socket and standard BNC connector

It is recommended to use a power supply that is rated higher than the current consumption of the

camera i.e. the current consumption is 750mA on so add approximately 50% headroom, and use a

regulated power supply rated at 1.2A or above.

The camera is polarity sensitive so connections must be correctly made.

FEATURES

5MP Resolution

TVI, CVI, AHD or Analogue

Output

5-50mm Motorized Lens

80m IR Range

Supports Wide Dynamic Range

Mechanical (True Day-Night)

4-In-1 Technology

ZipNVR.com

4 4-In-1 Technology

Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. As default the SEE885 is

set to HD-TVI 5MP which willwork with the, ZipSupa and ZipXtreme DVRs, however the

output can be changed to AHD, CVI or CVBS ifrequired. Note: the output for CVI is 4MP

This output canbe changed either withthe dip switches onthe fly-lead ofthe camera. Please

note the “Output Mode” in the menu ofthe DVR won’t change the format, as the dip switch

overrides the output.

The dip switch configuration can be found below:-

xSEE885

ZipNVR.com

5 OSD Menu

Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as

default.

To access the Cameras Menu via coaxitron:-

1. Click on the image in Live view

2. Click on the PTZ button at the bottomofthe screen

3. Click on the IRIS + button to display the menu

Use the directionalarrows to move up and

down through the menu.

Use the directionalarrows left and right to

change the option.

Use IRIS + to select & enter that menu option.

LENS

MANUAL

MODE

INDOOR

MIN SHU.

1/30 1/60 / FLK 1/240 1/480

1/1000 1/2000 1/5000

1/10000

MAX SHU.

1/50000 1/50 FLK 1/200

1/400 1/1000 1/2000 1/5000

1/10000

RETURN / SAVE & END

OUTDOOR

MIN SHU.

1/25 1/50 FLK 1/200 1/400

1/1000 1/2000 1/5000

1/10000

MAX SHU.

1/50000 1/50 FLK 1/200

1/400 1/1000 1/2000 1/5000

1/10000

RETURN / SAVE & END

IRIS SPEED

0 ~ 15 (Default 8)

RETURN / SAVE & END

EXPOSURE

SHUTTER

AUTO / FLK (No Adjustment If DCMode is selected)

AGC

0 ~ 15 (Default 14)

BRIGHTNESS

0 ~ 100 (Default 40)

D-WDR

OFF/ AUTO

BACKLIGHT

OFF/ BLC

BLC

LEVEL

LOW / MIDDLE/

HIGH

AREA

POSITION & SIZE

OSD Menu

ZipNVR.com

DEFAULT

(Defaults the above)

RETURN / SAVE & END

WHITEBAL

ATW

AWC SET

(Sets Automatic White Balance Control)

DAY& NIGHT

EXT

D – N (DELAY)

0 ~ 15 (Default 3)

N – D (DELAY)

0 ~ 15 (Default 3)

RETURN / SAVE & END

AUTO

D – N (AGC)

0 ~ 216 (Default 64)

D – N (DELAY)

0 ~ 15 (Default 3)

N – D (AGC)

0 ~ 215 (Default 10)

N – D (DELAY)

0 ~ 15 (Default 3)

RETURN / SAVE & END

COLOR (Permanently in colour)

B/W

IRSMART

ON / OFF

LEVEL

0 ~ 15 (Default 8)

AREA

POSITION & SIZE

RETURN / SAVE & END

ADJUST

2 DNR

LOW / MIDDLE/ HIGH / OFF

3 DNR

LOW / MIDDLE/ HIGH / OFF

RETURN / SAVE & END

SHARPNESS

LOW / MIDDLE/ HIGH

COLOR GAIN

BLUEGAIN

0 ~ 10 (Default 7)

RED GAIN

0 ~ 10 (Default 7)

RETURN / SAVE & END

LSC

ON / OFF

MIRROR

OFF/ MIRROR/ V-FLIP / ROTATE

DPC

LIVEDPC

OFF/ ON

AGCLEVEL

0 ~ 255 (Default 0)

LEVEL

0 ~ 100 (Default 50)

RETURN / SAVE & END

WHITEDPC

POS/ SIZE

POSITION & SIZE

START

STARTS SCAN

DPC VIEW

OFF/ ON

LEVEL

0 ~ 60 (Default 0)

AGC

0 ~ 14 (Default 14)

RETURN / SAVE & END

LANGUAGE

ENG/ CHN 1 / CHN2 / GER / FRA / ITA / SPA / POL/ RUS / POR /

NED / TUR/ JPN

OUTPUT MODE

FORMAT***

THD / CVBS / AHD / CHD

RESOLUTION

5 MEGA / 4 MEGA (4 MEGA only For

CHD)

FRAMERATE

RT / NRT

VIDEO. OUT

NTSC / PAL

APPLYSET

RETURN / SAVE & END

AF MODE

SEMI/ AUTO / MANUAL

ONESHOT AF

Press to detect focus point

TDN AF

OFF/ ON

LENS INIT

Press to initialise lens

RETURN / SAVE & END

Exit

SAVE& END

RESET

NOT SAVE

xSEE885

ZipNVR.com

5.1 Key Menu Settings

Exposure Mode - AUTO is set as default, it automaticallysets the required shutter speed for

the current light level. The shutter speed willautomatically detect the required length oftime to

keep the digitalsensor exposed to light. FLK option sets the shutter speed to stop

synchronisation with lighting so that pulsing effect is minimised.

White Balance - Colour adjustment ofthe camera to be set up so objects appear a natural

colour. ATW (Automatic tracking white balance) continually tracks and adjusts the white

balance, making it suitable for use in cameras in which the image content and lighting are subject

to changes.

Day & Night - The camera can be set to colour or B&W mode or have it automatically switch

Externalis set as default, the switch between colour and black & white is controlled byan

externaltrigger In this a light dependent resistor. Delay can be set which willinstruct the camera

to wait for a set length oftime before switching. This accommodates for any temporary drops in

light

DNR (Noice Reduction) - Noise Reduction is the process ofremoving noise fromthe video

signalby applying a digitalfilter. 2D noise reduction reduces noise in the foreground ofthe image

where as 3D noise reduction reduces noise in both the foreground and the background ofthe

image.

D-WDR - Digitally adjusts the exposure in areas of the frame to maintain optimumlevels in both

the dark and bright areas ofan image.

Reset - Defaults the camera to factory settings. This setting helps when fault finding issues with

the camera to ensure allsettings are defaulted.

Troubleshooting

ZipNVR.com

6 Troubleshooting

6.1 Camera Rebooting / Turning Off

A. Check the voltage ofthe camera (under load) ifbelow 10.8V thenmove the power supply

closer to the camera.

B. For 12V DC cameras only ever use regulated power supply rated at above 750mA, 1A

would be recommended. So that the camera is always receiving the correct supply.

C. Use thicker gauge copper cabling to reduce the voltage drop.

6.2 Poor Quality Images

A. Check the fly-lead is set to the correct output – see 4-In-1 Technology

B. Ifset to CVBS, thenthis is a low quality video output for legacysystems (Analogue), when

using a 5 MegaPixelDVR or above thenuse another video format, like HD-TVI.

C. Reset the camera menu via Zip Coaxitron – OSD Menu

D. Check ifyour DVR supports 5 MegaPixelcameras.

6.3 Image is Black & White

A. Check the video format your DVR supports, thenset the camera to the relevant video format

– see the 4-In-1 Technology

B. Reset the camera menuvia Zip Coaxitron OSD Menu

C. Check the recorder supports 5 MegaPixelcameras.

6.4 NCD / No Image Displayed on Recorder

A. Test that the camera has the correct voltage supplying it, this must be done with the camera

connected so that there is load on the PSU. A 12V DC camera should have at least 10.5V DC

connected to it.

B. The camera cannot function without the correct power supply. For 12V DC cameras only

ever use regulated power supplies to ensure that the camera is always receiving the correct

voltage.

C. Ensure that the BNC – BNC lead that is connected between the camera and DVR has no

shorts or open circuits.

xSEE885

ZipNVR.com

7 General Maintenance

Ensure that nothing is obscuring the field ofview, position the camera to ensure the Lens can

see clearly.

Routinely cleanthe camera to prevent dust build up as this caneffect the performance ofthe

camera. We recommend a damp non-abrasive microfibre cloth.

Check that the cameras are firmly attached.

Check playback in the recorder to ensure the camera is recording properly.

8 Specification

Camera Model

SEE885

Image Sensor

1/2.7"Progressive CMOS

Resolution

5MP (HD)

Lens Type

5-50 mmmotorized lens

Image Output

TVI (5MP/4MP) / CVI (4MP) / AHD (5MP/4MP) / CVBS (D1)

Min. Illumination

0 Lux (IR On)

Day/Night

Mechanical(True Day-Night)

Input Voltage

12V DC

Current Consumption

750mA

Signalto Noise Ratio

35dB

Gain Control

Automatic

Video Connection

BNC Socket

Power Connection

2.1mmDC Socket

WDR

Yes

Protocol

UTC

Finish

Matt Grey/ White

Build

Metal

Shutter

1/25 s to 1/50,000 s

White Balance

Auto / Manual

Dimensions

167 x 90 x 93mm(Without Bracket)

IR Wavelength

850nm

IR Range

80m

IP Rating

IP66
