Zip SEE378 Manuel utilisateur

SEE378

8MP Anti-Vandal Dome 2.8-12mm Motorised

Lens

Instruction Manual

ZipDVR.com

xSEE378

ZipDVR.com

Table of Contents

Part 1 Introduction 1

1 SEE378 ............................................................................................................................ 1

Part 2 Tools & Handy Extras 1

Part 3 Connections & Dipswitches 2

Part 4 Dipswitch 4-In-1 Technology 2

Part 5 Mounting 3

1 Anti-Vandal Dome .......................................................................................................... 3

Part 6 Motorised Lens 4

Part 7 OSD Menu 5

1 8MP OSD Menu Motorised .............................................................................................. 5

2 Key Menu Settings.......................................................................................................... 8

Part 8 Troubleshooting 9

1 Camera Rebooting / Turning Off ..................................................................................... 9

2 Poor Quality Images ....................................................................................................... 9

3 Image isBlack & White .................................................................................................. 9

4 NCD / No Image Displayed on Recorder ......................................................................... 9

Part 9 General Maintenance 10

Part 10 Specification 11

1 SEE378 .......................................................................................................................... 11

Part 11 Conditions 12

1 General Company Disclaimer ....................................................................................... 12

2 WEEE Declaration ......................................................................................................... 12

3 Copyright ...................................................................................................................... 12

Index 13

Index

ZipDVR.com

Introduction

1.1 SEE378

This Anti-VandalDome with a toughmetalexterior is idealfor bothoutdoor and indoor uses.

This 4K modelalso described as 8MP offers stunning Ultra-HD quality capturing detail even the

humaneye canmiss, a perfect choice for high end installs. Designed to be used with a 4K DVR

such as the new Zip Xtreme.

With 4K resolution, and a true day night filter make it great choice for the professionalinstaller.

Tools & Handy Extras

Screwdriver

Drill

12V DC PSU

Drillbits

BNC Crimp Tool& BNCs

RG59 Coax Cable

DigitalMulti-Meter

LCD400K - CCTV Test monitor

04/04/2022

xSEE378

ZipDVR.com

Connections & Dipswitches

The camera has a 2.1mmsocket which requires 12V DC, use a regulated power supply rated

above the current draw ofthe camera.

The camera is polarity sensitive so connections must be correctly made.

The camera has a standard BNC connector for the 4-in-1 video output, the output canbe

changed to AHD, CVI or CVBS if required.

Dipswitch 4-In-1 Technology

Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. As default the camera is

set to HD-TVI, however the output canbe changed to AHD, CVI or CVBS ifrequired.

This output canbe changed with the dip switches on the fly-lead ofthe camera. Please note the

“Output Mode” in the menu of the DVR won’t change the format, as the dip switch overrides the

output.

The dip switch configuration can be found below:-

Index

ZipDVR.com

Mounting

5.1 Anti-Vandal Dome

A template is provided in the box for marking the hole positions for the fixing screws.

04/04/2022

xSEE378

ZipDVR.com

Motorised Lens

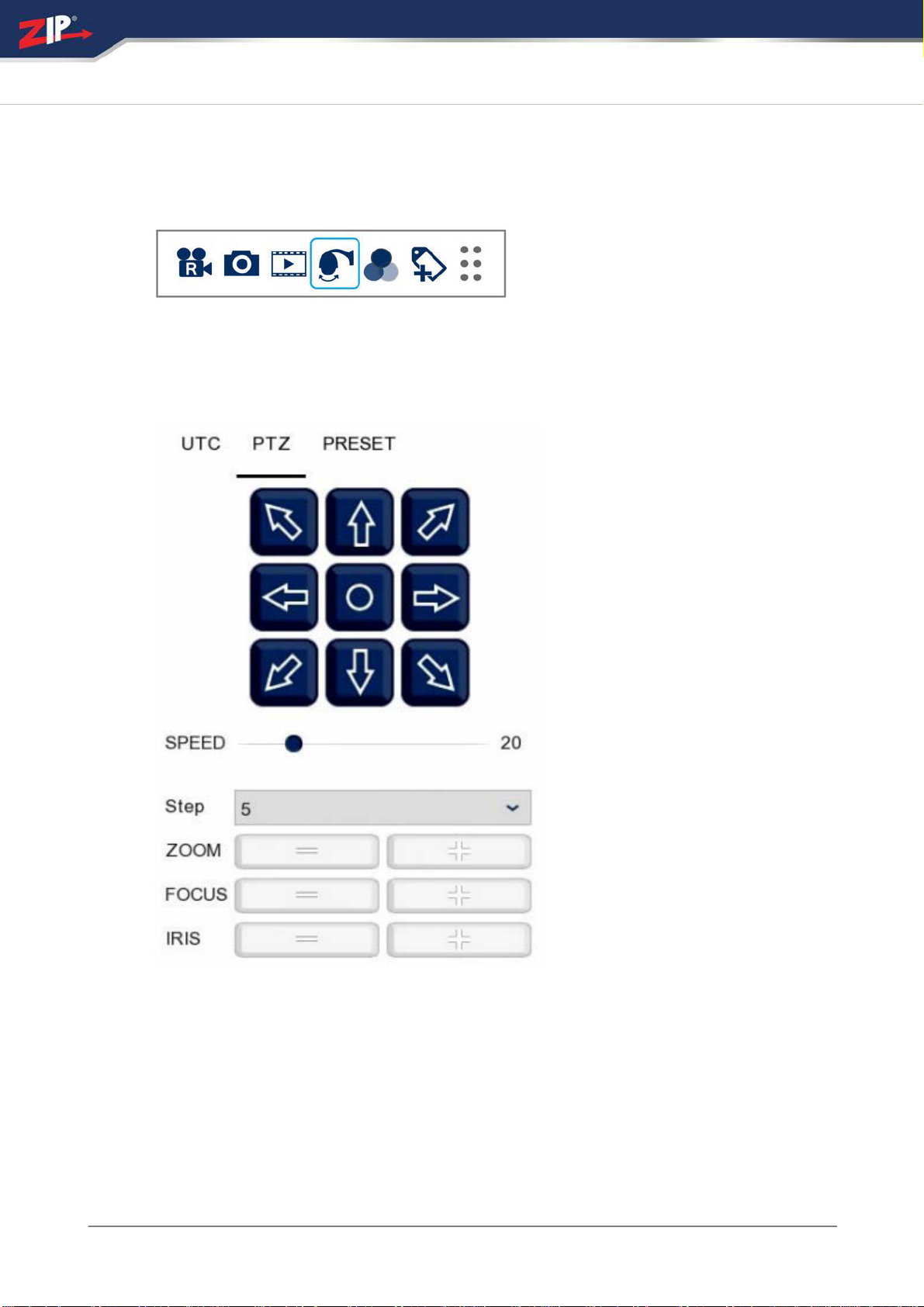

To access the Motorised Lens via coaxitron:-

1. Click on the image in Live view

2. Click on the PTZ button at the bottomofthe screen

3. Use Zoom+ and - to zoomin and out, the camera should automatically focus when Zoom+/-

is released

Index

ZipDVR.com

OSD Menu

Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as

default.

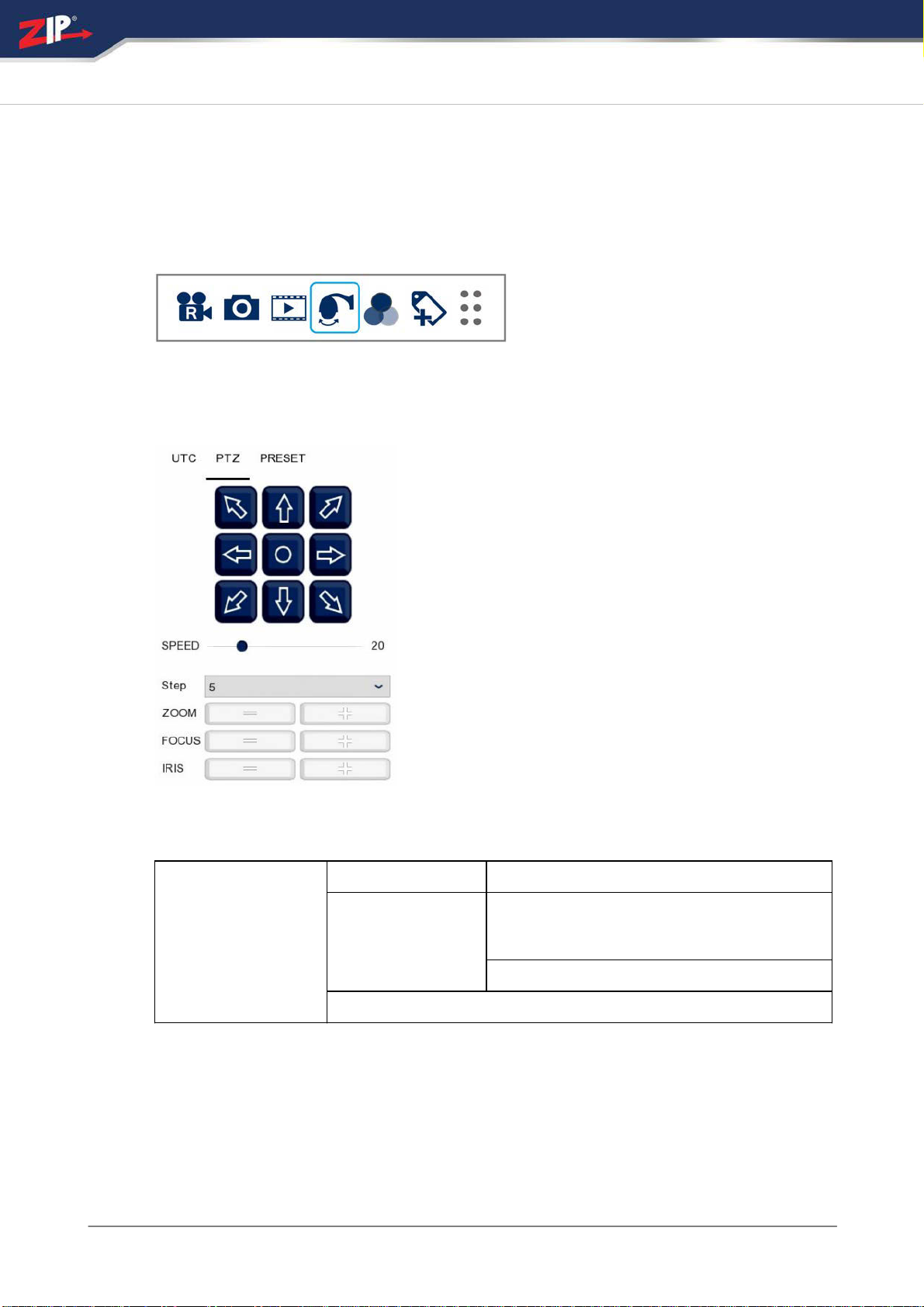

To access the Cameras Menu via coaxitron:-

1. Click on the image in Live view

2. Click on the PTZ button at the bottomofthe screen

3. Click on the IRIS + / centre button to display the menu

Use the directionalarrows to move up and

down through the menu.

Use the directionalarrows left and right to

change the option.

Use IRIS + to select & enter that menu option.

7.1 8MP OSD Menu Motorised

BRIGHTNESS

0 ~ 100 (Default 41)

EXPOSURE MODE

GLOBAL /

BLC

0 ~ 7 (Default 4)

RETURN

04/04/2022

xSEE378

ZipDVR.com

AF MODE

SEMI / AUTO / MANUAL

ZOOM

- / +

FOCUS

- / +

BOOT MODE

SAVE POS / WIDE END / TELE END /

TDN AD

OPEN / CLOSE

FOCUS TRIGGER

SELECT (IRIS +)

LENS INIT

SELECT (IRIS +)

RETURN

AWB

MODE

PRO / GREY WORLD

RGAIN

0 ~ 100 (Default 44)

BGAIN

0 ~ 100 (Default 50)

DAY / NIGHT

MODE

EXT / COLOR / B/W

RETURN

IMAGE ENHANCE

CONTRAST

AUTO /

MANUAL

0 ~ 20 (Default 5)

SHARPNESS

AUTO /

MANUAL

0 ~ 20 (Default 3)

SATURATE

AUTO /

MANUAL

0 ~ 20 (Default 2)

3DNR

AUTO /

MANUAL

0 ~ 20 (Default 13)

2DNR

AUTO /

MANUAL

0 ~ 20 (Default 19)

FLIP

OFF / ON

MIRROR

OFF / ON

RETURN

Index

ZipDVR.com

VIDEO SETTING

NO ADJUSTMENT SEE 4-IN-1 SWITCH

STANDARD

8MP 15 / 8MP 12.5

REBOOT & APPLY

RETURN

LANGUAGE

ENGLISH / SIMPLIFIED CHINESE / TRADITIONAL CHINESE /

RUSSIAN / SPANISH / FRENCH / POLISH / ITALIAN /

PORTUGUESE

WDR

OFF / ON

FUNC

PRIVACY

MODE

OFF / ON

AREA 0

CUSTOMISE

AREA 1

CUSTOMISE

AREA 2

CUSTOMISE

AREA 3

CUSTOMISE

COLOR

RED / GREEN / BLUE

TRANSPARENCY

OFF / ON

RETURN

RESET

SAVE – EXIT

EXIT

04/04/2022

xSEE378

ZipDVR.com

7.2 Key Menu Settings

Exposure Mode - AUTO / GLOBE / GLOBAL sets the required shutter speed for the current

light level. The shutter speed willautomatically detect the required length oftime to keep the

digitalsensor exposed to light. FLK optionsets the shutter speed to stop synchronisation with

lighting so that pulsing effect is minimised.

White Balance - Colour adjustment ofthe camera to be set up so objects appear a natural

colour. ATW / PRO (Automatic tracking white balance) continually tracks and adjusts the white

balance, making it suitable for use in cameras in which the image content and lighting are subject

to changes.

Day & Night - The camera canbe set to colour or B&W mode or have it automaticallyswitch

Externalis set as default, the switch betweencolour and black & white is controlled byan

externaltrigger In this a light dependent resistor.

DNR (Noice Reduction) - Noise Reductionis the process ofremoving noise fromthe video

signalby applying a digitalfilter. 2D noise reduction reduces noise in the foreground of the image

where as 3D noise reduction reduces noise in boththe foreground and the background of the

image.

D-WDR - Digitally adjusts the exposure in areas of the frame to maintain optimumlevels in both

the dark and bright areas ofan image.

NOTE - Some models may not have D-WDR function.

Reset - Defaults the camera to factory settings. This setting helps when fault finding issues with

the camera to ensure allsettings are defaulted.
