Zip SEE612 Manuel utilisateur

SEE612

2MP Bullet 2.8-12mm Motorised Lens

Camera

Instruction Manual

ZipDVR.com

xSEE612

ZipDVR.com

Table of Contents

Part 1 Introduction 1

1 SEE612 ............................................................................................................................ 1

Part 2 Tools & Handy Extras 1

Part 3 Connections & Dipswitches 2

Part 4 Dipswitch 4-In-1 Technology 2

Part 5 Mounting 3

1 Bullet .............................................................................................................................. 3

Part 6 Motorised Lens 4

Part 7 OSD Menu 5

1 2MP OSD Menu - Motorised ............................................................................................ 5

2 Key Menu Settings.......................................................................................................... 8

Part 8 Troubleshooting 9

1 Camera Rebooting / Turning Off ..................................................................................... 9

2 Poor Quality Images ....................................................................................................... 9

3 Image isBlack & White .................................................................................................. 9

4 NCD / No Image Displayed on Recorder ......................................................................... 9

Part 9 General Maintenance 10

Part 10 Specification 11

1 SEE612 .......................................................................................................................... 11

Part 11 Conditions 12

1 General Company Disclaimer ....................................................................................... 12

2 WEEE Declaration ......................................................................................................... 12

3 Copyright ...................................................................................................................... 12

Index 13

Index

ZipDVR.com

Introduction

1.1 SEE612

WithanIR reachofup to 40M and a 2.8-12mmmotorised lens, this camera is a great choice for

covering larger areas with CCTV.

2MP Resolution - Compatible with most current DVRs on the market including the Zip DVR

Lite model. Suits domestic installations and commercialjobs witha limited budget.

Tools & Handy Extras

Screwdriver

Drill

12V DC PSU

Drillbits

BNC Crimp Tool& BNCs

RG59 Coax Cable

DigitalMulti-Meter

LCD400K - CCTV Test monitor

04/04/2022

xSEE612

ZipDVR.com

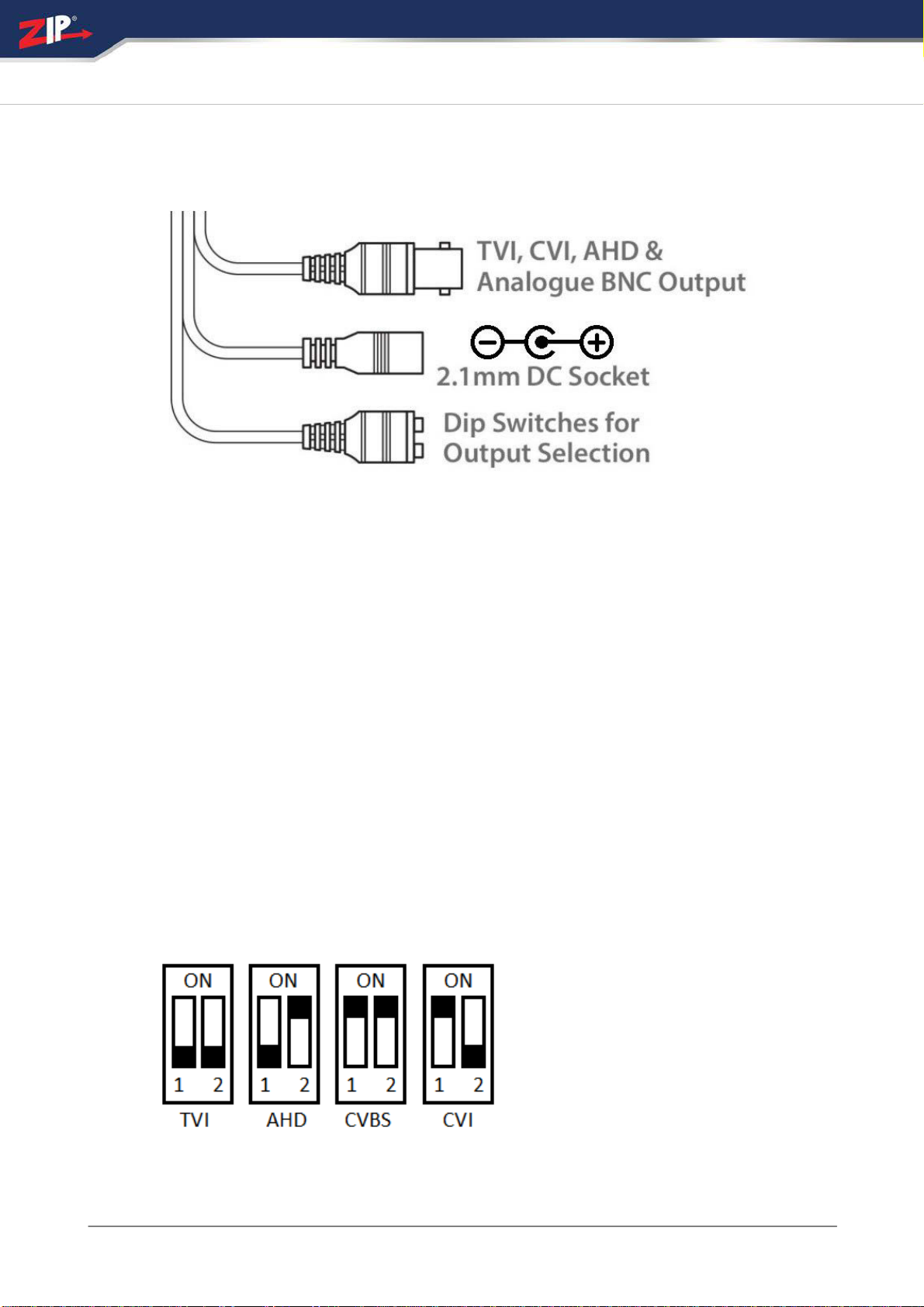

Connections & Dipswitches

The camera has a 2.1mmsocket which requires 12V DC, use a regulated power supply rated

above the current draw of the camera.

The camera is polarity sensitive so connections must be correctly made.

The camera has a standard BNC connector for the 4-in-1 video output, the output can be

changed to AHD, CVI or CVBS if required.

Dipswitch 4-In-1 Technology

Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. As default the camera is

set to HD-TVI, however the output can be changed to AHD, CVI or CVBS ifrequired.

This output can be changed with the dip switches onthe fly-lead ofthe camera. Please note the

“Output Mode”in the menu ofthe DVR won’t change the format, as the dip switch overrides the

output.

The dip switch configuration can be found below:-

Index

ZipDVR.com

Mounting

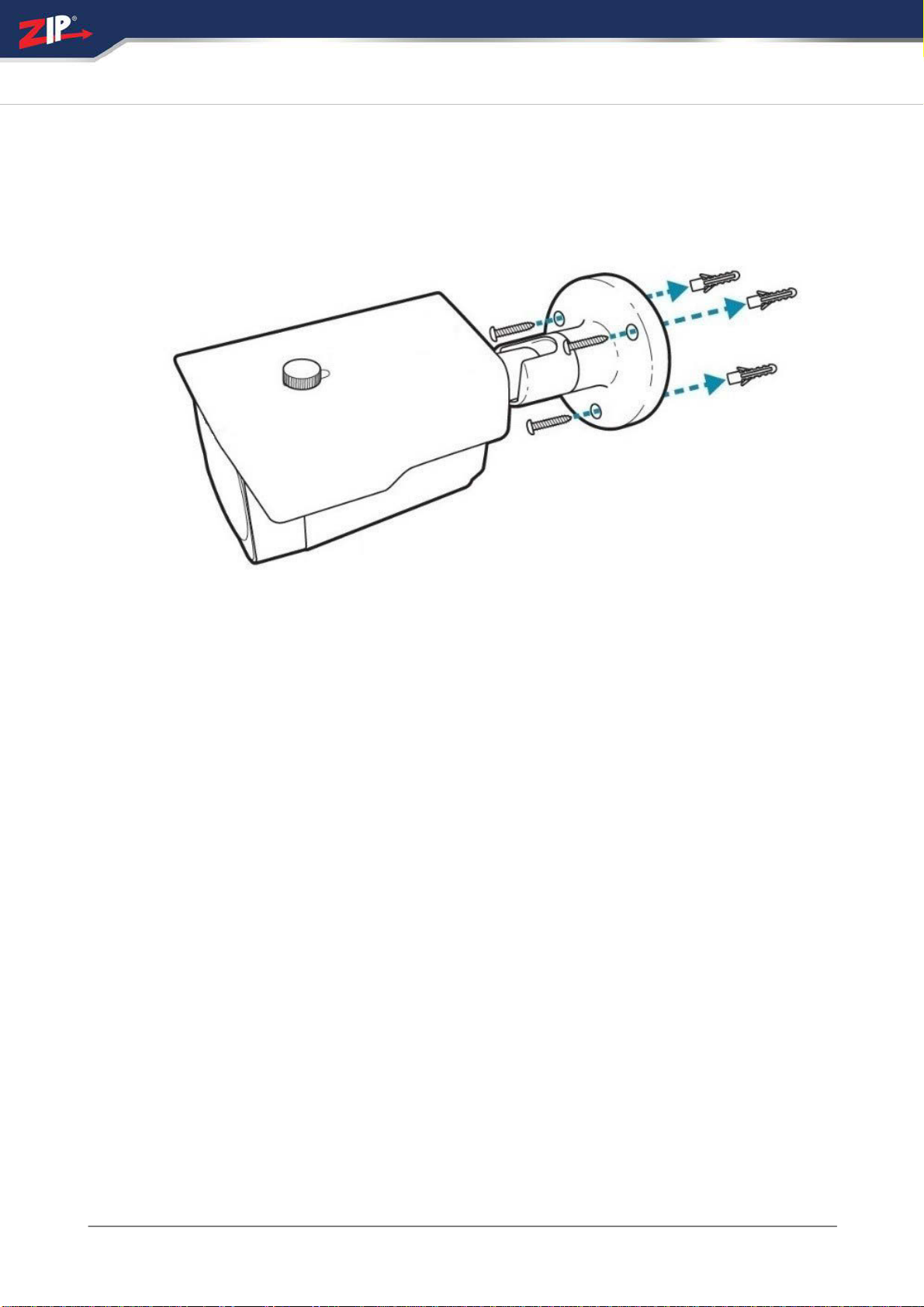

5.1 Bullet

A template is provided in the box for marking the hole positions for the fixing screws.

04/04/2022

xSEE612

ZipDVR.com

Motorised Lens

To access the Motorised Lens via coaxitron:-

1. Click on the image in Live view

2. Click on the PTZ button at the bottomofthe screen

3. Use Zoom+ and - to zoomin and out, the camera should automatically focus when Zoom+/-

is released

Index

ZipDVR.com

OSD Menu

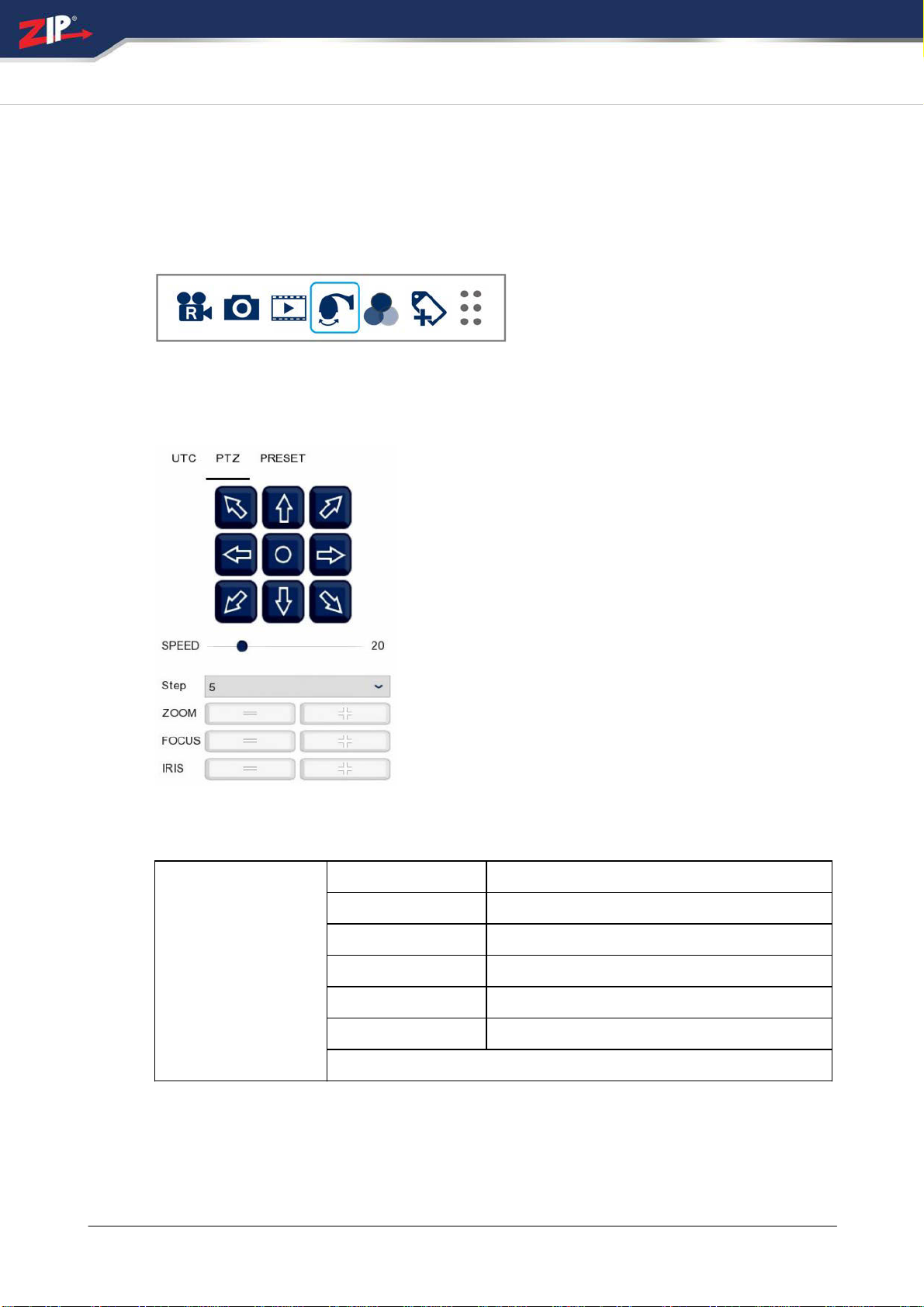

Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as

default.

To access the Cameras Menu via coaxitron:-

1. Click on the image in Live view

2. Click on the PTZ button at the bottomofthe screen

3. Click on the IRIS + / centre button to display the menu

Use the directionalarrows to move up and

down through the menu.

Use the directionalarrows left and right to

change the option.

Use IRIS + to select & enter that menu option.

7.1 2MP OSD Menu - Motorised

AF MODE

SEMI / AUTO / MANUAL

ZOOM

- / +

BOOT MODE

SAVE POS / WIDE END / TELE END /

TDN AD

OPEN / CLOSE

FOCUS TRIGGER

SELECT (IRIS +)

LENS INIT

SELECT (IRIS +)

RETURN

04/04/2022

xSEE612

ZipDVR.com

BRIGHTNESS

0 ~ 100 (Default 31)

EXPOSURE MODE

GLOBAL /

BLC / FLC

0 ~ 7 (Default 4)

RETURN

MODE

ATW / MWB

RGAIN

0 ~ 32 (Default 20)

BGAIN

0 ~ 32 (Default 21)

DAY / NIGHT

MODE

EXT / AUTO / COLOR / BW

RETURN

IMAGE ENHANCE

CONTRAST

AUTO /

MANUAL

0 ~ 40 (Default 21)

SHARPNESS

AUTO /

MANUAL

0 ~ 20 (Default 3)

COLOR GAIN

AUTO /

MANUAL

0 ~ 30 (Default 8)

3DNR

AUTO /

MANUAL

0 ~ 30 (Default 4)

RETURN

VIDEO SETTING

VIDEO STANDARD

PAL / NTSC

HD FORMAT

NO ADJUSTMENT

HORIZONTAL

INVERTED

CLOSE / OPEN

VERTICAL

INVERTED

CLOSE / OPEN

WDR

CLOSE / OPEN / EXT

RETURN

LANGUAGE

ENGLISH / SIMPLIFIED CHINESE / TRADITIONAL CHINESE /

RUSSIAN / SPANISH / FRENCH / POLISH / ITALIAN /

PORTUGUESE

RESET

Index

ZipDVR.com

SAVE – EXIT

EXIT

04/04/2022

xSEE612

ZipDVR.com

7.2 Key Menu Settings

Exposure Mode - AUTO / GLOBE / GLOBAL sets the required shutter speed for the current

light level. The shutter speed willautomatically detect the required lengthoftime to keep the

digitalsensor exposed to light. FLK option sets the shutter speed to stop synchronisation with

lighting so that pulsing effect is minimised.

White Balance - Colour adjustment ofthe camera to be set up so objects appear a natural

colour. ATW / PRO (Automatic tracking white balance) continually tracks and adjusts the white

balance, making it suitable for use in cameras in which the image content and lighting are subject

to changes.

Day & Night - The camera can be set to colour or B&W mode or have it automatically switch

Externalis set as default, the switch between colour and black & white is controlled by an

externaltrigger Inthis a light dependent resistor.

DNR (Noice Reduction) - Noise Reduction is the process ofremoving noise fromthe video

signalby applying a digitalfilter. 2D noise reduction reduces noise in the foreground of the image

where as 3D noise reduction reduces noise in boththe foreground and the background ofthe

image.

D-WDR - Digitally adjusts the exposure in areas of the frame to maintain optimum levels in both

the dark and bright areas ofan image.

NOTE - Some models may not have D-WDR function.

Reset - Defaults the camera to factory settings. This setting helps when fault finding issues with

the camera to ensure allsettings are defaulted.
