Zenith Sentry 2 SLS1935W Manuel d'utilisation et d'entretien

OPERATING GUIOE _ WARRANTY

recycled paper

SmNTFIY

Monaural Color TV

with Remote Control

and Closed Captions

Return the Product Registration

Card, and your TV could be free!

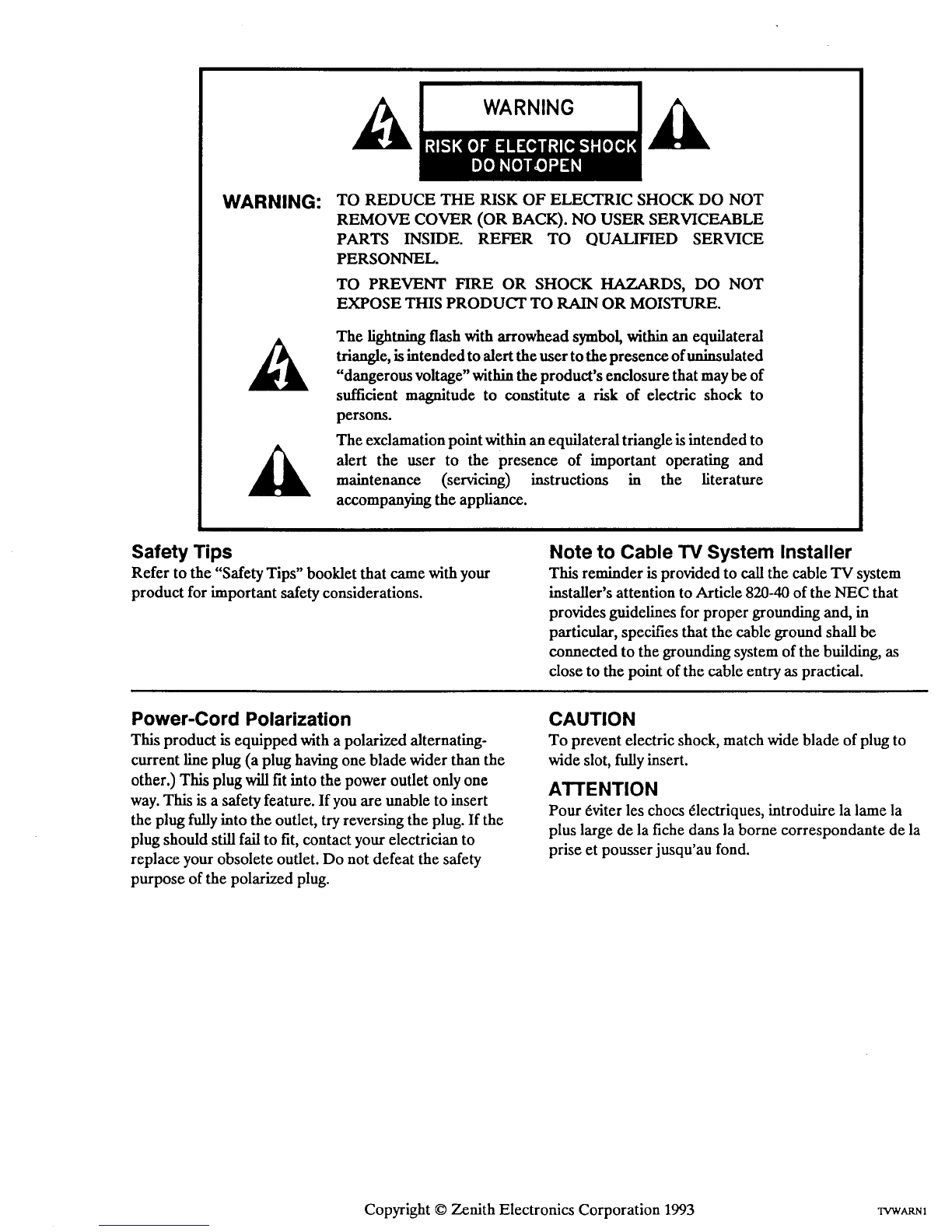

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER TO QUALIFIED SERVICE

PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT

EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

Safety Tips

Refer to the "Safety Tips" booklet that came with your

product for important safety considerations.

Note to Cable TV System Installer

This reminder is provided to call the cable TV system

installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of the cable entry as practical.

Power-Cord Polarization

This product is equipped with a polarized alternating-

current line plug (a plug having one blade wider than the

other.) This plug will fit into the power outlet only one

way. This is a safety feature. If you are unable to insert

the plug fully into the outlet, try reversing the plug. If the

plug should still fail to fit, contact your electrician to

replace your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

CAUTION

To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION

Pour _viter les chocs _lectriques, introduire la lame la

plus large de la fiche dans la borne correspondante de la

prise et pousser jusqu'au fond.

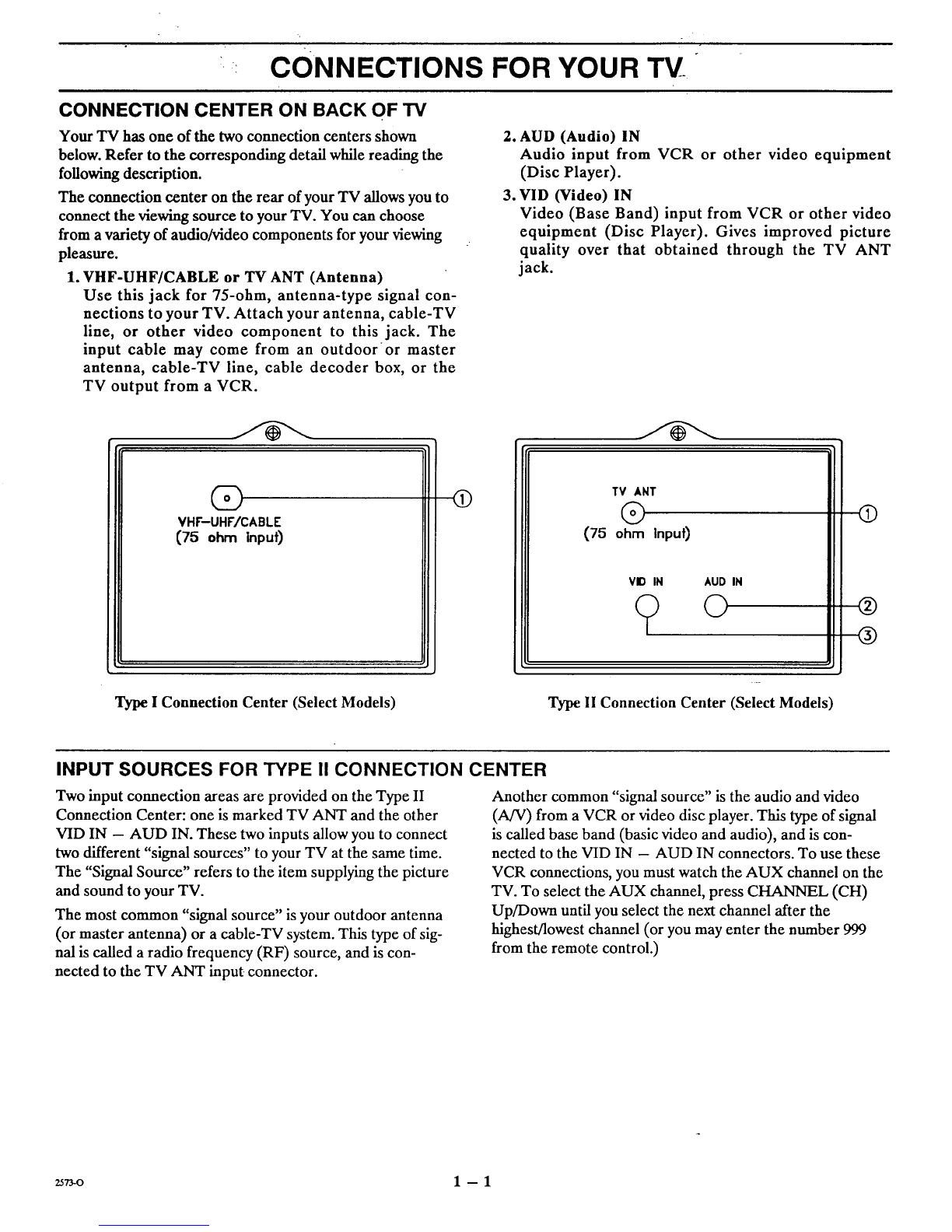

" CONNECTIONS FOR YOUR TV_

CONNECTION CENTER ON BACK OF TV

Your TV has one of the two connection centers shown

below. Refer to the corresponding detail while reading the

following description.

The connection center on the rear of your TV allows you to

connect the viewing source to your TV. You can choose

from a variety of audio/video components for your viewing

pleasure.

1. VHF-UHF/CABLE or 'IV ANT (Antenna)

Use this jack for 7S-ohm, antenna-type signal con-

nections to your TV. Attach your antenna, cable-TV

line, or other video component to this jack. The

input cable may come from an outdoor or master

antenna, cable-TV line, cable decoder box, or the

TV output from a VCR.

2. AUD (Audio) IN

Audio input from VCR or other video equipment

(Disc Player).

3. VID (Video) IN

Video (Base Band) input from VCR or other video

equipment (Disc Player). Gives improved picture

quality over that obtained through the TV ANT

jack.

(S)

VHF-UHF/CABLE

(75 ohm Input)

QTV ANT

(75 ohm Inpu0

VID IN AUD IN

? o

Type I Connection Center (Select Models) Type 11Connection Center (Select Models)

INPUT SOURCES FOR TYPE II CONNECTION CENTER

Two input connection areas are provided on the Type II

Connection Center: one is marked TV ANT and the other

VID IN -- AUD IN. These two inputs allow you to connect

two different "signal sources" to your TV at the same time.

The "Signal Source" refers to the item supplying the picture

and sound to your TV.

The most common "signal source" is your outdoor antenna

(or master antenna) or a cable-TV system. This type of sig-

nal is called a radio frequency (RF) source, and is con-

nected to the TV ANT input connector.

Another common "signal source" is the audio and video

(A/V) from a VCR or video disc player. This type of signal

is called base band (basic video and audio), and is con-

nected to the VID IN -- AUD IN connectors. To use these

VCR connections, you must watch the AUX channel on the

TV. To select the AUX channel, press CHANNEL (CH)

Up/Down until you select the next channel after the

highest/lowest channel (or you may enter the number 999

from the remote control.)

2573-0 1- 1

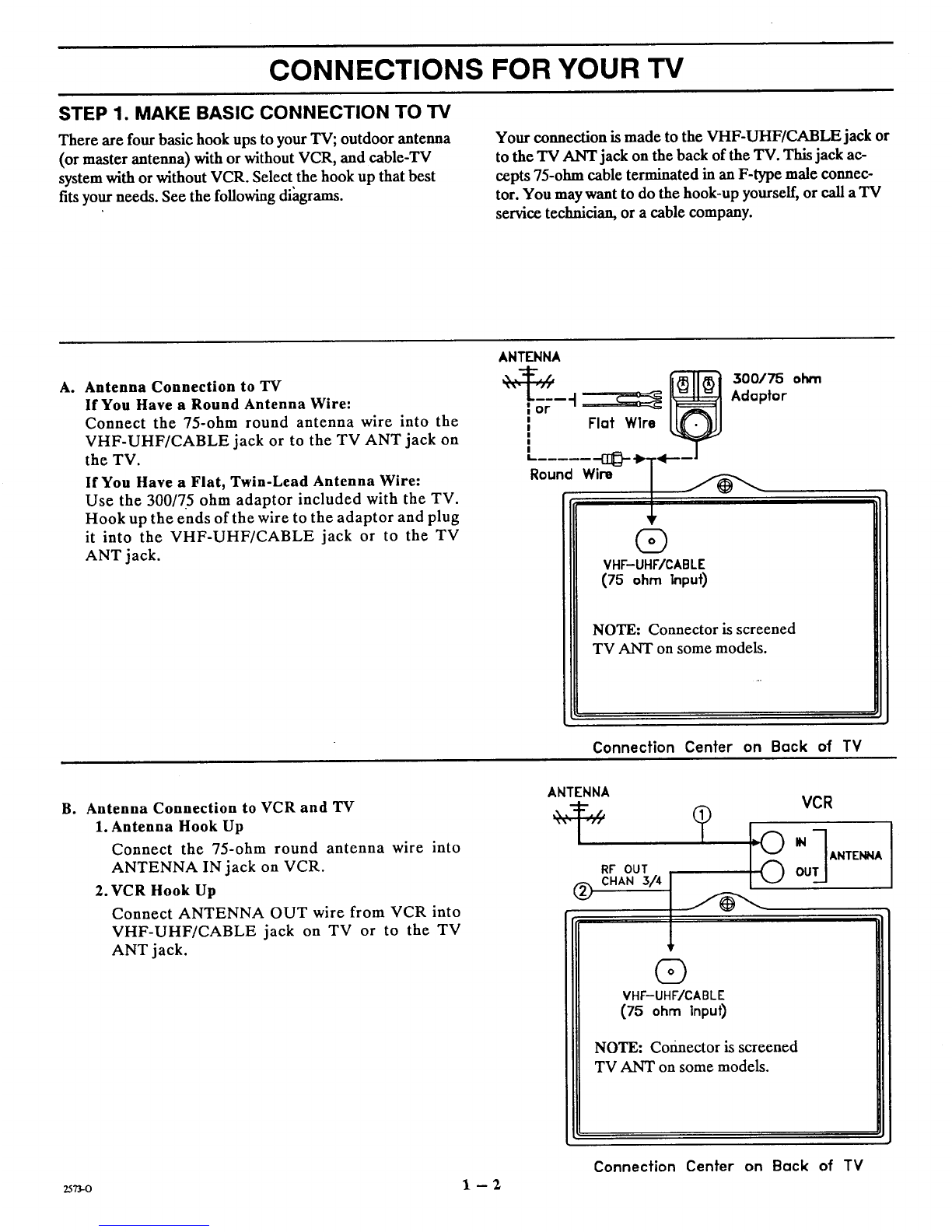

CONNECTIONS FOR YOUR TV

STEP 1, MAKE BASIC CONNECTION TO TV

There are four basic hook ups to your TV; outdoor antenna

(or master antenna) with or without VCR, and cable-TV

system with or without VCR. Select the hook up that best

fits your needs. See the following diagrams.

Your connection is made to the VHF-UHF/CABLE jack or

to the "IV ANT jack on the back of the TV. This jack ac-

cepts 75-ohm cable terminated in an F-type male connec-

tor. You may want to do the hook-up yourself, or call a TV

service technician, or a cable company.

A. Antenna Connection to TV

If You Have a Round Antenna Wire:

Connect the 75-ohm round antenna wire into the

VI-IF-UHF/CABLE jack or to the TV ANT jack on

the TV.

If You Have a Flat, Twin-Lead Antenna Wire:

Use the 300/7.5 ohm adaptor included with the TV.

Hook up the ends of the wire to the adaptor and plug

it into the VHF-UHF/CABLE jack or to the TV

ANT jack.

ANTENNA

-I _ 1_ Adaptor

or - _II-A-----ll

i Flat Wlre _

L..... _[i_ _T_I-----J

Round Wire /

VHF-UHF/CABLE

(75 ohm |npuf)

NOTE: Connector is screened

TV ANT on some models.

Connection Center on Back of TV

Bo Antenna Connection to VCR and TV

1. Antenna Hook Up

Connect the 75-ohm round antenna wire into

ANTENNA IN jack on VCR.

2.VCR Hook Up

Connect ANTENNA OUT wire from VCR into

VHF-UHF/CABLE jack on TV or to the TV

ANT jack.

ANTENNA VCR

RF OUT OUT I

CHAN 3/4

VHF-UHF/CABLE

(75 ohm Inpul)

NOTE: Connector is screened

TV ANT on some models.

Connection Center on Back of TV

2573-o I --2

CONNECTIONS FOR YOUR TV

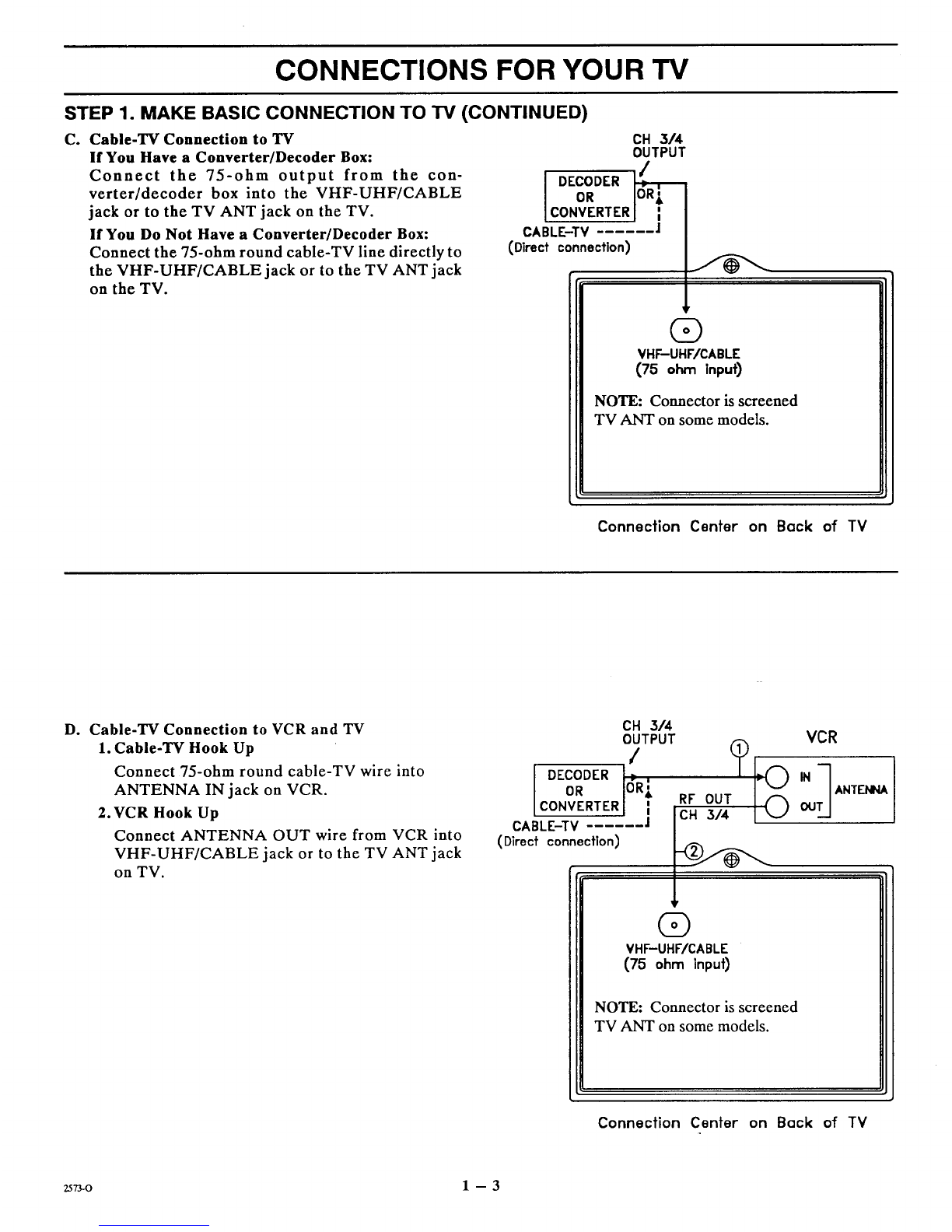

STEP 1. MAKE BASIC CONNECTION TO "iV (CONTINUED)

C. Cable-TV Connection to TV

If You Have a Converter/Decoder Box:

Connect the 75-ohm output from the con-

verter/decoder box into the VHF-UHF/CABLE

jack or to the TV ANT jack on the TV.

If You Do Not Have a Converter/Decoder Box:

Connect the 75-ohm round cable-TV line directly to

the VHF-UHF/CABLE jack or to the TV ANT jack

on the TV.

CH 3/4

OUTPUT

CONVERTERI j

CABLE-TV

(Direct connection)

VHF-UHF/CABLE

(75 ohm input)

NOTE: Connector is screened

TV ANT on some models.

Connection Center on Back of TV

D° Cable-TV Connection to VCR and TV

1. Cable-TV Hook Up

Connect 75-ohm round cable-TV wire into

ANTENNA IN jack on VCR.

2. VCR Hook Up

Connect ANTENNA OUT wire from VCR into

VHF-UHF/CABLE jack or to the TV ANT jack

on TV.

ODER

ERTER

CABLE-TV

(Direct bectlon)

CH 3/4

OUTPUT VCR

/_[ ,© .-

dRi ,NT_

RF OUT

: cH3/4 -O our_

(S)

VHF-UHF/CABLE

(75 ohm Input)

NOTE: Connector is screened

TV ANT on some models.

Connection Confer on Back of TV

:573-0 1-3

CONNECTIONS FOR YOUR TV

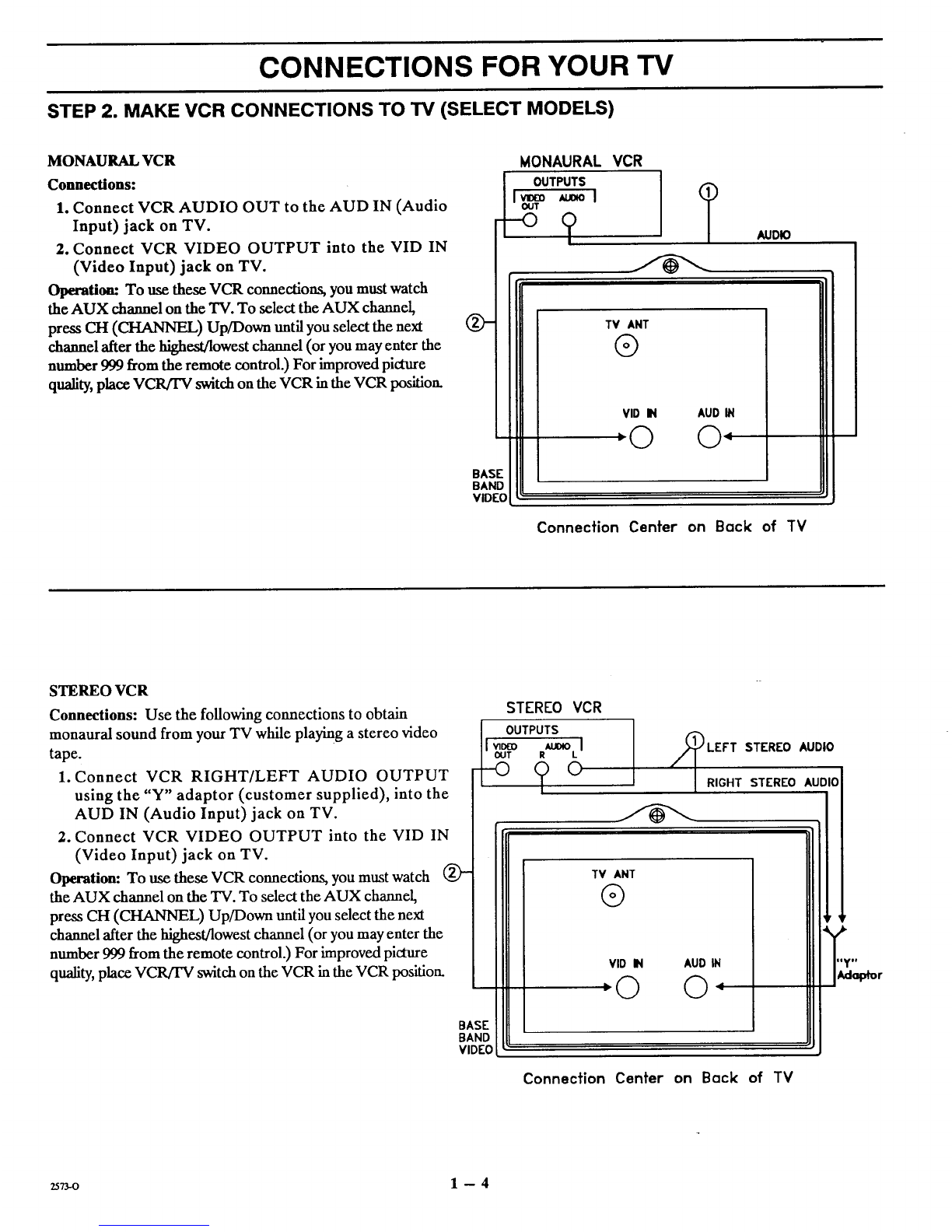

STEP 2. MAKE VCR CONNECTIONS TO TV (SELECT MODELS)

MONAURALVCR

Connections:

1. Connect VCR AUDIO OUT to the AUD IN (Audio

Input) jack on TV.

2. Connect VCR VIDEO OUTPUT into the VID IN

(Video Input) jack on TV.

Operation:To use these VCR connections, youmustwatch

the AUX channel onthe TV. To select the AUX channel,

press CH (CHANNEL) Up/Down untilyou select the next

channel after the highest/lowest channel (or you may enter the

number 999 from the remote control.) For improved picture

quality, place VCR/TV switch on the VCR in the VCR position.

BASE

BAND

VIDEO

MONAURAL VCR

3UTPUTS

AUDIO

TV ANT

VID IN AUD IN

..©

Connection Center on Back of TV

STEREO VCR

Connections: Use the following connections to obtain

monaural sound from your TV while playing a stereo video

tape.

1. Connect VCR RIGHT/LEFT AUDIO OUTPUT

using the "Y" adaptor (customer supplied), into the

AUD IN (Audio Input) jack on TV.

2. Connect VCR VIDEO OUTPUT into the VID IN

(Video Input) jack on TV.

Operation.- To use these VCR connections, you must watch

the AUX channel on the TV. To select the AUX channel,

press CH (CHANNEL) Up/Down until you select the next

channel after the highest/lowest channel (or you may enter the

number 999 from the remote control.) For improved pi_ure

quality, place VCR/TV switch on the VCR in the VCR position.

LEFT STEREO AUDIO

RIGHT STEREO AUDIO

BASE

BAND

VIDEO

TV ANT

VID IN AUD IN

Connection Center on Back of TV

ZST_O 1 -- 4

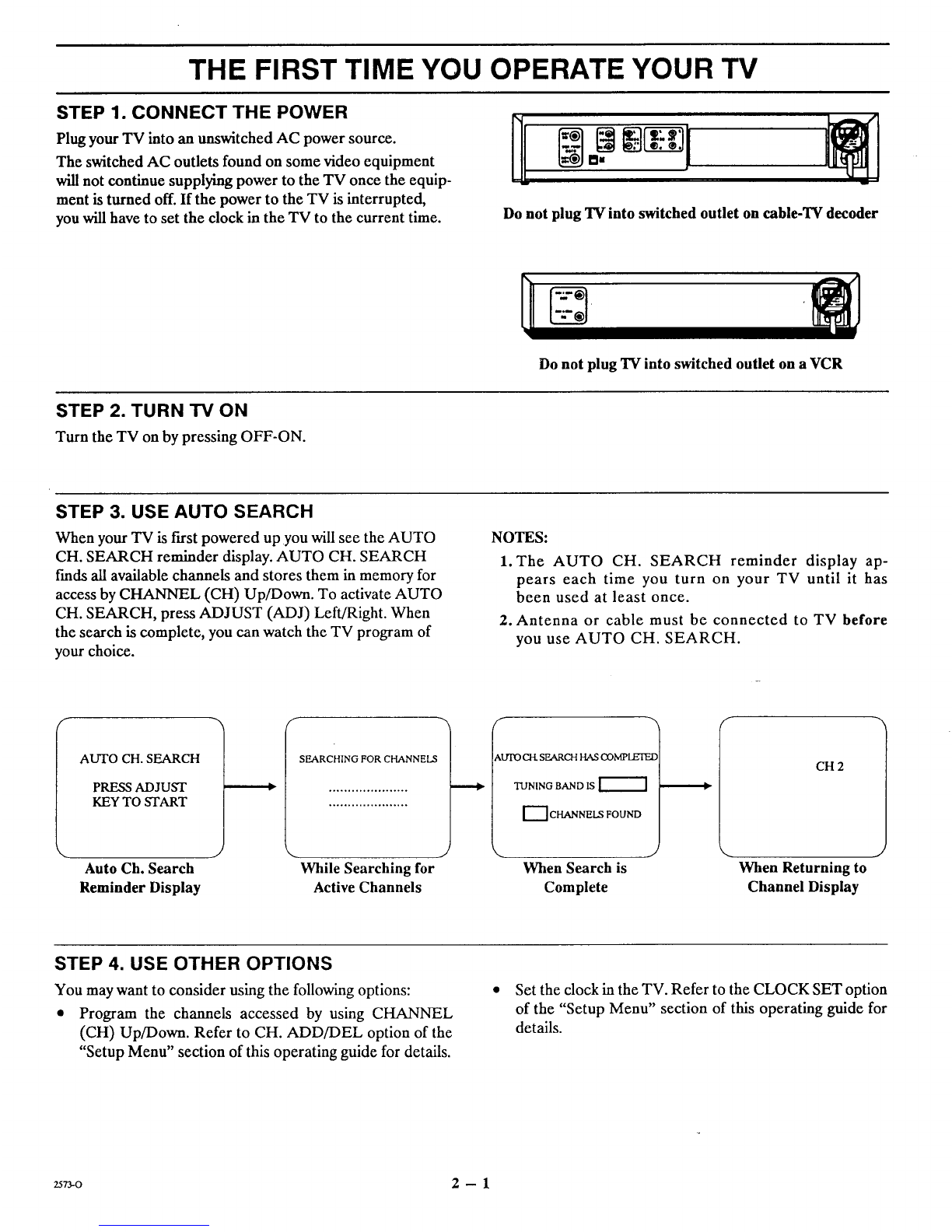

THE FIRST TIME YOU OPERATE YOUR TV

STEP 1. CONNECT THE POWER

Plug your TV into an unswitched AC power source. Ill

The switched AC outlets found on some video equipment t[

will not continue supplying power to the TV once the equip-

ment is turned off. If the power to the TV is interrupted,

you will have to set the clock in the TV to the current time. Do not plug TV into switched outlet on cable-TV decoder

Do not plug TV into switched outlet on a VCR

STEP 2. TURN TV ON

Turn the TV on by pressing OFF-ON.

STEP 3. USE AUTO SEARCH

When your TV is first powered up you will see the AUTO

CH. SEARCH reminder display. AUTO CH. SEARCH

finds all available channels and stores them in memory for

access by CHANNEL (CH) Up/Down. To activate AUTO

CH. SEARCH, press ADJUST (ADJ) Left/Right. When

the search is complete, you can watch the TV program of

your choice.

NOTES:

1. The AUTO CH. SEARCH reminder display ap-

pears each time you turn on your TV until it has

been used at least once.

2. Antenna or cable must be connected to TV before

you use AUTO CH. SEARCH.

AUTO CH. SEARCH

PRESS ADJUST

KEY TO START

Auto Ch. Search

Reminder Display

SEARCHING FOR CHANNELS

.....................

While Searching for

Active Channels

_LrI'O CH. SEARCH HAS COMPLEIEE

TUNING BAND IS

'"--]CHANNELS FOUND

When Search is

Complete

CH2

When Returning to

Channel Display

STEP 4. USE OTHER OPTIONS

You may want to consider using the following options:

*Program the channels accessed by using CHANNEL

(CH) Up/Down. Refer to CH. ADD/DEL option of the

"Setup Menu" section of this operating guide for details.

Set the clock in the TV. Refer to the CLOCK SET option

of the "Setup Menu" section of this operating guide for

details.

2573-o 2 -- 1

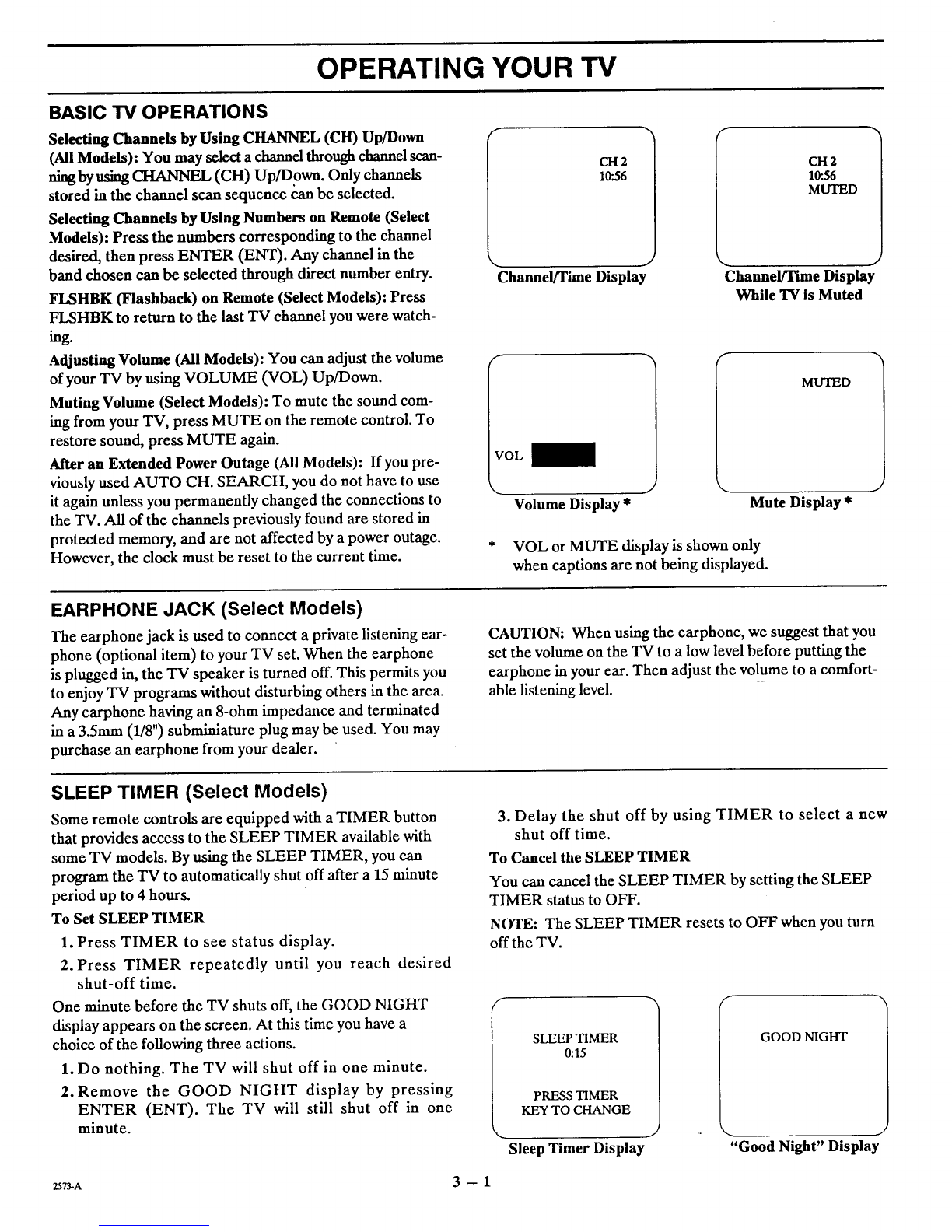

OPERATING YOUR TV

BASIC TV OPERATIONS

Selecting Channels by Using CHANNEL (CH) Up/Down

(All Models): You may select a channel through channel scan-

ningby using CHANNEL (CH) Up/Down. Only channels

stored in the channel scan sequence can be selected.

Selecting Channels by Using Numbers on Remote (Select

Models): Press the numbers corresponding to the channel

desired, then press ENTER (ENT). Any channel in the

band chosen can be selected through direct number entry.

FLSHBK (Flashback) on Remote (Select Models): Press

FI._HBK to return to the last TV channel you were watch-

ing.

Adjusting Volume (All Models): You can adjust the volume

of your TV by using VOLUME (VOL) Up/Down.

Muting Volume (Select Models): To mute the sound com-

ing from your TV, press MUTE on the remote control. To

restore sound, press MUTE again.

After an Extended Power Outage (All Models): If you pre-

viously used AUTO CH. SEARCH, you do not have to use

it again unless you permanently changed the connections to

the TV. All of the channels previously found are stored in

protected memory, and are not affected by a power outage.

However, the clock must be reset to the current time.

CH2

10".56

Channel/Time Display

CH2

10:56

MUTED

Channe!/Time Display

While TV is Muted

VOL

Volume Display * J

MUTED

Mute Display *

* VOL or MUTE display is shown only

when captions are not being displayed.

EARPHONE JACK (Select Models)

The earphone jack is used to connect a private listening ear-

phone (optional item) to your TV set. When the earphone

is plugged in, the TV speaker is turned off. This permits you

to enjoy TV programs without disturbing others in the area.

Any earphone having an 8-ohm impedance and terminated

in a 3.5mm (1/8") subminiature plug may be used. You may

purchase an earphone from your dealer.

CAUTION: When using the earphone, we suggest that you

set the volume on the TV to a low level before putting the

earphone in your ear. Then adjust the volume to a comfort-

able listening level.

SLEEP TIMER (Select Models)

Some remote controls are equipped with a TIMER button

that provides access to the SLEEP TIMER available with

some TV models. By using the SLEEP TIMER, you can

program the TV to automatically shut off after a 15 minute

period up to 4 hours.

To Set SLEEP TIMER

1. Press TIMER to see status display.

2. Press TIMER repeatedly until you reach desired

shut-off time.

One minute before the TV shuts off, the GOOD NIGHT

display appears on the screen. At this time you have a

choice of the following three actions.

1. Do nothing. The TV will shut off in one minute.

2. Remove the GOOD NIGHT display by pressing

ENTER (ENT). The TV will still shut off in one

minute.

3. Delay the shut off by using TIMER to select a new

shut off time.

To Cancel the SLEEP TIMER

You can cancel the SLEEP TIMER by setting the SLEEP

TIMER status to OFF.

NOTE: The SLEEP TIMER resets to OFF when you turn

off the TV.

SLEEP TIMER

0:15

PRESS TIMER

KEY TO CHANGE

Sleep Timer Display

GOOD NIGHT

"Good Night" Display

Z57_A 3 -- 1

GETTING TO KNOW YOUR TV

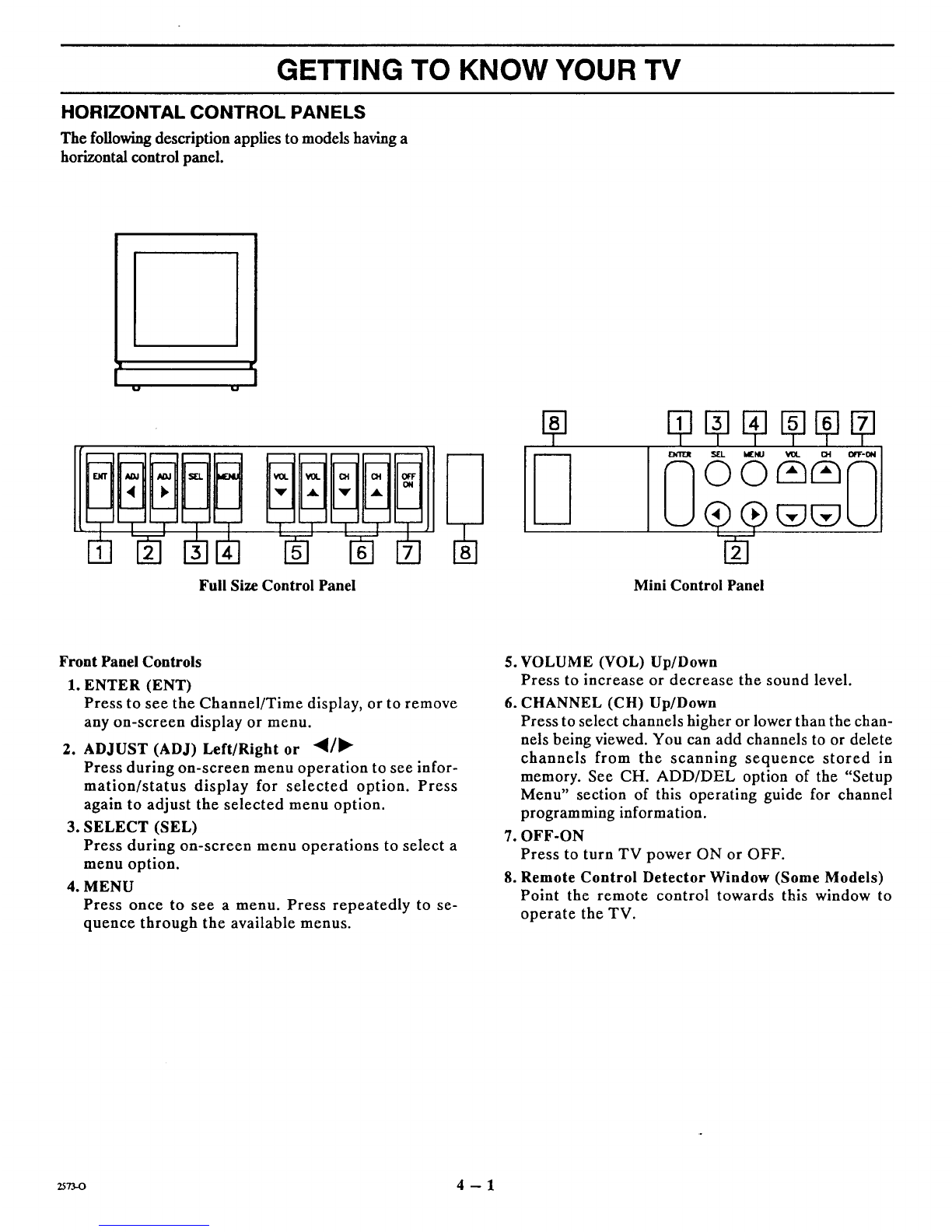

HORIZONTAL CONTROL PANELS

The following description applies to models having a

horizontal control panel.

_ _A. _ rot. _t. _ OI OFF

III I I I II

E " ,-I D

Full Size Control Panel

IOoor &

Mini Control Panel

Front Panel Controls

1. ENTER (ENT)

Press to see the Channel/Time display, or to remove

any on-screen display or menu.

2. ADJUST (ADJ) Left/Right or 4/II_

Press during on-screen menu operation to see infor-

mation/status display for selected option. Press

again to adjust the selected menu option.

3. SELECT (SEL)

Press during on-screen menu operations to select a

menu option.

4. MENU

Press once to see a menu. Press repeatedly to se-

quence through the available menus.

5. VOLUME (VOL) Up/Down

Press to increase or decrease the sound level.

6. CHANNEL (CH) Up/Down

Press to select channels higher or lower than the chan-

nels being viewed. You can add channels to or delete

channels from the scanning sequence stored in

memory. See CH. ADD/DEL option of the "Setup

Menu" section of this operating guide for channel

programming information.

7. OFF-ON

Press to turn TV power ON or OFF.

8. Remote Control Detector Window (Some Models)

Point the remote control towards this window to

operate the TV.

2573-0 4 -- 1

GETTINGTO KNOW YOUR TV "

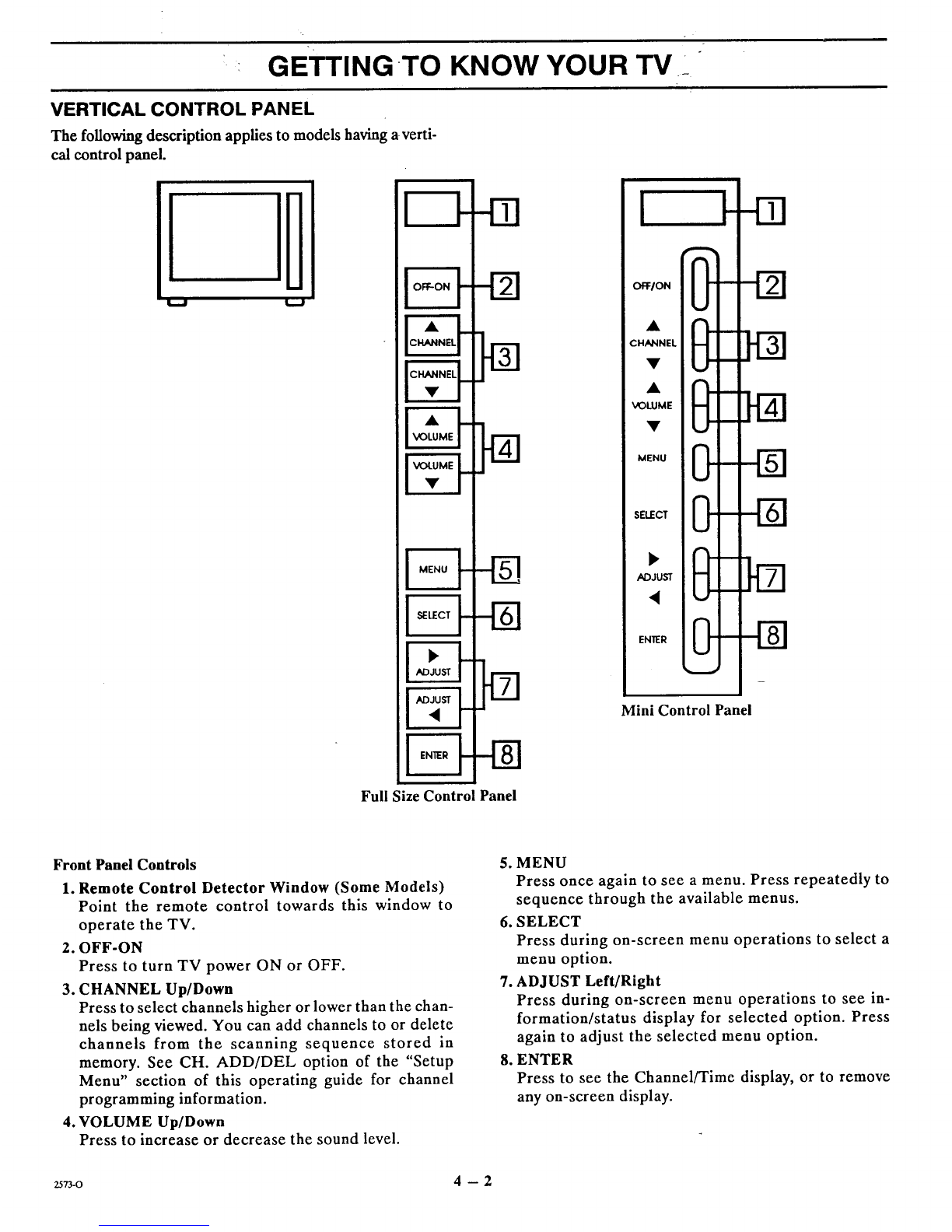

VERTICAL CONTROL PANEL

The following description applies to models having averti-

cal control panel.

Full Size Control Panel

OR:ION

CHANNEL

_OLUME --

SELECT

ADJUST --

ENTER

Mini Control Panel

Front Panel Controls

1. Remote Control Detector Window (Some Models)

Point the remote control towards this window to

operate the TV.

2. OFF-ON

Press to turn TV power ON or OFF.

3. CHANNEL Up/Down

Press to select channels higher or lower than the chan-

nels being viewed. You can add channels to or delete

channels from the scanning sequence stored in

memory. See CH. ADD/DEL option of the "Setup

Menu" section of this operating guide for channel

programming information.

4. VOLUME Up/Down

Press to increase or decrease the sound level.

5. MENU

Press once again to see a menu. Press repeatedly to

sequence through the available menus.

6. SELECT

Press during on-screen menu operations to select a

menu option.

7. ADJUST Left/Right

Press during on-screen menu operations to see in-

formation/status display for selected option. Press

again to adjust the selected menu option.

8. ENTER

Press to see the Channel/Time display, or to remove

any on-screen display.

2s73-o 4 -- 2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Zenith TV

Zenith

Zenith SYSTEM 3 Series Manuel d'utilisation et d'entretien

Zenith

Zenith C27A25 Manuel utilisateur

Zenith

Zenith H19F34DT Series Manuel utilisateur

Zenith

Zenith IQB42P97G Manuel d'utilisation et d'entretien

Zenith

Zenith P42W46X - 42" Flat Panel Plasma ED-Ready TV Guide d'installation

Zenith

Zenith Sentry 2 Series Manuel d'utilisation et d'entretien

Zenith

Zenith B13A03D Manuel d'utilisation et d'entretien

Zenith

Zenith Concierge H27D35DT Guide de dépannage

Zenith

Zenith H27D55DT Manuel utilisateur

Zenith

Zenith C27V36 Manuel d'utilisation et d'entretien

Zenith

Zenith C32A26 Manuel d'utilisation et d'entretien

Zenith

Zenith SMS1324S Manuel d'utilisation et d'entretien

Zenith

Zenith L20V26 Seroes Manuel utilisateur

Zenith

Zenith H19F34DT Series Manuel d'utilisation et d'entretien

Zenith

Zenith HealthView H20F50DT Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SLS2751Y and warranty Manuel d'utilisation et d'entretien

Zenith

Zenith SR2786 Manuel d'utilisation et d'entretien

Zenith

Zenith SYSTEM 3 Series Manuel d'utilisation et d'entretien

Zenith

Zenith H25F36DT Series Manuel d'utilisation et d'entretien

Zenith

Zenith A27B41 Manuel utilisateur

Zenith

Zenith Z42PT320 Mode d'emploi

Zenith

Zenith SENTRY 2 SY2765 Manuel d'utilisation et d'entretien

Zenith

Zenith Z52SZ80 Manuel utilisateur

Zenith

Zenith Sentry 2 Series Manuel d'utilisation et d'entretien

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
