Zenith Sentry 2 Series Manuel d'utilisation et d'entretien

THE QUALITY GOES IN BEFORE THE NAMEi30_:S'ON ®

i t I I11 i I[111 I i ] ] i i ................

iAviso para nuestros

clientes de habla hispana:

consulte la informacibn que

aparece al final de este manual!

SmNT

Direct-View Color TV

MTS Stereo Audio

recycled paper

50 percent Return the Product Registration

Card, and your TV could be freer

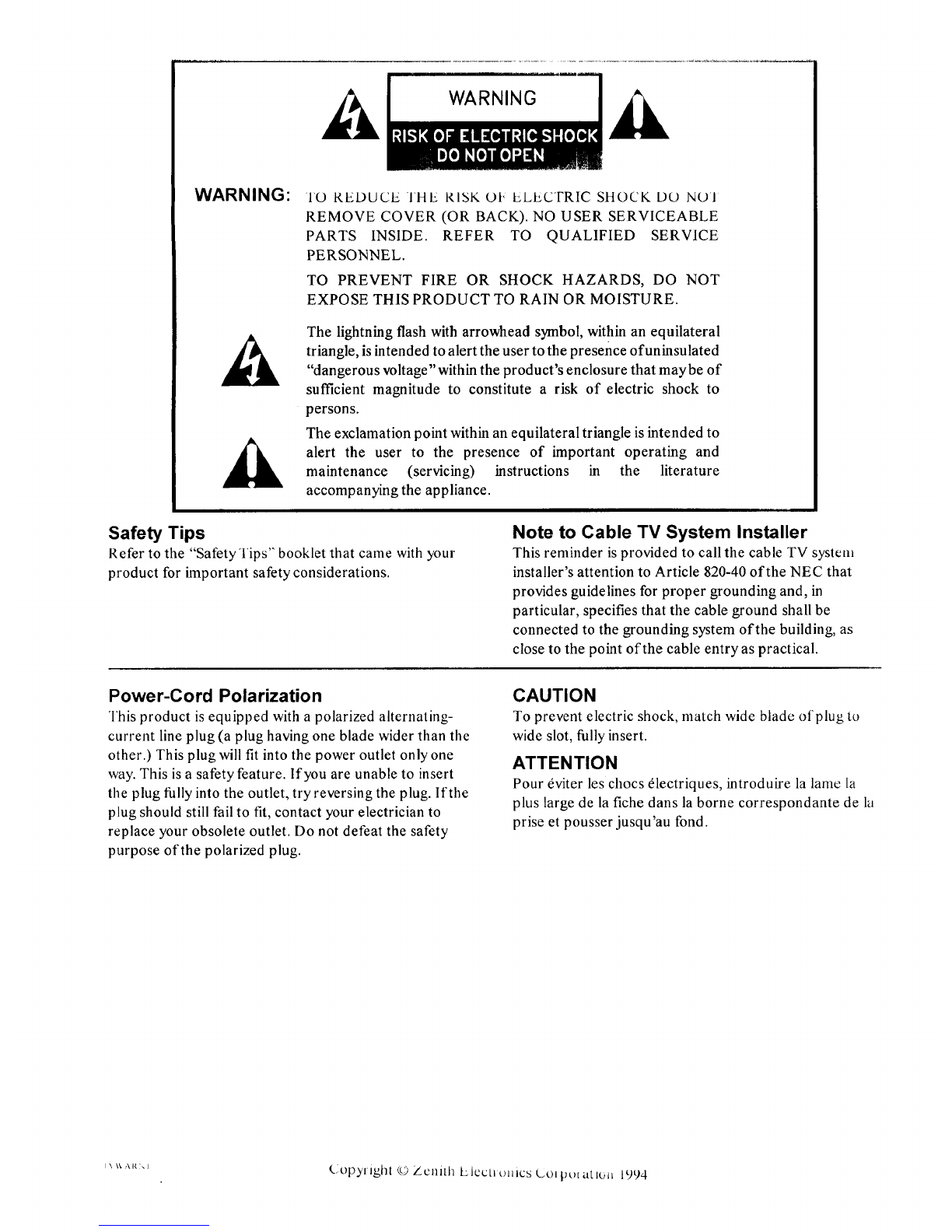

WARNING: TO REDUCE THE RISK OI' ELECTRIC SHOCK DO NO1

REMOVE COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER TO QUALIFIED SERVICE

PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT

EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence ofuninsulated

"dangerous voltage" within the product's enclosure that maybe of

sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

Safety Tips

Refer to the "Safety Tips" booklet that came with you="

product for hnportant safety considerations.

Note to Cable TV System Installer

This reminder is provided to call the cable TV system

installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of the cable entry as practical.

Power-Cord Polarization

This product is equipped with a polarized alternating-

current line plug (a plug having one blade wider than the

other.) This plug will fit into the power outlet only one

way. This is a safety feature. If you are unable to insert

the plug fully into the outlet, try reversing the plug. If the

plug should still fail to fit, contact your electrician to

replace your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

CAUTION

To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION

Pour _viter les chocs _lectriques, introduh'e la lame la

plus large de la fiche dans la borne correspondante de la

prise et pousser jusqu'au fond.

'_ _"\'<:'_ Copyright _ Zcnith [: lcctl traits _ol pot atlo_t 1994

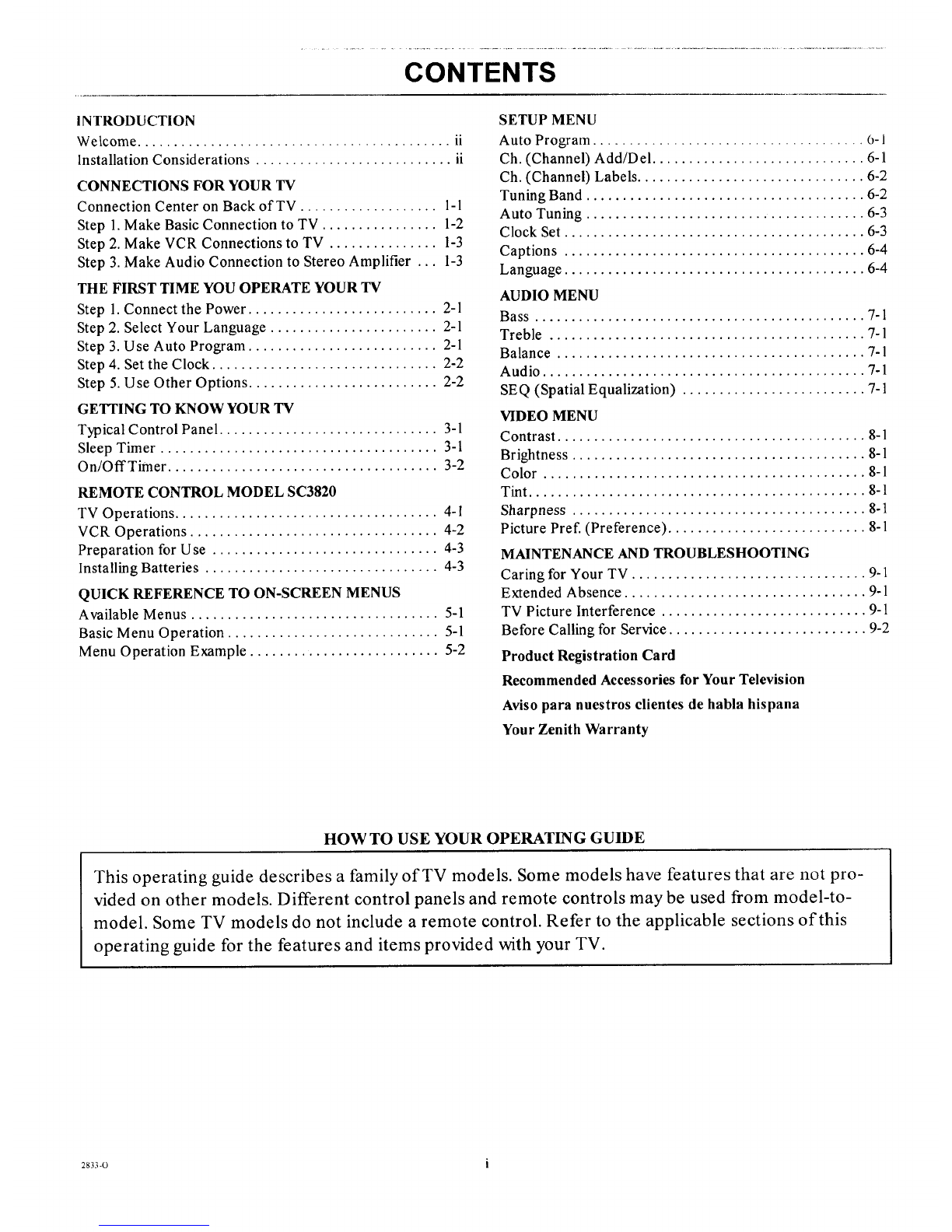

CONTENTS

INTRODUCTION

Welcome ........................................... ii

Installation Considerations ........................... ii

CONNECTIONS FOR YOUR TV

Connection Center on Back of TV ................... 1-1

Step 1.Make Basic Connection to TV ................ 1-2

Step 2. Make VCR Connections to TV ............... 1-3

Step 3. Make Audio Connection to Stereo Amplifier ... 1-3

THE FIRST TIME YOU OPERATE YOUR TV

Step 1.Connect the Power .......................... 2-1

Step 2. Select Your Language ....................... 2-1

Step 3. Use Auto Program .......................... 2-1

Step 4. Set the Clock ............................... 2-2

Step 5. Use Other Options .......................... 2-2

GETTING TO KNOW YOUR TV

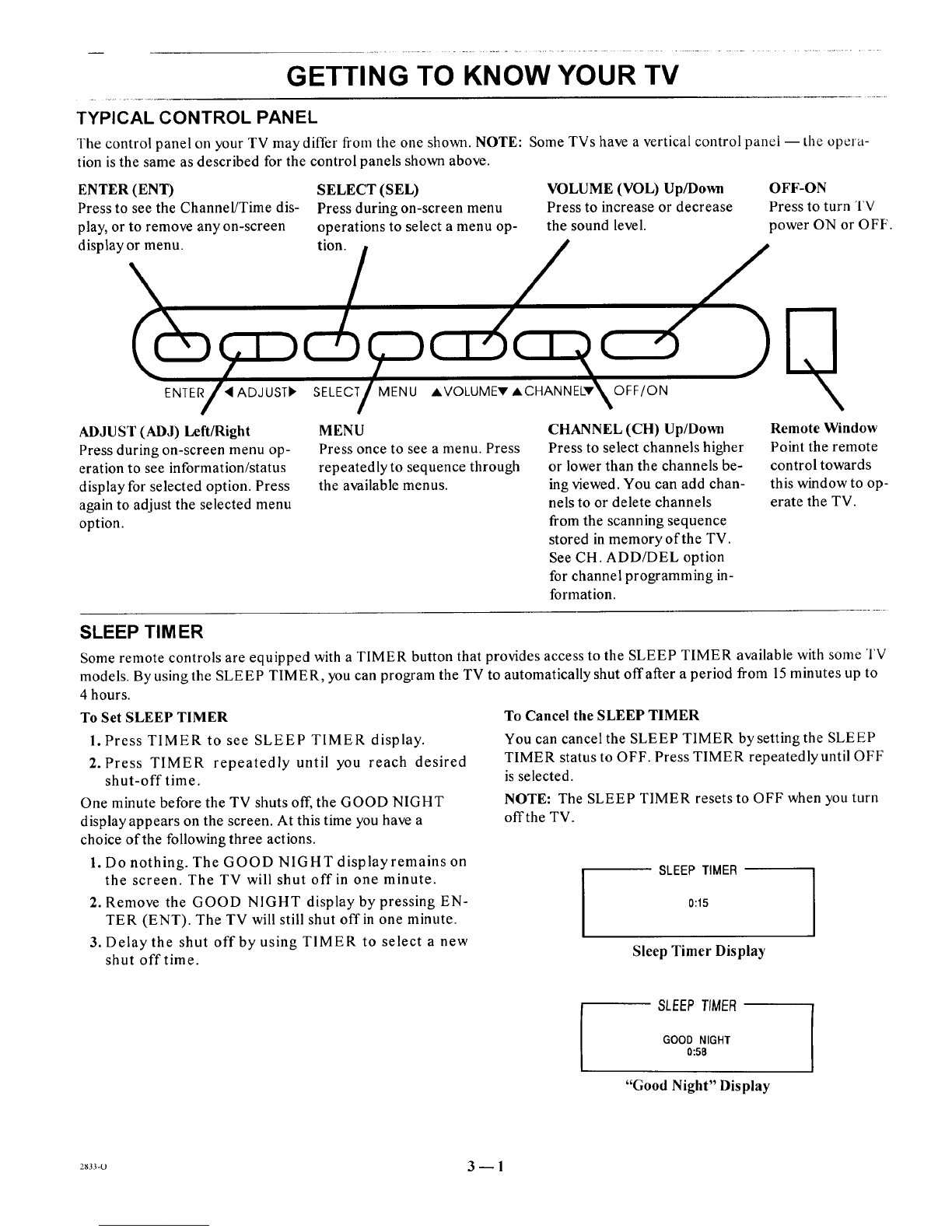

Typical Control Panel .............................. 3-1

Sleep Timer ...................................... 3-1

On/OffTimer ..................................... 3-2

REMOTE CONTROL MODEL SC3820

TV Operations .................................... 4-I

VCR Operations .................................. 4-2

Preparation for Use ............................... 4-3

Installing Batteries ................................ 4-3

QUICK REFERENCE TO ON-SCREEN MENUS

Available Menus .................................. 5-1

Basic Menu Operation ............................. 5-1

Menu Operation Example .......................... 5-2

SETUP MENU

Auto Program ..................................... O-1

Ch. (Channel) Add/Del ............................. 6-1

Ch. (Channel) Labels ............................... 6-2

Tuning Band ...................................... 6-2

Auto Tuning ...................................... 6-3

Clock Set ......................................... 6-3

Captions ......................................... 6-4

Language ......................................... 6-4

AUDIO MENU

Bass ............................................. 7-1

Treble ........................................... 7-1

Balance .......................................... 7-1

Audio ............................................ 7-1

SEQ (Spatial Equalization) ......................... 7-1

VIDEO MENU

Contrast .......................................... 8-1

Brightness ........................................ 8-1

Color ............................................ 8-1

Tint .............................................. 8-1

Sharpness ........................................ 8-1

Picture Pref. (Preference) ........................... 8-1

MAINTENANCE AND TROUBLESHOOTING

Caring for Your TV ................................ 9-1

Extended Absence ................................. 9-1

TV Picture Interference ............................ 9-1

Before Calling for Service ........................... 9-2

Product Registration Card

Recommended Accessories for Your Television

Aviso para nuestros clientes de habla hispana

Your Zenith Warranty

HOW TO USE YOUR OPERATING GUIDE

This operating guide describes a family of TV models. Some models have features that are not pro-

vided on other models. Different control panels and remote controls may be used from model-to-

model. Some TV models do not include a remote control. Refer to the applicable sections of this

operating guide for the features and items provided with your TV.

2833-0 i

INTRODUCTION

WELC OM E

Welcome into the tamily of Zenith Color Television owners.

This guide provides instructions on how to operate your

new TV. It is supplemented by a booklet containing Safety

Tips. We urge you to read these publications carefully so

that you will receive full enjoyment from your new Zenith

TV for many years to come.

Your new Zenith TV has been designed and built to give

you the very best in quality, features and performance.

There are many regional Zenith distributors and thousands

of distributor-approved Zenith service centers throughout

the U.S., Canada and Mexico who can attend promptly and

effectively to ordinary service needs.

If you should have an unusual performance or service problem

that cannot be satisfactorily resolved by your distributor-

approved Zenith service center, contact the regional Zenith

distributor in your area, or write:

Zenith Electronics Corporation

Customer Service Department

1900 N. Austin Avenue

Chicago, Illinois 60639-5079

Telephone: (312) 745-5152

Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

Send the model number, serial number, and date of pur-

chase or original installation, with a full explanation of the

problem and the service history. We will welcome the op-

portunity to look into your specific question or problem and

to be of assistance in resolving it promptly.

The model and serial numbers of your new TV are located on

the back of the TV cabinet. For your future convenience and

protection, we suggest that you record these numbers here:

Model No.

Serial No.

INSTALLATION CONSIDERATIONS

Before you install your TV...

Ventilation -- Proper ventilation keeps your TV

running cool. Air circulates through perfora-

tions in the back and bottom of the cabinet. Do

not block these vents or you will shorten the life

of your TV.

Power Source -- Your TV is designed to operate

on normal household current, 120 volt 60 Hertz

AC. Do not attempt to operate it on DC current.

Power Cord -- Your power cord has a polar-

ized plug as required by Underwriters' Labora-

tories. It has one regular blade and one wide

blade and fits only one way into a standard elec-

trical outlet. If the blades will not enter either

way, your outlet is very old and non-

standard. A new outlet should be installed by a

qualified electrician.

Safe Operation m Your TV is manufactured

and tested with your safety in mind. However,

unusual stress caused by dropping or mishan-

dling, exposure to flood, fire, rain or moisture,

or accidental spilling of liquids into the TV, can

result in potential electrical shock or fire haz-

ards. If this happens, have your TV checked by

a service technician before using it again.

Please read and observe each safety point in the "Safety

Tips" folder when installing and using your TV.

FIXED PATTERN DISPLAY CAUTION --If you use your

TV for video games, teletext or other fixed displays, avoid

setting the BRIGHTNESS control for an excessively bright

picture. A bright, fixed pattern, if used for long periods of

time, can result in a permanent imprint on the TV picture

tube. You can reduce this possibility by alternating the use

of the fixed pattern display with normal TV picture viewing,

byturning down the CONTRAST control for sustained

fixed pattern use, and byturning off the fixed pattern dis-

play when not in use.

t_0wl_Lt:z ii

CONNECTIONS FOR YOUR TV

CONNECTION CENTER ON BACK OF TV

VHF-UHF/CABLE

Jacks for 75-ohm antenna-type

connections to your TV. Attach

your antenna, cable-TV line or

VCR to this jack.

_..........L._

RIGHT LEFT

VARIABLE AUDIO

OUTPUT

EXT

SPEAKER

VHF-UHF/CABLE AUX INPUT

VIDEO AUDIO

000

RIGHT LEFT

VARIABLE AUDIO OU'I'-

PUT

Standard phono jacks for out-

put to the customer's audio am-

plifier.

SPEAKER EXT/INT

EXT: TV's speakers are off.

INT: TV's speakers are on.

AUX (Auxiliary) INPUT

Jacks for baseband audio and

video (A/V) input from a VCR or

other component.

:.'J2-u I -- 1

CONNECTIONS FOR YOUR TV

STEP 1. MAKE BASIC CONNECTION TO TV

Select the hook up that best fits your needs.

Antenna Antenna

I300 ohm

Round Wire_)--_" 4-- J

75ohm

RIGHT LEF0

VARIABLE AUDIO

i OUTPUT

SPEAKER

VHF-UHF/CABLE AUX INPUT

VIDEO AUDIO

©©©

RIGHT LEFT

Video

Channel3/4

VCR

VHF-UHF/CABLE

RIGHT LEFT

©©

VARIABLE AUDIO

OUTPUT

SPEAKER

AUX INPUT

VIDEO AUDIO

000

RIGHT LEFT

Antenna Direct to TV Antenna Through VCR to TV

Video

Channel 3/4

O VHF UHF/CABLE

OUTPUT

SPEAKER

AUX INPUT

VIDEO AUDIO

©©©

RIGHT LEFT

Video

Channel3/4

Converter _ ][_t _ 'q I

'OR _ ""_ , , I -- /AN1ENNA

co.,°-.v_. _., vl_,._o_l-O_

(DlrectConnectlon IChannel ' _

,o_o0_ 1_,4-- _-_ RIGHT LEFT

VHF-UHF/CABLE

VARIABLE AUDIO

OUTPUT

SPEAKER

AUXINPUT

VIDEO AUDIO

©©©

RIGHT LEFT

Cable Direct to TV Cable Through VCR to TV

27s2-o 1-- 2

CONNECTIONS FOR YOUR TV

STEP 2. MAKE VCR CONNECTIONS TO TV

If you have a stereo VCR, you must make the A/V connec-

tions shown below in order to hear stereo sound while playing

a tape.

To use these VCR connections, you must watch the AUX

channel on the TV. To select the AUX channel, press CHAN-

NEL (CH) Up/Down until you select the next channel after

the highest/lowest channel.

RIGHT

VHF-UHF/CABLE

OUTPUT

SPEAKER

AUX INPUT

VIDEO AUDIO

000

STEP 3. MAKE AUDIO CONNECTION TO STEREO AMPLIFIER

Using an External Amplifier with Speakers While the

TV's Speakers are OFF.

1. Place the SPEAKER EXT/INT switch on the TV in the

1NT position (TV's speakers are ON).

2. Turn the TV ON. Increase the volume level of the TV

until the sound just starts to distort (sound bad).

3. Place the SPEAKER EXT/INT switch on the TV in the

EXT position (TV's speakers are OFF).

4. Turn the external audio amplifier ON. Adjust the vol-

ume level of the audio amplifier for the highest level

you will need for your listening pleasure.

5. Adjust the volume level of the TV for the normal

listening level as heard through the speakers of your

audio amplifier.

Using an External Amplifier with Speakers While the

TV's Speakers are ON.

1. Place the SPEAKER EXT/INT switch on the TV in the

INT position (TV's speakers are ON).

2. Turn the TV ON. Increase the volume level of the TV

until the sound just starts to distort (sound bad).

3. Turn the external audio amplifier ON. Adjust the vol-

ume level of the audio amplifier for the highest level

you will need for your listening pleasure.

4. Adjust the volume level of the TV for the normal listening

level as heard through the speakers of the TV.

NOTE: If the volume of the internal TV speakers is set too

low, you may hear undesirable noises through the speakers

connected to your audio amplifier.

VHF-UHF/CABLE

Panel on Backof I

Stereo Amplifier

VARIABLE AUDIO

OUTPUT

SPEAKER

AUX INPUT

VIDEO AUDIO

©©©

RIGHT LEFT

I I

To External

Speakers

2732-0 1 --3

THE FIRST TIME YOU OPERATE YOUR TV

STEP 1. CONNECT THE POWER r_

A.Plug your TV into an unswitched AC power source. ]1[

B.Turn the TV on by pressing OFF-ON.

w |

Do not plug TV into switched outlet on a

VCR or cable-TV decoder

STEP 2. SELECT YOUR LANGUAGE

Select the language for the on-screen menus. Your options

are English (ENGLISH), Spanish (ESPAI_OL) or French

(FRAN(_AIS). The word LANGUAGE always appears in

English no matter which language is chosen.

1. Press MENU repeatedly on the remote control until

the SETUP MENU is shown.

2. Press SELECT (SEL) to highlight LANGUAGE then

use ADJUST (ADJ) to choose the desired language.

3. Press ENTER (ENT) to return to normal viewing.

SETUP MENU

AUTO PROGRAM

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

CLOCK SET

CAPTIONS

LANGUAGE ENGLISH

Setup Menu with Language Highlighted

STEP 3. USE AUTO PROGRAM

When your TV is first powered up you will see the AUTO

PROGRAM reminder display. AUTO PROGRAM finds

all available channels and stores them in the memory of the

TV. To activate AUTO PROGRAM, press ADJUST

(ADJ) Left/Right.

SETUP MENU

-_ AUTO PROGRAM

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

CLOCK SET

CAPTIONS

LANGUAGE

START

Setup Menu with Auto Program Highlighted

DETERMINING TUNING BAND TUNING BAND IS

CH [_] IS FOUND

Determining Tuning Band Searching for Channels

AUTO PROGRAM HAS COMPLETED

TUNING BAND IS

1_1 CHANNELS FOUND

Search is Completed

CH 13

STEREO

Normal Operation

2732-0 2_1

THE FIRST TIME YOU OPERATE YOUR TV

STEP 4. SET THE CLOCK

I. Press MENU repeatedly until the SETUP MENU is

shown.

2. Press SELECT (SEL) to highlight CLOCK SET.

3. Use numbered buttons on remote control to enter

correct time and TIMER to select AM or PM. You

can also use ADJUST (ADJ) Left/Right to advance

the 24 hour clock.

4. Press ENTER (ENT) to start the clock and return

to normal viewing.

SETUP MENU

AUTO PROGRAM

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

CLOCK SET

CAPTIONS

LANGUAGE

10:30 AM

Setup Menu with Clock Set Highlighted

STEP 5. USE OTHER OPTIONS

You may want to consider using the following options:

• Program the channels accessed by using CHANNEL

(CH) Up/Down. Refer to the CH. (Channel) ADD/DEL

option for details.

Assign labels (such as ABC) to appear in the Channel/

Time display. Refer to the CH. (Channel) LABELS op-

tion for details.

_,_ 2--2

GETTING TO KNOW YOUR TV

TYPICAL CONTROL PANEL

The control panel on your TV may differ from the one shown. NOTE: Some TVs have a vertical control panel -- the opera-

tion is the same as described for the control panels shown above.

ENTER (ENT)

Press to see the Channel/Time dis-

play, or to remove any on-screen

display or menu.

SELECT (SEL)

Press during on-screen menu

operations to select a menu op-

tion.

VOLUME (VOL) Up/Down

Press to increase or decrease

the sound level.

OFF-ON

Press to turn TV

power ON or OFF'.

ENTER 4ADJUSTI* SELECT MENU AVOLUMEv OFF/ON

ADJUST (ADJ) Left/Right

Press during on-screen menu op-

eration to see information/status

display for selected option. Press

again to adjust the selected menu

option.

Press once to see a menu. Press

repeatedly to sequence through

the available menus.

CHANNEL (CH) Up/Down

Press to select channels higher

or lower than the channels be-

ing viewed. You can add chan-

nels to or delete channels

from the scanning sequence

stored in memory of the TV.

See CH. ADD/DEL option

for channel programming in-

formation.

Remote Window

Point the remote

control towards

this window to op-

erate the TV.

SLEEP TIMER

Some remote controls are equipped with a TIMER button that provides access to the SLEEP TIMER available with some TV

models. By using the SLEEP TIMER, you can program the TV to automatically shut offafter a period from 15 minutes up to

4 hours.

To Set SLEEP TIMER To Cancel the SLEEP TIMER

1. Press TIMER to see SLEEP TIMER display.

2. Press TIMER repeatedly until you reach desired

shut-off time.

One minute before the TV shuts off, the GOOD NIGHT

display appears on the screen. At this time you have a

choice of the following three actions.

1. Do nothing. The GOOD NIGHT display remains on

the screen. The TV will shut off in one minute.

2. Remove the GOOD NIGHT display by pressing EN-

TER (ENT). The TV will still shut off in one minute.

3. Delay the shut offby using TIMER to select a new

shut offtime.

You can cancel the SLEEP TIMER by setting the SLEEP

TIMER status to OFF. Press TIMER repeatedlyuntil OFF

is selected.

NOTE: The SLEEP TIMER resets to OFF when you turn

offthe TV.

SLEEP TIMER

0:15

Sleep Timer Display

SLEEP TIMER

GOOD NIGHT

0:58

"Good Night" Display

2833-O 3-- 1

Autres manuels pour Sentry 2 Series

Table des matières

Autres manuels Zenith TV

Zenith

Zenith D27B48T Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SLS2751Y and warranty Manuel d'utilisation et d'entretien

Zenith

Zenith B27B40Z Manuel d'utilisation et d'entretien

Zenith

Zenith 19M20 Manuel utilisateur

Zenith

Zenith A60M91W Series Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SY2551 Manuel d'utilisation et d'entretien

Zenith

Zenith L23W36 - 23" Widescreen Flat-Panel HD-Ready LCD... Manuel utilisateur

Zenith

Zenith 28T925 Manuel utilisateur

Zenith

Zenith H25F36DT Series Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SR2053 Manuel d'utilisation et d'entretien

Zenith

Zenith C27A24T Manuel d'utilisation et d'entretien

Zenith

Zenith H25E37Y Manuel d'utilisation et d'entretien

Zenith

Zenith C32V23 - 32" Flat-Screen Integrated HDTV Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SY2768 Manuel d'utilisation et d'entretien

Zenith

Zenith D27D53T Manuel d'utilisation et d'entretien

Zenith

Zenith Sentry 2 Series Manuel d'utilisation et d'entretien

Zenith

Zenith MTS Stereo Color TV Manuel d'utilisation et d'entretien

Zenith

Zenith B27A34Z Manuel utilisateur

Zenith

Zenith SYSTEM 3 Series Manuel d'utilisation et d'entretien

Zenith

Zenith INTEQ SRX3253 Manuel d'utilisation et d'entretien

Zenith

Zenith A27B41 Manuel utilisateur

Zenith

Zenith SENTRY 2 SLS1931S Manuel d'utilisation et d'entretien

Zenith

Zenith SL2784BT and Manuel d'utilisation et d'entretien

Zenith

Zenith H24F36DT Series Manuel d'utilisation et d'entretien

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
