Zenith A13P01D Manuel utilisateur

machine numbers H13P01L A13P01D

operating guide / warranty

Thanks for

choosing Zenith!

hookup directory

index

your on-screen menus

page 20

page 11

page 3

RECORD YOUR MODEL NUMBER

(Now, while you can see it)

The model and serial number of your new TV are located

on the back of the TV cabinet. For your future convenience,

we suggest that your record these numbers here:

MODEL NO.____________________________________

SERIAL NO.____________________________________

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: To Prevent Electric Shock, Match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu’au fond.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code

(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures: •Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation.

Unauthorized modification could void the user’s authority to operate this product.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

3369-o

INSTALLATION GETTING STARTED PAGE 3

This page will

direct you to

which page

to go to for

proper hook-

up of your

Entertainment

Machine.

Hook-Up Directory

IMPORTANT!!

Use this page to decide where you need to begin your setup. First, find the line

below that best describes what you want to do, then go to that page number.

Note: Design and specifications are subject to change without prior notice.

Cable TV

wall jack

Cable box

Out

Cable TV

wall jack

Cable box

Out

If you are using an antenna and no other equipment, go to . . . . . . . . . . . . . . . . . . page 4

If you have cable and no other equipment, go to . . . . . . . . . . . . . . . . . . . . . . . . . page 5

If you are using an antenna and have a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . page 6

If you have cable and a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

Antenna only

Cable only

Antenna with VCR

Cable and VCR

Hook up your Entertainment

Machine, see diagrams at right.

Plug in your TV. Do not plug it

into a switched outlet.

Go to page 8 to Auto Program

your Entertainment Machine.

3367-O

INSTALLATION STANDARDPAGE 4

Connect an

antenna

to your

Entertainment

Machine.

Hook Up Your Antenna to the TV

Mini glossary

75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire

sticking through the middle, and it screws onto the threaded jack on the back of your TV.

300 TO 75 OHM ADAPTER A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an

inch long with two screws on one end and a round opening with a wire sticking out on the other end.

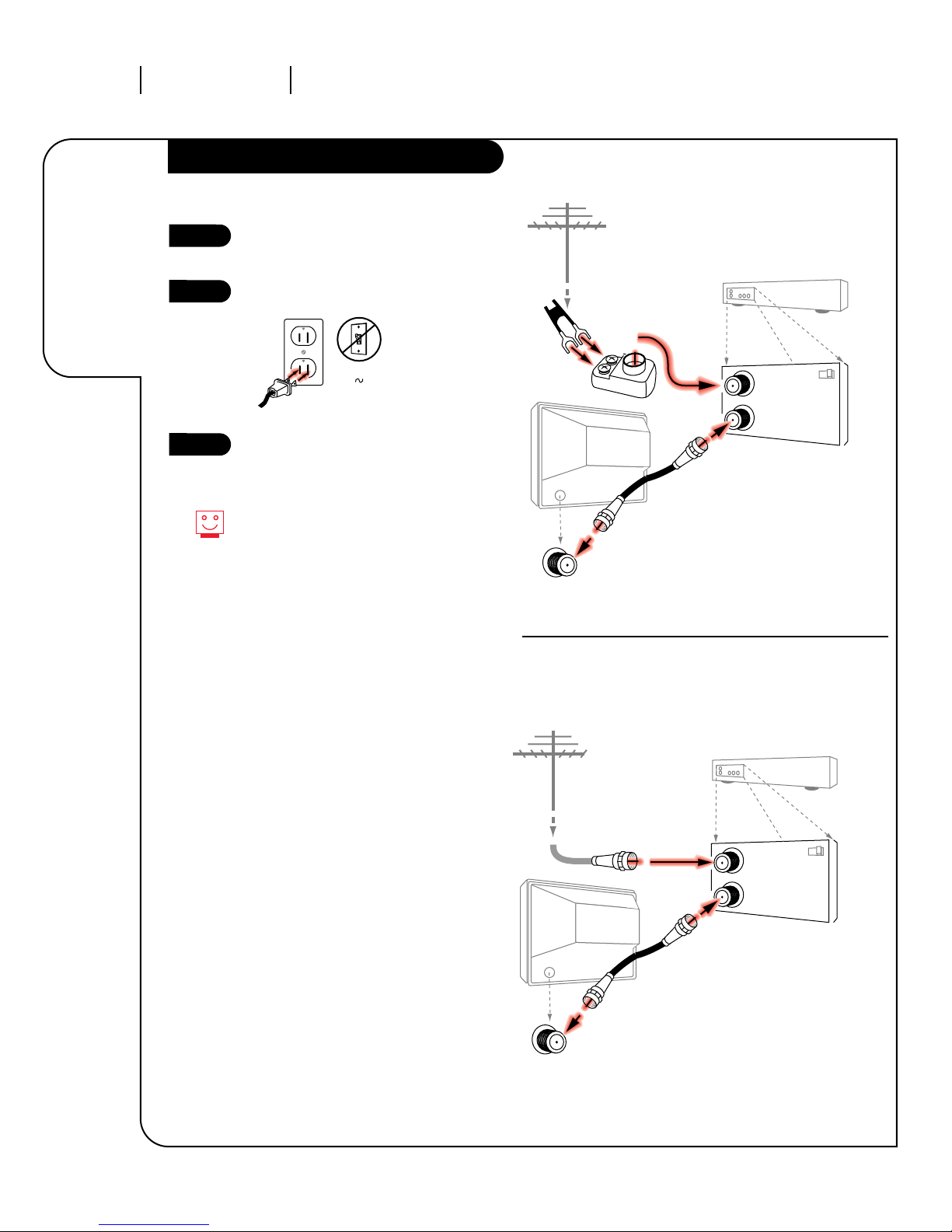

RF coaxial wire

(75ohm)

Antenna

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

TV back panel

(expanded view)

Antenna

Typical TV back

If you have a 75 ohm RF cable,

then you don’t need any adapters!

Remember, when screwing RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

A 300 to 75 ohm adapter is not

included with your Zenith

Entertainment Machine.

120V

60Hz

Flat-Wire Antenna to Adapter

Round Antenna Wire

Hook up your Entertainment

Machine, see diagrams at right.

Plug in your TV. Do not plug it

into a switched outlet.

Go to page 8 to Auto Program

your Entertainment Machine.

3367-O

INSTALLATION STANDARD PAGE 5

Connect

cable to your

Entertainment

Machine.

Mini glossary

CABLE SERVICE The wire that supplies all your cable TV (CATV) stations.

Hook Up Your Cable (CATV) to the TV

Cable TV

wall jack

Cable TV

wall jack

Cable box

Out

RF coaxial wire (75ohm)

3 4

output

switch

Antenna

Typical TV back

If you’re using a cable box, leave your

TV on channel 3 or 4 and use your

cable box to change channels.

Remember, when screwing RF cables

onto jacks, clockwise tightens, and

counterclockwise loosens.

If you’re using a cable box, Auto-

Program (page 8) might only find the

channel your cable service is on

(usually channel 3 or 4). Don’t worry,

that’s all you need!

Without Cable Box

With Cable Box

120V

60Hz

Hook up your Entertainment

Machine, see diagrams at right.

Plug in your TV. Do not plug it

into a switched outlet.

Go to page 8 to Auto Program

your Entertainment Machine.

Flat wire

(300ohm)

Antenna

300/75 ohm

Adapter

Cables not included with TV

Over-the-Air

Antenna

Out

3 4

VCR back

VCR back AV panel

Output

switch

Typical

TV back

Out

3 4

VCR back

VCR back AV panel

Output

switch

Typical

TV back

3369-o

INSTALLATION STANDARDPAGE 6

Connect your

off-air

antenna and

VCR to your

Entertainment

Machine.

Hook Up Antenna and VCR to the TV

Remember, when screwing

RF cables onto jacks, clockwise

tightens, and counterclockwise

loosens.

Flat-Wire Antenna to Adapter

Round Cable to VCR

120V

60Hz

Hook up your Entertainment

Machine, see diagrams at right.

Plug in your TV. Do not plug it

into a switched outlet.

Go to page 8 to Auto Program

your Entertainment Machine.

Cable TV

wall jack

Cable TV

wall jack

Round wire (75ohm)

Cable box

Out 3 4

output

switch

Out

3 4

VCR back

VCR back AV panel

Output

switch

Typical

TV back

Out

3 4

VCR back

VCR back AV panel

Output

switch

Typical

TV back

3369-o

INSTALLATION STANDARD PAGE 7

Connect

your VCR and

Cable to your

Entertainment

Machine.

Hook Up Your Cable (CATV) and VCR

Leave your VCR and your television

tuned to channel three and use

the cable box to change channels.

Remember, when screwing in RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

Cable Service

Cable Service with a Cable Box

120V

60Hz

3367-O

OPERATION CHANNEL SEARCHPAGE 8

Use Auto

Program to

automatically

find and

store the

channels

available in

your area.

Auto Program

Press MENU repeatedly until the

Setup Menu appears.

Using the UP/DOWN (CHANNEL,

SELECT) arrows, select Auto

Program.

Press the RIGHT (VOLUME,

ADJUST) arrow to access the Auto

Program Menu.

Using the UP/DOWN (CHANNEL,

SELECT) arrows, select Off Air

Antenna, or Cable TV if you sub-

scribe to cable service

Press the RIGHT VOLUME, ADJUST

arrow to begin the channel

search.

Press ENTER to return to

TV viewing.

Mini glossary

AUTOPROGRAM Auto Program is how your Entertainment Machine finds all the channels available in your area and stores them into memory.

Typical TV Front Panel Controls

ENTER MENU VOL

ADJ

SEL POWER

ENTER MENU VOL

ADJ

SEL POWER

3/5 2/4

3367-o

OPERATION FRONT PANEL CONTROLS PAGE 9

Front Panel Controls

Press MENU repeatedly to access

either the Setup or Video menu.

Choose the function you wish to

change using the CH Up/Down

buttons. The Channel buttons act

as a “Select” (Up/Down) func-

tion.

The VOLUME buttons act as an

“adjustment” (Left/Right) func-

tion. Use the VOLUME buttons to

make changes or adjustments.

Press ENTER to remove menus.

Menus disappear after five seconds.

To get them back, push the MENU

button again. Your front panel

may differ from this one but its

functions are the same.

When using the on-screen menus, the buttons on

the front panel correspond are as follows:

VOLUME = Adjust Up/Down

CHANNEL = Select Up/Down

Press POWER to turn TV on/off.

How to use

your front

button panel

to operate

the menus.

ENTER MENU VOL

ADJ

SEL POWER

ENTER MENU VOL

ADJ

SEL POWER

Typical TV Front Panel Controls

3367-O

Introducing

you to the

basics of your

Entertainment

Machine.

Basic Television Operation

OPERATION TV FUNDAMENTALSPAGE 10

Basic Operation

You’ll have to use the Channel Down/Up buttons to access it. Pressing

the ENTER key will show the Channel/Time display; the currently select-

ed channel and the time set on the Clock.

CHANNEL DOWN/UP buttons: Use to change the channels. Auto Program

will have found all channels available to you.

VOLUME Down/Up buttons: To adjust the volume level, use the volume

Down/Up buttons.

Channel/Time

Channel Changing

Audio

CH 12

10:55

Channel

Time

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Zenith TV

Zenith

Zenith SENTRY 2 SY2500 Manuel d'utilisation et d'entretien

Zenith

Zenith B25A10Z Mode d’emploi

Zenith

Zenith A32B41 Manuel utilisateur

Zenith

Zenith HealthView H20J55DT Manuel utilisateur

Zenith

Zenith C27A24T Manuel d'utilisation et d'entretien

Zenith

Zenith INTEQ IQ5270 Manuel d'utilisation et d'entretien

Zenith

Zenith Concierge H20E35DT Manuel d'utilisation et d'entretien

Zenith

Zenith H20H52DT Guide d'installation

Zenith

Zenith Presentation H25C46DT Manuel d'utilisation et d'entretien

Zenith

Zenith A25B33W Manuel utilisateur

Zenith

Zenith Sentry 2 SY2518 Manuel d'utilisation et d'entretien

Zenith

Zenith SYSTEM 3 Series Manuel d'utilisation et d'entretien

Zenith

Zenith A27B41 Manuel utilisateur

Zenith

Zenith SENTRY 2 SM2726EW Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SY2768 Manuel d'utilisation et d'entretien

Zenith

Zenith A50M84WOM Manuel d'utilisation et d'entretien

Zenith

Zenith A27B33 Manuel d'utilisation et d'entretien

Zenith

Zenith A25A22BT Manuel d'utilisation et d'entretien

Zenith

Zenith C27A25 Manuel utilisateur

Zenith

Zenith B25A30ZC Manuel utilisateur

Zenith

Zenith A25A76R Manuel utilisateur

Zenith

Zenith SENTRY 2 Z25A12 Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SLS9550S Manuel d'utilisation et d'entretien

Zenith

Zenith A25A11D Manuel d'utilisation et d'entretien

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
