machine numbers A27A23W A25A23W

operating guide / warranty

thanks for

choosing zenith

let’s watch your

entertainment

machine

hook up directory page 3

RECORD YOUR MODEL NUMBER

(Now, while you can see it)

The model and serial number of your new TV are located

on the back of the TV cabinet. For your future convenience,

we suggest that you record these numbers here:

MODEL NO.____________________________________

SERIAL NO.____________________________________

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

To prevent fire or shock hazards, do not expose this product to rain or moisture.

POWER CORD POLARIZATION:

CAUTION: To Prevent Electric Shock, Match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu’au fond.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code

(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures: •Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation.

Unauthorized modification could void the user’s authority to operate this product.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

3373-O

INSTALLATION GETTING STARTED PAGE 3

This page will

direct you to

which page

to go to

for proper

hook-up

of your

Entertainment

Machine.

Hook-Up Directory

IMPORTANT

Use this page to decide where you need to begin your setup. First, find the setup

option below that best describes what you want to do, then go to that page number.

Cable TV

wall jack

Cable box

Out

Cable TV

wall jack

Cable box

Out

If you are using an antenna and no other equipment, go to . . . . . . . . . . . . . . . . . . page 4

If you have cable and no other equipment, go to . . . . . . . . . . . . . . . . . . . . . . . . . page 5

If you are using an antenna and have a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . page 6

If you have cable and a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

Antenna only

Cable only

Antenna with VCR

Cable and VCR

3373-O

INSTALLATION STANDARDPAGE 4

Connect

an off-air

antenna

to your

Entertainment

Machine.

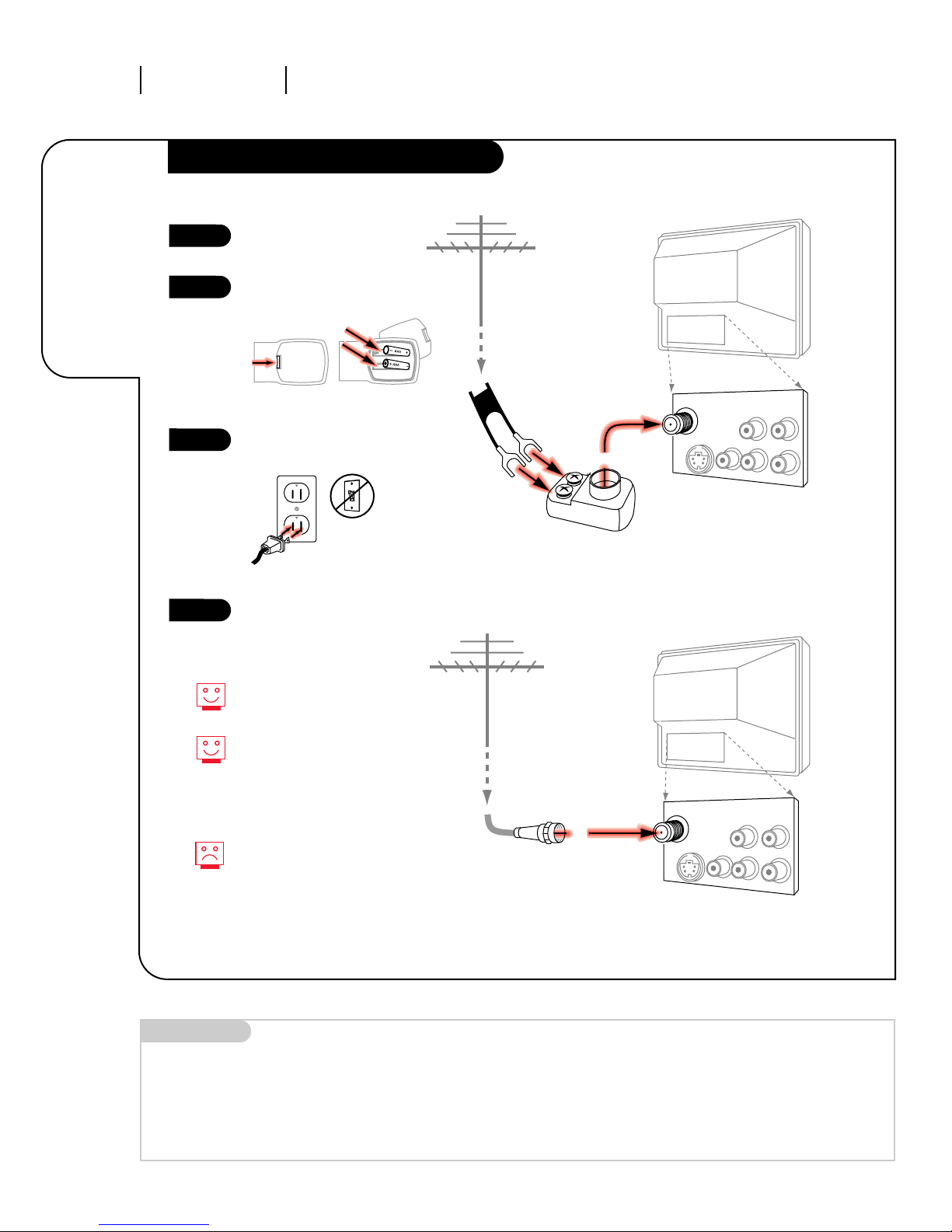

Hook Up Your Antenna to the TV

Mini glossary

75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire

sticking through the middle, and it screws onto the threaded jack on the back of your TV.

300 TO 75 OHM ADAPTER A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an inch long

with two screws on one end and a round opening with a wire sticking out on the other end.

RF coaxial wire

(75ohm)

Antenna TV back

TV back panel

(expanded view)

TV back

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

TV back panel

(expanded view)

Antenna

/Cable

Video

R-Audio L/Mono

S-Video

Variable

Audio Out

Antenna

/Cable

Video

R-Audio L/Mono

S-Video

Variable

Audio Out

If you have a 75 ohm RF cable,

then you don’t need any adapters!

Remember, when screwing RF

cables into jacks, clockwise tight-

ens, and counterclockwise loosens.

A 300 to 75 ohm adapter

is not included with your Zenith

Entertainment Machine, but can be

purchased in most consumer elec-

tronics stores.

back of

remote

Hook up your Entertainment

Machine.

Remove the back of the remote

and insert two AAA batteries.

Plug in your TV into a standard

120V, 60 Hz power outlet. Do not

plug it into a switched outlet.

Go to page 11 to Auto Program

your Entertainment Machine.

Hook up your Entertainment

Machine.

Remove the back of the remote

and insert two AAA batteries.

Plug in your TV into a standard

120V, 60 Hz power outlet. Do not

plug it into a switched outlet.

Go to page 11 to Auto Program

your Entertainment Machine.

3373-O

INSTALLATION STANDARD PAGE 5

Connect cable

to your

Entertainment

Machine.

Hook Up Your Cable (CATV) to the TV

Cable TV

wall jack

Cable TV

wall jack

Cable box

Out

RF coaxial wire (75ohm)

3 4

output

switch

TV back panel

(expanded view)

TV back

TV back panel

(expanded view)

TV back

Antenna

/Cable

Video

R-Audio L/Mono

S-Video

Variable

Audio Out

Antenna

/Cable

Video

R-Audio L/Mono

S-Video

Variable

Audio Out

If you’re using a cable box, leave

your TV on channel 3 or 4 and use

your cable box to change channels.

Remember, when screwing RF cables

into jacks, clockwise tightens, and

counterclockwise loosens.

If you’re using a cable box, Auto

Program might only find the chan-

nel your cable service is on (usually

channel 3 or 4). Don’t worry, that’s

all you need!

Mini glossary

CABLE SERVICE The wire that supplies all your cable TV (CATV) stations.

back of

remote

Hook up your Entertainment

Machine.

Remove the back of the remote

and insert two AAA batteries.

Plug in your TV into a standard

120V, 60 Hz power outlet. Do not

plug it into a switched outlet.

Go to page 11 to Auto Program

your Entertainment Machine.

INSTALLATION STANDARDPAGE 6

Connect an

off-air

antenna and

VCR to your

Entertainment

Machine.

Hook Up Your Antenna and VCR to TV

3373-O

TV back panel

(expanded view)

TV back

Out

VCR back

VCR back AV panel

Out

VCR back

VCR back AV panel

TV back panel

(expanded view)

TV back

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

Round wire (75ohm)

Antenna

RF coaxial wire

(75ohm)

not included

with TV

RF coaxial wire

(75ohm)

not included

with TV

A/V cables

not included

A/V cables

not included

with TV

Antenna

/Cable

Video

R-Audio L/Mono

S-Video

Variable

Audio Out

Antenna

/Cable

Video

R-Audio L/Mono

S-Video

Variable

Audio Out

output

switch

Audio Video

Output

output

switch

Audio Video

Output

3 4

back of

remote

Remember, when screwing

RF cables into jacks, clockwise

tightens, and counterclockwise

loosens.

No A/V cables are included with

your Zenith Entertainment

Machine, but can be purchased in

most consumer electronics stores.

Without A/V cables, most VCRs

will not play videocassettes in

stereo sound.

Hook up your Entertainment

Machine.

Remove the back of the remote

and insert two AAA batteries.

Plug in your TV into a standard

120V, 60 Hz power outlet. Do not

plug it into a switched outlet.

Go to page 11 to Auto Program

your Entertainment Machine.

3373-O

INSTALLATION STANDARD PAGE 7

Connect your

VCR and Cable

to your

Entertainment

Machine.

Hook Up Your VCR and Cable (CATV)

Leave your VCR and your television

tuned to channel 3 and use the

cable box to change channels.

Remember, when screwing in RF

cables into jacks, clockwise tight-

ens, and counterclockwise loosens.

No A/V cables are included with

your Zenith Entertainment

Machine, but can be purchased in

most consumer electronics stores.

Without A/V cables, most VCRs will

not play videocassettes in stereo

sound.

back of

remote

Cable TV

wall jack

Round wire (75ohm)

TV back panel

(expanded view)

TV back

Out

VCR back

VCR back AV panel

RF coaxial wire

(75ohm)

not included

with TV

A/V cables

not included

with TV

3 4

output

switch

Antenna

/Cable

Video

R-Audio L/Mono

S-Video

Variable

Audio Out

Audio Video

Output

Cable TV

wall jack

Round wire (75ohm)

Cable box

Out

VCR back

VCR back AV panel

TV back panel

(expanded view)

TV back RF coaxial wire

(75ohm)

not included

with TV

3 4

output

switch

A/V cables

not included

with TV

Antenna

/Cable

Video

R-Audio L/Mono

S-Video

Variable

Audio Out

Audio Video

Output

3 4

output

switch

3373-O

INSTALLATION CUSTOMPAGE 8

Audio Out

S-Video Out

3 4

VCR back

VCR back AV panel

TV back panel

(expanded view)

TV back

S-Video cable

not included

with TV

output

switch

A/V cables

not included

with TV

Antenna

/Cable

Video

R-Audio L/Mono

S-Video

Variable

Audio Out

R L

Hook Up Your TV to a Super VHS VCR

Locate the S-Video Out to TV jack

on the back of your S-VHS VCR.

Connect the S-VHS cable directly

to this jack.

Connect this cable from

the Out to TV jack to the S-Video

jack on the back of your TV.

Find the audio and S-Video jacks

on the back of your S-VHS player,

and connect them following the

instructions provided with your

equipment.

Connecting an

S-VHS player

to your

Entertainment

Machine.

No S-Video cables are included

with your Zenith Entertainment

Machine, but can be purchased in

most consumer electronics stores..

Without an S-Video cable, you will

not receive the Super VHS quality

picture.

INSTALLATION CUSTOM PAGE 9

3373-O

Audio Input

Stereo back

Stereo Amplifier back panel

TV back panel

(expanded view)

TV back

A/V cables

not included

with TV

Antenna

/Cable

Video

R-Audio L/Mono

S-Video

Variable

Audio Out

Locate the Left/Right Audio

Input jacks on the back of your

stereo amplifier. Connect the

Audio cables directly to these

jacks.

Connect these cables from

the Left/Right Variable Audio

Input jacks to the corresponding

Left/Right Audio Out jacks on the

back of your TV.

Hook Up Your TV to Stereo Amplifier

Connecting your

Entertainment

Machine to a

stereo amplifier.

For added audio depth and clarity, you

can connect your Entertainment Machine

to a stereo amplifier!

No Audio cables are included with

your Zenith Entertainment

Machine, but can be purchased in

most consumer electronics stores.

OPERATION BUTTON FUNCTIONS

PAGE 10

A quick list

of all the

buttons on

your remote

and what

they do.

Remote Control Button Functions

3373-O

PRG POWER

CABLE VCR AUX TV

SURF

ENTER

FLASHBK MUTE

CHANNEL

VOLUME VOLUME

123

456

REWIND FFWD

RECORD

QUIT

TV/VCR

SOURCE

PAUSE TIMER

PLAY

STOP

PRG(PROGRAM)

Used to begin

programming procedure.

FLASHBK(FLASHBACK)

Return to the last

channel viewed.

POWER

Turns TV On and Off.

MUTE

Turns sound down (Soft) or

off (Mute) while the picture

remains.

VOLUME

(LEFT/RIGHT ARROWS)

Adjusts the sound level on

your Entertainment Machine.

NUMBER KEY PAD

Key-in numbers for direct

channel tuning.

Displays on-screen menus.

Press repeatedly to cycle

through other menus.

UP/DOWN ARROW

The UP/DOWN arrows

select options.

LEFT/RIGHT ARROW

The LEFT/RIGHT arrows

adjust options.

remote control part number

MBR3447

TIMER

Displays the Sleep Timer

Menu. See page 21 for

more information.

TV/VCR SOURCE

Switches between watching

TV via the available sources,

that is ANTENNA/CABLE and

VIDEO IN.

SURF

Activates custom channel select

mode on your Entertainment

Machine. When Surf mode is

active, CHANNEL UP/DOWN keys

”Surf” through the channels

you’ve selected.

(MODES)

CABLE/VCR/AUX/TV

Selects mode of operation for

Remote Control

CHANNEL (UP/DOWN)

Cycles through available

channels.

If your remote has Night

Vision Glow-In-The-Dark

keys, it must be exposed to

light before the keys will

glow in the dark. Longer

exposure—longer glow.

Keys dedicated to VCR

functions will still operate

your VCR while the remote

is in TV mode.

Grey keys indicate that they

do not function on your

model of TV.

ENTER

Shows the Channel/Time

display. Press after channel

numbers for instant selection.

QUIT/

Escape from most Menu options and

toggle between Audio features.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Zenith TV

Zenith

Zenith Sentry 2 Series Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 Z27A11 Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SL2753S Manuel d'utilisation et d'entretien

Zenith

Zenith IQC50H94W Manuel utilisateur

Zenith

Zenith SENTRY 2 SLS2751Y and warranty Manuel d'utilisation et d'entretien

Zenith

Zenith B19A23DCOM Manuel d'utilisation et d'entretien

Zenith

Zenith Presentation H27E44DT Guide de dépannage

Zenith

Zenith SR2745 Manuel d'utilisation et d'entretien

Zenith

Zenith INTEQ IQ5270 Manuel d'utilisation et d'entretien

Zenith

Zenith SM3589BT Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SR2765 Manuel d'utilisation et d'entretien

Zenith

Zenith C27V36 Manuel d'utilisation et d'entretien

Zenith

Zenith Sentry 2 Series Manuel d'utilisation et d'entretien

Zenith

Zenith Sentry 2 Series Manuel d'utilisation et d'entretien

Zenith

Zenith Concierge H20C35DT Manuel d'utilisation et d'entretien

Zenith

Zenith SYSTEM 3 SY2738RK Manuel d'utilisation et d'entretien

Zenith

Zenith B25A30ZC Manuel utilisateur

Zenith

Zenith H13E01L Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 Z25A11 Manuel d'utilisation et d'entretien

Zenith

Zenith PV4663RK Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SMS2047W Manuel d'utilisation et d'entretien

Zenith

Zenith C32A26 Manuel d'utilisation et d'entretien

Zenith

Zenith SYSTEM 3 Series Manuel d'utilisation et d'entretien

Zenith

Zenith C32V37 Guide d'installation

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
