YSI PRO20 Manuel utilisateur

USER MANUAL

English

Pro20

Pro20i

User Manual

DOCUMENT #605597

Item #605597

Rev C, September 2016

For the latest version of this manual,

visit ysi.com

The YSI logo is a registered trademarks of YSI Incorporated.

CONTENTS

Warranty ................................................................................................i

Introduction .........................................................................................1

Getting Started ....................................................................................1

Initial Inspection.....................................................................1

Battery Installation .................................................................1

Key Pad....................................................................................2

Connecting the Sensor and Cable ......................................3

Membrane Installation...........................................................5

Run Screen..............................................................................6

Backlight .................................................................................7

Powering Off...........................................................................7

Navigation ..............................................................................7

First Power On ........................................................................8

System Setup Menu ............................................................................9

DO Local% ..............................................................................9

Last Digit Suppression (LDS) ..............................................10

One Touch Calibration (One Touch Cal)............................11

Audio ...................................................................................11

Contrast.................................................................................11

Sensor Type ..........................................................................12

Membrane Type ...................................................................12

Auto Stable ...........................................................................13

DO Units................................................................................14

Temperature Units................................................................14

Pressure Units .......................................................................15

Language..............................................................................15

Auto Shutoff..........................................................................15

Resetting the System Setup Menu to Factory Default ......15

Exiting The System Setup Menu .........................................16

Calibration .........................................................................................17

Temperature .........................................................................17

Barometer.............................................................................17

Dissolved Oxygen................................................................17

Salinity Compensation Calibration.....................................21

Taking Measurements.......................................................................22

Saving and Viewing Data..................................................................23

Saving Data...........................................................................23

Viewing and Erasing Saved Data – Data Mode .................23

Principles of Operation ....................................................................25

Care, Maintenance and Storage ......................................................26

General Maintenance ..........................................................26

Sensor Maintenance ............................................................28

Sensor Storage.....................................................................32

Troubleshooting ................................................................................33

Specifications.....................................................................................35

Accessories / Part Numbers .............................................................35

Declaration of Conformity................................................................37

Recycling ............................................................................................38

Battery Disposal ...................................................................38

Contact Information ..........................................................................39

Ordering and Technical Support........................................39

Service Information..............................................................39

WARRANTY

The YSI Pro20/Pro20i instrument is warranted for three (3) years from date

of purchase by the end user against defects in materials and workmanship,

exclusive of batteries and any damage caused by defective batteries.

Pro20/Pro20i cables are warranted for two (2) years from date of purchase

by the end user against defects in material and workmanship.

Pro20/Pro20i Polarographic sensors are warranted for one (1) year and

Galvanic sensors are warranted for six (6) months from date of purchase by

the end user against defects in material and workmanship.

Pro20/Pro20i instruments, cables & probes are warranted for 90 days

from date of purchase by the end user against defects in material and

workmanship when purchased by rental agencies for rental purposes.

Within the warranty period, YSI will repair or replace, at its sole discretion,

free of charge, any product that YSI determines to be covered by this

warranty.

To exercise this warranty, call your local YSI representative, or contact

YSI Customer Service in Yellow Springs, Ohio at +1 937 767-7241, 800-

897-4151 or visit www.ysi.com (Support tab). Send the product and proof

of purchase, transportation prepaid, to the Authorized Service Center

selected by YSI. Repair or replacement will be made and the product

returned, transportation prepaid. Repaired or replaced products are

warranted for the balance of the original warranty period, or at least 90

days from date of repair or replacement.

LIMITATION OF WARRANTY

This Warranty does not apply to any YSI product damage or failure caused

by:

1. Failure to install, operate or use the product in accordance with YSI’s

written instructions;

2. Abuse or misuse of the product;

3. Failure to maintain the product in accordance with YSI’s written

instructions or standard industry procedure;

4. Any improper repairs to the product;

5. Use by you of defective or improper components or parts in servicing

or repairing the product;

6. Modification of the product in any way not expressly authorized by YSI.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR

IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE. YSI’S LIABILITY UNDER THIS WARRANTY

IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, AND THIS

SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY DEFECTIVE

PRODUCT COVERED BY THIS WARRANTY. IN NO EVENT SHALL YSI BE

LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL

DAMAGES RESULTING FROM ANY DEFECTIVE PRODUCT COVERED BY

THIS WARRANTY.

INTRODUCTION

Thank you for purchasing the YSI Pro20/Pro20i, an instrument from the

YSI Professional Series product family. The Pro20 features user-replaceable

cables, while the Pro20i features an integral (i.e. built-in) cable. Sensors

are user-replaceable on Pro20 and Pro20i cables.

The Pro20/Pro20i features an impact resistant and waterproof (IP-

67) case, backlit display, user-selectable sensor options, internal

barometer, and a rugged, rubber over-mold case.

The Pro20/Pro20i provides valuable instructions and prompts near

the bottom of the display that will guide you through operation and

use. However, reading the entire manual is recommended for a better

understanding of the Pro20/Pro20i’s features.

GETTING STARTED

INITIAL INSPECTION

Carefully unpack the instrument and accessories and inspect for

damage. Compare received parts with items on the packing list. If

any parts or materials are damaged or missing, contact YSI Customer

Service at 800-897-4151 (+1 937 767-7241) or the authorized YSI

distributor from whom the instrument was purchased.

BATTERY INSTALLATION

The instrument requires 2 alkaline C-cell batteries. Under normal

conditions, the average battery life is 400 hours at room temperature

without using the back light. A battery symbol will blink in

the lower, left corner of the display to indicate low batteries when

approximately 1 hour of battery life remains.

To install or replace the batteries:

1. Turn the instrument off and flip over to view the battery cover

on the back.

2. Unscrew the four captive battery cover screws.

The Pro20/Pro20i can not communicate to a PC via a Pro Plus

communications saddle. Connecting the Pro20/Pro20i to a

communication saddle may cause erratic instrument behavior.

3. Remove the battery cover and remove the old batteries if

necessary.

4. Install the new batteries, ensuring correct polarity alignment

(figure 1).

5. Place the battery cover on the back of the instrument and

tighten the four screws. Do not over-tighten.

Figure 1. Pro20/Pro20i with battery cover removed.

Notice battery symbols indicating polarities.

The waterproof instrument case is sealed at the factory and

is not to be opened, except by factory-authorized service

technicians. Do not attempt to separate the two halves of the

instrument case as this may damage the instrument, break the

waterproof seal, and will void the warranty.

KEY PAD

Figure 2, Keypad

Number Key Description

1Calibrate

Press and hold for 3 seconds to calibrate.

Initiates One Touch Calibration. Opens

Calibrate menu from the run screen if

One Touch Calibration is disabled.

2Up Arrow

Use to navigate through menus, to

navigate through box options along

the bottom of the Run screen, and

to increase numerical inputs.

3Power and Backlight

Press once to turn instrument on. Press a

second time to turn backlight on. Press a

third time to turn backlight off. Press and

hold for 3 seconds to turn instrument off.

4Menu

Use to enter the System Setup

menu from the run screen.

5Enter

Press to confirm entries and selections.

6Down Arrow

Use to navigate through menus, to

navigate through box options at

the bottom of the Run screen and

to decrease numerical inputs.

CONNECTING THE SENSOR AND CABLE

CONNECTING THE SENSOR

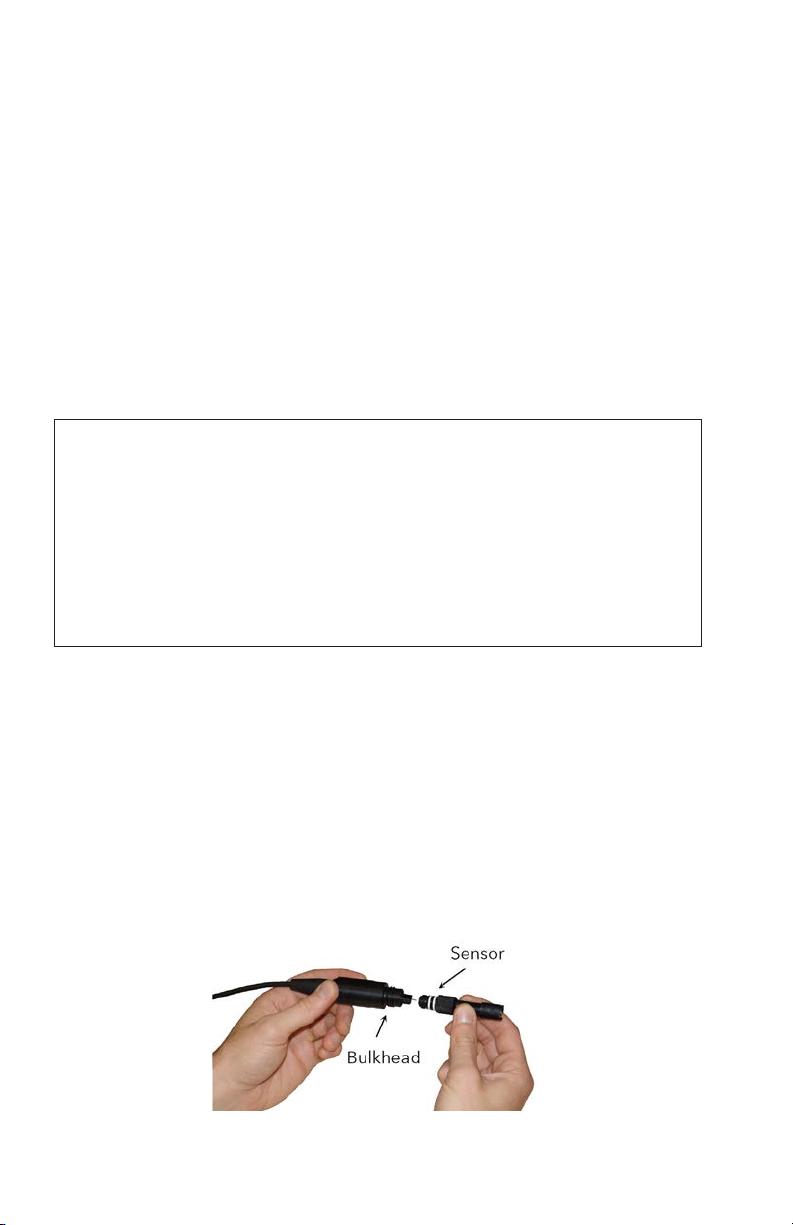

“Sensor” refers to the removable portion or electrode sensing portion

of the cable assembly, i.e. the dissolved oxygen sensor. “Bulkhead”

refers to the portion of the cable with the single-pin connector (Figure

3).

The Pro20/Pro20i has two compatible sensors for use with a field cable:

Polarographic – This sensor has a black sensor body and is engraved

with the model number 2003. Polarographic will be abbreviated Polaro

in the instrument’s menu.

Galvanic – This sensor has a grey sensor body and is engraved with the

model number 2002.

For information about the differences on the two sensor types, see

Sensor Type in the System Setup menu section and/or the Principles of

Operation section of this manual.

If using a ProBOD sensor/cable assembly, there is no need to install a

sensor because it has a built in Polarographic dissolved oxygen sensor.

Before installing either sensor or connecting the cable (Pro20

only) to the instrument, the Sensor Type must be configured

for the sensor being installed/connected. Failure to do this

may result in damage not covered under warranty. The

instrument will step you through this setup the first time it

is powered on. See the System Setup menu section of this

manual for instructions on configuring the Sensor Type after

the first power on.

1. Ensure both the sensor connector and sensor port on the cable are

clean and dry.

2. Grasp the sensor with one hand and the cable bulkhead in the

other.

3. Push the sensor into the connector on the cable until it is firmly

seated and only 1 o-ring is visible. Failure to properly seat the

sensor may result in damage.

4. Twist the sensor clockwise to engage threads and finger tighten.

Do NOT use a tool. This connection is water-tight.

For more detailed instructions, please refer to the sensor installation

sheet that is included with each sensor.

Figure 3

Autres manuels pour PRO20

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels YSI Instrument de mesure

YSI

YSI SonTek ADVField Mode d’emploi

YSI

YSI Pro10 Manuel utilisateur

YSI

YSI ProDSS Manuel d'utilisation et d'entretien

YSI

YSI EcoSense DO200A Manuel utilisateur

YSI

YSI EcoSense DO200 Manuel utilisateur

YSI

YSI 550A Manuel utilisateur

YSI

YSI 2900 series Manuel utilisateur

YSI

YSI Professional Plus Manuel utilisateur

YSI

YSI YSI 556 MPS Instruction manuelle

YSI

YSI 85 Manuel utilisateur

YSI

YSI MultiLab 4010-1W Manuel utilisateur

YSI

YSI Professional Plus Manuel utilisateur

YSI

YSI WaterLog Series Manuel utilisateur

YSI

YSI 5000 Manuel utilisateur

YSI

YSI 650 MDS Manuel utilisateur

YSI

YSI MultiDO 5400 Manuel utilisateur

YSI

YSI Pro2030 Manuel utilisateur

YSI

YSI SonTek FlowTracker Manuel utilisateur

YSI

YSI 63 Manuel utilisateur

YSI

YSI Professional Plus Manuel d'utilisation et d'entretien

YSI

YSI 550A Manuel utilisateur

YSI

YSI MultiLab 4010-2W Manuel utilisateur

YSI

YSI 2700 SELECT Manuel utilisateur

YSI

YSI EcoSense DO200A Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
