QUICK-CONNECT GUIDE

YHT-34

YHT-34 QUICK-CONNECT GUIDE

INTRODUCTION

Yamaha developed the YHT-34 A/V Home Theater

package to turn your home into a theater. In addition to

enhancing the sound of a video source, like your TV,

DVD, or VCR, the YHT-34 also superbly reproduces

audio sources, such as a CD player or a cassette deck.

This Quick-Connect Guide will help you get started.

Study the speaker system plan (below), and then use

the interconnect diagrams (on the following pages) to

connect the receiver and speakers to your system.

For the video portion, you will need a television or

monitor. Refer to the Yamaha HTR-5450 Owner’s Manual,

as well as those that came with your other components,

for complete instructions and cautions. Be sure to turn off

all power while making connections.

Save this Quick-Connect Guide for future reference.

NOTE: Label the end of each speaker wire (i.e., left rear, right

front, etc.) before connecting them to the A/V receiver. For wire

runs over 30 feet, use larger 18- or 16-gauge speaker wire.

• Wire strippers (optional)

• Velcro (for secure fastening of NS-AC328 on TV)

• Brackets, toggle bolts, molly anchor screws, or sheet

metal screws (for securing NS-A328 speakers to walls)

NOTE: If you are unsure of how to securely and safely fasten

speakers to a wall, please contact a reliable source about the best

type of hardware for your particular wall's construction.

Secure installation is the purchaser's responsibility.

TOOLS AND PARTS

The YHT-34 Home Theater package consists of

(1) HTR-5450 A/V receiver with (1) universal remote

control, (1) DV-C6280 DVD Player, (4) 2-way NS-A328

front/rear speakers, (1) NS-AC328 2-way center-channel

speaker, 100' of speaker wire, (1) 0.5 m optical cable,

(1) 10' RCA audio cable, (1) YST-SW45 Powered

Subwoofer, and related owner’s manuals. You will

also need:

SPEAKER SYSTEM PLAN

NS-A328

(left side, same height as TV)

NS-A328

(right side, same height as TV)

L = Left Channel

R = Right Channel

C = Center Channel

S = Surround Channel

NS-A328

(on stand or wall, at least

ear level or preferably higher)

NS-A328

(on stand or wall, at least

ear level or preferably higher)

8'~10' apart

NS-AC328

(on top or below TV)

6'~8' apart

Couch

Listening Area

Sub

YST-SW45 Subwoofer (on floor)

YHT-34 QUICK-CONNECT GUIDE

CONNECTING AUDIO COMPONENTS

NOTE: For your convenience, the Yamaha HTR-5450 receiver is equipped with

two switched ac outlets (100 W max.). If desired, use them to power on connected

components (e.g.,CD player) each time the receiver is turned on. However, do not

use them for components equipped with clocks (e.g.,VCR).

Yamaha HTR-5450 Receiver (Rear Panel)

SWITCHED

100W MAX.

TOTAL

AC OUTLETS

SPEAKERS

MAIN

+–

R L

–+

CENTER REAR

(SURROUND)

–

IMPEDANCE SELECTOR

SET BEFORE POWER ON

MAIN A OR B: 4

MIN. /SPEAKER

A +B: 8

MIN. /SPEAKER

CENTER

: 6

MIN. /SPEAKER

REAR

: 6

MIN. /SPEAKER

MAIN A OR B: 8

MIN. /SPEAKER

A +B:

MIN. /SPEAKER

CENTER

: 8

MIN. /SPEAKER

REAR

: 8

MIN. /SPEAKER

AM ANT GND

FM ANT

UNBAL.

TUNER

OUT(REC)IN(PLAY)

AUX

MD/CD-R D-TV/CBL

AUDIO SIGNAL

VCR 1

OUT

DVD

S VIDEO

VIDEO

MONITOR OUT

DVD D-TV/CBL IN VCR 1OUT

VIDEO SIGNAL

SUB

WOOFER

OUTPUT

MAIN CENTER

SUB WOOFER

SURROUND

6CH INPUT

DIGITAL

OUTPUT

DVD

MD/CD-R

D-TV/CBL

OPTICAL

MD/CD-R

OPTICAL

COAXIAL

DIGITAL

INPUT

MAINS

OUT(REC)IN(PLAY)

MD/CD-R

L Out

Use RCA Audio Cables For Audio Interconnections

R Out

L Out* R Out*

* Use Playback Or Line Out

** Use Line In

L In** R In**

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

CD Player (Changer)

Cassette Deck,

CD or MD Recorder

YHT-34 QUICK-CONNECT GUIDE

CONNECTING THE YHT-34 SPEAKERS

NS-A328

(Front Right)

NS-AC328

(Center Channel)

NS-A328

(Surround Right)

NS-A328

(Surround Left)

NS-A328

(Front Left)

Yamaha HTR-5450

A/V Receiver

(Rear Panel

Speaker Terminals)

Set IMPEDANCE Selector

to right position

−

−−

−

Cntr R

Surround

Main Spkrs.

YST-SW45

(Subwoofer Rear)

INPUT2 AUTO

STANDBY

OFF

LOW HIGH

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

RCA Audio Cable

(included)

Speaker

Wiring

Initial Settings

(on Front Panel – also

see page 9)

❶Strip 1⁄4" off ends of

speaker wires.

❷Loosen terminals.

❸Insert speaker wires;

tighten terminals.

❶

❸

❷

RED = positive (+)

use clear wire

BLK = negative (–)

use clear with

white stripe wire

HIGH CUT

STANDBY/ON

50 Hz 150 Hz

VOLUME

010

YHT-34 QUICK-CONNECT GUIDE

CONNECTING VIDEO CABLES FOR VIDEO COMPONENTS

NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch

(on the VCR) to Line position to record from another source

connected to the Yamaha HTR-5450 receiver.

Yamaha HTR-5450 Receiver (Rear Panel)

SWITCHED

100W MAX.

TOTAL

AC OUTLETS

SPEAKERS

MAIN

+–

R L

–+

CENTER REAR

(SURROUND)

–

IMPEDANCE SELECTOR

SET BEFORE POWER ON

MAIN A OR B: 4

MIN. /SPEAKER

A +B: 8

MIN. /SPEAKER

CENTER

: 6

MIN. /SPEAKER

REAR

: 6

MIN. /SPEAKER

MAIN A OR B: 8

MIN. /SPEAKER

A +B:

MIN. /SPEAKER

CENTER

: 8

MIN. /SPEAKER

REAR

: 8

MIN. /SPEAKER

AM ANT GND

FM ANT

UNBAL.

TUNER

OUT(REC)IN(PLAY)

AUX

MD/CD-R D-TV/CBL

AUDIO SIGNAL

VCR 1

OUT

DVD

S VIDEO

VIDEO

MONITOR OUT

DVD D-TV/CBL IN VCR 1OUT

VIDEO SIGNAL

SUB

WOOFER

OUTPUT

MAIN CENTER

SUB WOOFER

SURROUND

6CH INPUT

DIGITAL

OUTPUT

DVD

MD/CD-R

D-TV/CBL

OPTICAL

MD/CD-R

OPTICAL

COAXIAL

DIGITAL

INPUT

MAINS

VIDEO

MONITOR OUT

DVD D-TV/CBL IN VCR 1OUT

VIDEO SIGNAL

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Use RCA Video Cables And Jacks For Video Interconnections

Optional 75-ohm

Coaxial Cable

Hi-Fi Stereo VCR

Video In Video Out

Video Out

ANT In

ANT Out

(RF Out)

Video In

Monitor/TV

Satellite Receiver

(or Video Game)

YHT-34 QUICK-CONNECT GUIDE

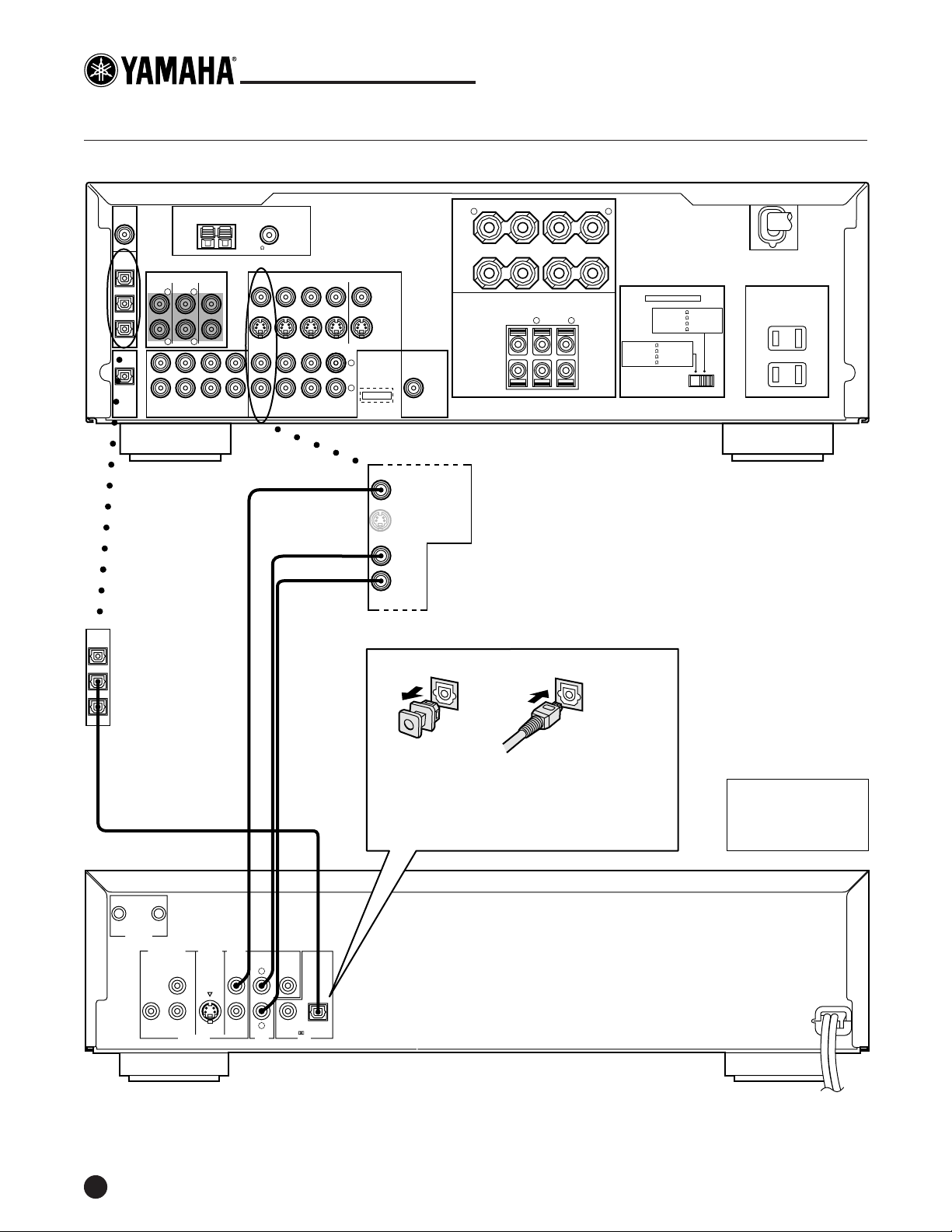

CONNECTING THE YAMAHA DV-C6280 DVD PLAYER
