Yamaha NS-150 Manuel utilisateur

Tweeter SubLF Woofer

LF Woofer

Woofer

Terminal

Tweeter

Terminal

WH-RE

BL-WH

Woofer

Terminal

Tweeter

Terminal

LF Woofer

Tweeter

4.7µF

33µF

6.8µFSubLF Woofer

0.35mH

5.0mH

2.2mH

250(9-7/8)19

(3/4) 269(10-5/8)

168(6-5/8)

850(33-1/2) 612(24-1/8)

Unit: mm (inch)

P.O.Box 1, Hamamatsu, Japan

100726

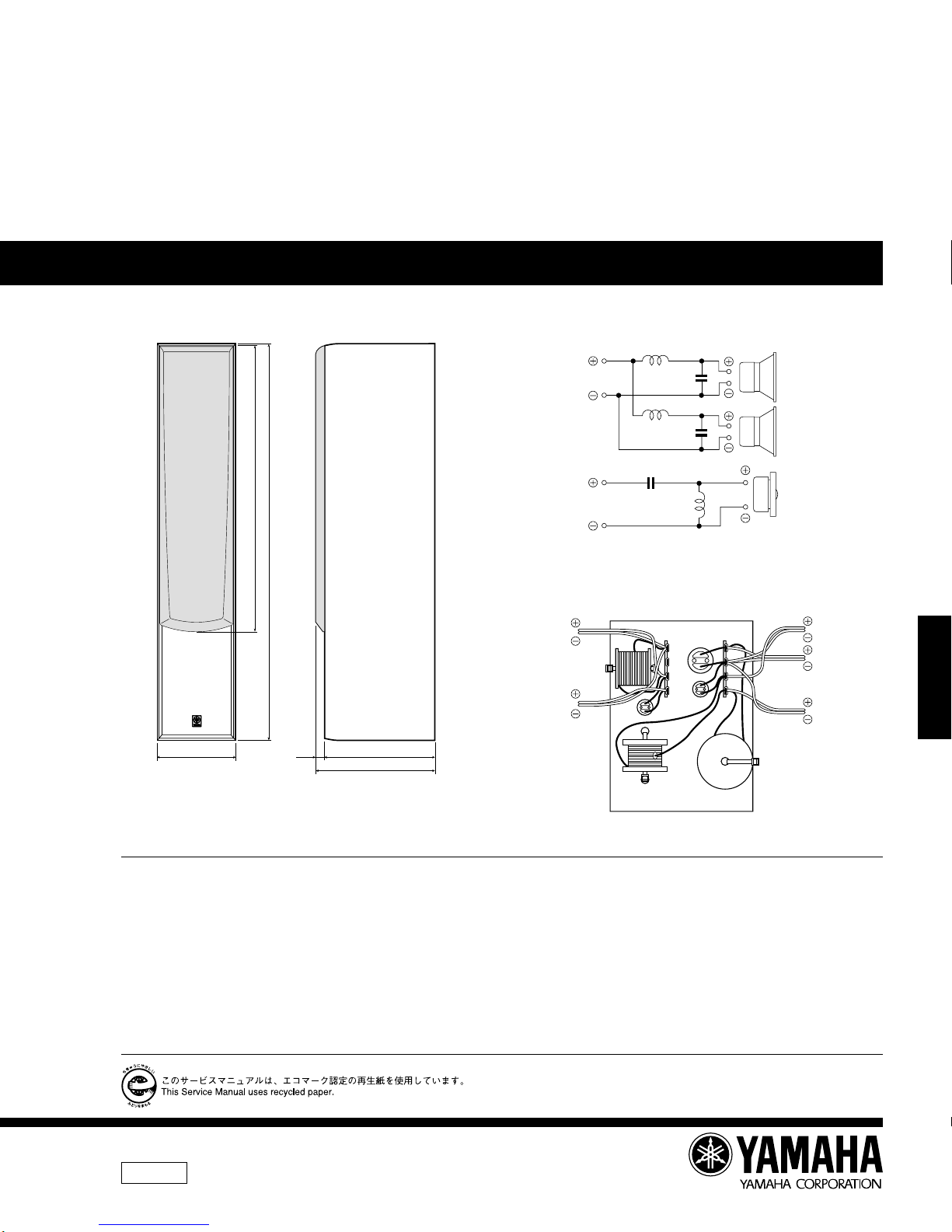

SERVICE MANUAL

SPEAKER SYSTEM

NS-150

■DIMENSIONS

■WIRING DIAGRAM

■NETWORK CIRCUIT DIAGRAM

■SPECIFICATIONS

Type.....................................3-way bass reflex speaker system

(Magnetically-shielded type)

Speaker Unit

LF Woofer.......................................... 13 cm (5") cone

SubLF Woofer .................................. 13 cm (5") cone

Tweeter ...............................................3 cm (1") dome

Frequency Response ................................. 40 Hz ~ 35 kHz

Nominal Impedance.................................................. 6 ohms

Nominal Input Power................................................. 100 W

Maximum Input Power .............................................. 300 W

Sensitivity......................................................89 dB/2.83 V/m

Crossover Frequency .................................. 500 Hz, 2 kHz

Inpur Terminal.......................................Screw / Banana type

Dimensions (W x H x D) .................... 168 x 850 x 269 mm

(6-5/8" x 33-1/2" x 10-5/8")

Weight.............................................. 14.5 kg (32 lbs.) /1 piece

Finish ................................................................ Cherry / Black

Accessories ...........Stand x 4, Screw (6 mm) x 4, Spike x 4,

Hex. nut (6 mm) x 4, Wood screw (4 mm) x 4, Pad x 4

✻Specifications are subject change without notice due to

product improvements.

15 16

1-5 1-24

201

206

205

204

202

203 x4

1-1-6

1-1-9

1-1-8

1-1-7

1-1-15

NS-150

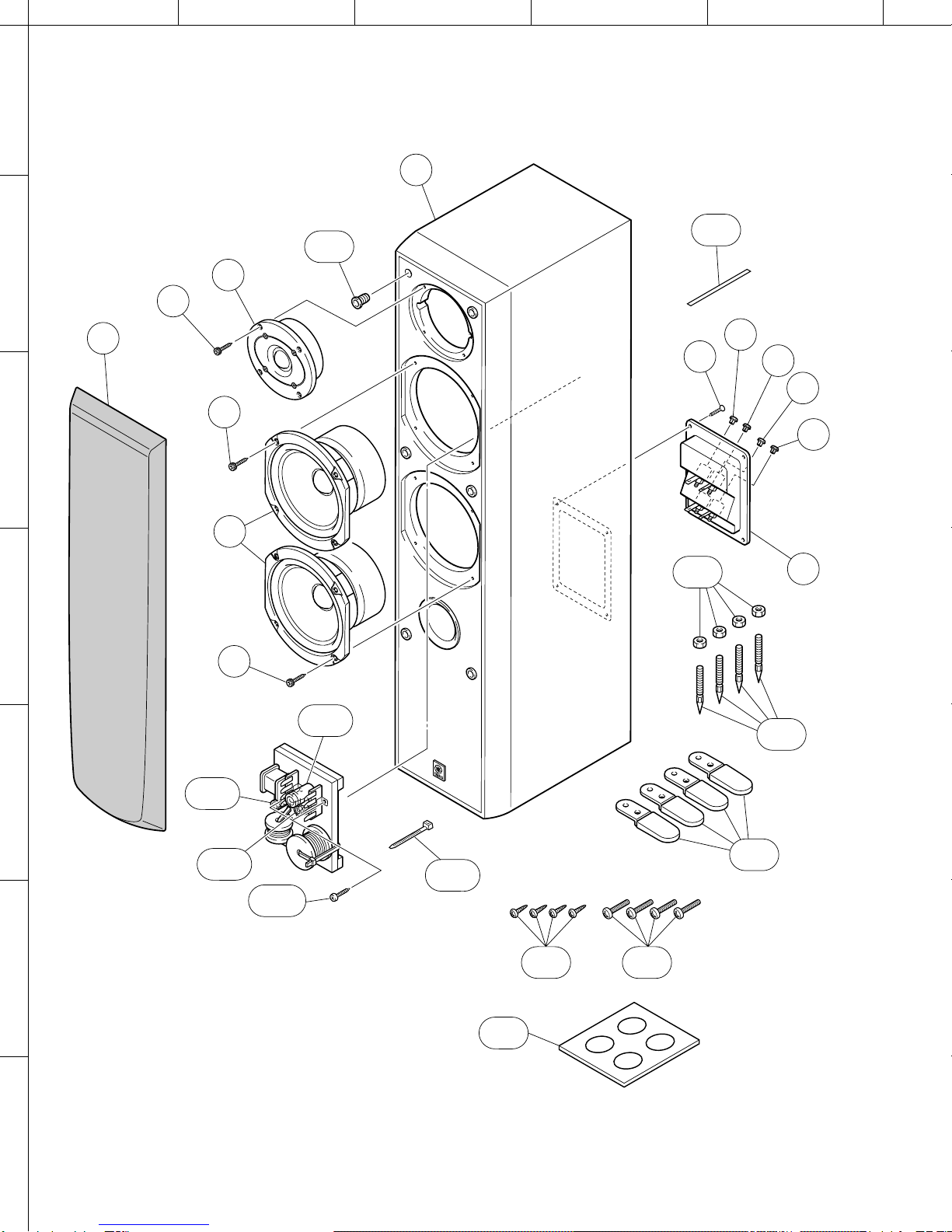

■EXPLODED VIEW

ABCDE

7Use an Allen wrench (3mm) to unscrew the loud speaker.

■PARTS LIST

* 1 V6120000 CABINET ASS’Y CH

* 1 V6120200 CABINET ASS’Y BL

* 1-1-6 V6615600 ELECTROLYTIC CAP 33uF 63V

1-1-7 V5370100 ELECTROLYTIC CAP 6.8uF 50V

1-1-8 V5357100 ELECTROLYTIC CAP 4.7uF 50V

1-1-9 CB818540 BINDING TIE T-30RF-2

1-1-15 EP030200 BIND HEAD TAPPING SCREW 3x8 ZMC2-Y

1-5 CB605250 HOLDER

1-24 CB070450 BINDING TIE L=100 L=100

2 V5383200 FRONT GRILLE ASS’Y CH

2 V5383400 FRONT GRILLE ASS’Y BL

3 XW232A00 LOUD SPEAKER 3cm 6Ω50W

4 XY380A00 LOUD SPEAKER 13cm 12Ω30W

* 7 V6261100 SPEAKER TERMINAL

10 V5537900 OVAL HEAD TAPPING SCREW #1 3.5x16 MFZN2BL

11 V5537800

HEXAGON SOCKET TAPPING SCREW

4x20 MFZN2BL

15 V5361400 TERMINAL CAP S06E RED

16 V5361500 TERMINAL CAP S06E BLACK

ACCESSORIES

201 V5004900 STAND ASS’Y 1pc/set

202 V5386900 SPIKE x1 M6x15

203 V2450400 HEXAGONAL NUT x1 6mm MFZN2-BL

* 204 V6075800 LEG ASS’Y 4pcs/set

205 EP040250 BIND HEAD TAPPING SCREW 4x16 ZMC2-BL

206 EG360010 BIND HEAD SCREW 6x16 MFC2BL

* New Parts

Ref.

No. PART NO. Description Remarks Markets

NS-150

Screw (6 mm) x 4 Wood screw

(4 mm) x 4

Stand x 4 Pad x 4

■ATTACHING THE STAND

Procedure:

1. Put the 6 mm screw through the larger hole on the

stand, and to the speaker at one of the outside holes on

the base of the speaker. At this time, attach the stand to

the speaker so that it can still be moved slightly.

2. Put the 4 mm wood screw through the smaller hole on

the stand, and screw it into the inside hole on the base

of the speaker.

3. When both screws have been attached, tighten both of

the screws so that the stand is firmly in place.

Be sure to check that the stand is firmly attached.

4. Attach the pads to the bottom of the end portion of the

stand.

5. Attach the other stands in the same manner and confirm

that all 4 stands have been firmly attached.

6. Place the speaker in the desired location.

Note

If force is applied to the side of the speaker, it may fall

and damage the speaker or cause personal injury.

Please be careful.

When positioning the speakers, be sure to use the stand to

increase stability.

Use the 8 specified holes located on the base of the

speaker.

■ATTACHING THE SPIKE

Procedure:

1. Set the nut close to the tip of the spike and screw them

into the bottom of the speaker at each of the four

specified holes.

2. Place the speaker in the desired location in an upright

position and adjust the length of the spike to match the

depth of the carpet.

3. When adjustment is complete, twist the nut up to the

base of the speaker firmly.

Notes

• The tips of the spikes may scratch or otherwise

damage the flooring. Please be careful when

positioning the speakers.

• If force is applied to the side of the speaker, it may

fall and damage the speaker or cause personal

injury.

Please be careful.

• Either end of the spike may be inserted into the

holes on the speaker to accommodate different

types of conditions and installations.

Spike x 4

When setting up the speakers on a thick carpet, use the

spikes instead of the stand. With 4 points set in place to

achieve increased stability and improvements in sound

quality.

NS-150
