En 3

Thank you for purchasing this Yamaha product.

This product is a bar-shaped speaker system that can be used by

connecting it to a TV. Audio content from a Bluetooth® device can also be

played through the sound bar.

• Be sure to read this document and the included Safety Brochure to

ensure proper and safe use. Keep these documents readily available for

future reference.

Safety Brochure

Be sure to read the Safety Brochure first to ensure safe use.

Quick Start Guide (this document)

This document describes the procedure for enjoying the sound of a

TV or Bluetooth device and the main functions.

− Confirming contents of product package (p. 4)

− Preparing the remote control (p. 5)

− Installing the product (p. 5)

− Connecting a TV (p. 6)

− Connecting to power (p. 8)

− Playing TV sound through the sound bar (p. 8)

− Adjusting the sound to your preference (p. 9)

− Listening to audio from a Bluetooth® device (p. 10)

− Controlling the sound bar via the smartphone app (p. 10)

User Guide

More detailed information is described.

https://manual.yamaha.com/av/22/src30a/

Quick Start Guide

4En

This product includes the following main devices and accessories. Take out all items from the box and make sure that all items are present.

Confirming contents of product package

Sound bar (SR-CUC30A)

Remote control

Digital optical audio cable

Power cords (×2)

Mounting template

Spacers (A: ×2, B: ×2 on 1 sheet)

NOTE

• An HDMI cable is not included with

this product. Prepare a commercially

available one.

• Quick Start Guide (this document)

• Safety Brochure

AC adaptor

(Model number:

ANAD-420FIOT-B)

Use when mounting the sound bar on a wall.

Subwoofer (SR-WSWC30A)

Main devices

Accessories

Non-skid pads (4 on 1 sheet)

Attach these to the bottom of the subwoofer.

En 5

A Lithium battery (CR2025) has already been inserted into the remote

control. Pull out the insulation sheet as follows so as to use the

remote control.

Operating range of the remote control

The remote control can be used to control the functions of this

product. When using the remote control, point the remote control at

the remote control sensor of the sound bar within the range shown in

the following illustration:

Install the sound bar and subwoofer as shown in the following

illustration:

NOTE

• The subwoofer can also be used on its side.

See the User Guide for details.

Preparing the remote control

Battery insulating strip

Within 6 m (20 ft)

Remote control

sensor

Remote control

Installing the product

For the proper installation of the sound bar on

a wall, make sure to have it done by a

qualified contractor. See the Wall Mounting

Installation Guide on our website for the

installation method.

Attach the non-skid

pads to the bottom

of the subwoofer.

User Guide

Wall Mounting

Installation Guide

6En

Connect a TV to the sound bar. Select the connection procedure

according to the function to be used. The differences depending on

the connection procedure are as follows:

Function and connection procedure

1) The HDMI Control function allows the sound bar to be controlled using the

TV’s remote control. The following functions can be controlled using the

TV’s remote control:

- Turn the power on and off

Both the TV and the sound bar turn on/off at the same time.

- Volume adjustment

The sound bar’s volume can be adjusted when the TV’s audio output is

set to the sound bar.

2) When connecting to an HDMI input jack not compatible with ARC, connect

with both an HDMI cable and a digital optical audio cable.

NOTE

• The type and quality of the TV audio signal transmitted by either the

digital optical audio cable or the HDMI cable is the same.

Connecting a TV using the digital optical

audio cable (included)

The TV’s audio signal is transmitted to the sound bar when the sound

bar is connected to a TV using the included digital optical audio cable.

The HDMI Control function that controls the sound bar using a TV’s

remote control cannot be used.

NOTE

• Connect AV devices (such as BD/DVD players and set top boxes) to

the TV’s HDMI input jacks.

Connecting a TV

HDMI Control

function1) Jack of TV to

connect to Connection procedure

Digital optical

audio cable

(included) −

Digital optical

audio output

jack

“Connecting a TV using

the digital optical audio

cable (included)” (on the

right)

HDMI cable

(commercially

available) 

HDMI input

jack (ARC

compatible2))

“Connecting a TV using an

HDMI cable (commercially

available)” (on the next

page)

HDMI

OPTICAL

Sound bar (rear)

TV jack

Digital optical audio

output jack

1. R e m o ve t h e c a p.

2. Check the orientation

of the plug.

TV audio signal

En 7

Connecting a TV using an HDMI cable (commercially available)

Control signals are transmitted from the TV to the sound bar when the sound bar is connected to a TV using an HDMI cable (commercially

available). This will enable you to use the HDMI Control function that controls the sound bar using the TV’s remote control.

If the HDMI cable is connected to the TV’s HDMI input jack compatible with Audio Return Channel (labeled as “ARC”), the TV audio signal is also

transmitted to the sound bar via the HDMI cable. Therefore, a TV can be connected to the sound bar using a single HDMI cable.

When connecting to an HDMI input jack not compatible with ARC, also connect the included digital optical audio cable to transmit the TV audio

signal to the sound bar.

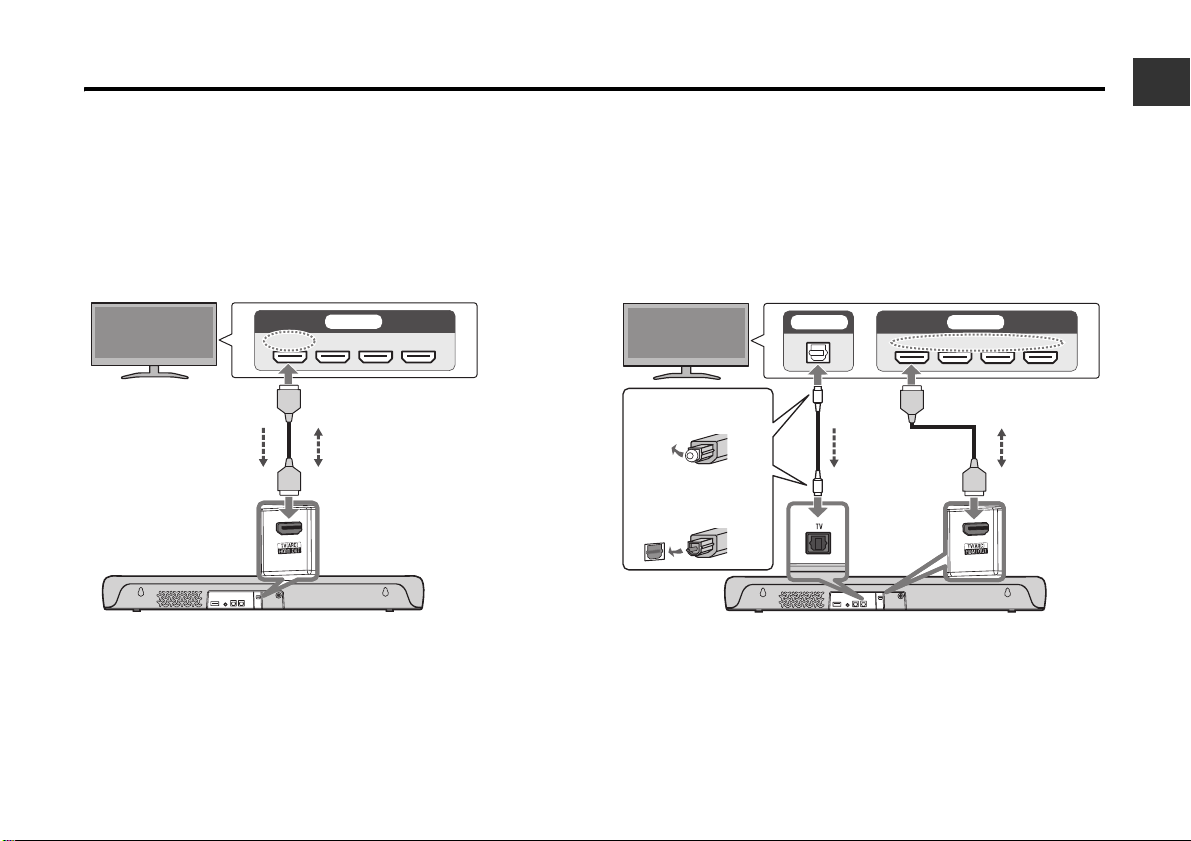

Connecting to an ARC-compatible HDMI input jack Connecting to an HDMI input jack not compatible with ARC

NOTE

• When the sound bar is connected to a TV via an HDMI cable, confirm that the TV’s settings are properly configured as follows:

- The TV’s HDMI Control function is enabled.

- The TV’s audio output is set to ARC (when an ARC-compatible HDMI input jack is connected).

• Connect AV devices (such as BD/DVD players and set top boxes) to the TV’s HDMI input jacks.

HDMI IN

HDMI

ARC

Sound bar (rear)

HDMI OUT/TV (ARC) jack

TV HDMI input jack (ARC compatible)

Control signalTV audio signal

OPTICAL HDMI IN

HDMI

Sound bar (rear)

HDMI OUT/

TV (ARC)

jack

TV HDMI input jack

TV jack

Digital optical audio

output jack

Control

signal

TV audio

signal

1. R e m o v e t h e c a p .

2. Check the orientation

of the plug.

8En

After connecting the sound bar to the TV, connect the sound bar and

subwoofer to power as follows:

1Turn on the TV.

When the HDMI Control function of the TV is enabled, the sound

bar will also turn on. In this case, go to Step 4.

2Turn on the sound bar.

Press the z(power) button on the remote control.

The power of the subwoofer also turns on at the same time.

3Press TV.

4Press VOLUME (+/−) to adjust the volume.

Connecting to power

Sound bar (rear)

To an AC wall outlet

Power cord (included)

AC adaptor (included)

To an AC wall outlet

Power cord (included)

Subwoofer (rear)

Playing TV sound through the

sound bar

VOLUME (+/−)

Remote control

En 9

aListening to audio with sound that matches the video

or music content (Sound mode)

A sound mode can be selected from among three sound modes

that produce surround-sound fields and one sound mode for

stereo playback.

STEREO

This sound mode provides stereo playback. It is the sound

mode best suited for music playback.

STANDARD

This sound mode provides surround playback that is best suited

for TV programs such as sports broadcasts. It emphasizes

human voices and makes them easier to hear, while creating a

sense of presence.

3D MOVIE

This sound mode provides surround playback that is best suited

for movies. It reproduces a three-dimensional sound field and

creates a sound space that seems to envelop your body.

GAME

This sound mode provides surround playback that is best suited for

video games. Accurate localization of individual sound effects

provides a highly immersive gaming experience.

bPlaying back human voices clearly (CLEAR VOICE)

The human voices within the audio can be heard more easily when

the Clear Voice function is enabled. The function is recommended

for playback at a low volume and for movies or dramas that use a lot

of background music and sound effects.

Press CLEAR VOICE to enable or disable this function.

cEnjoying rich bass sound (BASS EXT)

The bass sound is enhanced and becomes richer when the Bass

Extension function is enabled.

Press BASS EXT to enable or disable this function.

NOTE

The default settings are as follows:

Sound mode: STANDARD

CLEAR VOICE: Disabled

BASS EXT: Enabled

Adjusting the sound to your preference

Remote control

Flashes three times: enabled

Flashes one time: disabled

Flashes three times: enabled

Flashes one time: disabled

10 En

Audio content from a Bluetooth device (such as a smartphone) can

be played through the sound bar.

1Press BLUETOOTH on the remote control to switch

the input source to Bluetooth.

2On the Bluetooth device, enable the Bluetooth

function.

A list of Bluetooth devices that can be connected is displayed on

the screen of the Bluetooth device.

3Select your product displayed within the list.

“Yamaha SR-C30A” or “Yamaha AV” is displayed within the list.

4Play a song on the Bluetooth device.

The sound bar will begin playing audio from the Bluetooth

device.

NOTE

• The sound bar can be connected to two Bluetooth devices

simultaneously. You will need to stop playback on the one

Bluetooth device and then start playback on the other Bluetooth

device.

By installing the free dedicated app “Sound Bar

Remote” on a smartphone, the sound bar can also be

controlled from that smartphone. The app allows you to

control the sound bar while checking the sound bar

settings currently applied, such as sound mode, via the

app’s screen.

Search for “Sound Bar Remote” on the App Store or

Google Play and install it on the smartphone.

For details on the app, see the description of the app

on the App Store or Google Play.

NOTE

• To control the sound bar using the app, configure the settings on

your smartphone as follows:

- Enable the Bluetooth function.

- For devices using the Android 11 OS or earlier, configure the

settings to allow location information to be obtained.

The Sound Bar Remote app uses location information from the

Android device only to detect the sound bar. The acquired location

information will not be used for any other purpose.

- For devices using the Android 12 OS or later, configure the

settings to allow the use of nearby devices.

• This sound bar is only compatible with the Sound Bar Remote app.

The sound bar cannot be controlled using other apps (such as

Sound Bar Controller).

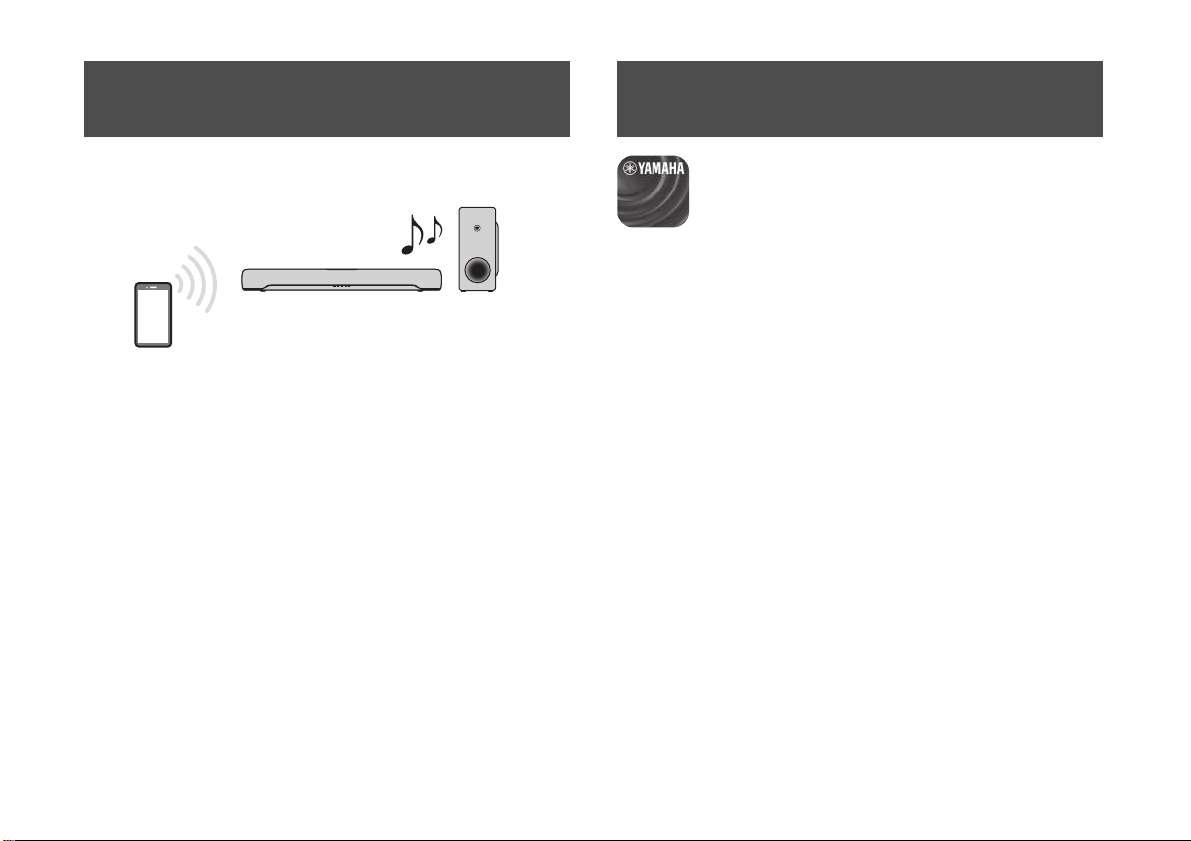

Listening to audio from a

Bluetooth® device

Bluetooth device

Controlling the sound bar via the

smartphone app

Autres manuels pour SR-C30A

Table des matières

Langues :

Autres manuels Yamaha Système de haut-parleurs

Yamaha

Yamaha YAS-207 Manuel utilisateur

Yamaha

Yamaha NS-6490 Manuel utilisateur

Yamaha

Yamaha YVC-1000 Manuel utilisateur

Yamaha

Yamaha IL1115 Manuel utilisateur

Yamaha

Yamaha KMS-710 Manuel utilisateur

Yamaha

Yamaha IF2108(W) Manuel utilisateur

Yamaha

Yamaha ATS-2030 Manuel utilisateur

Yamaha

Yamaha YSP-5600 Manuel d'utilisation et d'entretien

Yamaha

Yamaha MCX-SP10 - Left / Right CH Speakers Manuel utilisateur

Yamaha

Yamaha NS-WSW121 Manuel utilisateur

Yamaha

Yamaha KMS-3000 Manuel utilisateur

Yamaha

Yamaha CBR series Manuel utilisateur

Yamaha

Yamaha YST-C30 Manuel utilisateur

Yamaha

Yamaha MCX-A10 - MusicCAST Network Audio Player Manuel utilisateur

Yamaha

Yamaha YST-NC1 Manuel utilisateur

Yamaha

Yamaha YHT495 Manuel utilisateur

Yamaha

Yamaha ATS-B400 Manuel utilisateur

Yamaha

Yamaha SRT-700 Manuel utilisateur

Yamaha

Yamaha YAS-CU209 Manuel utilisateur

Yamaha

Yamaha YSP-1 Manuel utilisateur

Yamaha

Yamaha NS-P380 Manuel utilisateur

Yamaha

Yamaha YHT-18 Instructions de montage

Yamaha

Yamaha AS312 Manuel utilisateur

Yamaha

Yamaha SPX50D Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur

TCL

TCL 6100 Series Manuel utilisateur
