Yamaha YAS-CU209 Manuel utilisateur

Front Surround System

Quick Start Guide

[YAS-CU209 + NS-WSW44]

2En

Contents

About this Quick Start Guide .................. 2

INTRODUCTION ........................................ 4

Features ..................................................................................................... 4

Accessories ............................................................................................... 7

Part names and functions ................................................................... 8

PREPARATION ......................................... 12

Preparation ..................................................................................... 12

Connections ................................................................................... 12

Turing on the unit ........................................................................ 14

Connecting to a network .......................................................... 14

PLAYBACK ............................................... 15

Basic procedure for playback ......................................................... 15

Selecting sound preferences .......................................................... 16

Useful features for playback ............................................................ 17

Listening to audio from a Bluetooth device .............................. 18

Streaming services ............................................................................. 18

Operating the unit using voice commands

(Amazon Alexa) .................................................................................... 19

About this Quick Start

Guide

This Quick Start Guide was created for users of this unit. It primarily

covers the following.

• Connecting a TV that supports Audio Return Channel (ARC),

and A/V devices such as those for streaming media

• Connecting to a wireless network

• Basic use

• Amazon Alexa

This document provides step-by-step instructions for installation and

playback. Refer to the Owner’s Manual on the Yamaha website for

troubleshooting or when more information is required.

Follow one of the methods described below to view the latest Owner’s

Manual.

In HTML format

• Scan the QR code found on the front cover of this document.

• Visit the following website:

https://manual.yamaha.com/av/19/yas209/

In PDF format

Visit the following website:

https://download.yamaha.com/

En 3

[For U.S. customers only]

Visit the following website for additional information, FAQ’s,

downloads such as “Owner’s Manual” and product updates:

http://usa.yamaha.com/support/

Notice for content in this manual

• This manual uses the following signal words for important

information:

■NOTICE

Indicates points that you must observe in order to prevent product

failure, damage or malfunction and data loss, as well as to protect

the environment.

■NOTE

Indicates notes on instructions, restrictions on functions, and

additional information that may be helpful.

• The illustrations and screenshots in this document are for

instructional purposes only. For any information on devices other

than this unit, refer to each device’s respective documentation.

• TRADEMARKS:

– DTS, the Symbol, DTS and the Symbol together, DTS Digital

Surround, and DTS Virtual:X are registered trademarks or

trademarks of DTS, Inc. in the United States and/or other

– Amazon, Alexa, Amazon Music, Kindle and all related logos are

trademarks of Amazon.com, Inc. or its affiliates.

– App Store is a service mark of Apple Inc.

– Android and Google Play are trademarks of Google LLC.

– The Bluetooth®word mark and logos are registered trademarks

owned by Bluetooth SIG, Inc. and any use of such marks by

Yamaha Corporation is under license. Other trademarks and trade

names are those of their respective owners.

– QR Code is a registered trademark of DENSO WAVE

INCORPORATED in Japan and in other countries.

– The terms HDMI, the HDMI Logo, and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other countries.

• In this manual, iOS and Android mobile devices are collectively

referred to as “mobile devices”. The specific type of mobile device is

noted in explanations as needed.

4En

INTRODUCTION

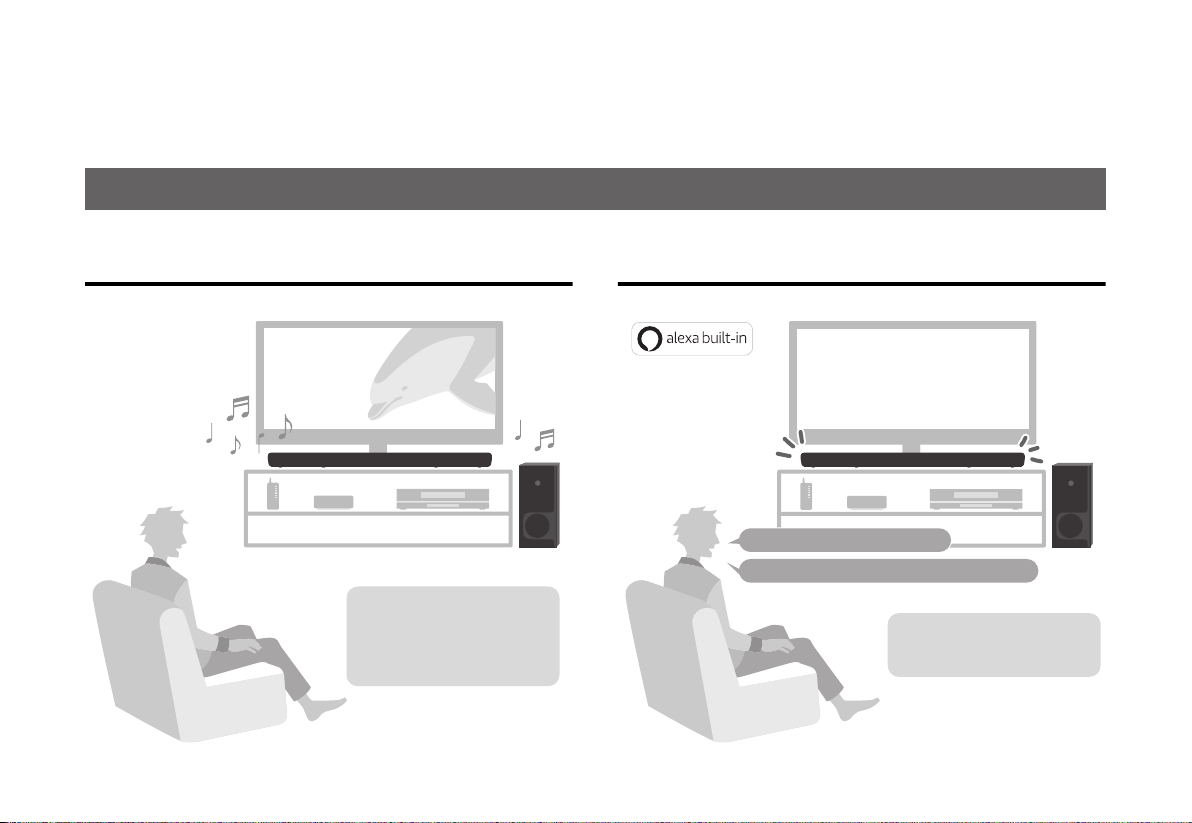

This unit is a front surround system that allows for the enjoyment of superior sound quality from video played on a TV connected to the unit.

Play surround sound Ask Alexa to control the unit

Features

Audio from a TV, media

streaming service, or BD/

DVD player can be played

with 3D surround sound/

surround sound.

“Alexa, turn up the volume.”

“Alexa, switch the input source to HDMI.”

With Alexa built-in, you can

operate this unit, access your

music playlists.

Alexa may not be available in

your region. View the Yamaha

product website for details.

En 5

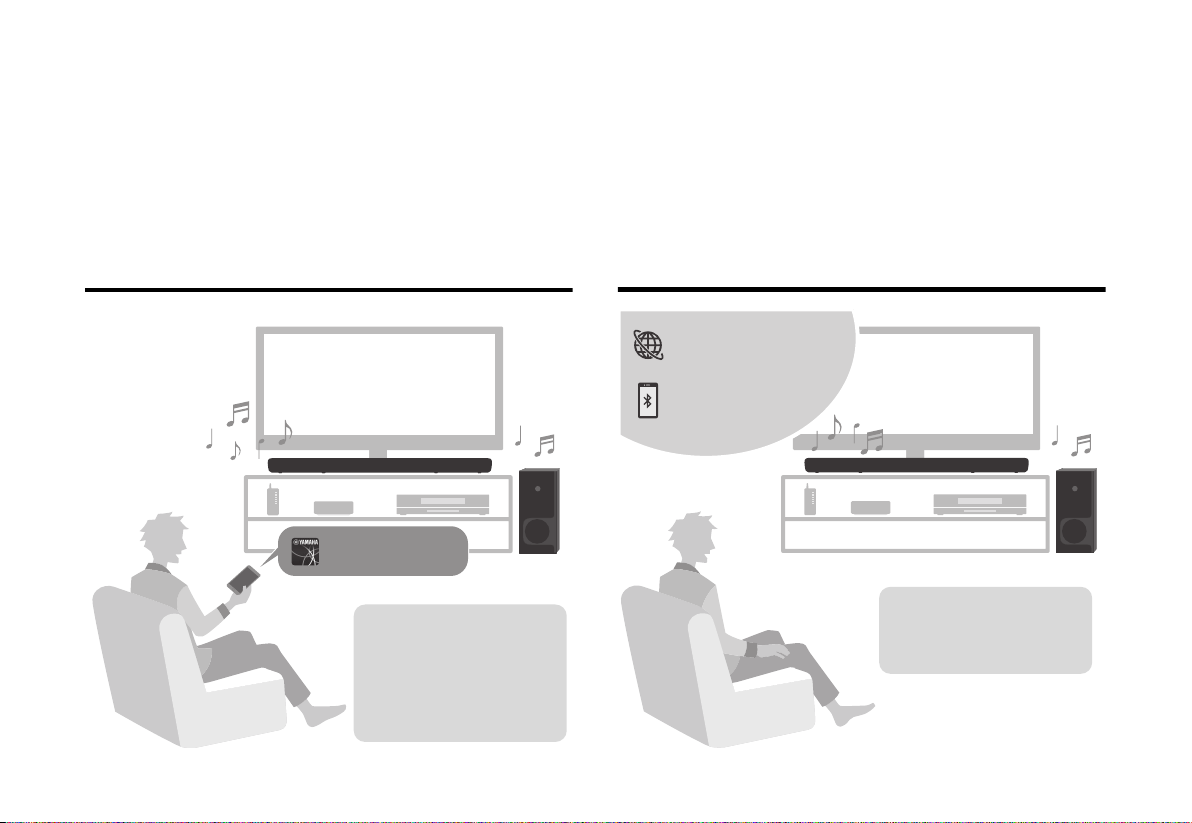

Easy operation with the smartphone app

Listen to audio from Bluetooth®devices

and streaming services

Sound Bar Controller

Install the Sound Bar

Controller app on either a

smartphone or tablet.

Various features, settings,

and streaming services can

be easily accessed and

controlled via the app.

Streaming services

Bluetooth devices

Enjoy listening to audio

from Bluetooth devices and

streaming services* such as

Amazon Music and Spotify.

* A subscription may be

required to listen to streaming

services via this unit.

6En

3D surround playback

This unit supports virtual 3D surround sound technology called “DTS

Virtual:X”. Surround sound can be heard not only from horizontal

directions, but also from varying heights when this unit’s 3D surround

mode is enabled, creating a virtual acoustic environment. This

provides a greater sense of cohesion between audio and video, for a

sense of being surrounded by sounds coming from ahead, behind,

the left and right, and even above for an immersive visual and

auditory experience.

Wireless subwoofer

The supplied wireless subwoofer enables more dynamic audio

playback.

Transmission of 4K high dynamic range

(HDR) video

Enjoy 4K High Dynamic Range (HDR) content from HDR-compatible

sources such as a TV, media streaming device, gaming console, or

set-top box.

HDMI control function

Link functions of a TV and the unit are available using the TV’s

remote control. When a TV that supports Audio Return Channel

(ARC) is used, this ARC-compatible unit can be connected to the TV

via a single HDMI cable.

Bass Extension

The bass extension feature boosts bass levels for more impactful

sound.

Clear Voice

The clear voice function makes speech, such as dialog and narration,

clearer.

En 7

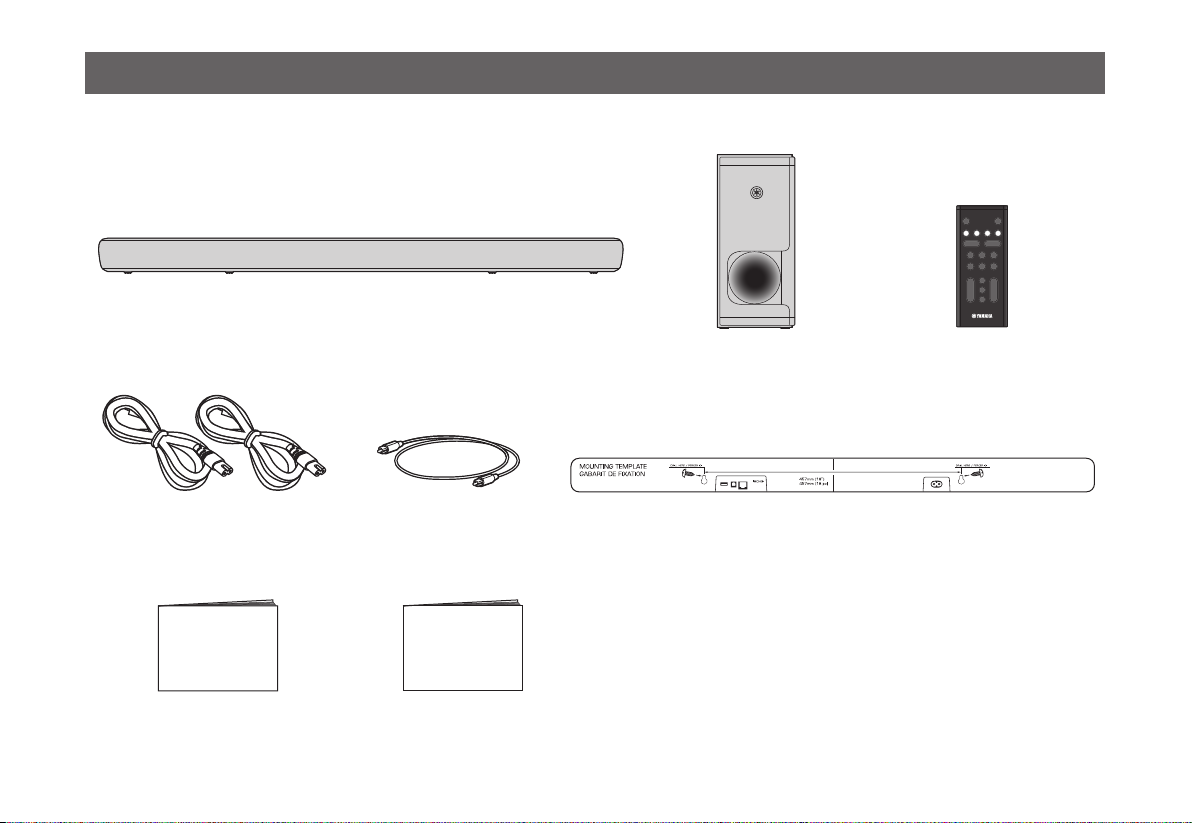

Make sure you have received all of the following accessories.

Accessories

Center unit (YAS-CU209)

Remote control

A CR2025 Lithium battery has

already been inserted into the

remote control.

Optical digital audio cable

Use when connecting the unit to

a TV that does not support ARC.

Power cord x 2 Mounting template

Use when mounting the unit on a wall.

■NOTE

• HDMI cables are not supplied with the unit. Use the HDMI cables

purchased separately.

• The Owner’s Manual is available on the Yamaha website. Scan

the QR code found on the front cover of this document to visit

the website. For more information, see page 2.

Quick Start Guide (this booklet) Safety Brochure

Wireless subwoofer

(NS-WSW44)

In this manual, the wireless subwoofer

is referred to as “subwoofer”.

8En

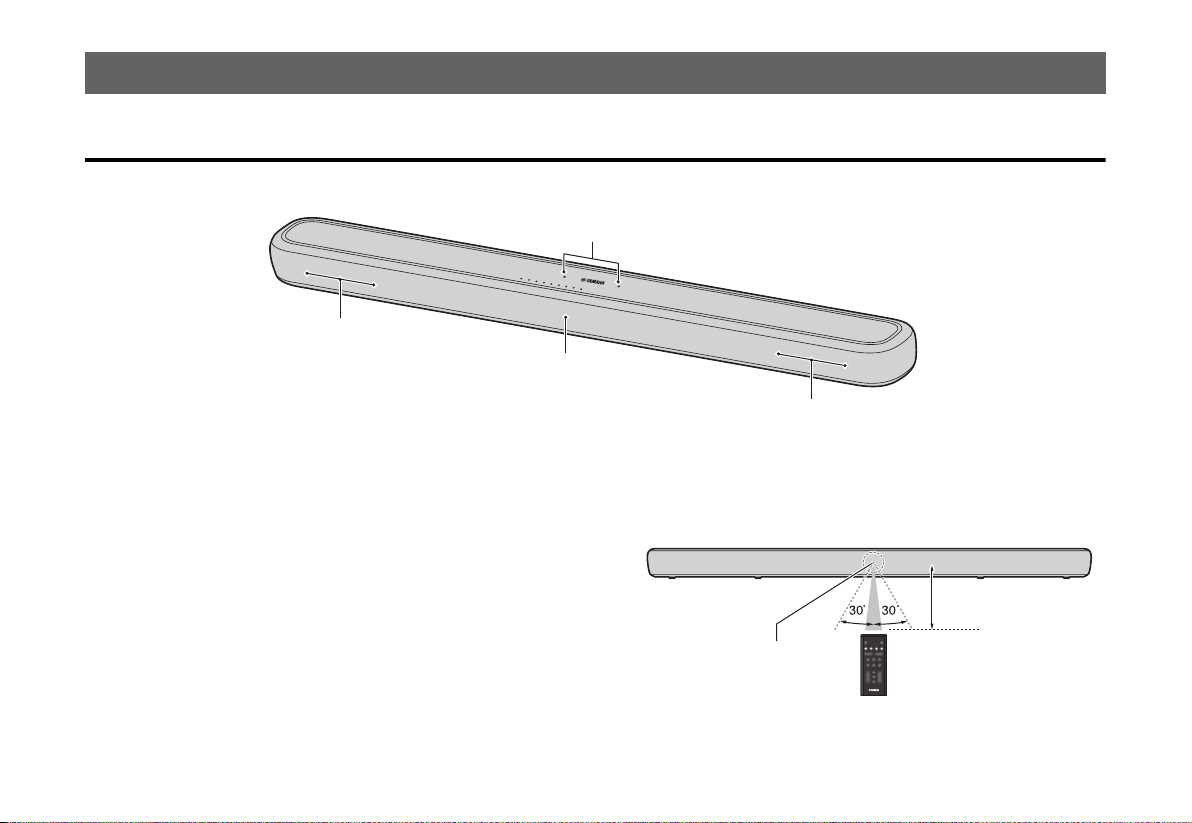

Front/top panel

aMicrophones

Used to interact with Alexa.

bSpeakers

cRemote control sensor

Receives infrared (IR) signals from the remote control of the unit.

Operate the remote control within the range as shown below.

Part names and functions

Within 6 m (20 ft)

Remote control sensor

En 9

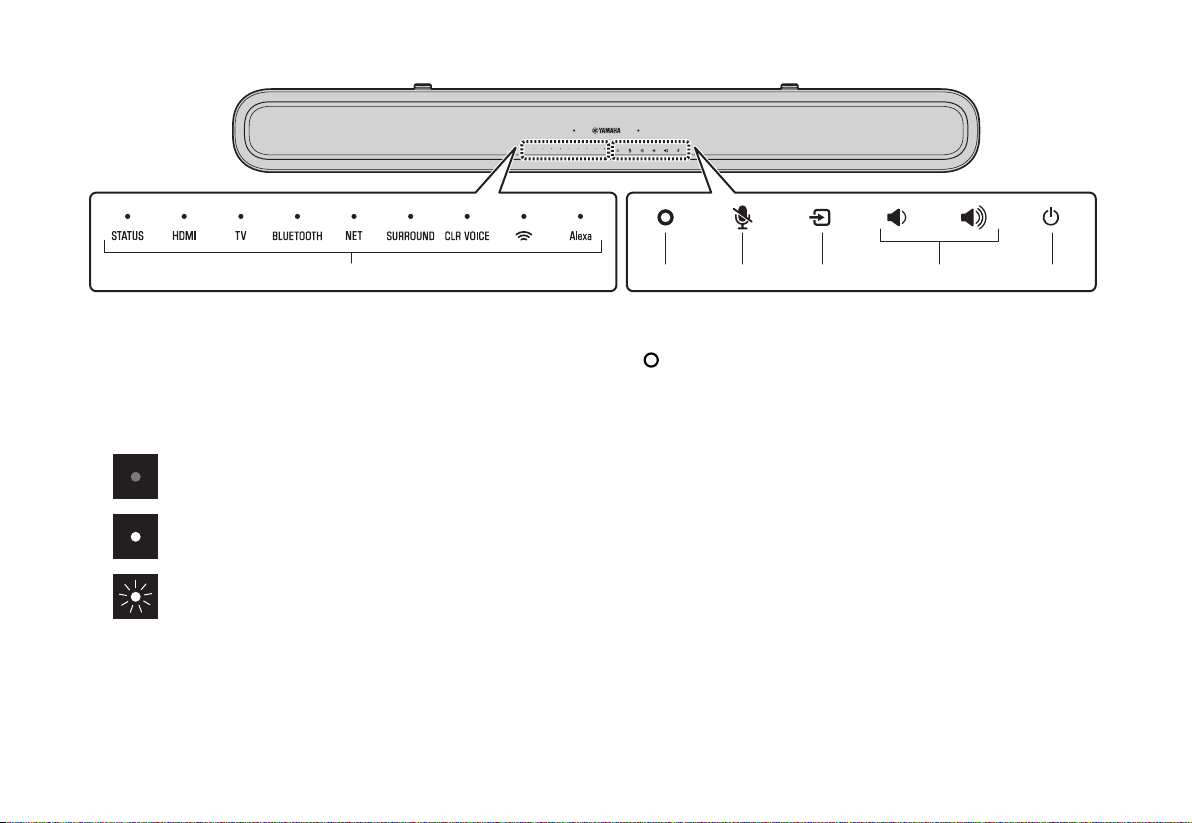

dIndicators

The indicators on the top panel flash or glow to show the operation

and setting status. In this document, indicator status, such as off,

glowing, and flashing, are shown as the illustrations below.

Off

Glows

Flashes

e(Alexa)

Manually wake Alexa to enable a voice command (p.19).

f)(Microphones disabled)

Touch to disable the microphones. Alexa will not respond to

utterances while the microphones are disabled. Disable the

microphones to maintain privacy. Touch again to enable the

microphones (p.19).

gy(input)

Select an input source (p.15).

h}/ {(volume +/-)

Adjust the volume (p.15).

iz(power)

Turn on or off the unit.

efg h id

10 En

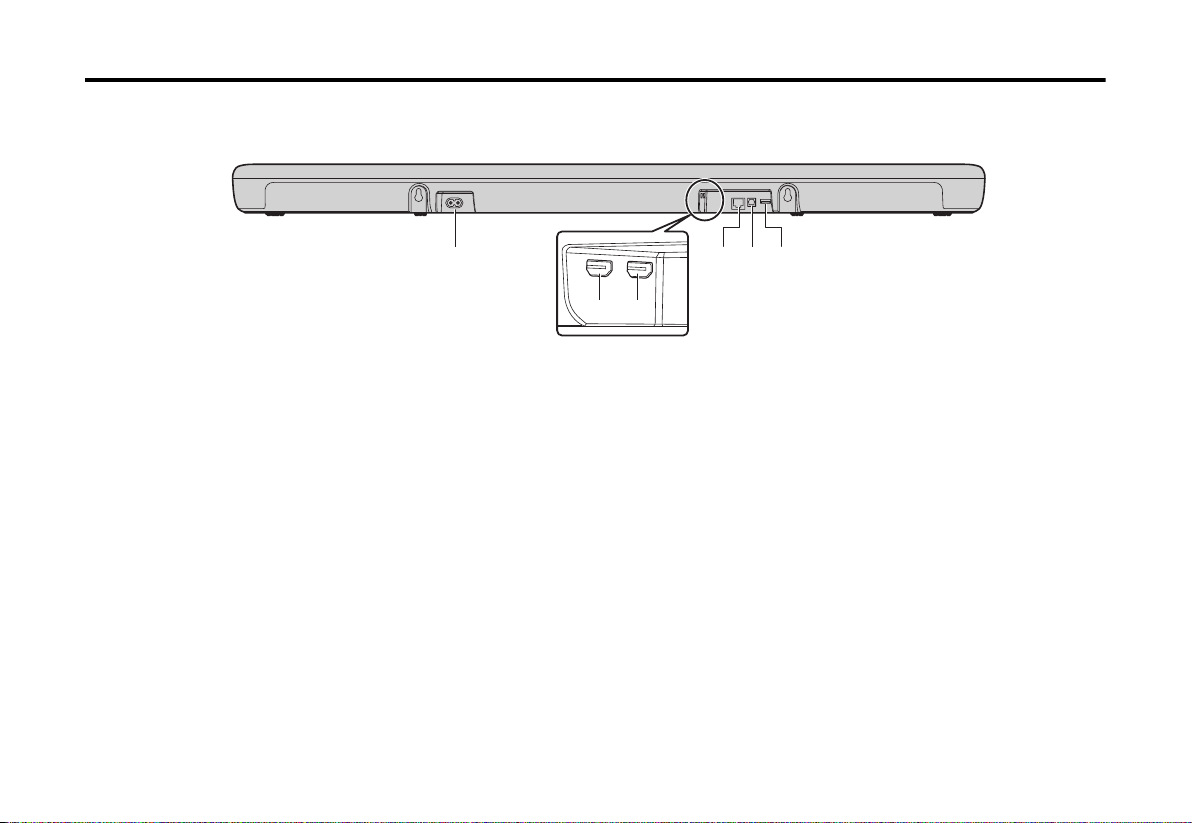

Rear panel

aPower connector

Connect the power cord (p.13).

bHDMI IN jack

Connect to an HDMI-compatible AV device to input video/audio

signals (p.13).

cHDMI OUT (ARC) jack

Connect to an HDMI (ARC)-compatible TV to output video/audio

signals (p.13). TV audio signals can also be input through this

jack.

dNETWORK jack

For connecting to a network with an ethernet cable (sold

separately).

eTV input jack

For connecting to a TV that does not support ARC. This jack

cannot be used when the unit is connected to an ARC-compatible

TV.

fUPDATE ONLY jack

Use to update this unit’s firmware, if necessary. Refer to the

instructions supplied with the firmware for details.
