Yamaha SR-B40A Manuel utilisateur

Sound Bar

Wall Mounting Installation

Guide

CONTENTS

About this Wall Mounting Installation Guide.. ............................................... 3

Precautions..............................................................................................4

Items to use for wall mounting installation...................................................5

Mounting the sound bar on a wall................................................................6

CONTENTS

About this Wall Mounting Installation Guide

(This guide explains the installation method for qualified service personnel who mount the sound bar on a

wall.

(This guide uses the following signal words for important information.

(CAUTION

This content indicates “risk of injury.”

(NOTICE

Indicates points that you must observe in order to prevent product failure, damage, or malfunction, as

well as to protect the environment.

(NOTE

Indicates notes on instructions, restrictions on functions, and additional information that may be

helpful.

(The illustrations in this guide are for instructional purposes only.

(The company names and product names in this guide are the trademarks or registered trademarks of their

respective companies.

NOTE

(The Quick Guide and the Safety Guide are included with this product. The Quick Guide explains the procedures for this product,

from opening the box after purchase until enjoying the sound from a TV or Bluetooth device. General precautions for handling this

product are described in the Safety Guide. See this document before installing the sound bar.

(For details on the functions, see the User Guide of your product.

(SR-B40A

https://manual.yamaha.com/av/23/srb40a/

(SR-B30A

https://manual.yamaha.com/av/23/srb30a/

(ATS-B400

https://manual.yamaha.com/av/23/atsb400/

(ATS-B300

https://manual.yamaha.com/av/23/atsb300/

About this Wall Mounting Installation Guide

Precautions

Before mounting the sound bar on a wall, be sure to read the following precautions for safe installation. Be

sure to follow the precautions.

nPrecautions for mounting the sound bar on a wall

CAUTION

(For proper installation of the sound bar on a wall, make sure to have the work done by the dealer from where you purchased

the unit or by a contractor with qualified service personnel. Some skills and experience are required for safe installation.

(Be sure to follow the precautions when mounting the sound bar on a wall. The sound bar may fall, resulting in injury.

(Do not attach it to a wall constructed of weak materials such as drywall or plasterboard.

(Use screws that are of the size specified in this guide and that can support the weight of the installation. Do not use nails,

two-sided tape, screws other than the size specified, or screws that are worn out or damaged.

(Fix the cables in place so nothing will accidentally catch on them.

(When hanging the sound bar on the screws, be sure that the connected cables do not put stress on the jacks. Failure to observe

this may cause damage to the jacks.

(Check that the sound bar is securely fixed in place immediately after the installation. Yamaha will bear no responsibility for any

accidents caused by improper installations.

nPrecautions after installation

CAUTION

(Do not lean on the wall-mounted sound bar or apply excessive force to its top. Doing so may cause the sound bar to fall.

Precautions

Items to use for wall mounting installation

Make sure that all of the following items are present before installing the sound bar.

nItems included with this product

(Spacers (×2)

(Mounting template

nScrews (commercially available)

In addition to the included items, the following screws (commercially available) are required.

(Screws (×2)

Use round head wood screws of the following size:

7 to 9 mm in diameter 4 to 5 mm

12 to 14 mm 20 mm or more

nTools

Use the following tools for installation.

(Screwdriver

Use a screwdriver that matches the screws.

(Pencil

Use to mark the positions for the screws on a wall.

(Tape or thumbtacks

Use to temporarily attach the mounting template to a wall.

Items to use for wall mounting installation

Mounting the sound bar on a wall

(Before mounting the sound bar on a wall, be sure to read the following precautions.

(“Precautions”(p.4)

After installing the spacers and screws on the wall, hang the sound bar on those screws.

1Attach the mounting template (included) on a wall temporarily.

Attach with tape or thumbtacks temporarily

Mounting template

2Mark the positions for the screws on the wall using a pencil.

Screw position

Mounting the sound bar on a wall

3Remove the mounting template from the wall.

4Install the screws and the spacers (included) at the points marked on the wall.

Install the screws on the wall, then hang the screw-hanging holes of the spacers on those

screws.

Be sure to use screws of the size shown in the illustration below.

Spacer

12 to 14 mm

4 to 5 mm

20 mm or more

457 mm

7 to 9 mm in diameter

Spacer

60.3 mm

8 mm

5Connect cables to the sound bar.

For the connection procedure, see the Quick Guide or User Guide of your product.

Mounting the sound bar on a wall

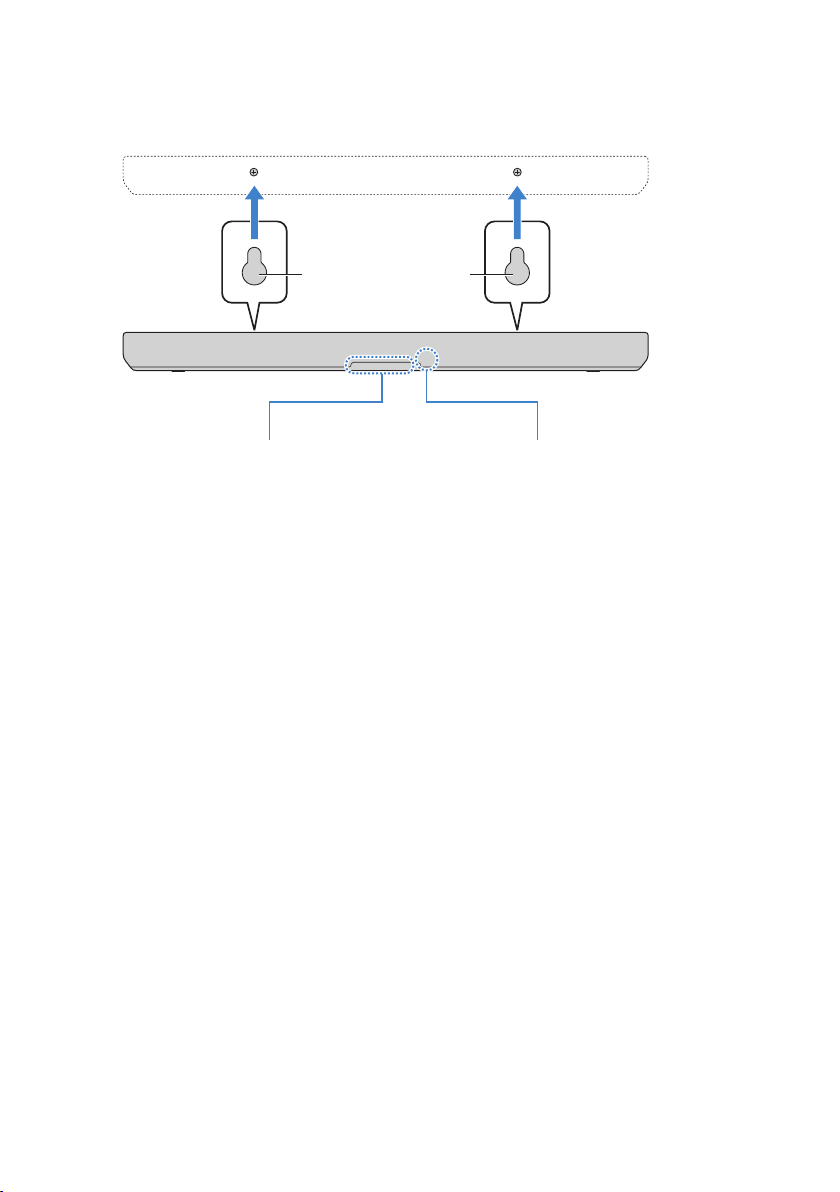

6Hang the sound bar on the screws.

Sound bar screw-

hanging holes

Indicators Remote control sensor

The installation is completed.

Mounting the sound bar on a wall

Yamaha Global Site

https://www.yamaha.com/

Yamaha Downloads

https://download.yamaha.com/

Published 06/2023 NV-A0

AV23-0044

Layout Folder: YMH_PDF_Manual_A5_AV

Stylesheet Name: 01_YMH_PDF_Manual_A5_AV_En-Multi

Stylesheet Version: 2022.12.12
