Yamaha ESB-1080 Manuel utilisateur

ESB-1080

Installation Guide

Table of contents

1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê1

1.1. Install Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê1

1.2. About the Setup Text File Creation Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê1

2. Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê2

2.1. Conference Mode Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê2

2.2. Hotel Mode Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê3

2.3. Function limitations of remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê4

3. Preparation of Setup Text File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê5

3.1. Creation of text data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê5

3.2. Copy to USB memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê5

4. Operation of Install Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê6

4.1. Transition to Install Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê6

4.2. About work in the canceled status of Install Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê6

1. Introduction

1.1. Install Mode

Because this same model has different functions depending on whether it is to be installed in a conference room

or hotel room, it features two Install modes: Conference and Hotel.

The ESB-1080 is started in conference mode by default. Refer to this Install Guide for instructions on the various

settings of Conference mode, changing to Hotel mode, and cancelling these Install modes.

1.1.1. Conference Mode

This mode has been optimized for installation in corporate conference rooms as an extension speaker for

teleconferencing and video presentations.

Sound processing is optimized according to the teleconference application.

1.1.2. Hotel Mode

This mode is optimized for installation in hotel rooms.

As with the Conference Mode, it has specific installation settings, and the sound processing is optimized for

listening to TV and movies.

1.2. About the Setup Text File Creation Tool

By loading the Setup Text File to this unit, each function of Install Mode can be customized.

the Setup Text File can be created using the tool (ESB_ConferenceHotelMode_Setup.xlsm) included with and

explained by this Installation Guide.

1. Introduction

ESB-1080 Installation Guide | 1

2. Functional specifications

2.1. Conference Mode Configuration

The Conference Mode Configuration allows you to change any setting by using the Setup Text File.

The setting items that can be changed and the default settings are as follows.

Setting items Description Default configuration

Turn on Volume Sets the power-on Volume in the range of 0 to 50. 20

Max Volume Sets the maximum Volume in the range of 1 to 50. 40

Key Pattern Sets the front panel key lock.

The following two types of key lock patterns can be

selected.

1. Lock all keys.

2. Enable for Volume +/-, Mute key only.

Surround Mode Enables/disables the surround function. Disable

Bluetooth Function Enables/disables the Bluetooth function. Enable

Bluetooth Name Allows setting of the displayed Bluetooth name. ESB-1080

Auto Power Standby Enables/disables the Auto Power Standby function. Disable

Power Status Back Up Enables/disables the function for maintaining the

power status when the AC cable is disconnected and

reconnected.

Disable

Turn on Input Sets the power-on input. The input can be selected

from HDMI, ANALOG, and BLUETOOTH.

HDMI

Note

•When the Turn on volume is set to 0, the volume before power off is maintained.

•In Conference Mode, the Surround function is disabled to maintain the clarity of the conference

audio. If you use remote conference, we recommend that you keep it disabled.

•Set the Bluetooth Name using ASCII code (1 byte) within 13 characters.

2. Functional specifications

2| ESB-1080 Installation Guide

2.2. Hotel Mode Configuration

Hotel Mode Configuration can be changed any setting by using the Setup Text File.

The setting items that can be changed and the default settings are as follows.

Setting items　Description Default configuration

Turn on Volume Sets the power-on Volume in the range of 0 to 50. 20

Max Volume Sets the maximum Volume in the range of 1 to 50. 50

Key Pattern Sets the front panel key lock.

The following two types of key lock patterns can be

selected.

1. Enable for Volume +/-.

2. Lock all keys.

Bluetooth Function Enables/disables the Bluetooth function. Enable

Bluetooth Name Allows setting of the displayed Bluetooth name. ESB-1080

Auto Power Standby Enables/disables the Auto Power Standby function. Disable

Power Status Back Up Enables/disables the function for maintaining the

power status when the AC cable is disconnected and

reconnected.

Disable

Turn on Input Sets the power-on input. The input can be selected

from HDMI, TV, ANALOG, BLUETOOTH.

HDMI

Note

•When Turn on voleme is set to 0, the volume before power off is maintained.

•Set Bluetooth Name using ASCII code (1 byte) within 13 characters.

2. Functional specifications

ESB-1080 Installation Guide | 3

2.3. Function limitations of remote control

In Conference Mode, in order to optimize sound processing for teleconferencing applications,

functional changes are limited. Therefore, some remote control operations are also disabled.

Even in Hotel Mode, remote control operations for some functions are disabled.

Button Conference Mode Hotel Mode

Power ENABLE ENABLE

Input HDMI ENABLE ENABLE

TV DISABLE ENABLE

ANALOG ENABLE ENABLE

BLUETOOTH ENABLE ENABLE

SURROUND ENABLE ENABLE

3D SURROUND ENABLE ENABLE

INFO DISABLE DISABLE

BLUETOOTH STANDBY DISABLE ENABLE

SUBWOOFER (+/-) DISABLE ENABLE

MUTE ENABLE ENABLE

STEREO ENABLE ENABLE

CREAR VOICE DISABLE ENABLE

DIMMER ENABLE ENABLE

BASS EXTENSION DISABLE ENABLE

VOLUME (+/-) ENABLE ENABLE

Note

•Surround Button and 3D Surround Button conform the setting of Surround Mode.

•Bluetooth Button conforms to the setting of Bluetooth function.

2. Functional specifications

4| ESB-1080 Installation Guide

3. Preparation of Setup Text File

3.1. Creation of text data

There is a dedicated tool (ESB_ConferenceHotelMode_Setup.xlsm) that lets you create Setup Text File.

Microsoft Office Excel is required to use this tool.

Enter the desired settings in the cells in the red frame and click the "Create a Setup Text File" button. Setup Text

File is generated in the same layer folder as this tool. The file name can be changed only by changing the 3-digit

number part (Example: ROOM000.TXT, ROOM001.TXT, ROOM999.TXT).

3.2. Copy to USB memory

The created Setup Text File is copied to the first layer of USB memory using a PC etc. Do not create multiple

Setup Text Files or folders.

3. Preparation of Setup Text File

ESB-1080 Installation Guide | 5

4. Operation of Install Mode

4.1. Transition to Install Mode

In order to reflect the settings in the unit, it is necessary to re-enter the Install Mode with the USB memory

containing the Setup Text File connected to the USB terminal of the unit, after releasing the Install Mode. If you

have already released Install Mode, go to step 2.

1. Cancels the Install Mode using the remote control.

a. Set the unit to standby mode. Make sure that the main unit LED is not lit.

b. Press the remote controller’s DIMMER button, VOL-button, VOL-button, Mute button in that order.

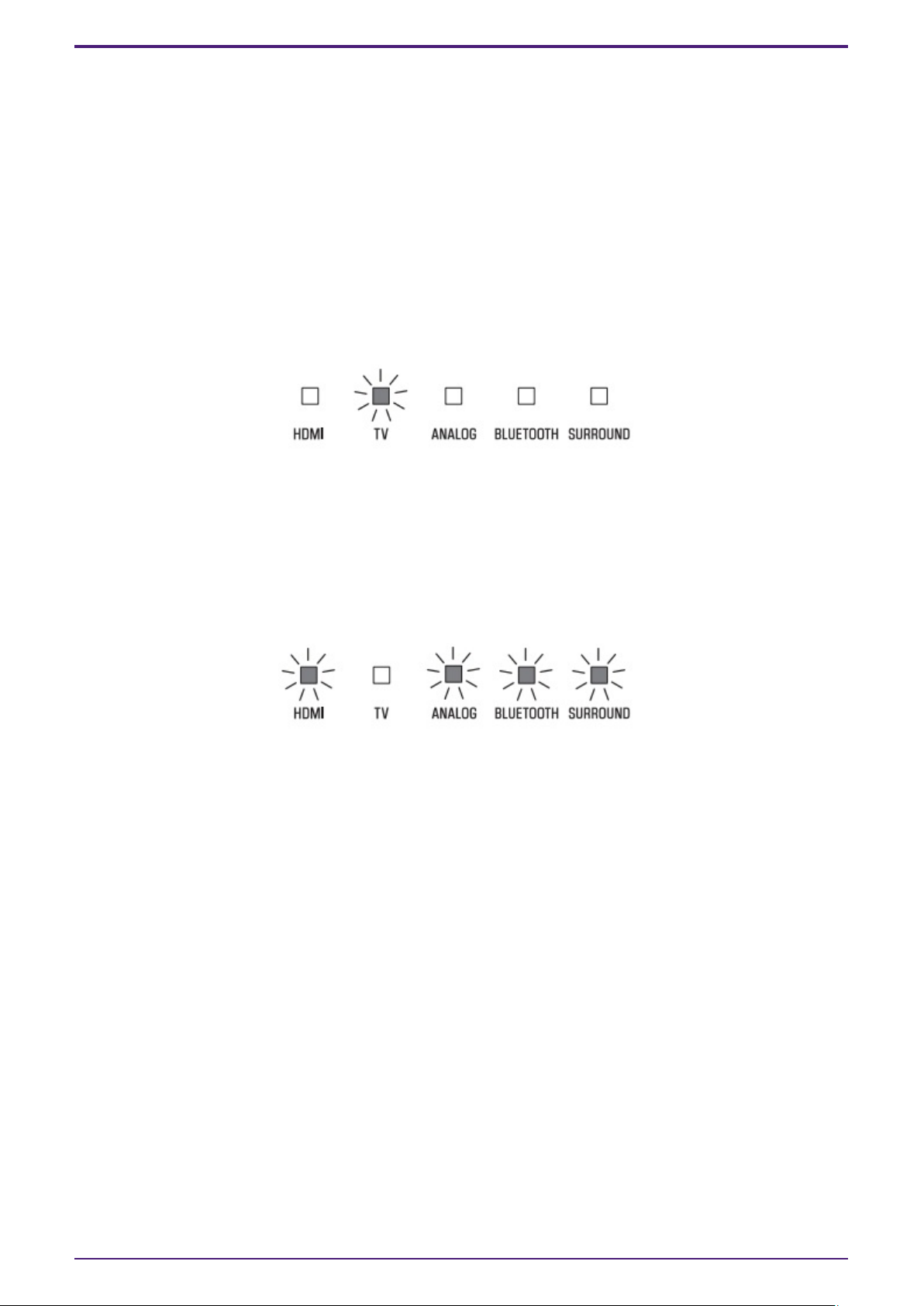

c. Make sure that the main unit LED is lit as follows.

2. Connect the USB memory containing the Setup Text File to the USB terminal of the unit.

a. Set to the Install Mode by using the remote controller.

b. Make sure that the unit is in standby status.

c. Press the BASS EXTENSION button, VOL + button, VOL + button , Mute button on the remote

controller in this order. Make sure that the main unit LED is lit as shown below and the power to the

unit is turned on.

ÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊd. Check if any settings are properly reflected.

ÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊe. Remove the USB memory from the USB terminal of the main unit.

After that, the Install Mode status is maintained until Install Mode is canceled.

Install Mode is maintained even if the outlet is connected or disconnected.

4.2. About work in the canceled status of Install Mode

Optimization of sound processing and functions such as panel lock do not work, but it can be used as a

surround-compatible sound bar even when Install Mode is canceled. If you can not use the remote conference, or

if you do not need to restrict user operations, it can be used by canceling the Install Mode.

Optimization of sound processing and other functions such as panel lock cannot be used, but it can be used as a

surround-compatible sound bar even when Install Mode is canceled. If you are not conducting a remote

conference, or if you do not need to restrict user operations, it can be used by canceling the Install Mode.

4. Operation of Install Mode

6| ESB-1080 Installation Guide

Manual Development Group

Published 08/2019

YJ-A0
